Product Description

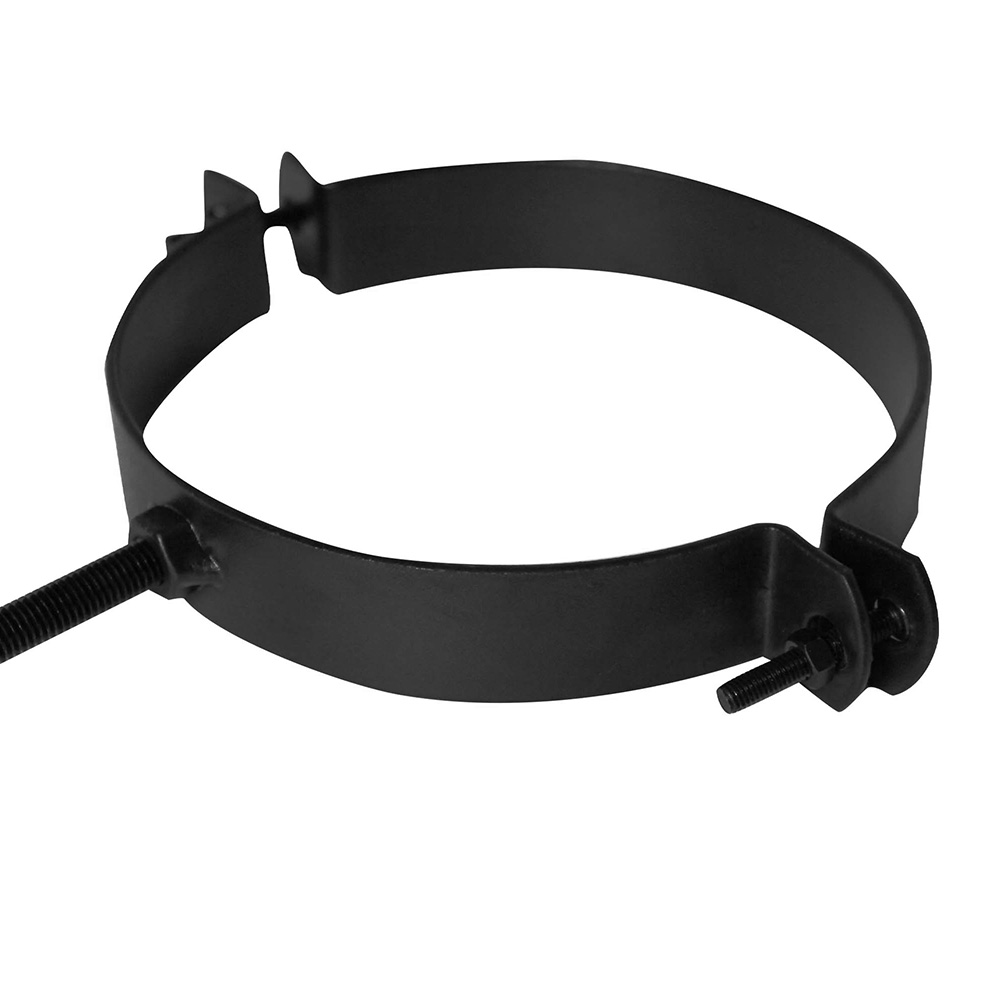

100mm Adjustable Wall Bracket

Model: 67-100-051

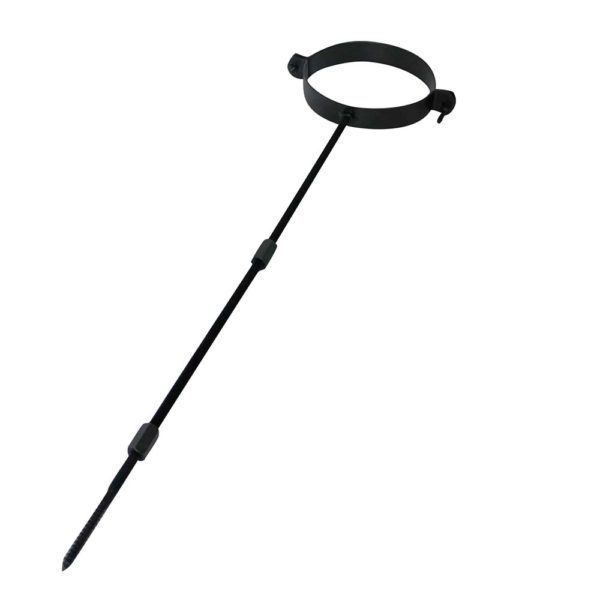

Adjustable Wall Bracket 100mm

For reference, the total length of the rod is 250mm

Vit Smooth Vitreous Enameled Flue System Specification

• Suitable for oil, gas and Solid Fuels, for domestic heating appliances
• Versitile and capable of satisfying the demands of most installations
• Continuity and Quality
• CE Approved
• Hetas Approved

Finished products have an internal and external vitreous enamel coating to offer extremely high resistance to heat and toxic or corrosive gasses meeting with the requirements of BSEN ISO 28706 – 1:2011.

Application

Suitable for gas, oil and solid fuel appliances with temperatures up to 750 degrees C. Stove pipe should only be used as a connecting pipe between your appliance and flue liner / chimney stack / twin wall flue system. Black stove pipe should NOT be used to pass through ceilings or walls.

Installation Check List

You should not install a piece of black stove pipe within 3 times the diameter of the flue from combustible material, e.g. wood, plaster boards, etc. A 5 inch (125mm) diameter piece of black stove pipe should be 15 inches (375mm) away from combustible materials. When installing make sure black stove pipe is installed the correct way up – the smaller diameter should always be pointing downward.

This is because all the condensates will stay within the flue system and not pass to the outside of black stove pipe. Each joint should be coated with a jointing compound (fire cement or high temperature silicone sealant). This makes sure that no condensate can escape and spoil the appearance of the pipe.
