150mm Vitreous Enamel Stove Connect Pipe

£23.00 £27.60 (inc vat)

Out of stock

Product Description

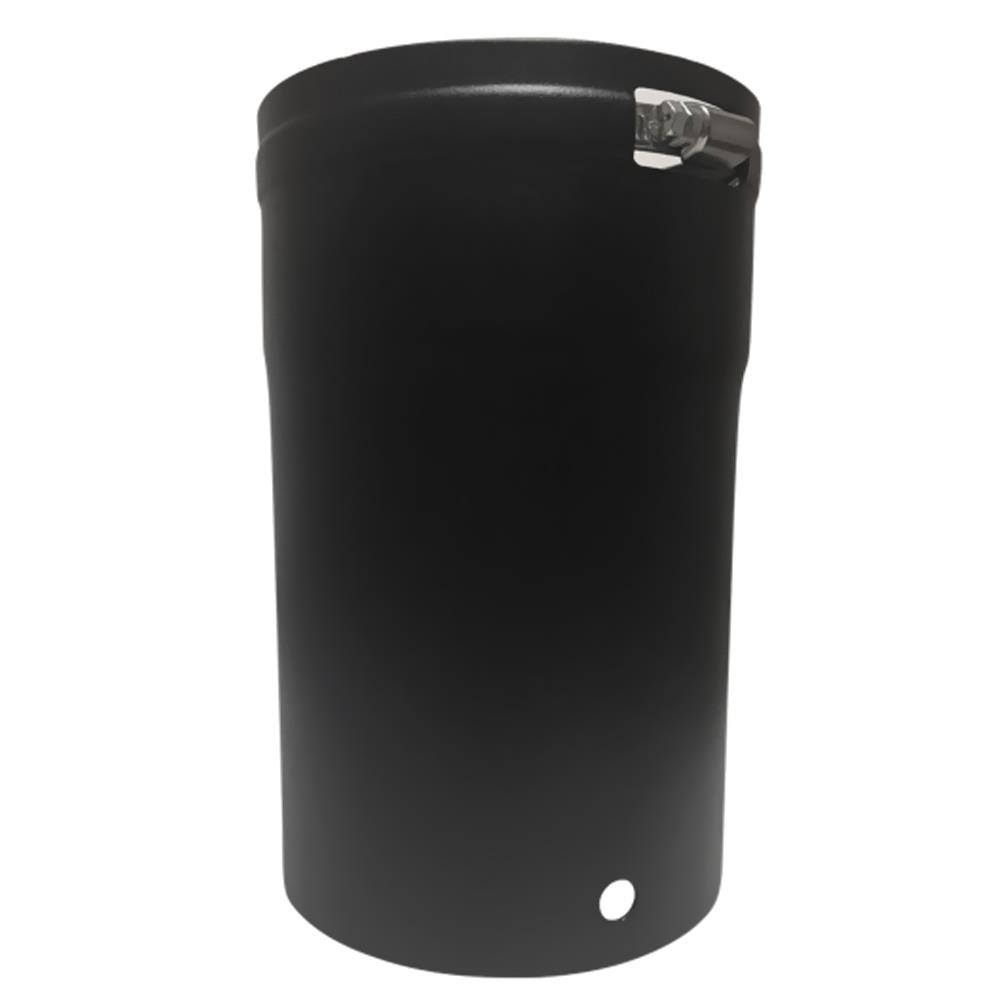

Stove Connect Pipe Vitreous Enamel 150mm

Model: 67-150-004

Stove Connect Pipe – Ø 150mm.

Why Choose VIT-Smooth?

VIT-Smooth is a new industry standard when it comes to welding and the finishing of vitreous enamel. The Welds are almost invisible. All the welds on bends are ground down so they are totally smooth. The texture and colour of the enamel is very matt black to match most uk stoves.

Vit-Smooth uses 1,2mm thick zero carbon steel, then coats of powdered enamel are added giving a total thickness of 1.4mm to 1.5mm. Most of our competitors use 1mm steel or even thinner!.

Vit Smooth Vitreous Enamelled Flue System Specification:

  • Vit-Smooth brochure
  • Friction Fit (No Fire Clay required)
  • Total thickness including enamel 1.4mm
  • low carbon steel 1.2mm
  • Suitable for oil, gas and Solid Fuels, for domestic heating appliances
  • Versatile and capable of satisfying the demands of most installations
  • Continuity and Quality
  • CE Approved
  • Hetas Approved

Finished products have an internal and external vitreous enamel coating to offer extremely high resistance to heat and toxic or corrosive gasses.

Application

Suitable for gas, oil and solid fuel appliances with temperatures up to 750 degrees C. Stove pipe should only be used as a connecting pipe between your appliance and flue liner / chimney stack / twin wall flue system. Black stove pipe should NOT be used to pass through ceilings or walls.

Installation Check List

You should not install a piece of black stove pipe within 3 times the diameter of the flue from combustible material, e.g. wood, plaster boards, etc. A 5 inch (125mm) diameter piece of black stove pipe should be 15 inches (375mm) away from combustible materials. When installing make sure black stove pipe is installed the correct way up – the smaller diameter should always be pointing downward.

This is because all the condensates will stay within the flue system and not pass to the outside of black stove pipe. Each joint should be coated with a jointing compound (fire cement or high temperature silicone sealant). This makes sure that no condensate can escape and spoil the appearance of the pipe.



Additional Information

Weight 1000 g
gtin

5060795860123

Manufacturer

Mi Flue

Brand

MPN

67-150-004

SKU

67-150-004

Unit Quantity

1

EAN

5060795860123

Warranty

12 Year Warranty

Shipping

Medium Item

Range

Vitreous Enamel 6 inch

condition

new

Woocategory1

Flues & Fittings

Woocategory3

6 Inch (150mm) Vitreous Enamel

Woocategory2

Vitreous Enamel Single Wall Flue

Country/Region of Manufacture

United Kingdom

Main Colour

Matt Black

Colour

Matt Black

Width

6 inch

Hetas Approved

Yes

Length

0

Standards

EN1856-2 T600 N1 Vm L80120 G450

Outer Material

1.2mm thick

Distance From Combustibles

450mm













Local Pick Up           Free

England & Wales    £2.99

Scotland From        £3.99

Unfortunately we do not deliver to Ireland, Scottish Islands and Isle Of Wight.

If you need more infomation regarding delivery, please call 01843 842727 Mon to Fri 8am to 5pm.
