Product Description

Split System Air Conditioning Cool/Heat 9000BTU

Model: KFR23-IW/AG – S

Air Conditioning Centre KFR23-IW/AG split air conditioning units are perfect for both residential and commercial use. The KFR23-IW/AG is a highly energy efficient, easy to install, multipurpose single wall split unit and can be used all year round. It will keep your home or office cool and fresh during the summer months and toasty and warm throughout the winter.

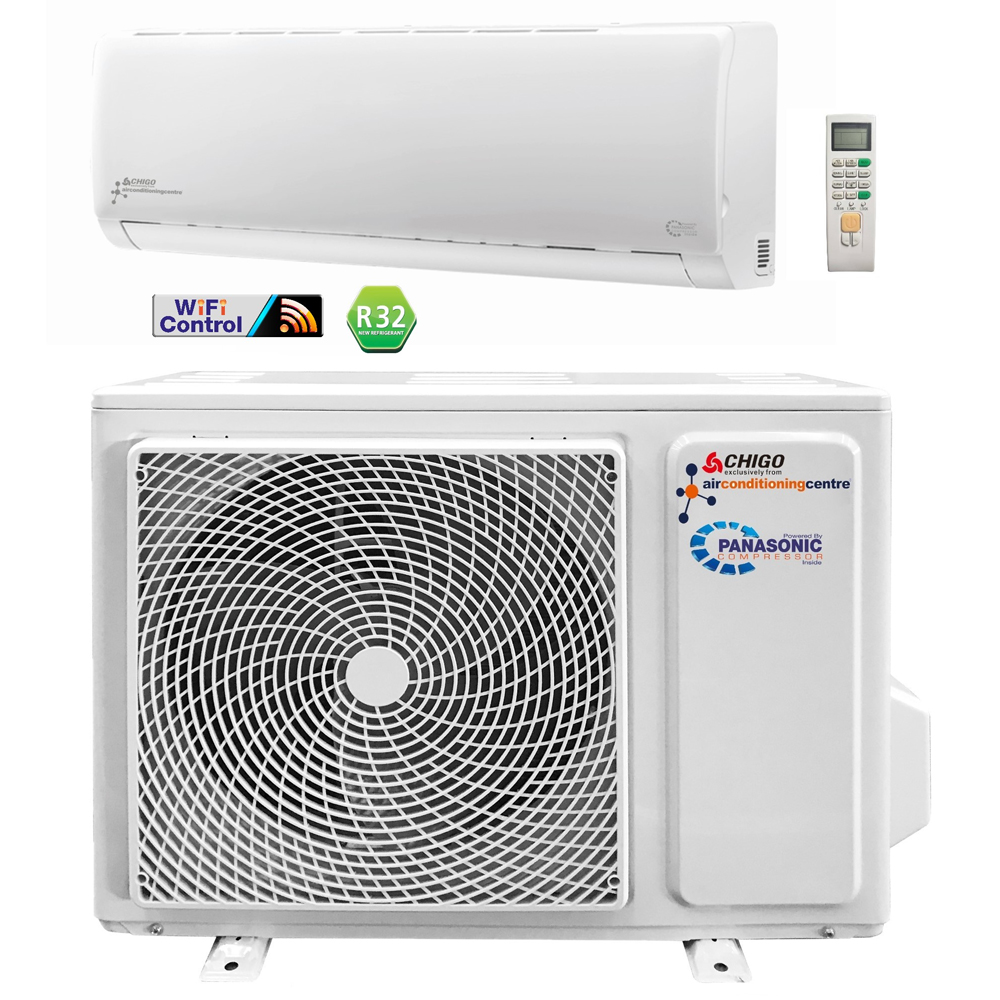

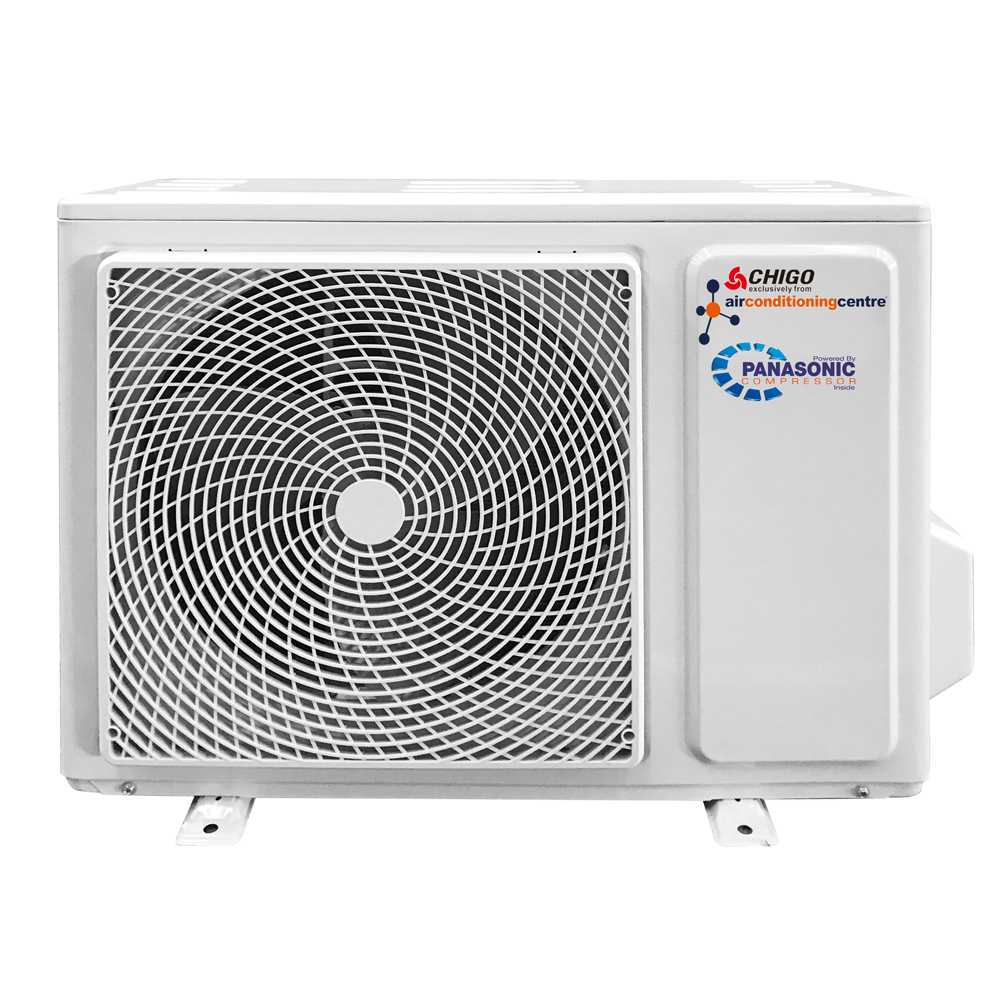

Our split system air conditioning units consist of an indoor and outdoor unit, connected via copper piping. The outdoor unit contains the condenser and removes heat and condensation from the room, dissipating it outside. All our AC units are heat pumps and are able to both heat and cool. The outdoor unit of this system can also be installed using our optional Bracket Kit if required.

Air Conditioning Centre KFR23-IW/AG-S Features:

• This unit features a Panasonic compressor

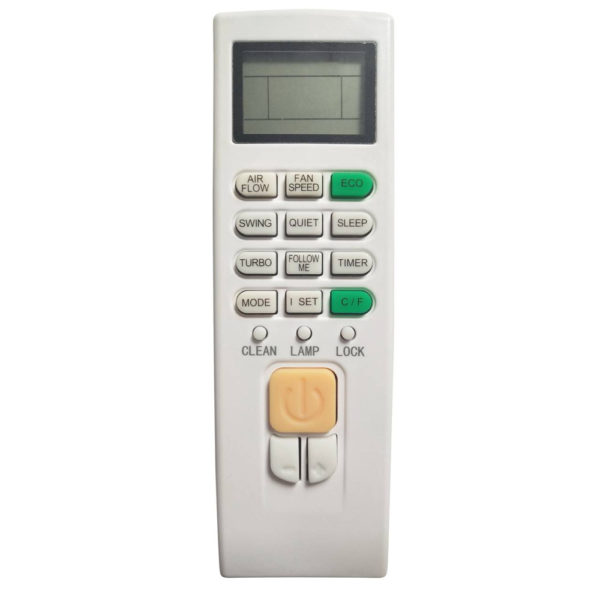

• Remote Control
• Adjustable fan speeds for rapid cooling or minimum noise
• Heat Pump Model Provides Heating As Well As Cooling
• Oscillating air vanes for maximum dissipation of cold air
• Timer feature to turn the unit on and off automatically
• Air filters to remove odours and particles
• Anti Mould Coating For Hygienic Operation
• Digital Display To Show Operational Settings & Temperature
• Heat pump model provides heating as well as cooling
• Voice-controllable with Alexa and Google home
• Optional Extra – Mounting Bracket For Outside Unit
• Optional Extra – Additional Pipe Extenstion Kits Available

KFR23-IW/AG-S Specification:

• Air Conditioning Centre KFR23-IW/AG-S infomation sheet
• Power Rating – 220-240V / 50 Hz
• Capacity BTU/H (cooling) – 9000 (2.6kW)
• Capacity BTU/H (heating) – 9500 (2.7kW)
• Power Input (W) Cooling/Heating – 775/775
• Current Input (W) Cooling/Heating – 3.4/3.4
• Indoor Noise Level db(A) -Low 30, Med 39, High 50
• Dehumidification (L/h) – 0.90
• Airflow (m3/h) – 520 Max
• Net Dimension (mm) indoor (W/D/H) – 792 x 279 x 195
• Net Dimension (mm) outdoor (W/D/H) – 830 x 540x 325
• Net Weight Indoor – 10 (kg)
• Net Weight Outdoor – 29 (kg)
• Max Room Size – 13-25m sq
• Max Conservatory Size – 12m sq
• Connecting Pipe Length Inc – 4m
• Selectable temperature range of 16-32 °C
• EER of 6.1
• COP of 4.0
• Temp Range – 16 to 32

What You Get In The Box:

• 1 x Inside Unit, 1 x Outside Unit
• 1 x Remote Control With Wall Holster

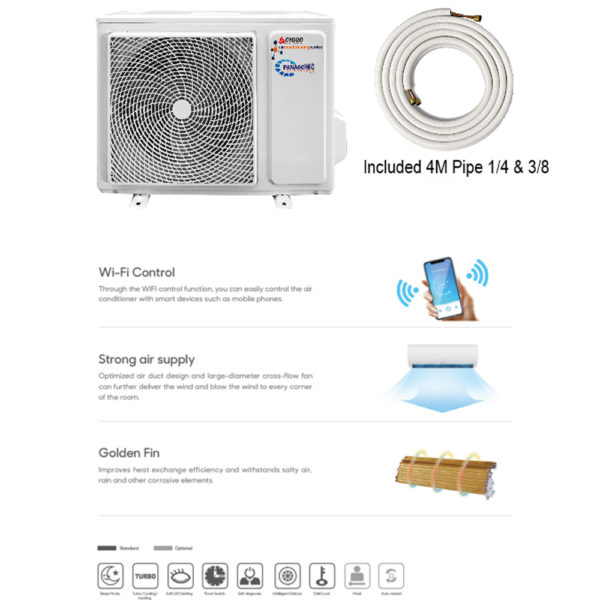

• 1 x Set Of Pre-insulated Copper Pipe To Connect The Units
• 1 x Set Of Electrical Interconnecting Cables
• 1 x Manual

What’s Included For Installation:

• Enough copper tubing and lagging for up to a 4 metre run between the units ( if you need to go further you can by extention kits)
• Wiring for the connection of the inside/outside unit.

Guarantee

• 12 months (unless otherwise stated) from the date of original purchase
• 5 Year Warranty if installed by F-Gas registered installer
• 5 Year Warranty if serviced by F-Gas registered installer
• Warranty and service must be registered with Air Conditioning Centre

Delivery Information:

All Airconditioning Units are delivered on a pallet to prevent damages and come via a haulage company. Deliveries are between the hours 8.00am and 6.00 pm Monday to Friday. We are sorry to advise we can not give a specific delivery time and someone must be there to sign for and check the delivery.
