Product Description

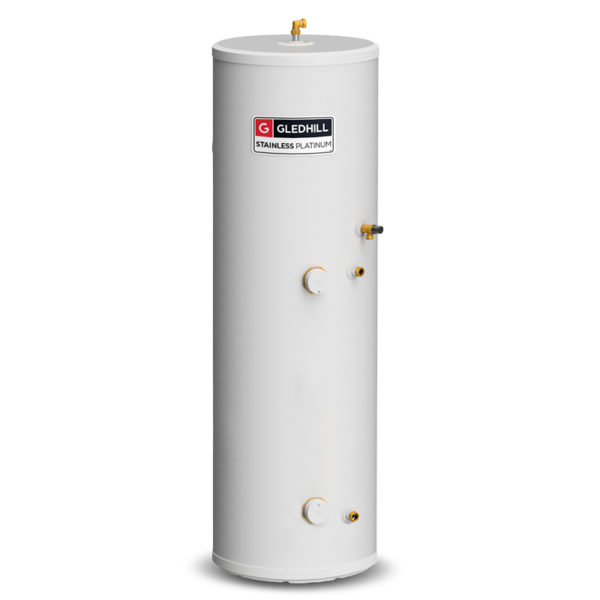

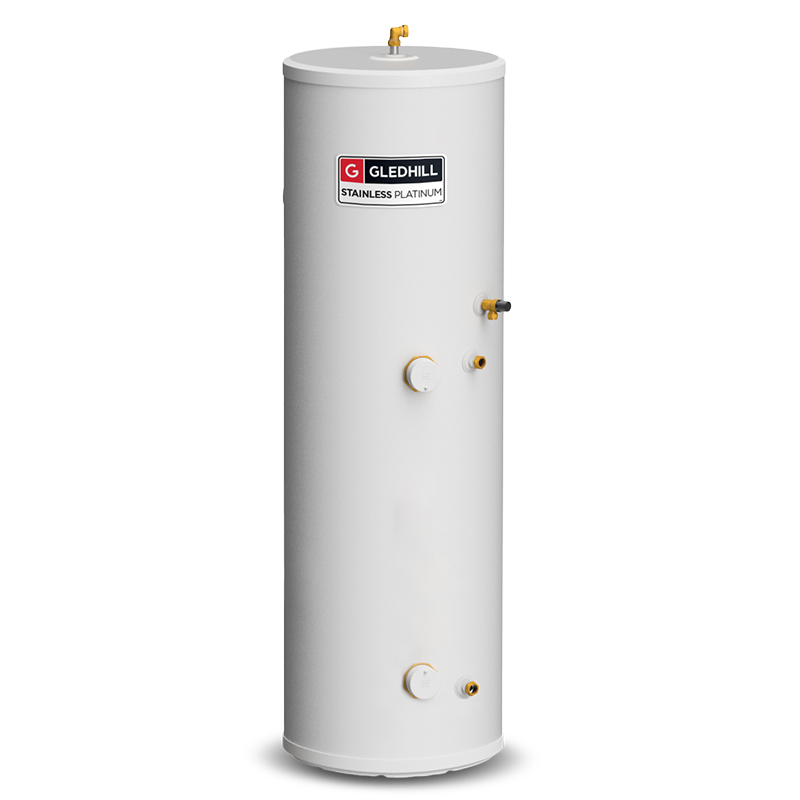

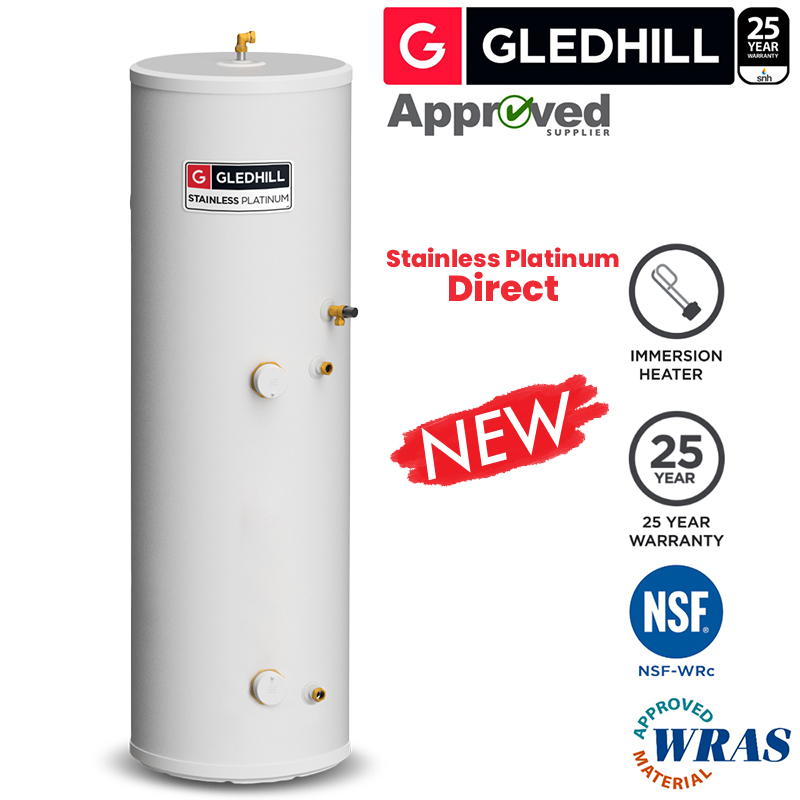

Gledhill Stainless Platinum 180L Direct Unvented Cylinder Stainless Steel

Model: PLTDR180

PLEASE NOTE: Delivery for this item is Mainland England ONLY

Gledhill Stainless Platinum 180L Direct Designed for use with electricity either from mains supply or photovoltaic panels. Suitable for use with economy electricity tariffs to maximise efficiency.

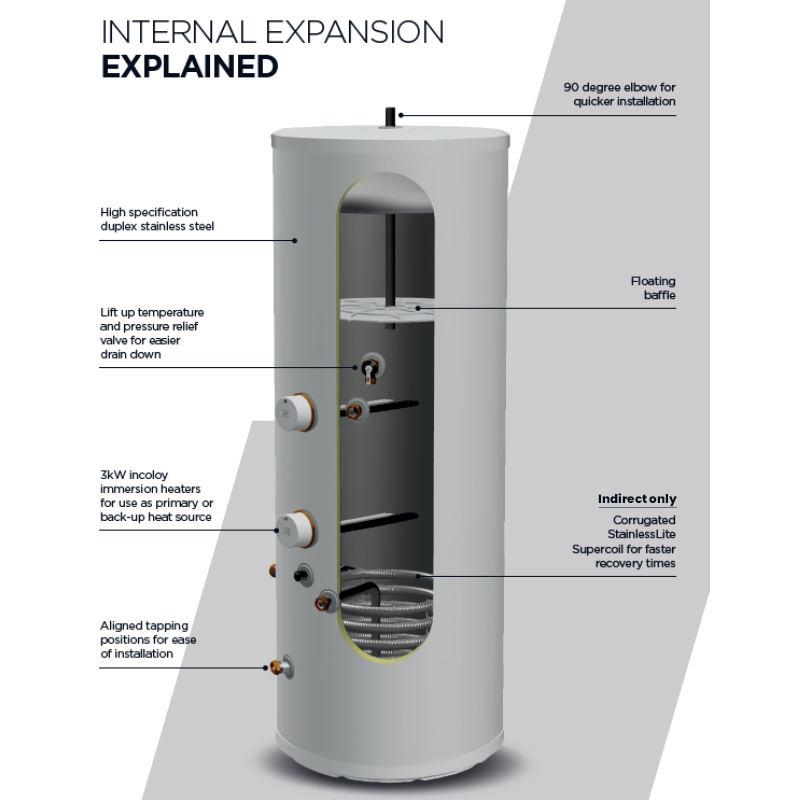

The internal expansion allows for a neat and compact system to produce space saving, enabling tight spaces to be utilised by installers and creating easier access for maintenance to be carried out.

Gledhill Stainless Platinum 180L Direct Features:

• Gledhill Stainless Platinum 180L Direct Information Sheet
• Gledhill Stainless Platinum Fitting Instructions
• 25 Year Warranty
• Capacity 168 litres
• Height 1306mm
• Diameter 550mm
• Weight – empty 34KG, full 202KG
• Erp Rating B
• Heat up time 174 minutes
• Secondary return – N/A
• Maximum inlet pressure 10 Bar
• Pressure reducing valve 3 Bar
• Max working pressure 5 Bar
• High density HCFC free Envirofoam insulation
• High specification duplex stainless steel

What Do You Get In The Box?

• 1 x Gledhill Stainless Platinum Unvented Cylinder
• 2 x 3KW Incoloy immersion heater
• Lift up temperature and pressure relief valve
• Tundish

Gledhill Stainless Platinum is covered by Section G3 of the Building Regulations (England and Wales). Technical Standard P3 (Scotland) and Building Regulation P5 (Northern Ireland). Compliance can be achieved via a Competent Person Self Certification Scheme or notificaton of installation to the Local Authority Building Control Department.
