Product Description

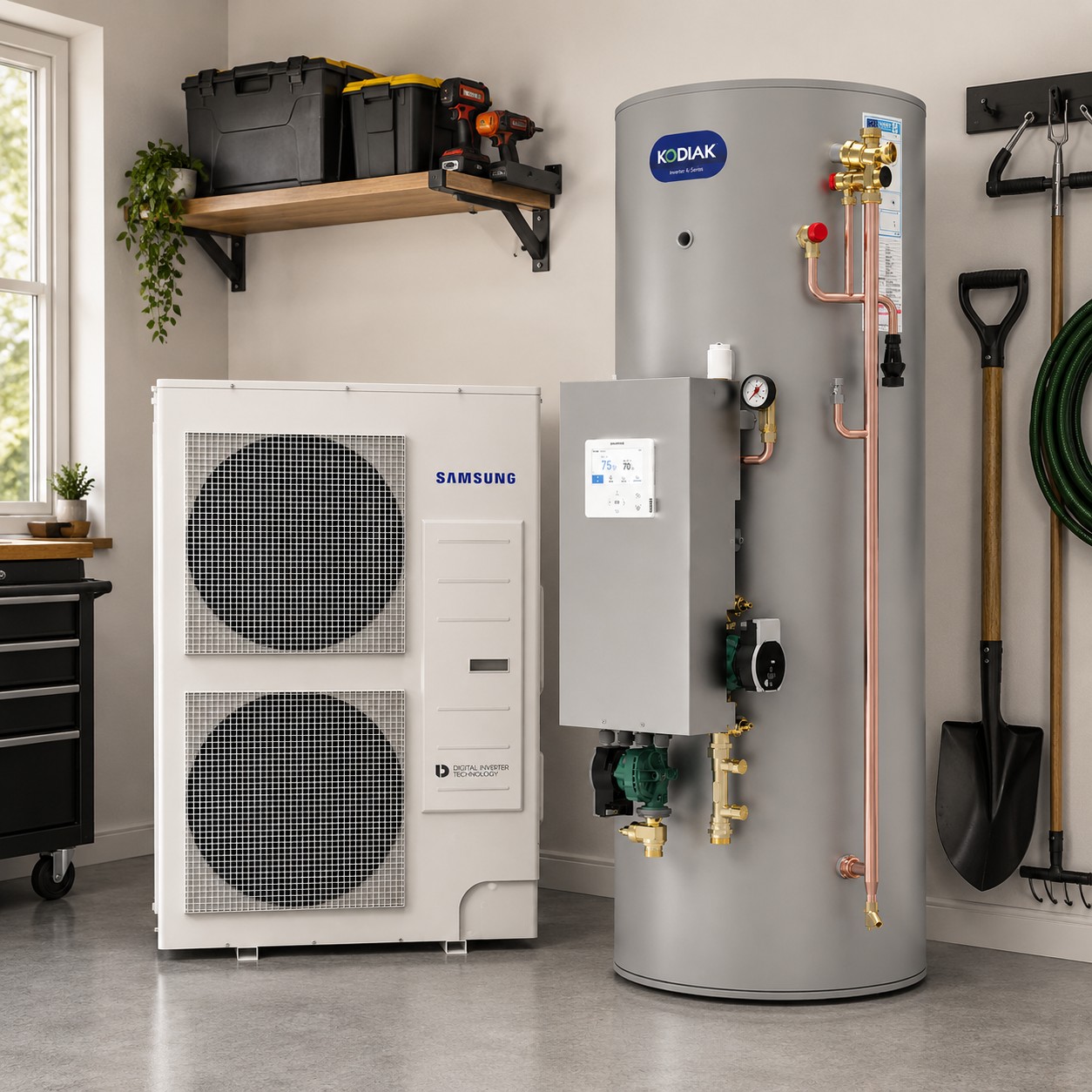

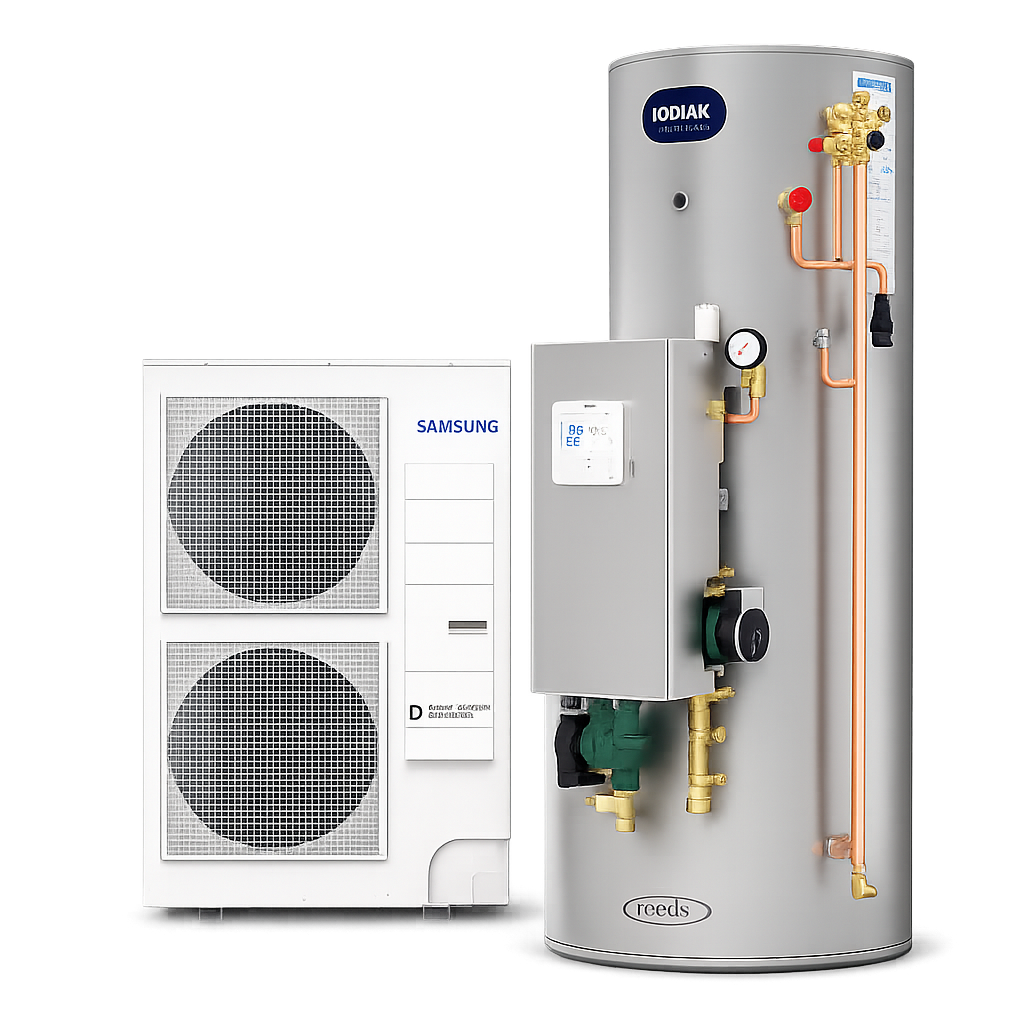

Samsung 12KW Air Source Heat Pump Kit with High Gain Pre-Plumbed Cylinder

Model: Various

PLEASE NOTE: Delivery for this item is Mainland England ONLY

For quotations, please email your floor plan to us and we will design your heating and correctly size your system for you for FREE. darren@snhuk.co.uk

• 3 Zone = 1 for hot water – 2 for heating
• 4 Zone = 1 for hot water – 3 for heating
• Coast Versions = 1 mile away from Sea
• Samsung air source heat pump brochure

What’s in the box!

• 1 x Unvented Joule Kodiak pre-plumbed cylinder
• 1 x Potable expansion vessel
• 1 x Samsung air source heat pump
• 1 x Free 1 inch Y strainer with isolation
• 2 x Free 28mm red isolation valves
• 2 x Free Braided hoses 28mm x 0.75m long
• 1 x Kodiak controller
• You will need Anti-vibration fix-it foot 600mm
• You will need 20L Concentrate HP fluid

Joule Kodiak Pre Plumbed High Gain Cylinder Features:

• Samsung air source heat pump installation manual
• Warranty on heat pump 7 Years (If commissioned by us or trained installer)
• Warranty on Cylinder Body 25 Years
• Warranty on parts 2 Years
• All warranty is subject to annual servicing
• Maximum inlet pressure 10 Bar
• Maximum operating pressure 7 Bar
• Thermal insulation Dense Pu Foam
• Please check the infomation PDF files for specifications of the cylinder

Samsung Monobloc 12KW Air Source Heat Pump Features:

• Summer output 12KW / Winter output 10.43KW
• Refrigerant type R32
• Water flow rate max 58
• Height 1420mm
• Width 940mm
• Depth 330mm
• EFF Class A++
• Current MFA (A) 35
• Current MCA (A) 28
• Power supply 230v / 50Hz

The SmartPlumb Kodiak by Joule is the most innovative pre-plumbed solution for heat pump systems. The next generation compact Pre-Plumbed pack is designed to control the distribution of heat to each zone. A unique, patented, modular zonal control manifold for heating and hot water systems.

Joule have optimised the layout of the preplumb developing a patented hydraulic design while also making it easier and faster to install the cylinder with improved access for the installer.
