Product Description

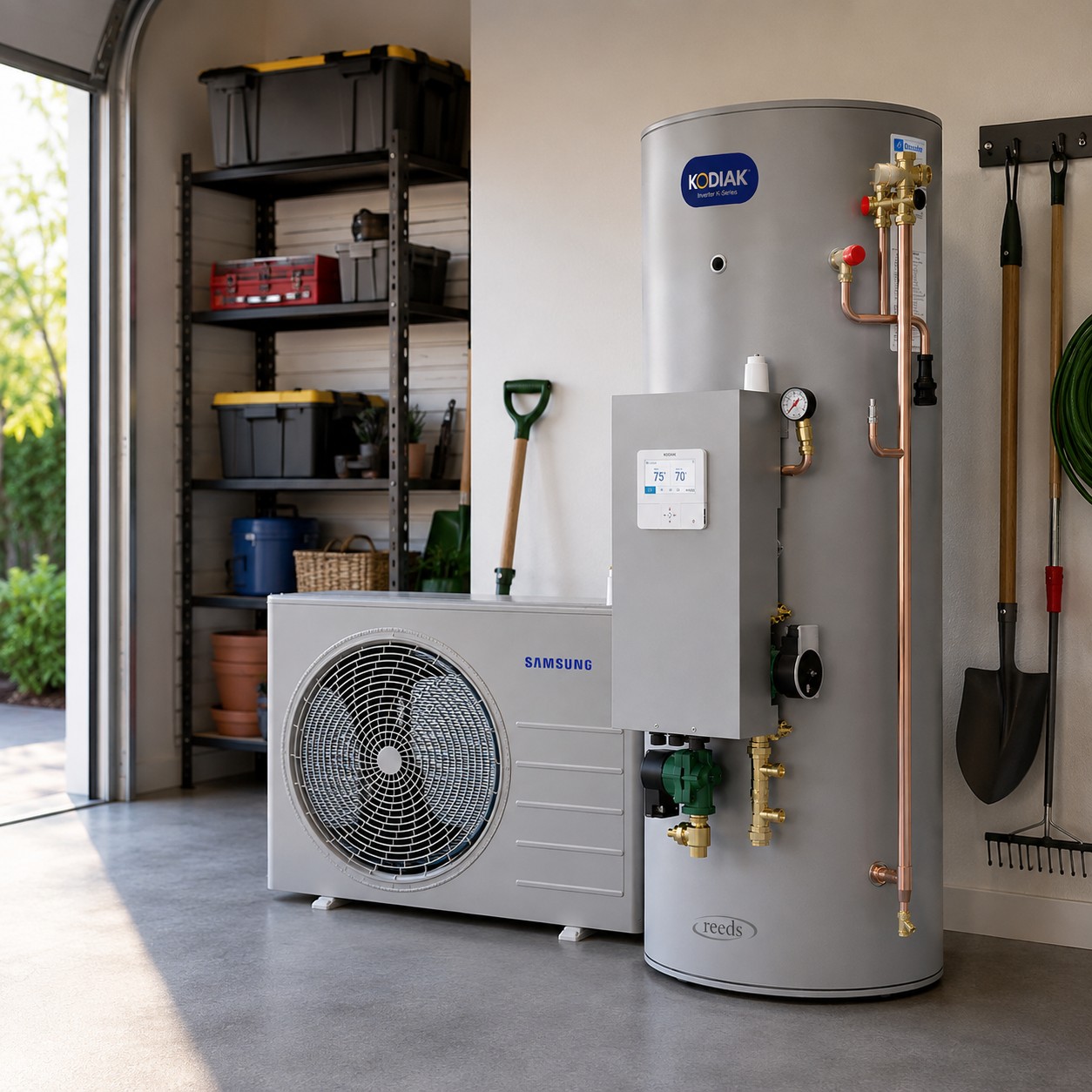

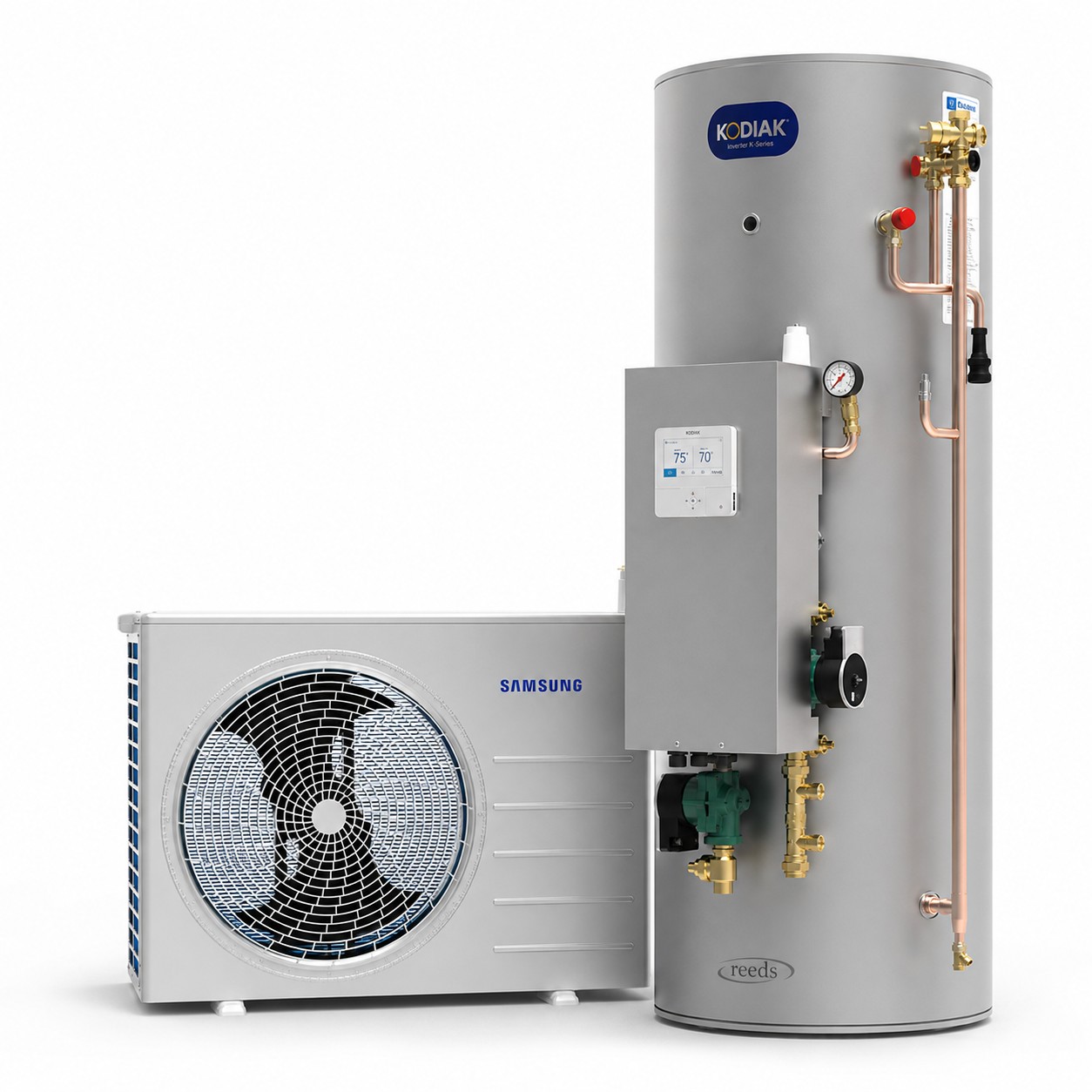

Samsung 8KW Air Source Heat Pump Kit with High Gain Pre-Plumbed Cylinder

Energy Efficient Air Source Heat Pump Heating System

The Samsung 8KW Air Source Heat Pump Kit with High Gain Pre-Plumbed Cylinder is a complete renewable heating solution designed to provide efficient home heating and reliable hot water performance. Combining a high-efficiency Samsung Monobloc Air Source Heat Pump with a Joule Kodiak pre-plumbed unvented cylinder, this package offers excellent energy efficiency, simplified installation and reliable year-round heating.

In addition, this Samsung heat pump package is ideal for modern domestic properties looking to reduce energy consumption and improve heating efficiency. The advanced pre-plumbed cylinder design helps speed up installation while improving access for future servicing and maintenance.

Furthermore, the Samsung Monobloc 8KW Air Source Heat Pump uses energy-efficient R32 refrigerant technology to deliver reliable low-temperature heating throughout the year. As a result, this renewable heating system is suitable for a wide range of domestic heating applications.

PLEASE NOTE: Delivery for this item is Mainland England ONLY.

For quotations, please email your floor plans to us and we will help design and correctly size your heating system for FREE.

darren@snhuk.co.uk

System Options & Information

• 3 Zone System = 1 Hot Water Zone & 2 Heating Zones
• 4 Zone System = 1 Hot Water Zone & 3 Heating Zones
• Coast Versions Available = Suitable for properties within 1 mile of the sea
• Download Samsung Air Source Heat Pump Brochure

What’s Included In The Box?

• 1 x Joule Kodiak High Gain Pre-Plumbed Unvented Cylinder
• 1 x Potable Expansion Vessel
• 1 x Samsung 8KW Air Source Heat Pump
• 1 x FREE 1 Inch Y Strainer with Isolation
• 2 x FREE 28mm Red Isolation Valves
• 2 x FREE 28mm x 0.75m Braided Hoses
• 1 x Kodiak Controller
• Anti-Vibration Fix-It Foot 600mm Kit
• 20L Concentrate HP Fluid

Joule Kodiak Pre-Plumbed High Gain Cylinder Features

• Download Kodiak Pre-Plumbed Installation Manual
• 25 year warranty on cylinder body
• 7 year warranty on heat pump when commissioned by us or a trained installer
• 2 year warranty on parts
• All warranties subject to annual servicing
• Pre-plumbed design for faster installation
• Compact and space-saving hydraulic layout
• Patented modular zonal control manifold system
• Maximum inlet pressure 10 Bar
• Maximum operating pressure 7 Bar
• Dense PU foam thermal insulation
• Suitable for renewable heating systems
• Please review the PDF files for full cylinder specifications

Samsung Monobloc 8KW Air Source Heat Pump Features

• Summer Output: 8KW
• Winter Output: 6.37KW
• Energy-efficient R32 refrigerant
• Maximum Water Flow Rate: 48
• Height: 998mm
• Width: 940mm
• Depth: 330mm
• Energy Efficiency Class: A++
• Current MFA (A): 22
• Current MCA (A): 27.5
• Power Supply: 230V / 50Hz

Why Choose the Samsung 8KW Air Source Heat Pump Kit?

The Samsung 8KW Air Source Heat Pump Kit with Joule Kodiak Cylinder is designed to provide reliable and energy-efficient heating for modern homes. Because the system combines renewable heat pump technology with a high-performance pre-plumbed cylinder, it helps improve heating performance while reducing installation complexity.

In addition, the Samsung Monobloc Heat Pump delivers reliable low-temperature heating and hot water throughout the year. Furthermore, the Joule SmartPlumb Kodiak system uses an advanced hydraulic design that improves zoning control and installation efficiency.

Therefore, this complete Samsung Air Source Heat Pump Package is an ideal solution for homeowners, installers and renewable heating projects looking for efficient heating and hot water performance.

About the Joule SmartPlumb Kodiak System

The SmartPlumb Kodiak by Joule is an advanced pre-plumbed solution developed specifically for modern heat pump systems. The next-generation compact pre-plumbed pack controls the distribution of heat to individual heating zones while helping improve overall system performance.

Moreover, Joule has optimised the hydraulic layout using a patented design that helps speed up installation while improving future maintenance access for installers and heating engineers.
