Product Description

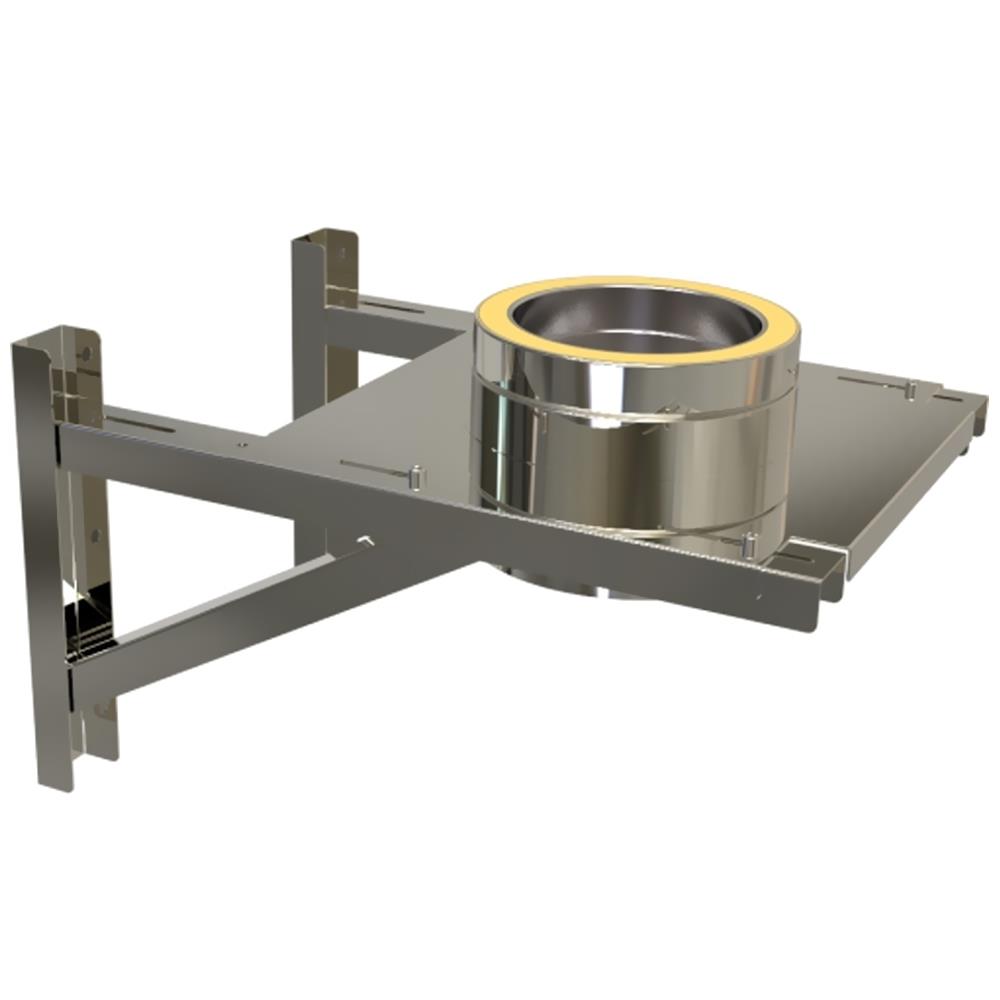

TWPro 150mm Twin Wall 80-280mm Adjustable Base Support 125mm Stainless Steel

Model: 2-150-063

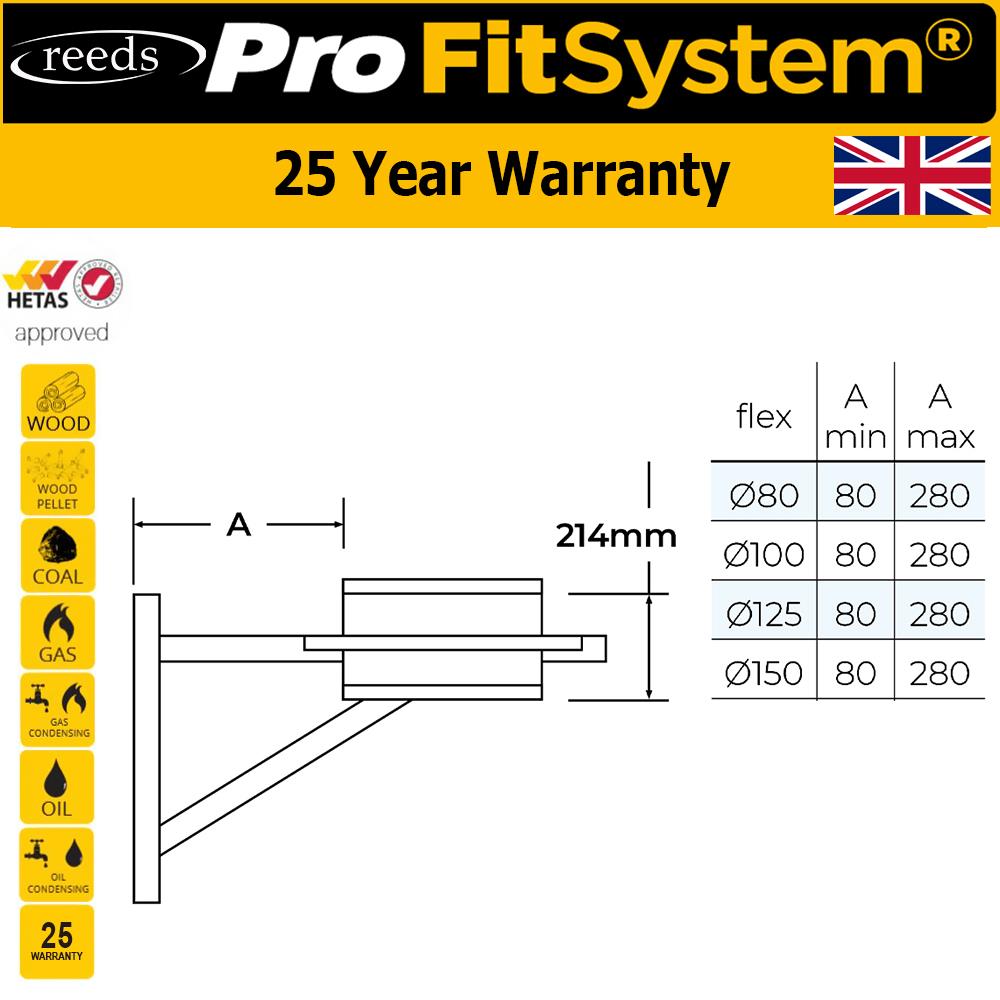

Adjustable Base Supports are used internally or externally to provide vertical support to the chimney. This support has an adjustment of 80mm to 280mm from the wall surface. Only recommended fixings should be used to fit this base support to the building surface.

Application

For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.

Approvals

• HETAS Approved
• CE marked EN1856-1 T600 N1 W V2 L50040 G50
• CE marked EN1856-1 T200 P1 W V2 L50040 O20

Information

• TWPro Information Sheet
• TWPro Installation Sheet
• This will ONLY Fit TWPro and KW pipe and fittings, it is not interchangeable with any other make or system.
• Diameter is internal please add 50mm for the external measurement
• 25 Year Warranty (Conditions apply)
• 2 Year Warranty on paint finish
• Inner casing material – 0.4mm 316L Grade Stainless Steel
• Outer casing material – 0.4mm 304 Grade Stainless Steel – Powder Coated
• Insulation type – 25mm injected mineral wool, 190Kg/m³
• Joint method – Push fit and locking band – FitSystem
• Max operating temp – 600c

Distance to combustibles is 50mm.
