Product Description

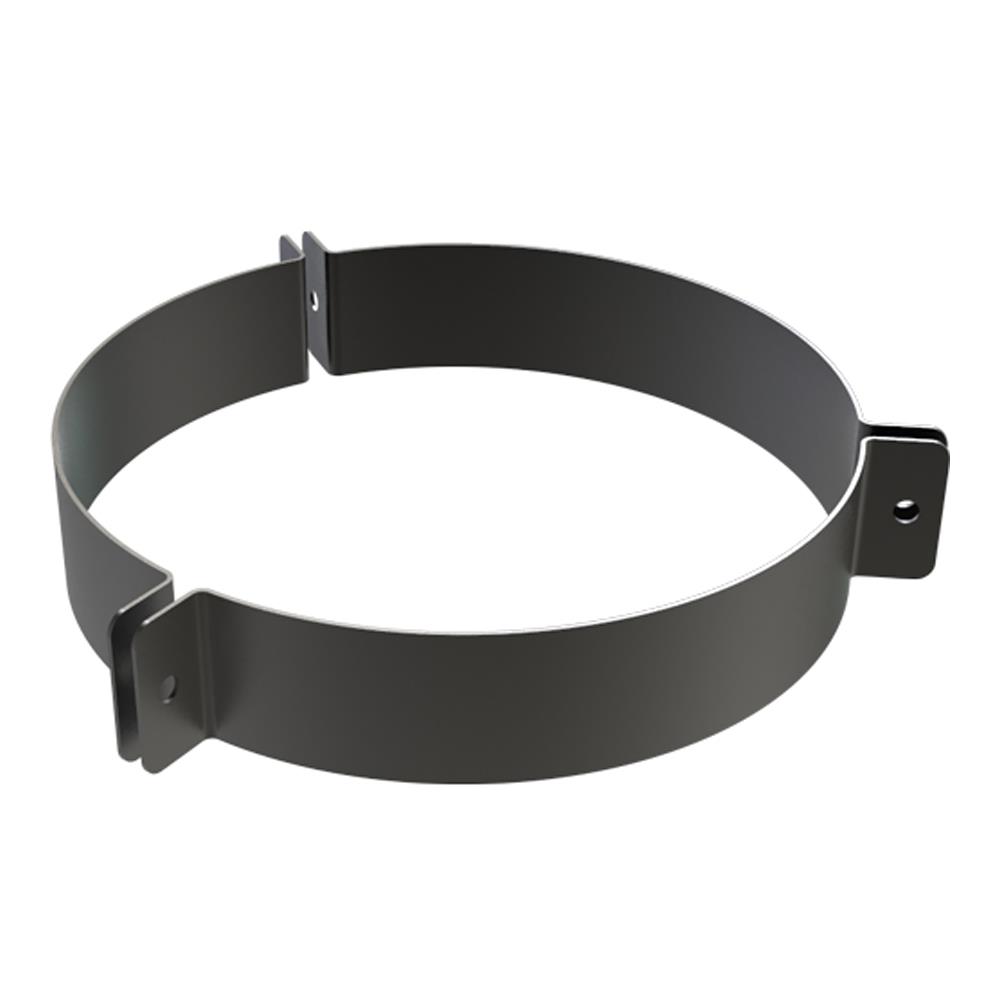

TWPro 150mm Twin Wall Guy Wire Bracket Matt Black

Model: 58-150-069

This component is used to secure unsupported chimney sections above 1.5m of the roof level, an extra 1.5m can be achieved in conjunction with the guy wire kit.

Application

For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.

Approvals

• HETAS Approved
• CE marked EN1856-1 T600 N1 W V2 L50040 G50
• CE marked EN1856-1 T200 P1 W V2 L50040 O20

Information

• TWPro Information Sheet
• TWPro Installation Sheet
• This will ONLY Fit TWPro and KW pipe and fittings, it is not interchangeable with any other make or system.
• Diameter is internal please add 50mm for the external measurement
• 25 Year Warranty (Conditions apply)
• 2 Year Warranty on paint finish
• Inner casing material – 0.4mm 316L Grade Stainless Steel
• Outer casing material – 0.4mm 304 Grade Stainless Steel – Powder Coated
• Insulation type – 25mm injected mineral wool, 190Kg/m³
• Joint method – Push fit and locking band – FitSystem
• Max operating temp – 600c

Distance to combustibles is 50mm.

TWPro Stainless Steel Flue System

This system was created exclusively for TWPro, in the UK it is also branded as KW Flue and makes installing chimneys quick and easy!Super easy assembly, it takes one second and one hand to put two parts together including attaching the locking band! The wall bands are embedded in to the pipe itself, so no protrusions between one section and the next. Technical improvements in the insulation with G50 designation at 600°C, is the best available.
