Product Description

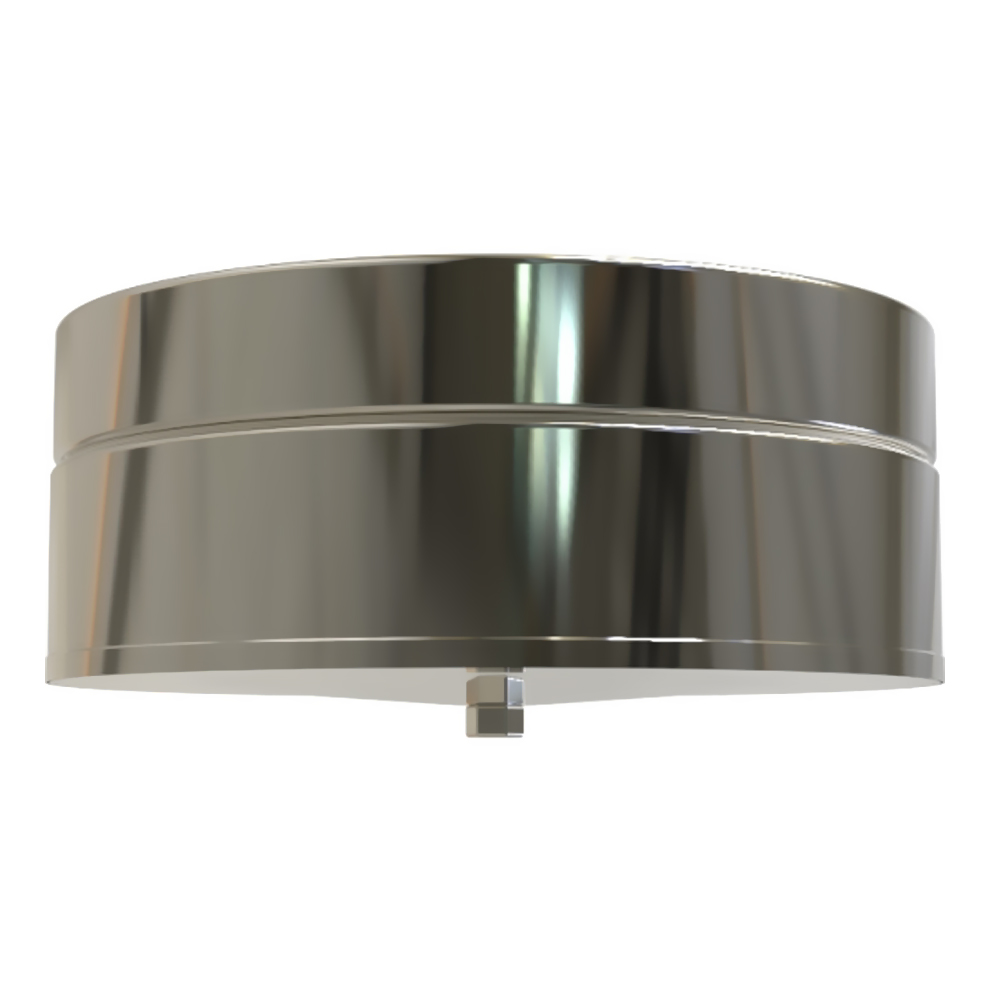

TWPro 150mm Twin Wall Insulated Tee Cap With Drain Stainless Steel

Model: 2-150-037

Used to cap off the bottom or unused end of a 90/135 tee, this is usually fitted to the bottom of a base support to allow easy removal for sweeping and access, this part includes a 10mm threaded drain to allow the connection of a drain pipe to carry away excess condense from the flue system.

Application

For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.

Approval

• HETAS Approved
• CE marked EN1856-1 T600 N1 D V2 L50040 G50.

Construction

• Outer skin is Inox stainless steel AISI 304L
• Inner Skin is Inox stainless steel AISI 316L
• Both inner and outer wall are 0.4mm thick
• All components are fully welded and insulated with high density rockwool
• TWPro comes with a 25 year manufacturers warranty

Distance to combustibles is 60mm.

TWPro Stainless Steel Flue System

TWPro has a unique, robust jointing system that ensures a positive fit on every joint that is secured with a locking band. Clean lined system to the highest standard.
