Product Description

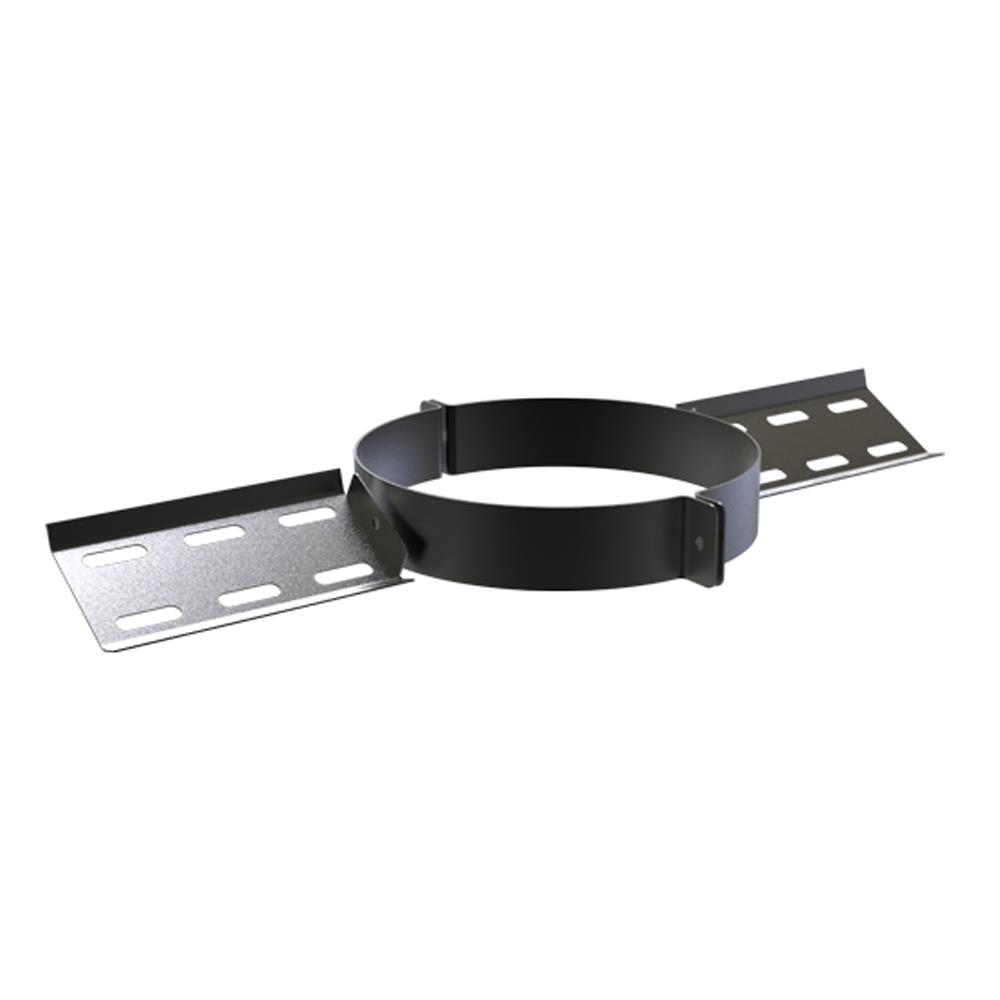

TWPro 150mm Twin Wall Roof Support Matt Black



Model: 58-150-067

The Roof Support will rotate on 2 screws so that the flue can be installed vertically through the roof. The Roof Support is attached to the rafters in the roof space, allowing a fixed support before the Flue leaves the structure of the building. See loading data in guides.

Application

For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.

Approvals



• • HETAS Approved



• • CE marked EN1856-1 T600 N1 W V2 L50040 G50



• • CE marked EN1856-1 T200 P1 W V2 L50040 O20





Information



• • TWPro Information Sheet



• • TWPro Installation Sheet



• • This will ONLY Fit TWPro and KW pipe and fittings, it is not interchangeable with any other make or system.



• • Diameter is internal please add 50mm for the external measurement



• • 25 Year Warranty (Conditions apply)



• • 2 Year Warranty on paint finish



• • Inner casing material – 0.4mm 316L Grade Stainless Steel



• • Outer casing material – 0.4mm 304 Grade Stainless Steel – Powder Coated



• • Insulation type – 25mm injected mineral wool, 190Kg/m³



• • Joint method – Push fit and locking band – FitSystem



• • Max operating temp – 600c



Distance to combustibles is 50mm.

TWPro Stainless Steel Flue System

This system was created exclusively for TWPro, in the UK it is also branded as KW Flue and makes installing chimneys quick and easy!Super easy assembly, it takes one second and one hand to put two parts together including attaching the locking band! The wall bands are embedded in to the pipe itself, so no protrusions between one section and the next. Technical improvements in the insulation with G50 designation at 600°C, is the best available.
