Product Description

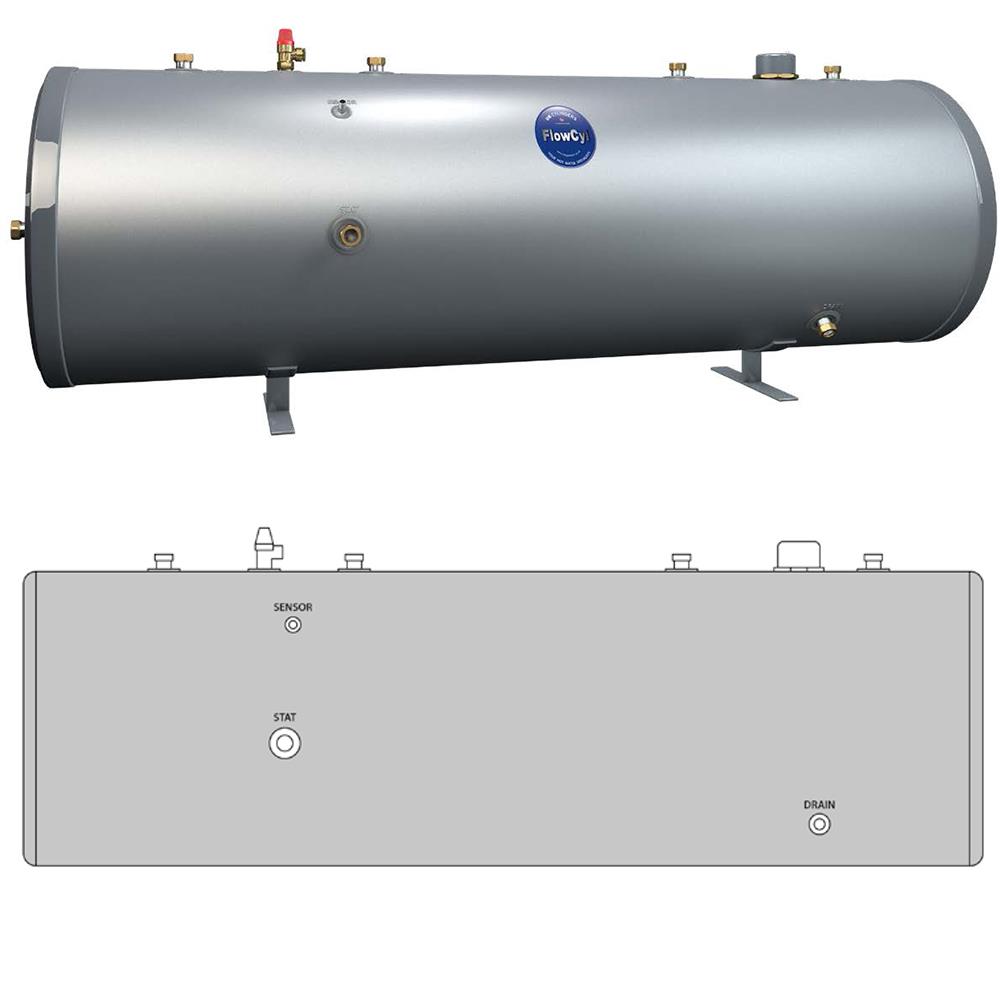

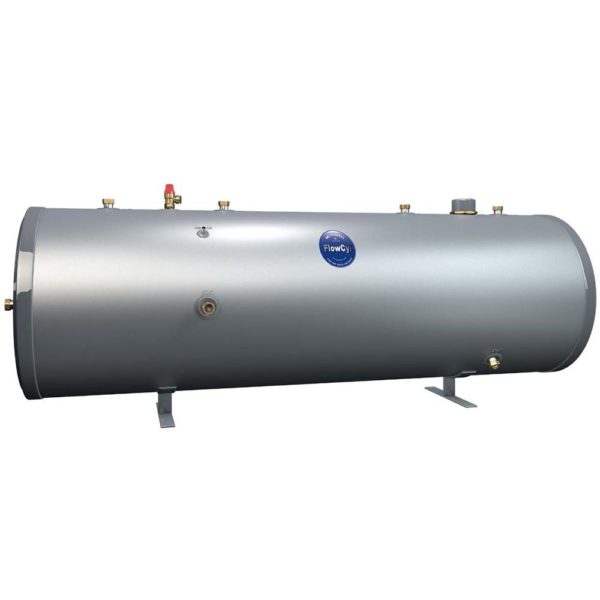

UK Cylinders FlowCyl Heat Pump Horizontal Cylinder 200L

Model: FCHPH3200

PLEASE NOTE: Delivery for this item is Mainland England ONLY

Ideal for use where a vertical cylinder will not fit, typically in a loft space.

FlowCyl Heat Pump Horizontal 200L Cylinder Features:

• UK Cylinders Flowcyl Heatpump Information
• UK Cylinders Flowcyl Heatpump installation Guide
• 25 Year Warranty
• Capacity 200
• Width 1389mm
• Diameter 545mm
• Weight – empty 49KG, full 235KG
• Heat Pump Coil Surface area (2.08 m2)
• 12mm sensor probe pockets provided in both buffer and heat pump cylinder
• Secondary Return – Yes
• ERP Band – C
• Built in 3kW immersion as standard
• 28mm compression fittings as primary connections to coil
• Lightweight construction with high quality and 100% recyclable silver casing

What Do You Get In The Box?

• Stainless heat pump cylinder
• Cold water inlet set
• Two port zone valve
• High limit stat
• Tundish
• 3kw immersion heater
• T&P relief valve
• T&P cover
• Expansion vessel and bracket
• Floor standing cradles

The Flowcyl is also supplied with a 25-year warranty and with high-quality components for peace of mind.
