125mm VIT-Smooth 33° Vitreous Enamel Elbow with Access Door

Model: 67-125-042

Important product update: The access door on the current fitting is positioned on the upper section of the elbow. It is not positioned at the lower end as shown in some older product images. Please check that the current door position suits the proposed installation before ordering.

The 125mm VIT-Smooth 33° elbow with access door creates a shallow change of direction within a compatible single-wall connecting flue. Its built-in door also provides access for inspecting and sweeping the inside of the pipe.

The smooth three-segment construction creates a more gradual flue route than a sharply fabricated bend. Therefore, it can help form an offset while providing useful maintenance access at the change of direction.

Made from 1.2mm zero-carbon steel, the elbow has a powder vitreous enamel coating on its internal and external surfaces. Its matt black finish coordinates with compatible VIT-Smooth stove pipe and many traditional or contemporary appliances.

125mm 33° Elbow with Door Features

• 125mm (5-inch) nominal flue diameter
• Fixed 33-degree change of direction
• Smooth three-segment elbow construction
• Built-in access door for inspection and sweeping
• Current door position: upper section of the elbow
• Manufacturer model number: 67-125-042
• Designed for compatible VIT-Smooth connecting flues
• Helps create a shallow flue offset
• Made from 1.2mm zero-carbon steel
• Approximately 0.2mm powder vitreous enamel coating
• Approximately 1.4mm total thickness, including enamel
• Internal and external enamel finish
• Heat-resistant matt black colour
• Friction-fit connections
• Suitable for compatible gas, oil and solid-fuel appliances
• Maximum continuous operating temperature: 600°C
• Product designation: EN 1856-2 T600 N1 Vm L80120 G375
• Minimum declared distance from combustible materials: 375mm

Technical Specification

• Product type: Single-wall flue elbow with access door
• Nominal diameter: 125mm (5 inches)
• Angle: 33°
• Construction: Three segment
• Access: Built-in inspection and sweeping door
• Door position: Upper section of the fitting
• Material: Zero-carbon steel
• Steel thickness: 1.2mm
• Enamel thickness: Approximately 0.2mm
• Total thickness: Approximately 1.4mm
• Coating: Powder vitreous enamel
• Colour: Matt black
• Joint type: Friction fit
• Temperature classification: T600
• Product standard: EN 1856-2
• Distance from combustibles: 375mm
• Model: 67-125-042

Important Information About the Door Position

Some older product images may show the access door near the lower end of the elbow. However, the current version has the door on the upper segment.

This difference can affect the door’s installed height, direction and accessibility. Before ordering, check that the upper-positioned door will not face a wall, register plate, appliance, bracket or another obstruction.

Product designs and images can change. Therefore, customers who need the door in a particular position should confirm the current configuration with SNH Tradecentre before placing an order.

What Is a 33° Flue Elbow Used For?

This elbow changes the direction of a compatible 125mm connecting flue by 33 degrees. For example, an installer may use it to align a stove pipe with an offset chimney opening or avoid a suitable non-combustible obstruction.

Its shallower angle creates a more gradual change than a 45-degree or 90-degree elbow. As a result, it may help preserve a relatively direct flue route while achieving the required displacement.

However, the final offset depends on the elbow dimensions, orientation and any pipe installed between two bends. Always consult the relevant dimensional drawing before calculating the finished arrangement.

What Is the Access Door Used For?

The built-in door allows a competent person or chimney sweep to reach the inside of the elbow. This access can help them inspect the flue and remove soot or deposits that may collect near the change of direction.

Bends often make chimney cleaning more difficult. Consequently, including an access door at the offset can improve future maintenance.

Nevertheless, one access door may not provide a complete sweeping route through every installation. The installer must confirm that all relevant sections of the chimney remain accessible.

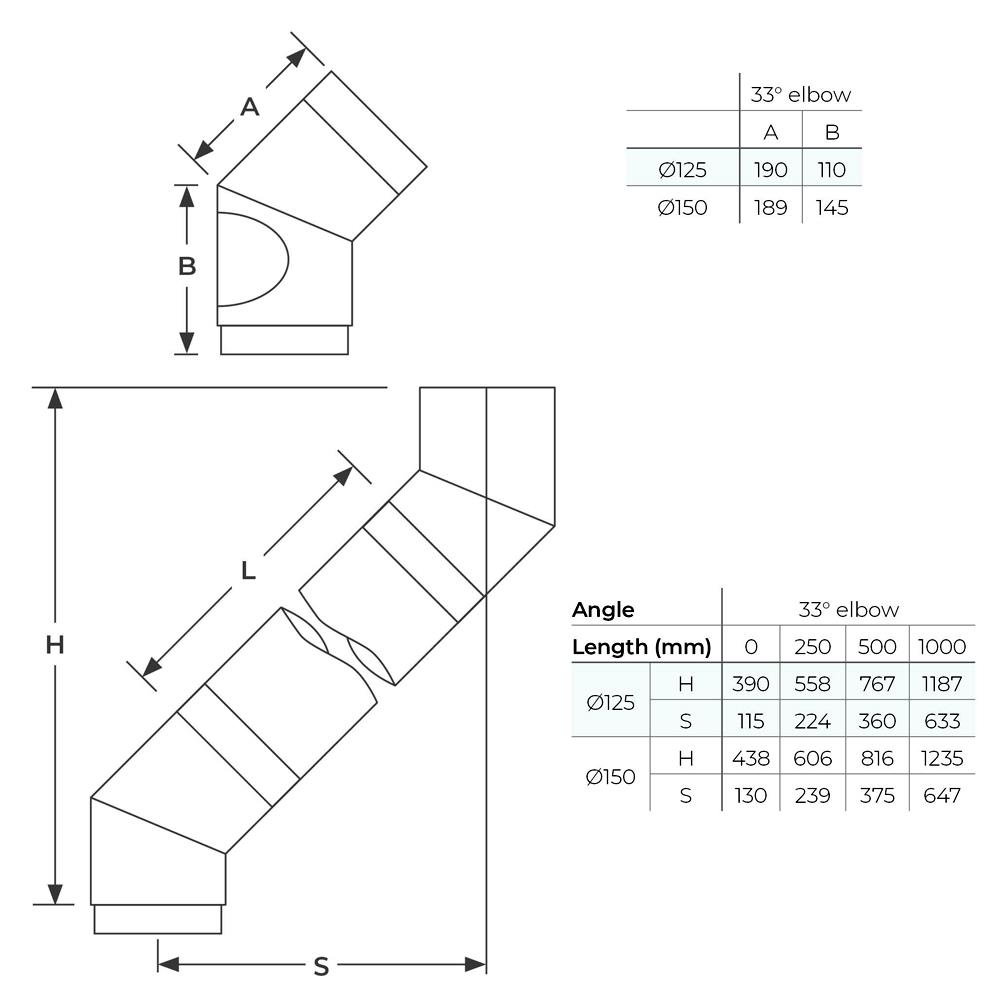

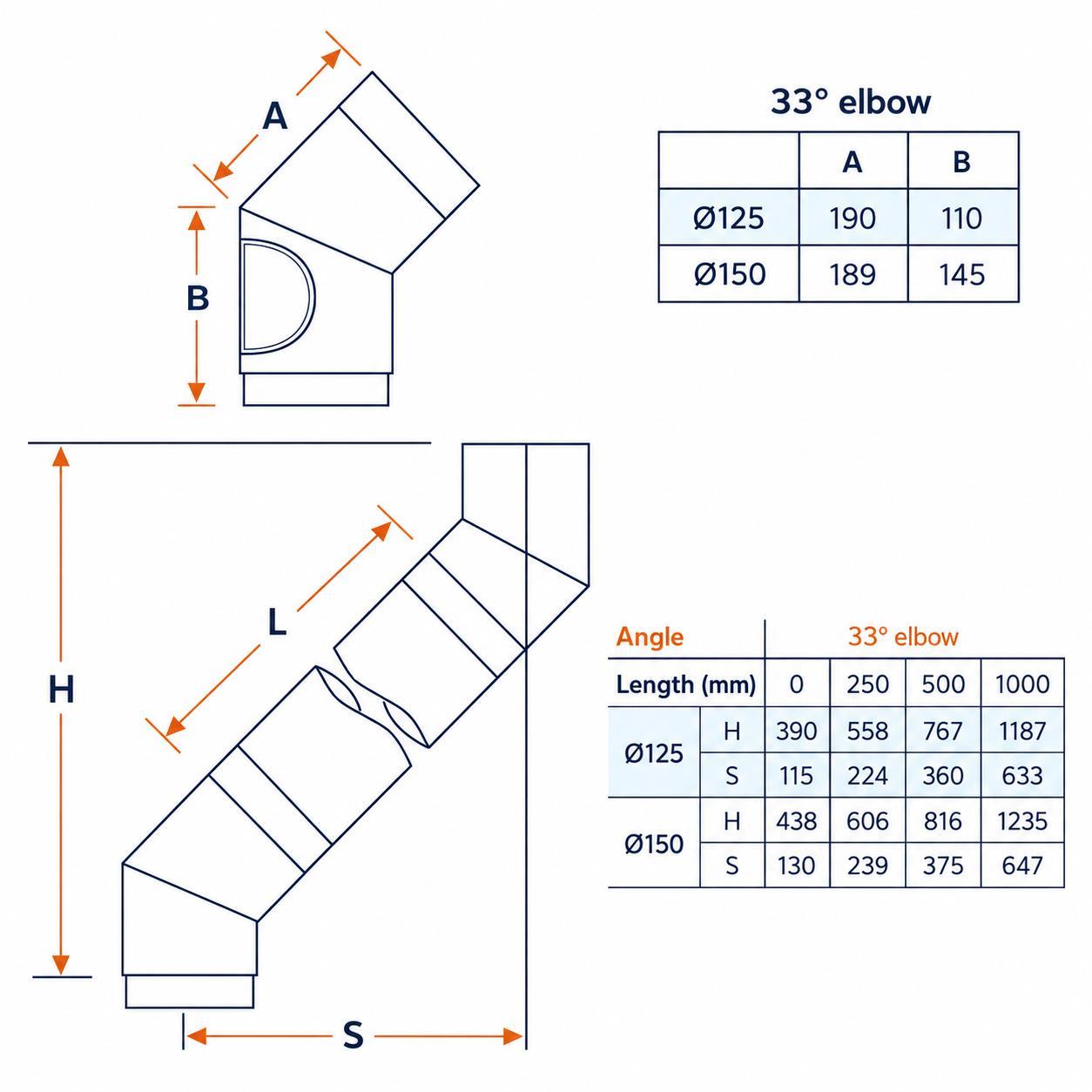

Planning a Flue Offset

Installers may use two angled elbows to move the flue sideways before returning it to a vertical route. The resulting offset depends on the angle of each bend and the pipe length between them.

Keep the chimney route as short and direct as reasonably possible. Every change of direction increases resistance to the flue gases and can affect natural draught.

The complete offset must remain securely supported. Do not allow the weight of the upper chimney or flexible liner to rest on the elbows or appliance outlet.

Why Choose VIT-Smooth?

VIT-Smooth combines strong steel construction with a carefully finished vitreous enamel surface. The welds are designed to remain discreet, while the joints between the formed elbow segments create a clean and professional appearance.

Furthermore, the internal and external enamel coating helps protect the steel against heat, combustion gases and corrosive deposits. Its matt black finish complements many popular wood-burning and multifuel stoves.

Suitable Applications

• Compatible wood-burning stoves
• Compatible multifuel stoves
• Suitable gas heating appliances
• Suitable oil-fired appliances
• 125mm VIT-Smooth connecting-flue systems
• Shallow offsets within a visible stove-pipe run
• Installations requiring access at a change of direction
• Connections leading towards a suitable chimney system

Positioning the Access Door

Install the elbow so the door remains visible, unobstructed and easy to reach. Allow enough space for the door to open and for a competent person to insert suitable sweeping or inspection equipment.

Do not position the access door against a wall, inside a chimney opening where it cannot be reached or behind a permanent enclosure. The door must remain available throughout the working life of the installation.

The current upper door position should form part of the installer’s setting-out calculation. Rotating the elbow may change both the offset direction and the orientation of the access opening.

Access-Door Safety

The door must remain fully closed and correctly secured whenever the appliance operates. Never light or use the appliance with the access door open, loose, damaged or missing.

Allow the appliance and chimney to cool completely before opening the door. Hot gases, soot and other combustion deposits may cause burns or create a fire risk.

After inspection or sweeping, clean the closing surfaces and check that the door returns to its correct position. Replace any damaged closure or sealing component before using the appliance again.

Installation Direction

Install the elbow with the smaller or male end pointing downwards towards the appliance. This orientation helps keep condensate and combustion deposits inside the flue system.

Ensure both joints engage fully and remain mechanically secure. Do not reverse the elbow or force together products with incompatible joint profiles.

Jointing and Sealing

Compatible VIT-Smooth components use close-fitting connections. Consequently, jointing compound is not automatically required at every correctly assembled joint.

However, the appliance and flue manufacturers determine the approved sealing method. Only use suitable fire cement, high-temperature sealant or another jointing product when the current instructions permit it.

Do not seal the access door permanently or apply an unsuitable product around its opening. The door must remain functional and removable for future inspection and cleaning.

Installation and Safety Information

Use VIT-Smooth only as a single-wall connecting flue between a compatible appliance and a suitable chimney, flexible liner or insulated twin-wall system. Never use this elbow to pass through a wall, ceiling, roof or concealed void.

Maintain at least the declared 375mm distance from combustible materials. These may include timber, furniture, combustible wall finishes and some plasterboard constructions. Follow any greater clearance required by the appliance manufacturer.

The elbow must remain exposed and accessible. Do not box it in, cover the access door or place it where routine inspection becomes impossible.

A competent installer should design and fit the complete system. For solid-fuel work, use a suitably qualified installer, such as a HETAS-registered installer, or notify Building Control where required.

Finally, follow the appliance instructions, current VIT-Smooth guidance and applicable Building Regulations. The appliance manufacturer’s instructions determine the permitted flue diameter, route and number of bends.

Inspection and Maintenance

A competent person should inspect and clean the complete chimney regularly. The required frequency depends on the appliance, fuel, level of use and chimney condition.

The built-in door makes local access easier, particularly near the offset. However, the sweep must still confirm that their equipment can reach all necessary sections of the system.

Use cleaning equipment that will not damage the vitreous enamel surface. During maintenance, inspect the door, closure, elbow and adjoining joints for movement, corrosion, distortion or enamel damage.

Product Guide

• Download the VIT-Smooth brochure

Why Buy from SNH Tradecentre?

• Competitive prices: We aim to offer excellent value across our flue and chimney range.
• Helpful advice: Our team can help you compare elbows with and without access doors.
• Clear product information: We highlight important design changes, including the current door position.
• Genuine products: Order from an established plumbing and heating merchant.
• Collection available: Collect eligible in-stock products from our Birchington trade counter.
• UK delivery: Choose from the available delivery services at checkout.
• Trade and public welcome: We supply installers, homeowners, landlords and property professionals.

Need to confirm the current access-door position? Call SNH Tradecentre on 01843 842727 before ordering. If possible, have the appliance model, flue diameter and proposed offset arrangement ready.

Read reviews from SNH Tradecentre customers on Google

Frequently Asked Questions

What diameter is this VIT-Smooth elbow?

It has a nominal diameter of 125mm, equivalent to approximately five inches. It is designed for compatible 125mm VIT-Smooth components.

What angle does the elbow create?

It changes the flue direction by 33 degrees. This relatively shallow angle can help form an offset while keeping the route more gradual than a sharper bend.

Where is the access door positioned?

The access door on the current fitting is positioned on the upper section of the elbow. Some older images may incorrectly show it near the lower end.

Will the product look exactly like the old website image?

Not necessarily. The current door position differs from some older imagery. Confirm the latest product configuration before ordering if its precise position affects your installation.

What is the access door used for?

It provides access for internal inspection and chimney sweeping, particularly around the change of direction where deposits may collect.

Can I operate the appliance with the door open?

No. The door must remain correctly closed and secured whenever the appliance operates.

Can the door face a wall?

No. The installer should orient the elbow so the door remains visible and accessible. It needs enough clearance to open and accept suitable cleaning equipment.

Can two 33-degree elbows create an offset?

Yes, when the appliance instructions and chimney design permit the arrangement. The final displacement depends on the elbows’ dimensions and the pipe length fitted between them.

Does the access door guarantee that the entire chimney can be swept?

No. It provides local access only. The installer and chimney sweep must confirm that every relevant part of the complete system remains reachable.

Can I use this elbow with a wood-burning stove?

It may suit a compatible wood-burning or multifuel stove. However, the appliance manufacturer must permit the 125mm diameter and proposed flue layout.

Which way up should the elbow be installed?

The smaller or male end should point downwards towards the appliance. This helps keep condensate and deposits inside the flue system.

What is the maximum operating temperature?

The elbow carries a T600 classification. Therefore, its maximum continuous operating temperature is 600°C. Always observe any lower limit specified by the appliance manufacturer.

Can this elbow pass through a wall or ceiling?

No. This is a single-wall connecting-flue component. It must not pass through walls, ceilings, roofs or concealed spaces.

How far must it be from combustible materials?

The product designation declares a minimum distance of 375mm from combustible materials. However, the installer must observe any greater clearance required by the appliance or current regulations.

Does the joint require fire cement?

Not automatically. Compatible VIT-Smooth components use close-fitting joints. Only apply an approved jointing material when the current appliance and flue instructions require or permit it.

Who should install this flue elbow?

A competent installer should fit it as part of a properly designed chimney system. For solid-fuel installations, consider using a HETAS-registered installer or arranging Building Control notification where required.

Manufacturers may update product designs, door positions and installation guidance. Therefore, confirm the current configuration and check the latest VIT-Smooth instructions before ordering.
