Product Description

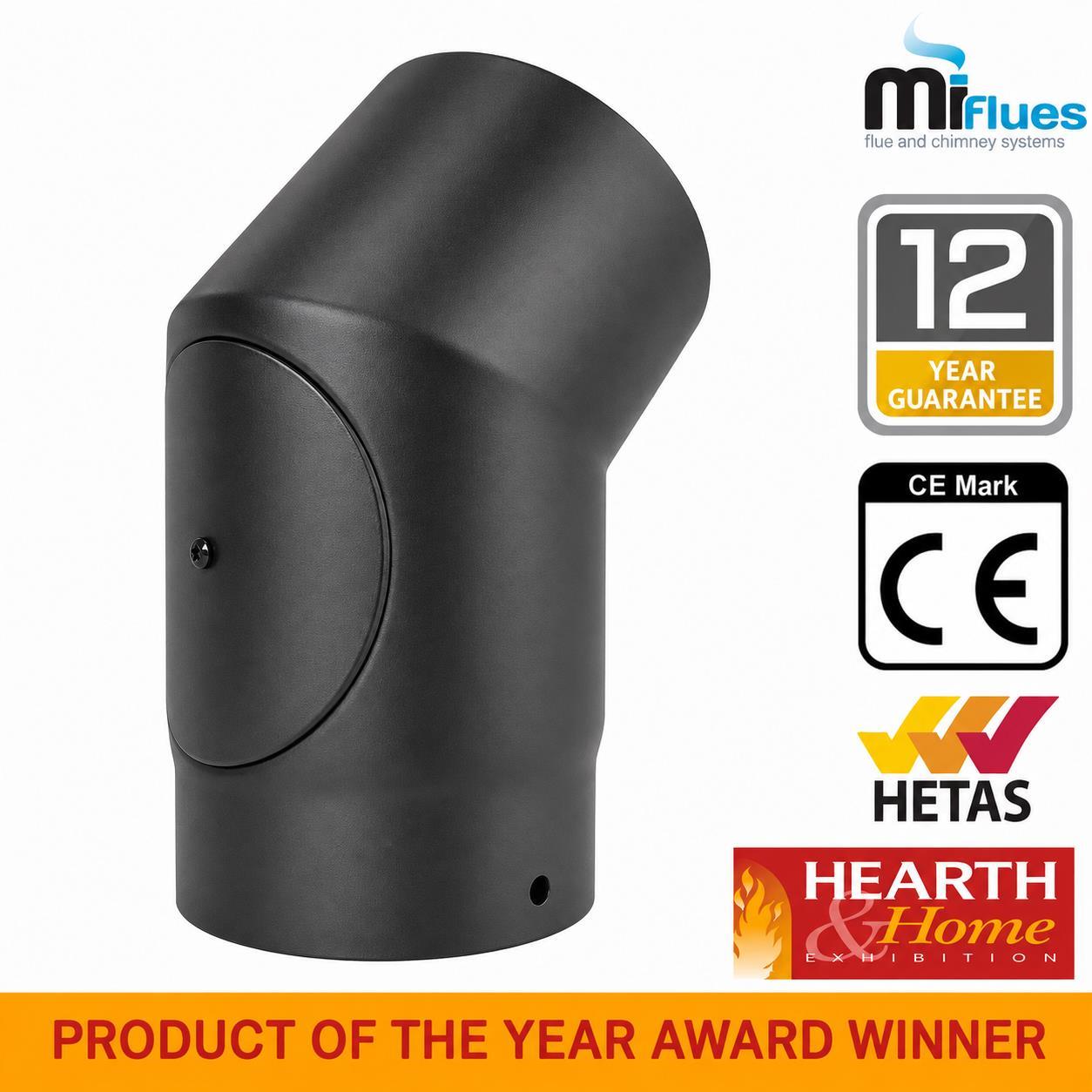

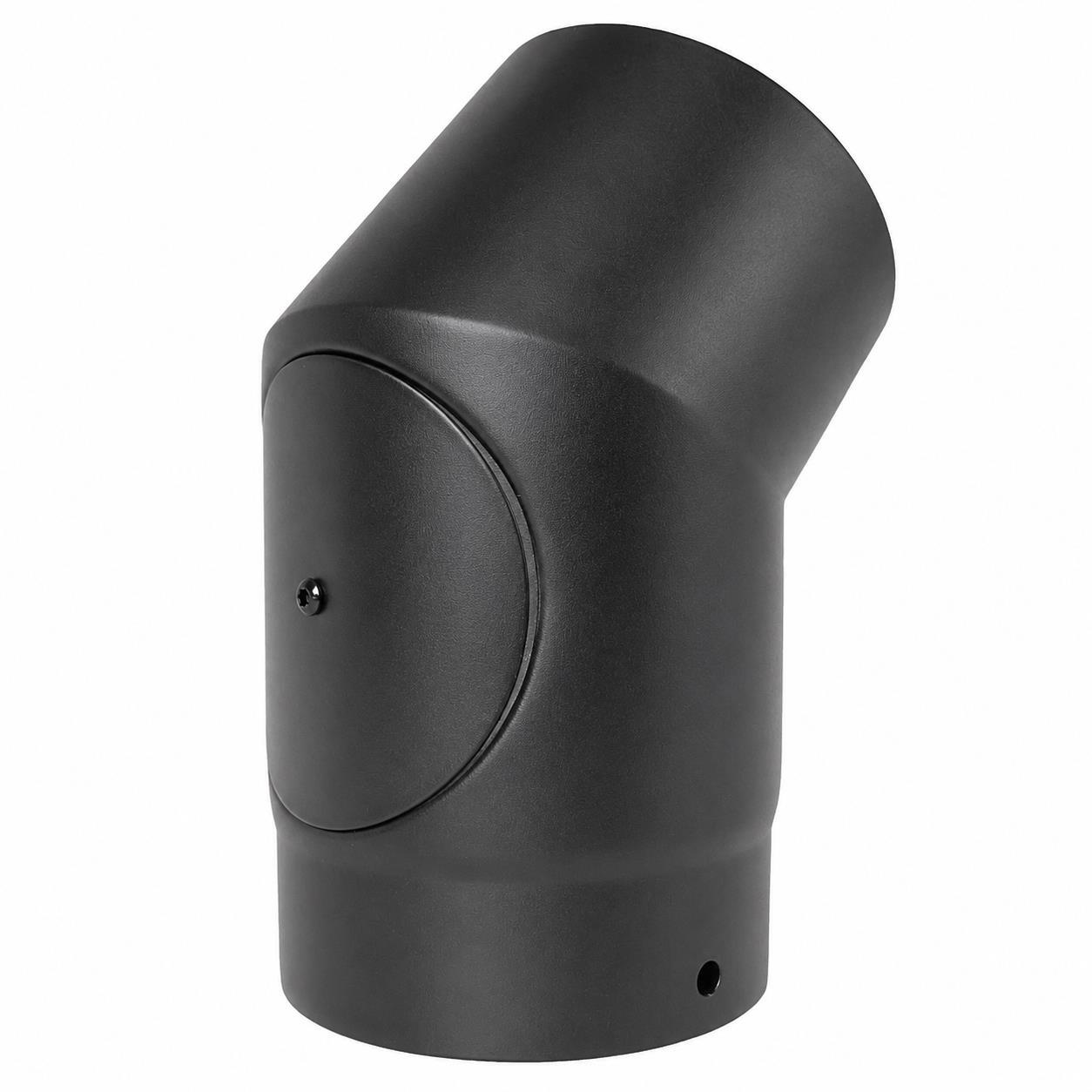

150mm 45 Degree Vitreous Enamel Flue Elbow with Door

Model: 67-150-041

Create a neat change of direction while maintaining sweeping access with the VIT-Smooth 150mm 45 Degree Flue Elbow with Door. The smooth bend redirects a 150mm connecting flue by 45 degrees, while the built-in access door supports inspection and cleaning.

This component works well where the flue needs to move around an obstacle or line up with an off-centre chimney connection. In addition, the door provides direct access at the change of direction, where soot and deposits may collect.

The smooth matt-black finish complements both modern and traditional stoves. Meanwhile, the internal and external vitreous enamel coating helps protect the steel from heat and corrosive combustion gases.

At a Glance

• 150mm (6-inch) vitreous enamel flue elbow
• 45-degree change of direction
• Built-in access door for inspection and sweeping
• Helps create an offset in a connecting flue
• Made from 1.2mm zero-carbon steel
• Internal and external vitreous enamel coating
• Approximately 1.4mm total finished thickness
• Smooth matt-black finish
• Friction-fit joint system
• Suitable for compatible gas, oil and solid-fuel appliances
• Temperature classification: T600
• Declared clearance to combustible materials: 450mm
• Model: 67-150-041
• EAN: 5060795860024

Key Features and Benefits

• 45-degree bend: Changes the direction of the connecting flue.
• Built-in access door: Provides an opening for inspection and sweeping.
• Access at the bend: Helps clean an area where deposits may collect.
• 150mm diameter: Connects to compatible 6-inch VIT-Smooth components.
• Smooth elbow design: Creates a neat and professional-looking flue route.
• Strong construction: Uses 1.2mm zero-carbon steel for durability.
• Internal enamel coating: Helps resist heat and combustion deposits.
• External enamel coating: Creates an attractive and easy-to-clean surface.
• Friction-fit joints: Allow simple connection to matching components.
• T600 classification: Suits compatible high-temperature stove installations.

What Is a 45 Degree Flue Elbow with Door?

A 45-degree elbow changes the direction of a connecting flue by 45 degrees. For example, it can help move the flue around part of a fireplace opening or align the pipe with a chimney connection.

This version also includes a built-in access door. Therefore, a chimney sweep or installer can reach inside the bend without dismantling the complete flue connection.

Changes of direction can restrict cleaning access and create areas where soot gathers. Consequently, a doored elbow can make future inspection and sweeping easier.

Planning a Flue Offset

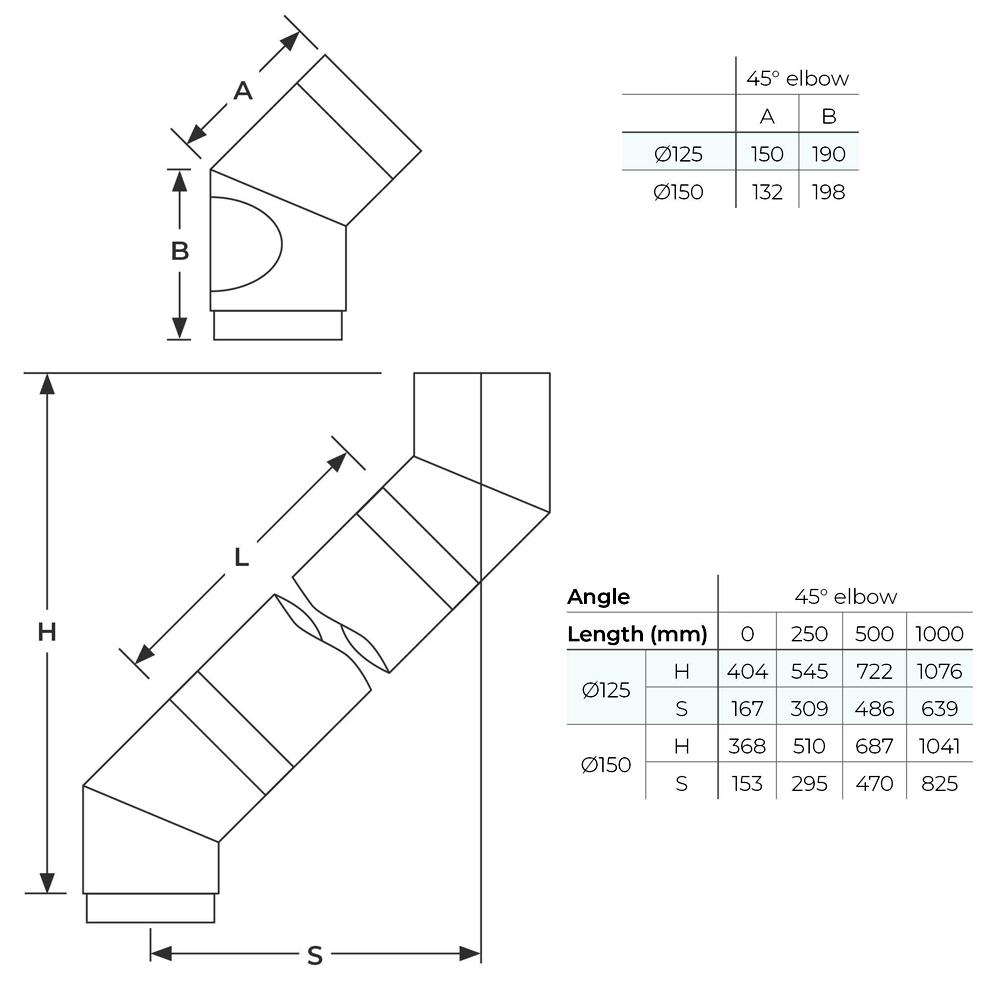

You can use two compatible 45-degree elbows with a straight pipe between them to create an offset. The length of pipe between the bends will determine the final sideways movement and vertical rise.

First, measure the difference between the stove outlet and the required vertical flue position. Next, allow for the elbows and joint overlaps. Finally, check that the access doors will remain usable.

Do not calculate the route using only the outside dimensions. Part of each elbow enters the adjoining pipe or fitting. Therefore, check the product drawing or dimensions tab before ordering.

Why Choose an Elbow with an Access Door?

A standard elbow changes the flue direction but provides no direct cleaning access. In comparison, this doored elbow allows a chimney sweep to reach inside the bend.

The door can help with:

• Routine flue inspection
• Removing soot and combustion deposits
• Inserting suitable sweeping equipment
• Checking the internal condition of the bend
• Investigating suspected flue blockages

However, one access door may not provide access to every part of a complex flue route. The installer must plan enough inspection points for the complete system.

Positioning the Access Door

Position the elbow so a chimney sweep can reach and open the door safely. In addition, leave enough space to insert suitable cleaning tools.

Do not place the door directly against a wall, fireplace lining or another flue component. Otherwise, it may become difficult or impossible to use.

Before securing the elbow, rotate it into a practical position. Then confirm that the door can open fully without disturbing nearby materials.

Why Choose VIT-Smooth?

VIT-Smooth provides a high-quality alternative to basic welded black stove pipe. The manufacturer carefully finishes the welded areas before adding the enamel. Consequently, the welds appear almost invisible and the bend has a clean, smooth shape.

The manufacturer forms the elbow from 1.2mm zero-carbon steel. It then adds approximately 0.2mm of powder vitreous enamel. Together, the steel and coating create a total finished thickness of approximately 1.4mm.

Furthermore, VIT-Smooth coats both the inside and outside of the fitting. The internal enamel helps resist heat and corrosive combustion products. Meanwhile, the external enamel creates a deep matt-black finish that matches most UK stoves.

VIT-Smooth 150mm Elbow with Door Specification

• Product type: smooth flue elbow with access door
• Model/SKU: 67-150-041
• EAN: 5060795860024
• Nominal internal diameter: 150mm (6 inches)
• Elbow angle: 45 degrees
• Alternative angle reference: 135 degrees, depending on orientation
• Access: built-in inspection and sweeping door
• Material: zero-carbon steel
• Steel thickness: 1.2mm
• Coating: powder vitreous enamel
• Approximate enamel thickness: 0.2mm
• Approximate total finished thickness: 1.4mm
• Coating position: internal and external
• Colour: black
• Finish: smooth matt black
• Joint type: friction fit
• Fuel compatibility: gas, oil and solid fuel
• Temperature classification: T600
• Classification: EN 1856-2 T600 N1 Vm L80120 G450
• Declared minimum distance to combustible materials: 450mm
• Manufacturer warranty: 12 years, subject to its terms

Suitable Appliances and Flue Systems

You can use this elbow with compatible gas, oil and solid-fuel appliances. These may include wood-burning stoves, multifuel stoves and other domestic heating appliances.

However, always check the appliance instructions before ordering. The manufacturer will state the required flue diameter, temperature classification and permitted number of bends.

This elbow can form part of a route leading to:

• A suitable masonry chimney
• An approved flexible chimney liner
• A compatible chimney or liner adaptor
• An insulated twin-wall flue system
• Matching 150mm VIT-Smooth pipes and fittings

Application

This 150mm vitreous enamel elbow forms part of a visible single-wall connecting flue. It redirects the flue route while providing convenient access for inspection and cleaning.

The product carries a T600 temperature classification. Therefore, it has a nominal maximum continuous flue-gas temperature classification of 600°C.

Never use single-wall vitreous enamel stove pipe to pass through walls, ceilings, floors, roofs, cupboards or concealed spaces. Instead, use a suitable tested and insulated chimney system wherever the flue passes through the building structure.

Correct Installation Direction

Fit the elbow with the male or smaller-diameter end pointing downwards towards the appliance. The female end should face upwards towards the chimney.

This direction keeps condensates and combustion deposits inside the flue system. As a result, they can travel back towards the appliance instead of leaking onto the outside of a joint.

Push each connection together fully. In addition, align and support the flue so it does not place excessive weight or sideways force on the appliance outlet.

Jointing and Sealing

VIT-Smooth uses a friction-fit connection system. Therefore, joints between matching components do not normally require fire clay.

However, follow the instructions supplied with the appliance and complete flue system. If those instructions require a jointing compound, use only suitable fire cement or high-temperature silicone sealant approved for the application.

Do not apply jointing compound to the access door unless the manufacturer specifically requires it. The door must remain usable for future cleaning.

Using the Access Door

Allow the stove and flue to cool completely before opening the door. Then use suitable tools and personal protective equipment.

After inspection or sweeping, remove loose soot from the opening. Next, check the door, fasteners and seal for damage. Finally, close and secure the door before using the appliance again.

Never operate the appliance with the access door open, loose or incorrectly fitted. An insecure door may allow smoke or combustion gases to enter the room.

Can the Elbow Be Cut?

Avoid cutting a vitreous enamel elbow. Cutting may chip the protective coating, expose the steel or damage the shaped connection ends and door assembly.

Instead, use compatible straight or adjustable components to achieve the required offset. This approach keeps the factory enamel and connection profiles intact.

If the manufacturer permits an alteration, protect every exposed steel edge with suitable high-temperature paint. Furthermore, do not cut through or close to the access-door assembly.

Clearance from Combustible Materials

This elbow has a declared minimum distance of 450mm from combustible materials. Combustible materials may include timber, furniture, curtains and heat-sensitive building products.

In addition, do not automatically treat plasterboard as non-combustible. It may cover timber studs or timber studs or form part of a combustible wall structure.

The stove or another flue component may require a greater clearance. If the requirements differ, always follow the greatest stated distance.

Installation Safety

Before installation, confirm that the 150mm diameter matches the appliance and every adjoining component. Also, check that the planned number of bends complies with the appliance and flue-system instructions.

The flue route should rise towards the chimney and avoid unnecessary changes of direction. Furthermore, the access door must remain visible and easy to reach.

The installation must comply with the appliance instructions, current Building Regulations and all relevant standards. Therefore, we recommend using a suitably competent installer, such as a HETAS-registered installer where appropriate.

Inspection and Maintenance

Check the elbow, access door and adjoining joints regularly. Look for movement, damaged enamel, staining, corrosion or signs of leakage.

In addition, check that the door closes securely. Replace any damaged seal or fixing with a compatible replacement before using the appliance.

Arrange regular chimney sweeping at intervals suitable for the appliance, fuel and frequency of use. Solid-fuel systems may need more frequent cleaning.

Only clean the external enamel after the elbow has cooled completely. Use a soft, dry or slightly damp cloth. Avoid abrasive pads and harsh chemicals because they may damage the matt-black finish.

Product Guides and Matching Components

• Download the VIT-Smooth brochure
• Discover why we rate VIT-Smooth stove flue pipe
• View matching 150mm vitreous enamel flue components

Why Buy from SNH Tradecentre?

• Specialist stove, chimney and flue-system supplier
• Extensive range of matching 150mm VIT-Smooth components
• Practical product advice from an experienced team
• Nationwide UK delivery options
• Secure online ordering
• Trade counter in Birchington, Kent
• Support before and after your purchase

Need help calculating an offset or positioning the access door? Call the SNH Tradecentre team on 01843 842727 before ordering.

You can also read SNH Tradecentre customer reviews on Google.

Frequently Asked Questions

What angle is this flue elbow?

The elbow changes the direction of the connecting flue by 45 degrees. Some technical descriptions may also refer to it as a 45/135-degree elbow, depending on how the angle is measured.

What diameter is the elbow?

It has a nominal internal diameter of 150mm, which equals approximately 6 inches.

What is the access door used for?

The door provides access to the inside of the elbow for inspection, cleaning and chimney sweeping.

Can I use two elbows to create an offset?

Yes. Two compatible 45-degree elbows with a suitable straight pipe between them can create an offset. The pipe length will determine the final sideways movement and rise.

Where should I position the access door?

Position it where the chimney sweep can reach and open it safely. Make sure a wall or another component will not block the door.

Can I use it with a wood-burning stove?

Yes, it suits compatible solid-fuel appliances, including many wood-burning and multifuel stoves. However, the appliance must require a 150mm flue connection.

Can the elbow pass through a wall or ceiling?

No. This is a single-wall connecting component. It must not pass through walls, ceilings, floors, roofs or concealed spaces. Use a suitable insulated chimney system for building penetrations.

How far must it remain from combustible materials?

The declared minimum clearance is 450mm. However, follow a greater distance if the appliance or another component requires one.

Does it need fire clay?

No. VIT-Smooth uses friction-fit joints, so fire clay is not normally required. However, follow the appliance and flue-system instructions regarding approved jointing compounds.

Which way up should I install it?

Point the male or smaller-diameter end downwards towards the appliance. Then position the female end towards the chimney.

Can I operate the stove with the door open?

No. Always close and secure the access door before operating the appliance.

What does T600 mean?

T600 means the elbow has a nominal maximum continuous flue-gas temperature classification of 600°C.

What warranty does it include?

The manufacturer lists a 12-year warranty. However, its installation, use and maintenance conditions will apply.
