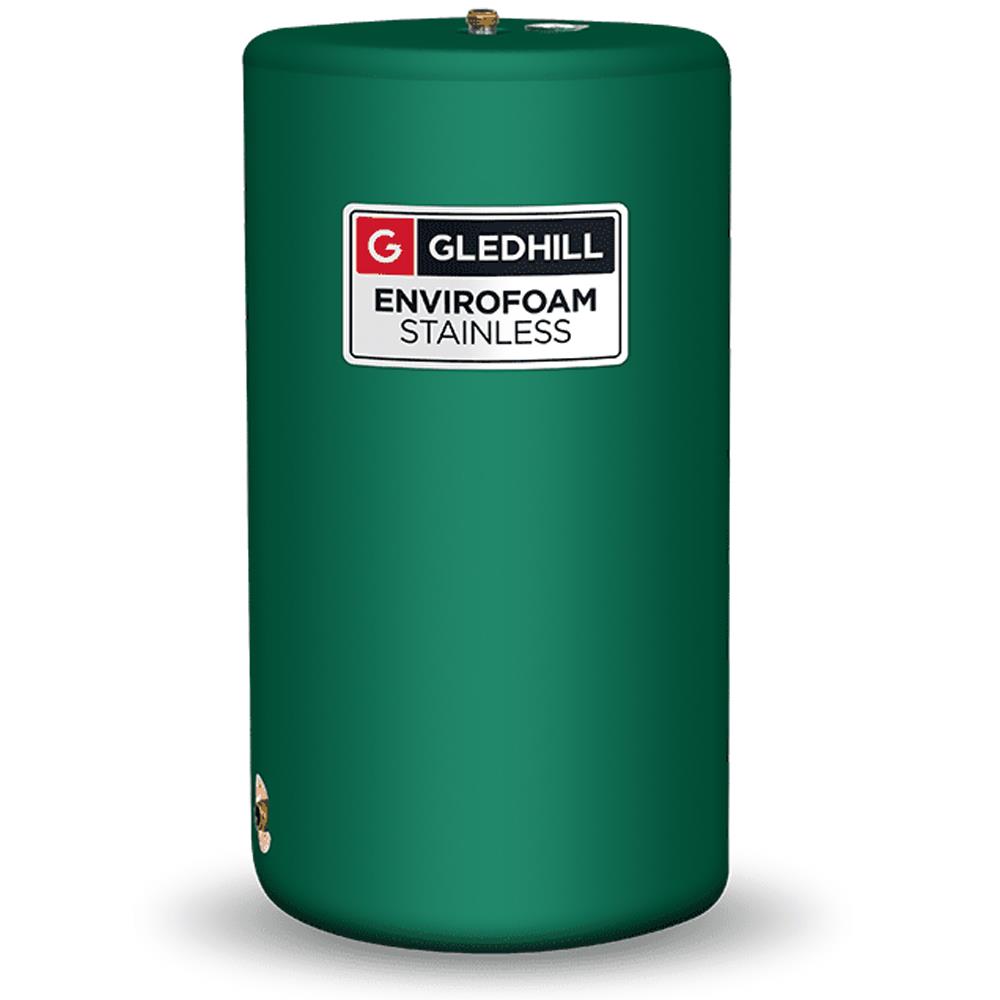

Gledhill 900 X 450 Direct Envirofoam Stainless Cylinder
The Gledhill EnviroFoam Stainless 900 x 450 Direct Vented Cylinder provides approximately 117 litres of stored hot water. Its duplex stainless steel vessel, 35mm insulation and BS1566 tapping positions make it a practical alternative to a compatible vented copper cylinder.
£191.66 £229.99 (inc vat)
Product Description
Gledhill EnviroFoam Stainless 900 x 450 Direct Vented Cylinder 117L
Model: SE36X18DIR
PLEASE NOTE: We can only deliver this product to Mainland England addresses.
The product image is for illustration purposes only. An immersion heater is not supplied with this cylinder.
The Gledhill EnviroFoam Stainless 900 x 450 Direct Vented Cylinder provides approximately 117 litres of stored hot water for compatible open-vented systems. It offers a practical stainless steel alternative to a traditional vented copper cylinder.
This direct cylinder does not contain a boiler heating coil. Instead, one or more compatible electric immersion heaters heat the stored water. Therefore, it may suit homes that use electricity as their main source of hot water.
Gledhill manufactures the inner vessel from strong duplex stainless steel. In addition, 35mm HCFC-free EnviroFoam insulation helps keep the stored water hot and reduce standing heat loss.
The tapping positions follow BS1566 dimensional requirements. As a result, this model can provide a practical replacement for a compatible existing vented cylinder. However, an installer must check every connection and measurement before ordering.
Product Information
Gledhill EnviroFoam 117L Direct Cylinder Features
- Direct open-vented hot-water cylinder
- Model number SE36X18DIR
- Approximately 117-litre capacity
- Designed for electric water heating
- No boiler-fed primary heating coil
- Duplex stainless steel inner vessel
- 35mm HCFC-free EnviroFoam insulation
- Low standing heat loss
- ErP energy efficiency class C
- 2017 ErP compliant
- Tapping positions follow BS1566 dimensional requirements
- Shower take-off or secondary return connection
- Compression fittings included
- Fully recyclable stainless steel vessel
- 10-year manufacturer’s warranty, subject to Gledhill’s terms
- Immersion heater not included
Key Features and Benefits
- Duplex Stainless Steel: Offers strong corrosion resistance and provides an alternative to a traditional copper cylinder.
- Direct Electric Heating: Compatible immersion heaters heat the stored water without a boiler-fed coil.
- 117-Litre Capacity: Provides stored hot water for smaller homes and compatible replacement installations.
- Vented System Design: Works with a suitable cold-water storage cistern and open vent.
- BS1566 Tapping Positions: Can simplify the replacement of a compatible existing vented cylinder.
- EnviroFoam Insulation: Helps retain heat and reduce energy lost from the stored water.
- Recyclable Construction: The stainless steel vessel can be recycled at the end of its working life.
- 10-Year Warranty: Provides long-term reassurance when installed and maintained correctly.
Technical Specification
- Manufacturer: Gledhill
- Range: EnviroFoam Stainless
- Model: SE36X18DIR
- EAN: 5056188302134
- Cylinder Type: Direct vented
- Nominal Capacity: 117 litres
- Heat Source: Separately purchased electric immersion heater
- Boiler Heating Coil: No
- Inner Vessel: Duplex stainless steel
- Insulation: 35mm HCFC-free EnviroFoam
- Energy Efficiency Class: C
- Tapping Positions: To BS1566 dimensional requirements
- Compression Fittings: Included
- Immersion Heater: Not included
- Warranty: 10 years, subject to Gledhill’s terms and conditions
Cylinder Dimensions
- Height: 900mm
- Diameter: 450mm
- Traditional Size: Approximately 36 x 18 inches
Important: The stated cylinder dimensions exclude the insulation, immersion heaters and other added components. Therefore, allow extra space around the cylinder for its complete installed size, connected pipework and future maintenance.
What Comes with the Cylinder?
- 1 x Gledhill EnviroFoam Stainless 117L direct vented cylinder
- Compatible compression fittings
An immersion heater is not included. Extra pipework, controls, valves and electrical components may also be required to suit the installation.
What Is a Direct Vented Cylinder?
A direct cylinder uses electric immersion heaters to heat the stored water. It does not contain a primary heating coil for connection to a gas or oil boiler.
Meanwhile, a vented cylinder normally receives cold water from a storage cistern in the loft. An open vent pipe allows the system to expand safely as the water heats.
Water pressure at the outlets depends mainly on the height of the cold-water storage cistern above the taps or shower. Therefore, this cylinder does not provide mains-pressure hot water in the same way as an unvented cylinder.
Direct or Indirect Cylinder?
Choose a direct cylinder when electric immersion heaters will provide the main source of hot water. Direct cylinders often suit electric-only properties and homes without a suitable boiler connection.
In comparison, an indirect cylinder contains a primary coil. A boiler circulates heated water through this coil to heat the stored domestic water.
Direct and indirect cylinders cannot always replace each other without changes to the heating system. Therefore, ask a qualified installer to confirm the correct cylinder type before ordering.
Important Immersion Heater Information
This cylinder does not include an immersion heater. If you add an immersion heater, use only a compatible full Incoloy immersion heater with the correct thermostat and safety cut-out.
The installer must check the immersion length, boss size, electrical rating and thermostat arrangement before fitting. An unsuitable immersion heater may damage the cylinder or fail to operate safely.
A qualified electrician must complete the electrical connection in line with current regulations and the immersion heater manufacturer’s instructions.
Is a 117L Vented Cylinder Suitable for My Home?
A 117-litre cylinder may suit a smaller home or a like-for-like replacement installation with moderate hot-water demand. However, the correct size depends on how the household uses hot water.
Before ordering, consider:
- The number of people living in the property
- The number of baths, showers and taps
- The existing cylinder type and size
- The available cupboard space
- The height of the cold-water storage cistern
- The number and rating of the immersion heaters
- The required hot-water recovery time
- The existing pipe and tapping positions
For this reason, ask a qualified installer to confirm the required cylinder type, size and connection layout.
Can This Replace a Copper Cylinder?
The EnviroFoam Stainless range provides an alternative to many traditional vented copper cylinders. Its tapping positions follow BS1566 dimensional requirements, which can make replacement work more straightforward.
However, cylinder installations vary. The installer must compare the height, diameter, connections, insulation clearance and immersion positions with the existing cylinder before ordering.
Installation Requirements
A suitably qualified plumber or heating engineer should install this cylinder. In addition, a qualified electrician must connect the immersion heater and electrical controls.
The installer must follow the latest Gledhill instructions and current regulations. They should also inspect the cold-water storage cistern, open vent, feed pipe, hot-water draw-off and electrical supply.
Never cap or block the open vent. This cylinder is designed for a vented system and must not operate as an unvented mains-pressure cylinder.
Why Choose the Gledhill EnviroFoam Stainless Cylinder?
The Gledhill EnviroFoam Stainless range combines duplex stainless steel with familiar vented cylinder dimensions. Therefore, it offers a practical option when replacing a compatible copper cylinder.
The 35mm insulation helps reduce stored heat loss, while the BS1566 tapping positions can simplify installation. In addition, the stainless steel vessel is fully recyclable at the end of its working life.
Gledhill also supplies the cylinder with a 10-year warranty, subject to its terms. As a result, homeowners and installers receive added reassurance from an established UK cylinder manufacturer.
Why Buy from SNH Tradecentre?
- Competitive prices on Gledhill cylinders
- Helpful product and technical advice
- Genuine products from an established manufacturer
- Clear specifications to help you order correctly
- Delivery available to eligible Mainland England addresses
- Trade and public customers welcome
- Independent UK plumbing and heating merchant
- Collection available from our Birchington, Kent trade counter
Gledhill may change product specifications, dimensions, package contents and warranty conditions without notice. Check the latest manufacturer’s information and confirm suitability with a qualified installer before ordering.
Additional Information
| gtin | 5056188302134 |
|---|---|
| Manufacturer | Gledhill |
| Brand | |
| MPN | SE36X18DIR |
| SKU | SE36X18DIR |
| Unit Quantity | 1 |
| EAN | 5056188302134 |
| Warranty | 10 Year |
| Range | Direct |
| condition | new |
| Woocategory1 | Heating & Cooling |
| Woocategory3 | |
| Woocategory2 | Hot Water Cylinders |
| Country/Region of Manufacture | United Kingdom |
| Energy Efficiency Rating | C |
| Style | Vented Cylinder |
| Width | 450 |
| Height | |
| Depth | 550 |
| WRAS Approved | Yes |
| ccp_Type | Vented Cylinder |
| Material | Stainless Steel |
| Modified Item | No |
| Custom Bundle | No |
| Mount Type | Floor Standing |
| Litres | 101 – 150 |
