Product Description

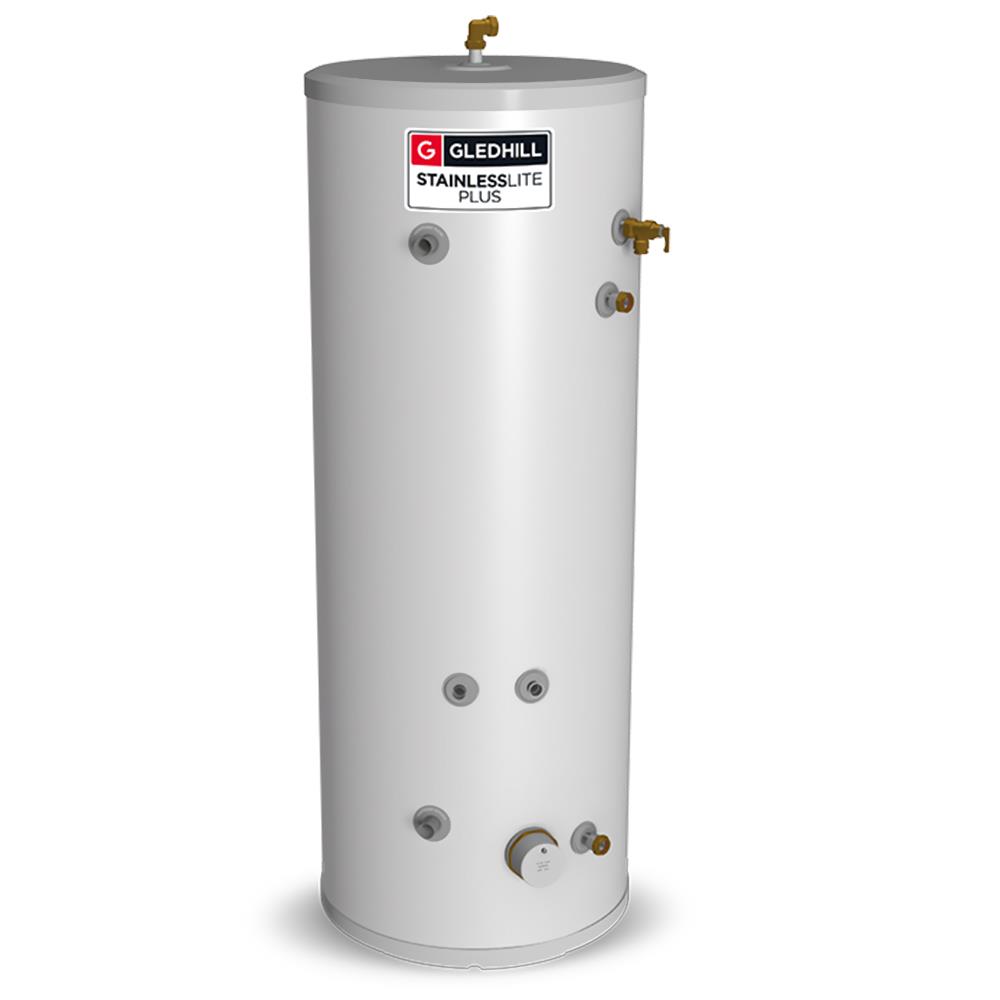

Gledhill Stainless Lite Heat Pump Unvented 400L

Model: PLUHP400

PLEASE NOTE: Delivery for this item is Mainland England ONLY

Gledhill have produced an unvented stainless steel unit specifically for heat pump applications. Designed for use with either air source or ground source heat pumps.

Gledhill StainlessLite Heat Pump Unvented 400L Features:

• Gledhill Stainless lite Plus Heat Pump Brouchure
• Gledhill Stainless lite Plus Heat Pump Instructions
• Important – please down load the information sheet above for complete specification
• 25 Year Warranty
• Capacity 393 litres
• Height 2030mm
• Diameter 630mm
• Weight – empty 62KG, full 462KG
• ERP Rating C
• Secondary return – Yes

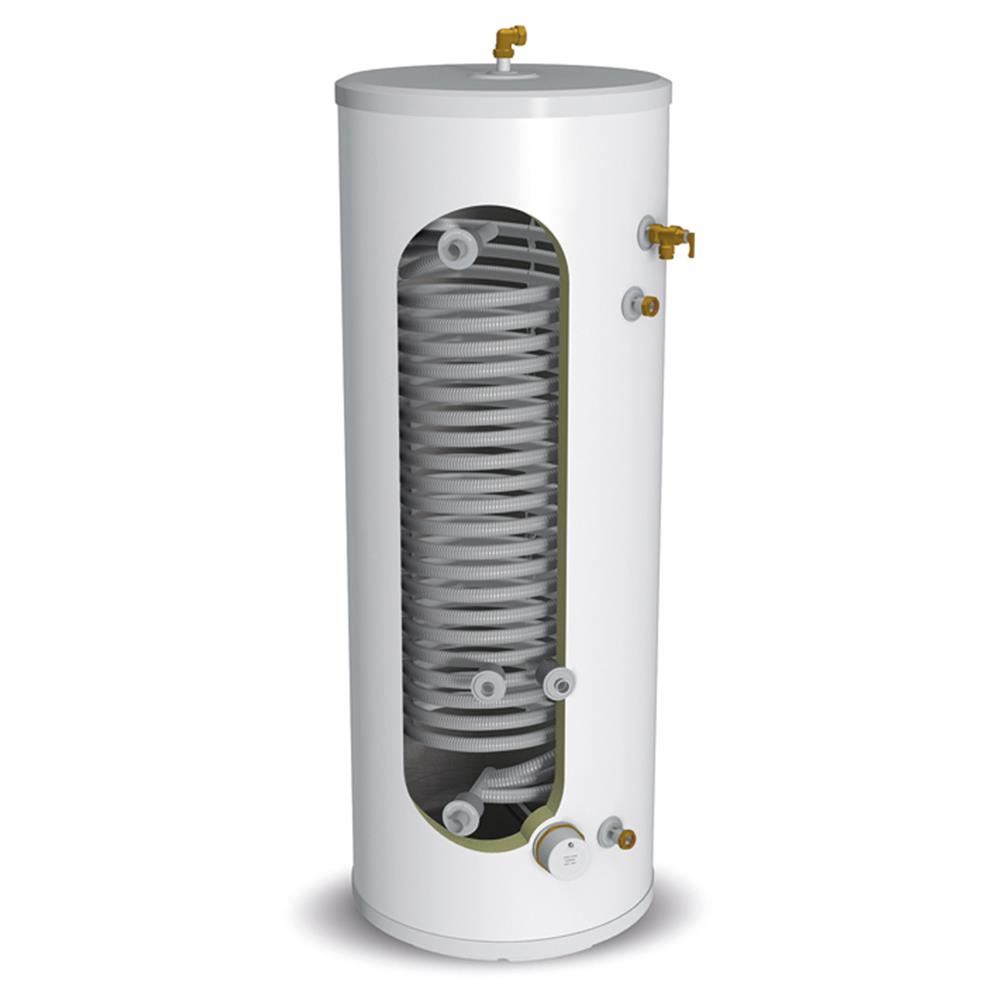

• Heat Pump Coil Surface area (4m2)
• High efficiency corrugated coil
• High density HCFC free Envirofoam insulation
• High specification duplex stainless steel

What Do You Get In The Box?

• 1 x Gledhill Stainless Lite Plus Heat Pump Unvented Cylinder
• 1 x 3KW Incoloy immersion heater
• 1 x Cold water inlet PRV combination valve/expansion relief valve
• 1 x Pressure and temperature relief valve
• 1 x Control thermostat
• 1 x Energy cut-out motorised valve (indirect only)
• 1 x Expansion vessel with wall mounting kit
• 1 x Drain elbow and 90 degree elbow
• Tundish

Gledhill Stainless lite Plus is covered by Section G3 of the Building Regulations (England and Wales). Technical Standard P3 (Scotland) and Building Regulation P5 (Northern Ireland). Compliance can be achieved via a Competent Person Self Certification Scheme or notification of installation to the Local Authority Building Control Department.
