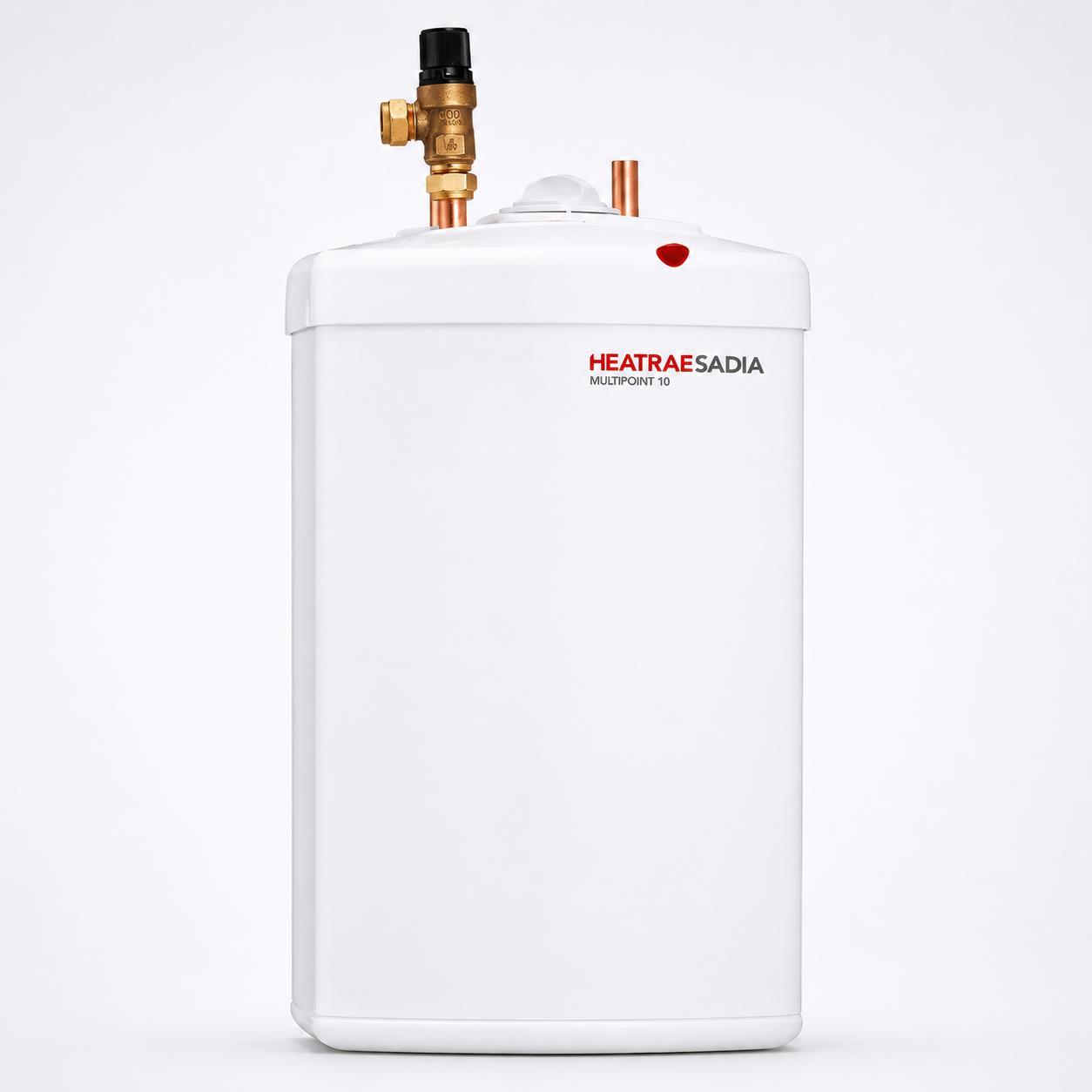

Heatrae Sadia Multipoint 10L Unvented Water Heater 3kW – 95.050.143

The Heatrae Sadia Multipoint 10L Unvented Water Heater 3kW provides stored hot water for several nearby taps. Its compact, wall-mounted design makes it suitable for offices, workshops, shops, kitchens and commercial washrooms.

This small unvented water heater connects directly to the mains water supply. Therefore, it does not need a separate cold water storage tank. It can also work with standard taps and mixers, subject to the correct installation.

A replaceable 3kW alloy-sheathed element heats the stored water. In addition, the external thermostat lets users adjust the temperature between approximately 10°C and 70°C.

Heatrae Sadia designs, engineers and manufactures the Multipoint range in the UK. Furthermore, this model includes a factory-fitted temperature and pressure relief valve for added protection.

Product Guides and Further Information

• Download the Heatrae Sadia Multipoint installation manual
• Download the Multipoint technical data sheet
• View the Heatrae Sadia Multipoint product page

Heatrae Sadia Multipoint 10 Features

• Compact unvented electric water heater
• Manufacturer part number: 95.050.143
• Alternative part number format: 95050143
• 10-litre stored water capacity
• 3kW rating at 240V
• 2.75kW rating at 230V
• Can supply several nearby hot water outlets
• Suitable for standard taps and mixers
• No cold water storage cistern required
• Externally adjustable thermostat
• Temperature range from approximately 10°C to 70°C
• Thermostat can be locked in the hot or mid-range position
• Replaceable long-life alloy-sheathed heating element
• Factory-fitted temperature and pressure relief valve
• Resettable over-temperature cut-out
• Element operating indicator
• No sacrificial anode to inspect or replace
• Flame-retardant CFC and HCFC-free insulation
• Kiwa approved
• IPX4 protection rating
• Designed, engineered and manufactured in the UK
• Five-year inner container warranty
• Two-year cover for the element and thermal controls

Technical Specification

• Brand: Heatrae Sadia
• Range: Multipoint
• Model: Multipoint 10
• Part number: 95.050.143
• Water heater type: Unvented electric storage heater
• Capacity: 10 litres
• Element rating at 240V: 3kW
• Element rating at 230V: 2.75kW
• Thermostat range: Approximately 10°C to 70°C
• Minimum operating pressure: 0.8 bar
• Rated working pressure: 6 bar
• Pressure test: 12 bar
• T&P relief valve setting: 90°C or 7 bar
• Maximum supply pressure before a suitable PRV: 16 bar
• Water connections: 15mm
• Installation position: Vertical
• IP rating: IPX4
• Current manufacturer-listed ErP rating: A
• Empty weight: Approximately 6.9kg
• Full weight: Approximately 16.9kg
• Finish: White

Water Heater Dimensions

• Height: 572mm
• Width: 267mm
• Depth: 252mm

Before ordering, check the available wall space and allow room for valves, pipework and future servicing. Also, make sure the wall and fixings can safely support the heater’s full weight of approximately 16.9kg.

What Comes with the Water Heater?

• 1 x Heatrae Sadia Multipoint 10 water heater
• 1 x factory-fitted temperature and pressure relief valve
• 1 x wall-mounting bracket
• 1 x factory-fitted electrical cable
• Installation and user instructions

This product does not include every accessory required for all installations. Therefore, your installer must assess the system and select any extra pressure-control or expansion components that the property needs.

Are Additional Accessory Packs Required?

The required accessories depend on the incoming water pressure and pipework arrangement. For example, a pressure-reducing valve may be required when the static supply pressure exceeds 4.1 bar.

If the installer fits a pressure-reducing valve, the system will also need suitable expansion control. Therefore, an expansion vessel, check valve, expansion relief valve or approved Heatrae Sadia accessory pack may be required.

Always ask the installer to check the latest Heatrae Sadia instructions before ordering accessories. This step helps ensure that every component suits the proposed installation.

Where Can You Use the Multipoint 10?

• Office kitchens and staff rooms
• Commercial and public washrooms
• Workshops and garages
• Shops and retail units
• Utility rooms
• Small catering preparation areas
• Handwashing basins
• Several nearby sinks or taps
• Locations without stored hot water nearby

The Multipoint 10 can serve several outlets when the pipe runs and hot water demand remain suitable. However, its 10-litre capacity works best for light, short-duration use rather than large volumes of hot water.

Can the Multipoint 10 Supply a Shower?

Heatrae Sadia does not recommend the Multipoint 10 for supplying a shower. Its 10-litre storage capacity mainly suits handwashing, cleaning and other point-of-use applications.

If you need hot water for a shower, ask a qualified installer to recommend a correctly sized heater. A larger storage heater or a suitable instantaneous water heater may offer a better solution.

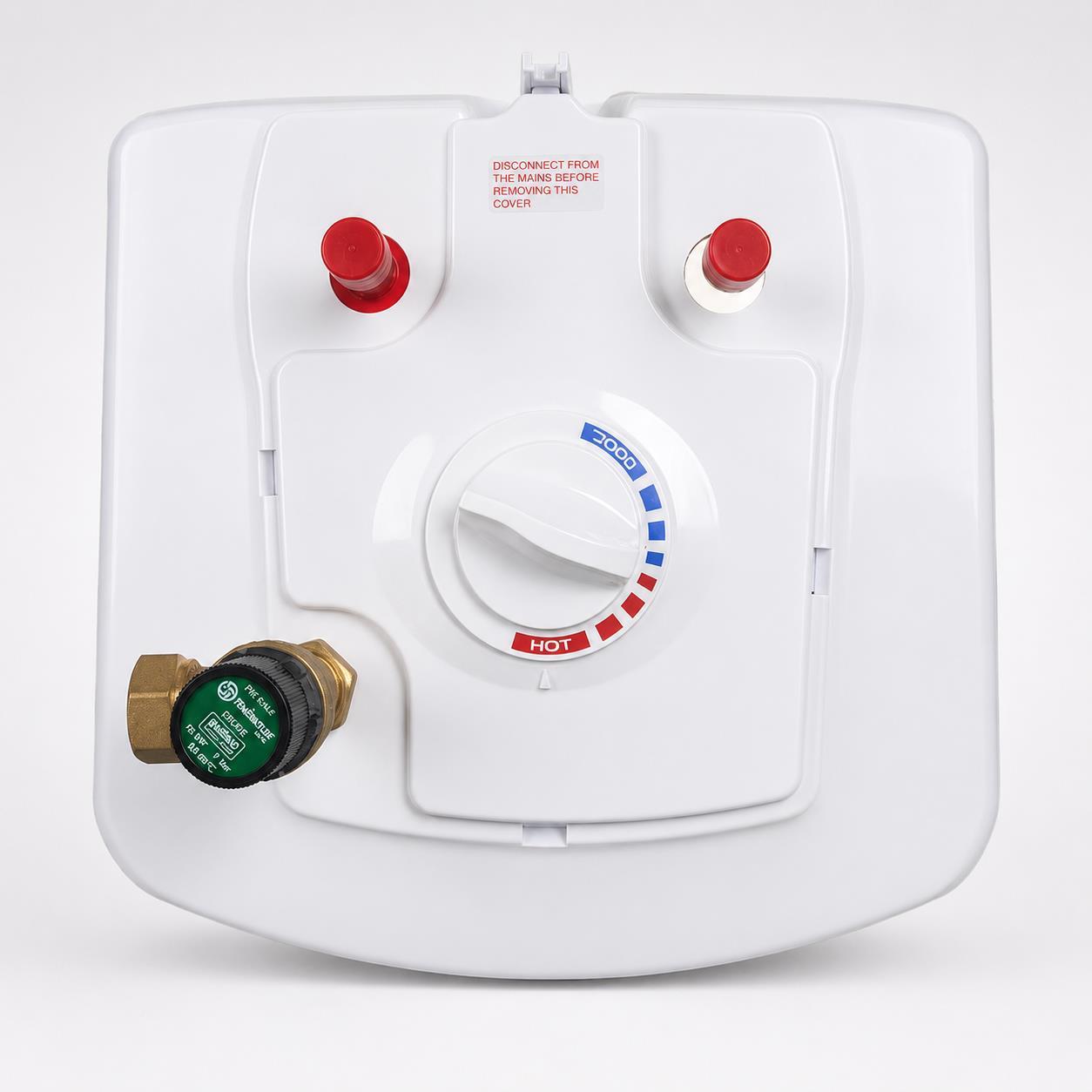

Adjustable Temperature Control

The external thermostat allows straightforward temperature adjustment between approximately 10°C and 70°C. In addition, the installer can lock the thermostat in its hot or mid-range position when controlled access is required.

However, high water temperatures can cause scalding. Therefore, a thermostatic blending valve may be needed in washrooms, care settings or other installations used by vulnerable people.

Designed for Easy Maintenance

The Multipoint 10 uses a replaceable long-life heating element and a heavy-gauge copper inner container. As a result, engineers can replace key parts without changing the complete heater.

Furthermore, the copper container does not use a sacrificial anode. Therefore, there is no anode to inspect or replace during normal servicing.

Why Choose the Heatrae Sadia Multipoint 10?

• Multiple outlets: It can supply several nearby taps from one heater.
• Compact size: The slim wall-mounted body suits areas with limited space.
• Fast heating: Its 3kW element provides practical recovery for regular use.
• Simple adjustment: The external thermostat offers easy temperature control.
• Easy maintenance: The heating element and copper container are replaceable.
• No anode servicing: There is no sacrificial anode to inspect or replace.
• Built-in protection: A temperature and pressure relief valve comes factory fitted.
• UK manufacturing: Heatrae Sadia designs, engineers and manufactures the heater in the UK.

Why Buy from SNH Tradecentre?

• Competitive prices: We aim to offer excellent value across the Heatrae Sadia range.
• Helpful advice: Our team can help you compare water heater sizes and models.
• Genuine products: Buy with confidence from an established plumbing and heating merchant.
• Clear information: We provide useful specifications to help you order confidently.
• Trade and public welcome: We supply installers, landlords, businesses and homeowners.
• UK-based support: Contact our team if you need help with the product or delivery.
• Independent merchant: SNH Tradecentre is based in Birchington, Kent.

Need Help Choosing?

Not sure whether the Multipoint 10 will meet your hot water needs? Call SNH Tradecentre on 01843 842727. Our team can help you compare point-of-use water heaters before you order.

Read Reviews from SNH Tradecentre Customers

See what customers say about our service, advice and products on the SNH Tradecentre Google Reviews page.

Read SNH Tradecentre customer reviews on Google

Installation Requirements

A qualified installer must fit and commission this unvented water heater. In addition, a qualified electrician must complete the electrical connection in line with current wiring rules.

The installer must mount the heater vertically, with the water connections at the top. They must also provide a safe and visible discharge route from the temperature and pressure relief valve.

Furthermore, the unit requires a permanent electrical connection through a suitable double-pole isolation switch. The appliance must also be correctly earthed.

The installer must fill the water container before switching on the electricity. Running the heating element without water may damage the appliance and affect the warranty.

Finally, the installation must meet current water, electrical and Building Regulations. The installer must also follow the latest Heatrae Sadia fitting instructions.

Warranty Information

Heatrae Sadia provides a five-year warranty on the inner water container. In addition, the immersion heater and thermal controls receive two years of cover, subject to the manufacturer’s terms.

The warranty does not normally cover frost damage or excessive scale build-up. Furthermore, Heatrae Sadia states that the product must be registered within 30 days for the warranty to become active.

Frequently Asked Questions

Is the Heatrae Sadia Multipoint 10 vented or unvented?

This model is an unvented water heater. Therefore, it connects directly to the mains water supply and does not need a cold water storage cistern.

Can it supply more than one tap?

Yes. The Multipoint 10 can serve several nearby outlets through conventional taps or mixers. However, its 10-litre capacity limits the amount of hot water available at one time.

Can the Multipoint 10 supply a shower?

Heatrae Sadia does not recommend this model for supplying a shower. Instead, it mainly suits sinks, handwashing basins and similar point-of-use applications.

What is the power rating?

The element provides 3kW at 240V or approximately 2.75kW at 230V. A qualified electrician must check the electrical supply before installation.

Does it include a pressure relief valve?

Yes. Heatrae Sadia fits the temperature and pressure relief valve at the factory. It operates at approximately 90°C or 7 bar.

Does it include an expansion vessel?

An expansion vessel is not listed as a standard supplied component. However, the installation may require one, particularly when a pressure-reducing or check valve prevents expansion back into the mains.

What is the thermostat range?

The external thermostat adjusts from approximately 10°C to 70°C. It can also be locked in the hot or mid-range position.

How much does the heater weigh when full?

The heater weighs approximately 6.9kg when empty and 16.9kg when full. Therefore, the wall and fixings must safely support the full operating weight.

Who can install this water heater?

A qualified installer with the correct unvented hot water skills must install it. In addition, a qualified electrician must complete the electrical work.

Order the Heatrae Sadia Multipoint 10

Choose the Heatrae Sadia Multipoint 10L Unvented Water Heater 3kW 95.050.143 for compact hot water storage, adjustable temperature control and the ability to supply several nearby taps.

Before ordering, ask your installer to confirm the heater capacity, incoming water pressure, required accessories and electrical supply.

Manufacturers may change specifications, supplied parts and warranty terms. Therefore, check the latest Heatrae Sadia literature before ordering or installing this product.
