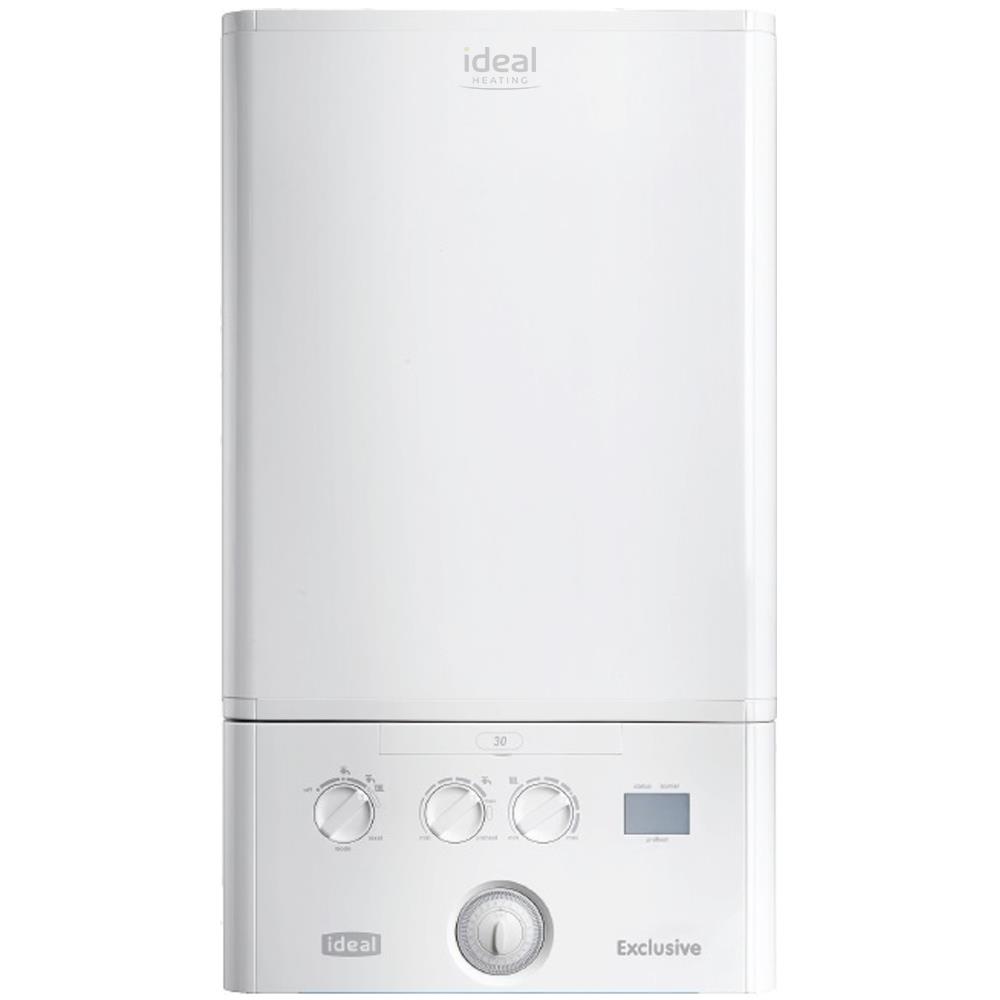

Ideal Exclusive 2 35kW Combi Boiler with Clock

Model: Ideal Exclusive 2 35 – 220480

Heat your home and enjoy instant hot water with the Ideal Exclusive 2 35kW Combi Boiler. This compact natural-gas boiler provides central heating and hot water from one unit. Therefore, it does not need a separate hot-water cylinder.

The 35kW model delivers up to 35.3kW for domestic hot water. In addition, it provides a flow rate of up to 14.5 litres per minute at a 35°C rise. As a result, it offers the highest hot-water output in the Exclusive 2 combi range.

The boiler measures 700mm high, 395mm wide and 285mm deep. Therefore, it provides strong hot-water performance without taking up too much space.

Furthermore, the Ideal Exclusive 2 includes a built-in mechanical timer, digital display and hot-water preheat function. These features make it easy to control your heating and hot water.

This package also includes a compatible standard horizontal flue kit. However, always check the selected product option and package contents before placing your order.

Warranty: Ideal supplies this boiler with a five-year parts and labour warranty. However, installation, registration and servicing conditions apply.

Key Features

• 35.3kW maximum domestic hot-water output
• Hot-water flow rate of 14.5 litres per minute at a 35°C rise
• Highest hot-water output in the Exclusive 2 combi range
• Compact cupboard-fit design
• Built-in mechanical timer
• Standard horizontal flue kit included with this package
• Digital operating and fault display
• Hot-water preheat function
• Separate hot-water temperature control
• OpenTherm control connection
• Fast-fix flue turret connection
• Grundfos pump
• Boiler frost protection
• Easy-access internal parts
• Energy-efficiency class A for heating and hot water
• Five-year parts and labour warranty, subject to conditions
• Natural-gas combination boiler
• Boiler product code: 220480

Ideal Exclusive 2 35kW Specification

• Download the Ideal Exclusive 2 Specification Sheet
• Download the Ideal Exclusive 2 Installation Instructions
• Brand: Ideal Heating
• Range: Exclusive 2
• Boiler type: combination boiler
• Fuel: natural gas
• Maximum hot-water output: 35.3kW
• Maximum central-heating output at 70°C: 24.2kW
• Maximum condensing heating output at 40°C: 25.6kW
• Hot-water flow rate: 14.5 litres per minute at a 35°C rise
• Height: 700mm
• Width: 395mm
• Depth: 285mm
• Maximum installation weight: approximately 30kg
• Packaged weight: approximately 33.8kg
• Seasonal space-heating energy class: A
• Water-heating energy class: A
• Seasonal space-heating efficiency: 94%
• SEDBUK 2005 rating: 91%
• Indoor sound power level: 41dB
• Maximum horizontal flue length: 6 metres, subject to the flue design
• Maximum vertical flue length: 7.5 metres, subject to the flue design
• Boiler product code: 220480

What Is Included?

• 1 x Ideal Exclusive 2 35kW combination boiler
• 1 x Built-in mechanical timer
• 1 x Optional standard horizontal flue kit
• Standard fittings supplied by Ideal
• Installation, operating and servicing documents

Important: Package contents can vary between product options. Therefore, confirm that the selected option includes the horizontal flue kit before completing your order.

Heating and Hot-Water Performance

The Ideal Exclusive 2 heats water when you open a hot tap. Therefore, you do not need to store hot water in a separate cylinder.

The boiler provides a maximum hot-water output of 35.3kW. In addition, it can deliver up to 14.5 litres of hot water per minute at a 35°C temperature rise.

The higher hot-water output makes this model a useful choice for homes with greater hot-water demand. For example, it can help fill a bath faster than the 24kW and 30kW models.

However, actual performance depends on the incoming water pressure, flow and temperature. Therefore, ask an installer to test the mains-water supply before ordering.

Central-Heating Output

Although this model carries a 35kW rating, that figure mainly refers to its hot-water output. The boiler supplies up to 24.2kW for central heating at a 70°C mean water temperature.

Therefore, the installer must check both the heating load and the hot-water demand. The engineer should consider the property size, number of radiators and insulation levels.

Is the Ideal Exclusive 2 35kW Suitable for My Home?

The 35kW model suits homes that need a higher flow of hot water from a combi boiler. Therefore, it may suit properties with a larger bath, high-flow shower or greater daily hot-water use.

However, a combi boiler supplies hot water directly from the incoming mains. As a result, poor mains pressure or flow can limit its performance.

A Gas Safe registered engineer should check your water supply and heating needs before recommending this boiler.

Compact Cupboard-Fit Design

The Ideal Exclusive 2 measures 700mm high, 395mm wide and 285mm deep. As a result, it can fit into many standard kitchen cupboards and other small spaces.

The boiler also uses a drop-down control panel and gives the engineer easy access to the main parts. Therefore, installation and routine servicing remain simple.

However, the installer must still allow the clearances shown in the official installation instructions.

Built-In Mechanical Timer

The built-in mechanical timer lets you set daily heating times from the front of the boiler. Therefore, you can control when the heating turns on and off without buying a separate basic timer.

The boiler also includes a digital operating display. This screen shows the boiler’s status and helps an engineer identify fault codes.

Hot-Water Preheat Function

The switched preheat function keeps the boiler ready to provide hot water more quickly. As a result, it can reduce the wait between opening a tap and receiving hot water.

You can switch the preheat function off when you do not need it. Therefore, you can choose between a faster hot-water response and lower standby energy use.

Compatible Heating Controls

• Built-in 24-hour mechanical timer
• Digital operating and fault display
• Hot-water temperature control
• Switched hot-water preheat function
• OpenTherm wiring connection
• Boiler frost protection
• Pump and diverter-valve exercise functions
• Anti-cycling function

For Boiler Plus compliance, the installation may need a suitable room thermostat or advanced control. Therefore, ask your installer to select the correct controls for your home.

Standard Horizontal Flue Kit

This boiler package includes a compatible standard horizontal flue kit. The flue carries combustion gases safely outside and allows fresh air to enter the boiler.

The boiler also uses Ideal’s fast-fix flue turret connection. As a result, the engineer can connect a suitable flue route more easily.

However, some installations need flue extensions, bends, plume-management parts or a vertical terminal. These parts are available separately. Your Gas Safe engineer must design the complete flue route before installation.

Five-Year Ideal Warranty

The Ideal Exclusive 2 35kW comes with a five-year parts and labour warranty. However, Ideal’s current terms and conditions apply.

A Gas Safe registered engineer must install and commission the boiler. In addition, the installer or homeowner must register it within Ideal’s required time limit.

You must also arrange a service every year. Therefore, keep your proof of purchase, warranty details, Benchmark checklist and annual service records.

Installation Requirements

• Use a Gas Safe registered engineer
• Check the gas supply and working pressure
• Check the incoming mains-water pressure and flow rate
• Size the heating system correctly
• Clean and treat the heating system
• Design the flue route before installation
• Fit any required flue extensions and supports
• Install the condensate drain correctly
• Fit suitable heating controls
• Complete the Benchmark commissioning checklist
• Register the boiler for the manufacturer’s warranty

A qualified engineer must install and commission this boiler. Therefore, do not attempt to fit, alter or commission the appliance unless you hold the correct Gas Safe qualifications.

Check Before Ordering

• Confirm that the 35.3kW hot-water output suits your home
• Check the incoming water pressure and flow rate
• Confirm that you require the natural-gas model
• Check that the selected package includes the flue kit
• Confirm whether the installation needs flue extensions or bends
• Check whether an extra heating control is required
• Check the boiler dimensions and installation clearances
• Arrange installation with a Gas Safe registered engineer
