Product Description

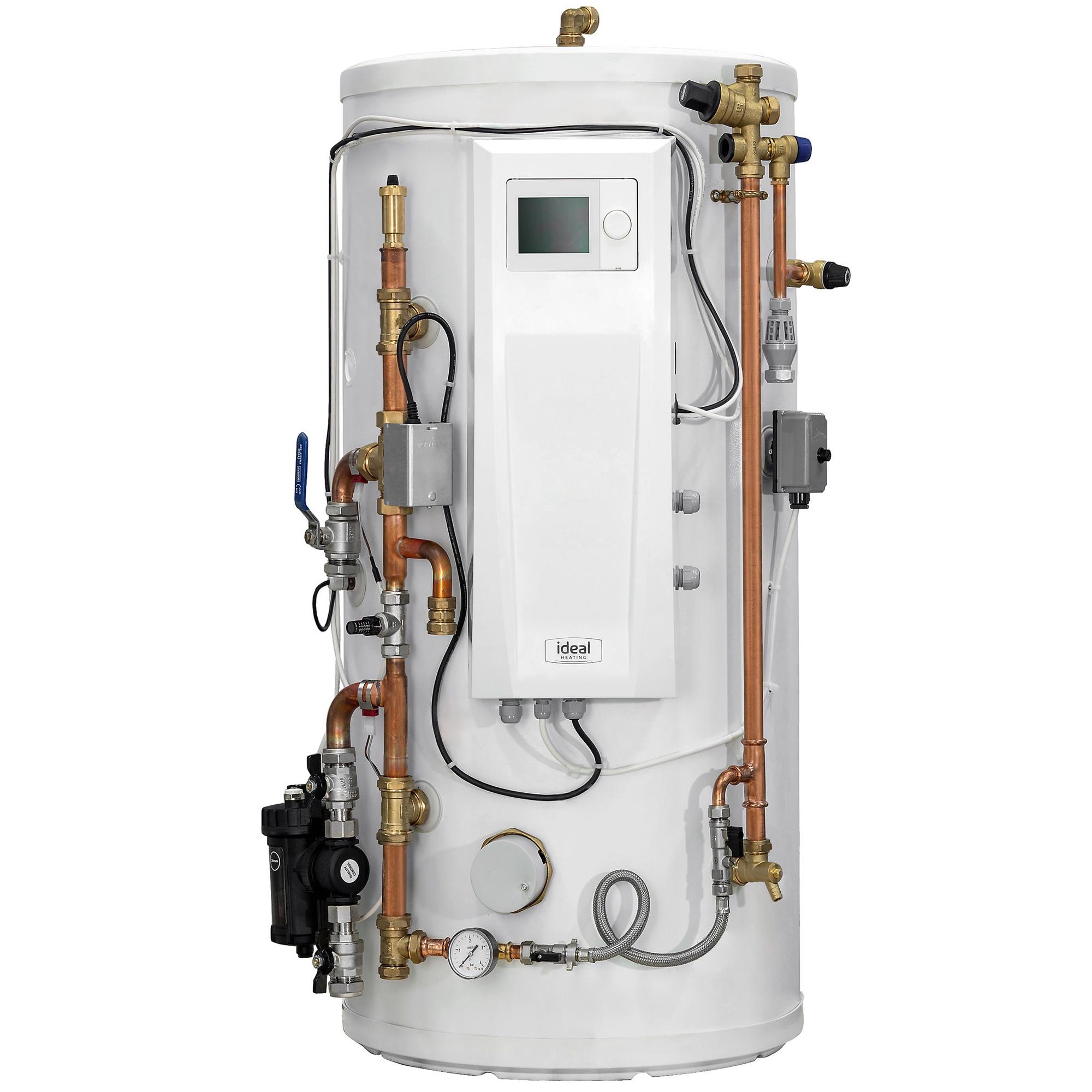

Ideal Logic Air 150L Slimeline Heat Pump Pre Plumbed 1 Zone CBOX

Model: 236204

PLEASE NOTE: Delivery for this item is Mainland England ONLY – Please read the installation instructions before you place your order.

The Ideal Heating Logic Air DHW Pre-Plumbed Heat Pump Cylinders are designed to work in conjunction with air source heat pump systems.

Ideal Logic Air 150L Heat Pump Pre Plumbed Features:

• Ideal logic air cylinder information
• 25 Year Warranty on the Vessel 25 Year Warranty on Cylinder (Subject to Manufacturers T&C’s)
• 2 Year Warranty on everything else
• Capacity 169 litres
• Height 1870
• Width – 581mm
• Depth – 606mm
• Secondary Return – 00
• Weight – empty 53KG – Full 222KG
• Max working pressure 3 Bar
• Efficiency – C Rated
• Polyurethane HCFC Free

What Do You Get In The Box?

• 1 x Ideal Unvented cylinder
• 1 x 3KW Immersion heater
• 1 x Control box
• 1 x Heat pump filter
• 1 x DHW 3 port valve
• 1 x Pressure and temperature relief valve
• 1 x High temp cut out
• 1 x Pressure gauge
• Automatic air vent (s)
• Isolation valves
• Flow and return thermistors
• DHW thermistor
• Outdoor sensor
• 1 x Expansion vessel
