Product Description

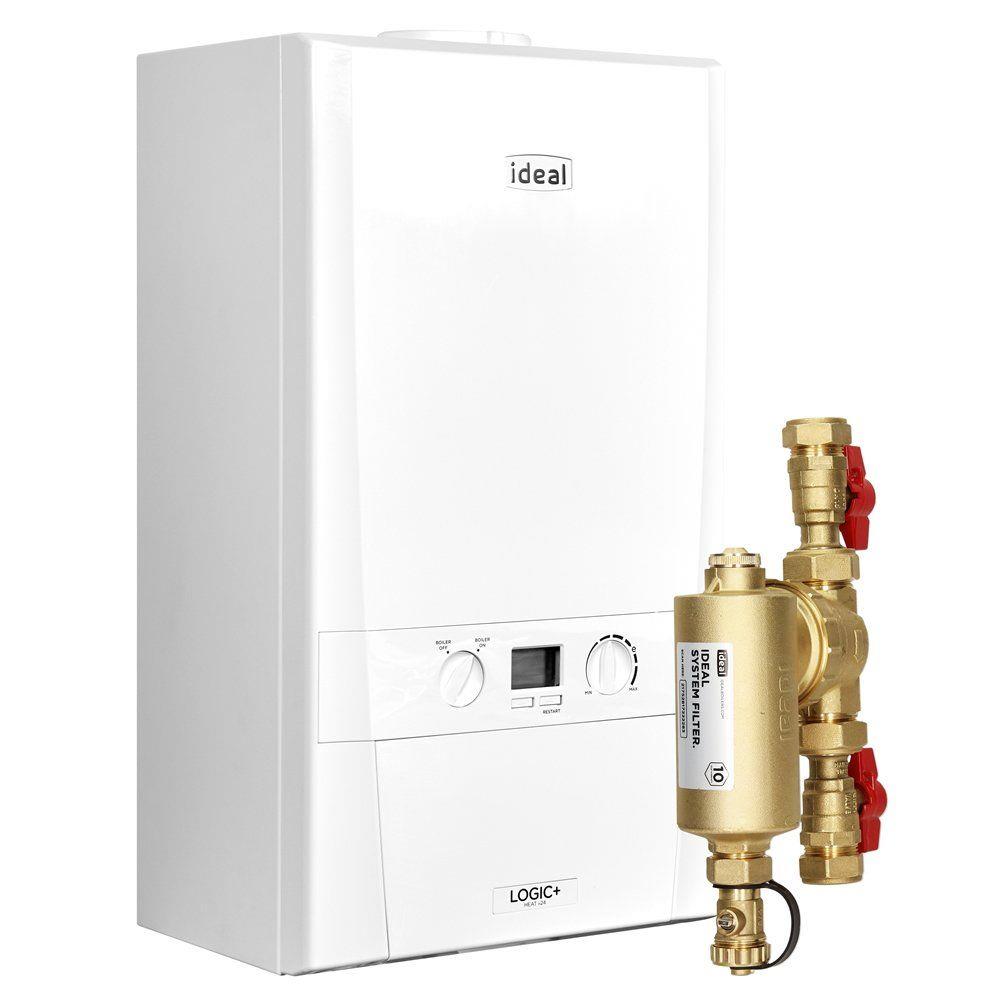

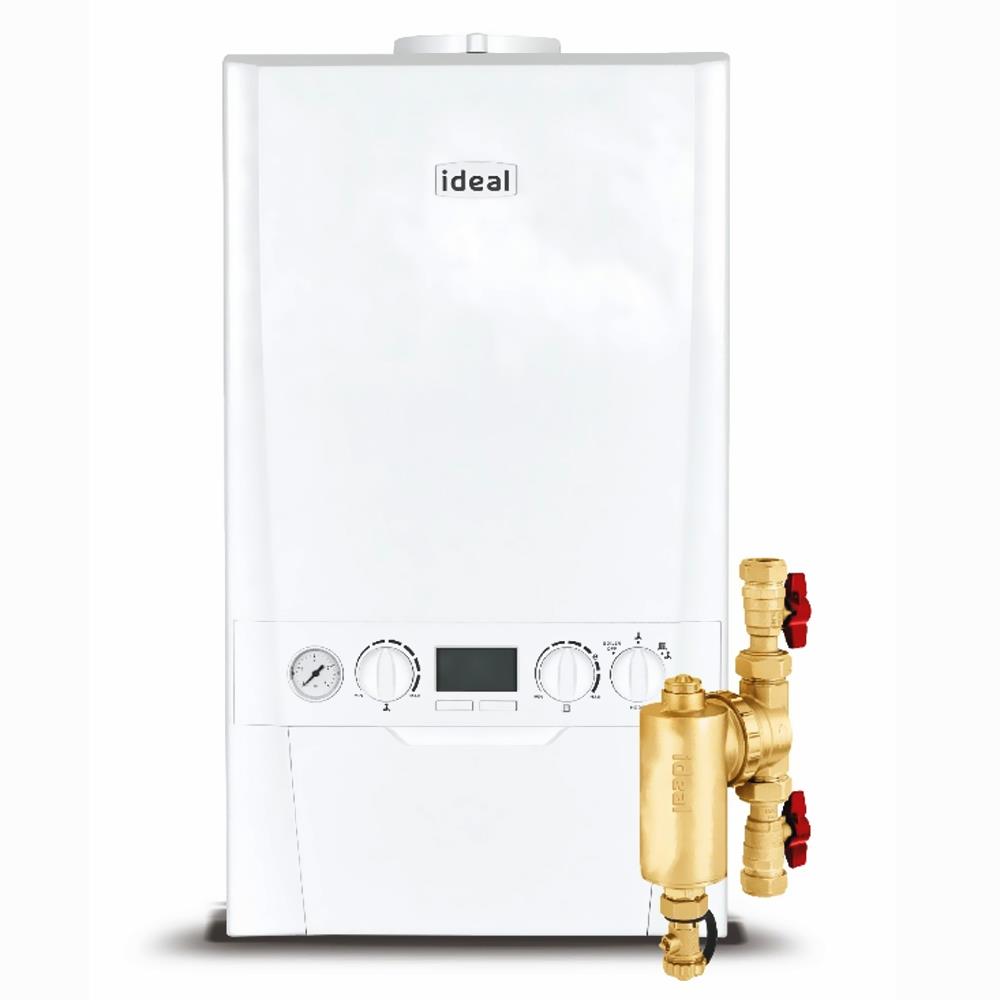

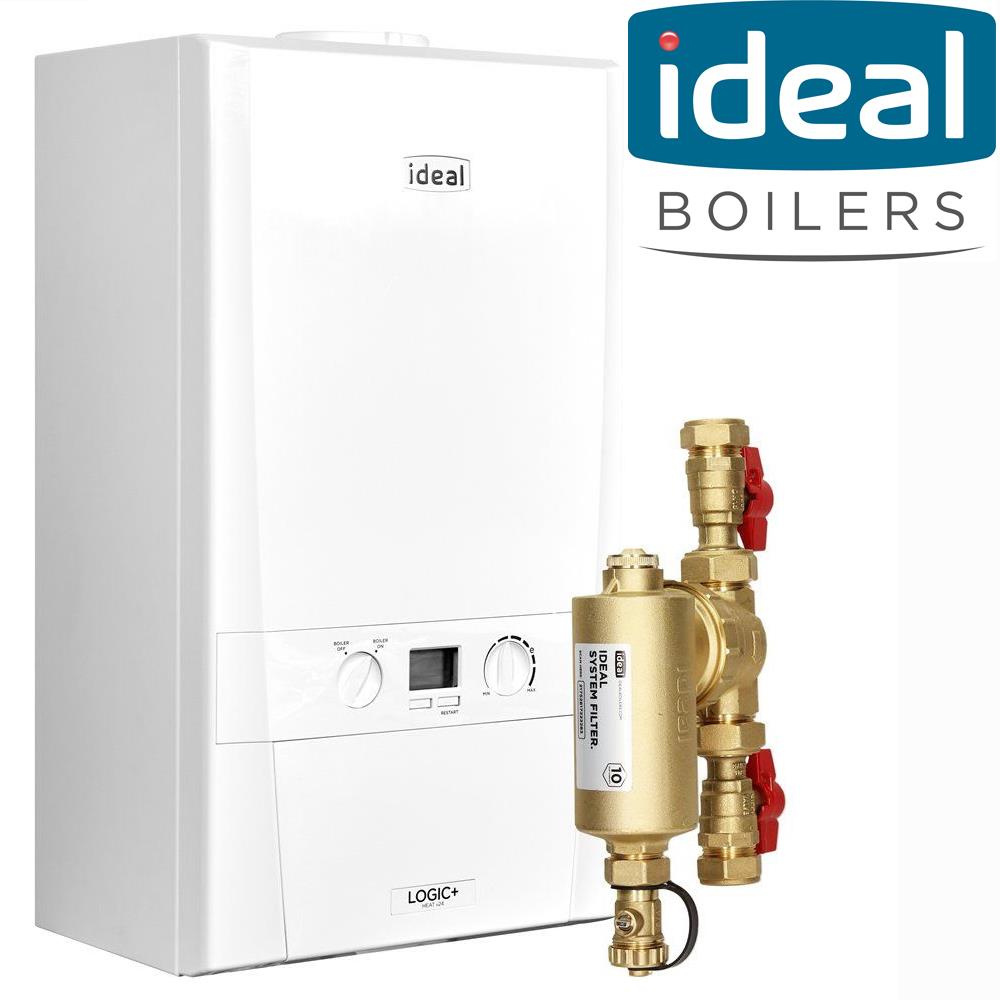

Ideal Logic Max Combi² C30 30kW Combination Boiler

Part Number: 228335

Heat your home and enjoy instant hot water with the Ideal Logic Max Combi² C30 30kW Combination Boiler. This compact natural-gas boiler provides central heating and hot water from one unit. Therefore, it does not need a separate hot-water cylinder.

The C30 provides a maximum hot-water output of 30.3kW. In addition, it delivers up to 12.4 litres of hot water per minute at a 35°C rise. As a result, it offers a stronger hot-water flow than the C24 model.

The package also includes a high-quality Ideal brass system filter. The filter collects magnetic debris from the heating water and helps protect the boiler. Therefore, it can support the long-term health of the heating system.

Furthermore, the boiler measures only 700mm high, 395mm wide and 278mm deep. Its compact size makes it suitable for many standard kitchen cupboards.

Warranty: Ideal supplies the Logic Max Combi² with a ten-year parts and labour warranty when registered within 30 days of installation. Ideal’s installation, registration and servicing conditions apply.

Key Features

• 30.3kW maximum domestic hot-water output
• Hot-water flow rate of 12.4 litres per minute at a 35°C rise
• Ideal brass system filter included
• Compact cupboard-fit design
• Large digital display
• Clear front pressure gauge
• Intelligent hot-water preheat function
• Compatible with suitable Ideal Halo controls
• Fully modulating operation
• Built-in frost protection
• Built-in filling loop
• Pre-wired mains lead
• Energy-efficiency class A for heating and hot water
• Ten-year parts and labour warranty, subject to conditions
• Natural-gas combination boiler
• Product code: 228335

Ideal Logic Max C30 Specification

• Download the Ideal Logic Max Installation Instructions
• Download the Ideal Logic Max Specification Sheet
• Brand: Ideal Heating
• Range: Logic Max Combi²
• Model: C30
• Boiler type: combination boiler
• Fuel: natural gas
• Maximum hot-water output: 30.3kW
• Central-heating output at 70°C: 6.1kW to 24.2kW
• Central-heating output at 40°C: 6.4kW to 25.6kW
• Hot-water flow rate: 12.4 litres per minute at a 35°C rise
• Height: 700mm
• Width: 395mm
• Depth: 278mm
• Maximum installation weight: 28.6kg
• Packaged weight: 35kg
• Seasonal space-heating energy class: A
• Water-heating energy class: A
• Seasonal space-heating efficiency: 94%
• SEDBUK 2005 rating: 91.1%
• SEDBUK 2009/2012 rating: 89.6%
• NOx class: 6
• Indoor sound power level: 46dB
• Heat-exchanger material: cast aluminium-silicon alloy
• Suitable heating system: sealed system
• Product code: 228335

What Is Included?

• 1 x Ideal Logic Max Combi² C30 boiler
• 1 x Ideal brass system filter
• 1 x Built-in filling loop
• 1 x Pre-wired mains lead
• Standard boiler fittings supplied by Ideal
• Installation, operating and servicing documents

Please note: A flue kit and heating controls are not included unless the selected product package clearly states otherwise.

Heating and Hot-Water Performance

The Ideal Logic Max C30 heats water when you open a hot tap. Therefore, you do not need to store hot water in a separate cylinder.

The boiler provides a maximum hot-water output of 30.3kW. In addition, it can deliver up to 12.4 litres of hot water per minute at a 35°C rise.

This higher hot-water flow makes the C30 a useful choice for homes with greater hot-water demand. For example, it can help fill a bath faster than the lower-output C24 model.

However, actual performance depends on the incoming water pressure, flow and temperature. Therefore, ask an installer to test the mains-water supply before ordering.

Central-Heating Output

Although the C30 carries a 30kW rating, that figure mainly refers to its hot-water output. The boiler provides up to 24.2kW for central heating at a 70°C mean water temperature.

Therefore, the installer must check both the heating load and hot-water needs of the property. The engineer should consider the number of radiators, insulation levels and size of the home.

Ideal System Filter Included

The Logic Max package includes a high-quality Ideal brass system filter. This filter catches magnetic dirt and other debris from the heating water.

As a result, the filter helps protect the boiler, pump and other heating parts. It may also help the system maintain a steady flow when the installer cleans and services it correctly.

The installer must fit the filter in the correct position and follow Ideal’s instructions. In addition, the filter will need regular cleaning during the annual boiler service.

Compact Cupboard-Fit Design

The Ideal Logic Max C30 measures 700mm high, 395mm wide and 278mm deep. Therefore, it can fit inside many standard kitchen cupboards and utility spaces.

The boiler also weighs only 28.6kg when ready for installation. As a result, it remains easier to lift and position than many larger boilers.

However, the engineer must still allow the installation and service clearances shown in the official instructions.

Simple Digital Controls

The large digital display allows the user to check the boiler status and change the heating or hot-water temperature. In addition, the front pressure gauge makes it easy to check the system pressure.

The boiler also provides useful service reminders and fault information. Therefore, the display can help both the homeowner and heating engineer.

Intelligent Hot-Water Preheat

The intelligent preheat function helps reduce the wait for hot water. As a result, the boiler can respond more quickly when you open a tap.

However, hot-water performance still depends on the incoming mains supply. Therefore, your installer should test the water pressure and flow rate before fitting the boiler.

Compatible Heating Controls

The Ideal Logic Max Combi² works with suitable Ideal Halo heating controls. These controls can provide more accurate time and temperature settings.

Some controls can also improve comfort and help reduce wasted energy. Therefore, ask your installer to choose a control that suits your home and meets current Boiler Plus requirements.

Ten-Year Ideal Warranty

The Ideal Logic Max Combi² C30 comes with a ten-year parts and labour warranty. However, Ideal’s current terms and conditions apply.

A Gas Safe registered engineer must install and commission the boiler. In addition, the boiler must be registered with Ideal within 30 days of installation.

You must also arrange a service every year. Therefore, keep your proof of purchase, registration details, Benchmark checklist and annual service records.

Installation Requirements

• Use a Gas Safe registered engineer
• Check the gas supply and working pressure
• Check the incoming mains-water pressure and flow rate
• Confirm that a sealed heating system is suitable
• Complete a system flush before installation
• Add suitable system treatment chemicals
• Fit and clean the included Ideal system filter
• Select a compatible Ideal flue separately
• Fit suitable heating controls
• Install the condensate drain correctly
• Complete the Benchmark commissioning checklist
• Register the boiler within 30 days

A qualified engineer must install and commission this boiler. Therefore, do not attempt to fit, alter or commission it unless you hold the correct Gas Safe qualifications.

Check Before Ordering

• Confirm that the C30 model suits the property
• Check the incoming water pressure and flow rate
• Confirm that you require the natural-gas model
• Select a suitable Ideal flue kit
• Check whether the flue needs extensions or bends
• Choose a suitable heating control
• Check the boiler dimensions and service clearances
• Arrange installation with a Gas Safe registered engineer
