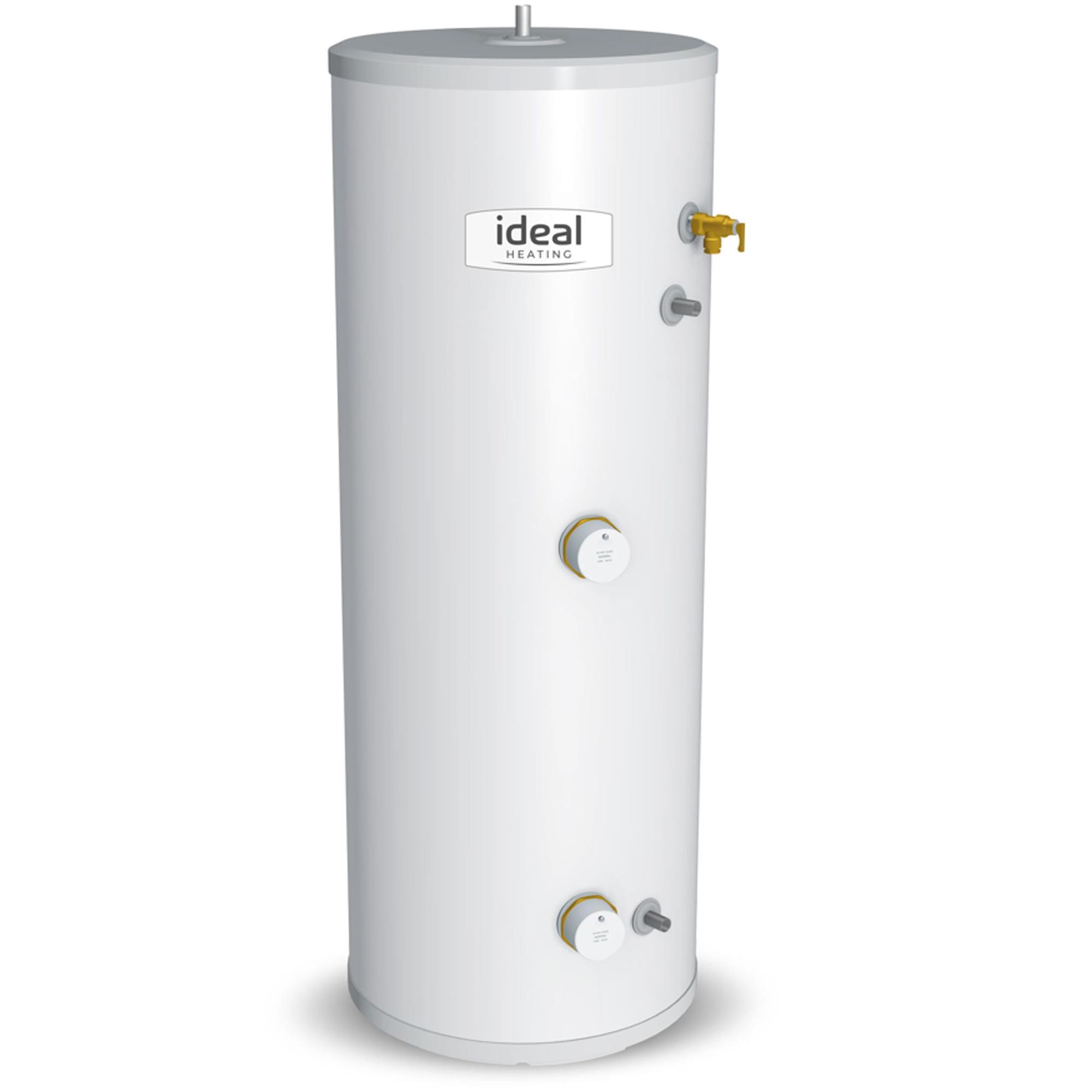

Ideal Pro 300L Direct Unvented Cylinder
The Ideal Pro 300L Direct Unvented Cylinder provides mains-pressure hot water using two 3kW immersion heaters. It has a 287-litre capacity, duplex stainless steel vessel and secondary return connection. The package also includes the main unvented safety components and carries a 25-year vessel warranty, subject to Ideal’s terms.
£595.83 £715.00 (inc vat)
Product Description
Ideal Pro 300L Direct Unvented Cylinder Stainless Steel
Model: IDEPRODR300
PLEASE NOTE: We can only deliver this product to Mainland England addresses. Please read the installation instructions and confirm suitability before ordering.
The Ideal Pro 300L Direct Unvented Cylinder provides stored mains-pressure hot water for properties that use electricity as their main water-heating source. Two 3kW immersion heaters heat the stored water. Therefore, this direct cylinder does not need a boiler-fed heating coil.
Ideal manufactures the inner vessel from strong duplex stainless steel. In addition, high-density HCFC-free polyurethane foam insulation helps keep the water hot and reduce standing heat loss.
The cylinder has a nominal size of 300 litres and an actual capacity of 287 litres. As a result, it may suit larger homes and properties with high hot water demand. However, a qualified installer must calculate the correct cylinder size before ordering.
As an unvented cylinder, the Ideal Pro connects directly to the mains water supply. Therefore, it can provide strong hot water flow to compatible showers, baths and taps without using a traditional cold water storage tank in the loft.
Ideal Pro 300L Direct Cylinder Features
- Download the Ideal Pro unvented cylinder installation instructions
- Ideal Pro user instructions
- Ideal Pro direct brochure
- Ideal web site
- Full range of ideal unvented cylinders
- Ideal Pro Cylinder buyng guide
- Direct unvented hot water cylinder
- Model: IDEPRODR300
- Nominal size of 300 litres
- Actual capacity of 287 litres
- Provides mains-pressure hot water
- Designed for direct electric water heating
- No boiler-fed heating coil
- Two 3kW immersion heaters
- Suitable for off-peak heating with an on-peak boost
- Duplex stainless steel inner vessel
- High-density HCFC-free polyurethane foam insulation
- C-rated for energy efficiency
- Heat loss of approximately 2.06kWh per 24 hours
- Approximately 299-minute heat-up time under stated test conditions
- Includes a secondary return connection
- 25-year vessel warranty, subject to Ideal’s terms
- Two-year parts and labour warranty, subject to Ideal’s terms
Key Features and Benefits
- Direct electric heating: Two fitted immersion heaters heat the stored water without using a boiler-fed coil.
- Off-peak and boost operation: A suitable controller can heat the cylinder during off-peak periods and run the upper immersion as a boost.
- Mains-pressure hot water: The cylinder can provide strong flow to suitable showers, baths and taps when the property has an adequate mains supply.
- Large stored water volume: The 287-litre actual capacity can support properties with high hot water demand.
- Secondary return connection: This allows a suitably designed secondary hot water circulation system to connect to the cylinder.
- Stainless steel construction: The duplex stainless steel vessel provides strength and good resistance to corrosion.
- Reduced heat loss: High-density foam insulation helps keep the water hot between heating cycles.
- No loft tank required: The unvented design takes its cold water supply directly from the mains.
Technical Specification
- Manufacturer: Ideal Heating
- Range: Ideal Pro
- Model: IDEPRODR300
- Product Type: Direct unvented cylinder
- Nominal Size: 300 litres
- Actual Capacity: 287 litres
- Heat Source: Electric immersion heaters
- Immersion Heaters: 2 x 3kW
- Inner Vessel: Duplex stainless steel
- Insulation: High-density HCFC-free polyurethane foam
- Energy Efficiency Class: C
- Load Profile: L
- Standing Heat Loss: 86W
- Heat Loss: 2.06kWh per 24 hours
- Heat-Up Time: Approximately 299 minutes
- Secondary Return: Yes
- Operating Pressure: 3 bar
- Maximum Inlet Pressure to Pressure-Reducing Valve: 12 bar
- Expansion Relief Valve Setting: 4.5 bar
- Temperature and Pressure Relief Valve: 6 bar
- Empty Weight: 41kg
- Full Weight: Approximately 328kg
- Vessel Warranty: 25 years, subject to Ideal’s terms
- Parts and Labour Warranty: Two years, subject to Ideal’s terms
Ideal Pro 300L Direct Cylinder Dimensions
- Height: 1990mm
- Diameter: 550mm
- Recommended Minimum Cupboard Footprint: 650mm x 650mm
Before ordering, carefully check the available height and floor space for the cylinder, expansion vessel, valves and connected pipework. In addition, leave enough room for installation, servicing and future maintenance.
The supporting floor must remain level and safely carry the cylinder’s full operating weight of approximately 328kg.
What Is Included?
- 1 x Ideal Pro 300L direct unvented cylinder
- 2 x 3kW immersion heaters with control and cut-out thermostats
- 1 x cold water combination inlet control group
- 1 x expansion vessel with mounting bracket
- 1 x temperature and pressure relief valve
- 1 x tundish
- 1 x drain valve or drain elbow
- Technical and user literature
The supplied components provide the main controls for an unvented installation. However, the system may need additional pipework, electrical controls, isolators, valves and fittings to suit the property.
Ideal may change the supplied package. Therefore, check the latest installation guide and inspect the delivered components before installation.
How Does a Direct Unvented Cylinder Work?
A direct cylinder uses electric immersion heaters to heat the stored domestic water. It does not contain an internal primary coil for connection to a gas or oil boiler.
The lower immersion heater normally heats most of the cylinder. A suitable off-peak electricity supply can run this heater during lower-cost periods. Meanwhile, the upper immersion heater can provide a faster boost when extra hot water is required.
The cylinder takes cold water directly from the mains. As hot water leaves through a tap or shower, fresh mains water enters the cylinder. Therefore, the system does not need a traditional cold water tank in the loft.
What Is a Secondary Return?
A secondary return can form part of a pumped hot water circulation system. This system keeps hot water moving through a dedicated return circuit. As a result, it can reduce the time spent waiting for hot water at outlets located far from the cylinder.
However, secondary circulation increases heat loss and requires careful design. The installer may also need an additional expansion vessel if the heated return pipework holds more than the permitted volume.
Therefore, a qualified installer must design the circulation circuit, choose a suitable pump and insulate the connected pipework correctly.
Where Can You Use the Ideal Pro 300L Direct Cylinder?
The Ideal Pro 300L direct cylinder may suit larger family homes, properties with several bathrooms and buildings without a suitable boiler connection. It may also suit electric-only homes with high hot water demand.
However, the correct cylinder size depends on several factors:
- The number of people in the property
- The number of showers, baths and taps
- The size and type of bath
- How often occupants use hot water
- The available mains water pressure and flow
- The time available to reheat the cylinder
- The available electricity tariff and control arrangement
Therefore, always ask a qualified installer to calculate the required capacity before ordering.
Direct or Indirect Cylinder?
Choose a direct cylinder when electric immersion heaters will provide the main source of hot water. This option often suits electric-only homes and properties without a suitable boiler.
In comparison, an indirect cylinder contains an internal heating coil that connects to a boiler or another compatible heat source. It normally includes an immersion heater for backup use.
Direct and indirect cylinders cannot always replace each other without changes to the heating system. Therefore, confirm the required cylinder type before ordering.
Benefits of Mains-Pressure Hot Water
An unvented cylinder can provide stronger hot water performance than a traditional gravity-fed system. For example, it may improve the flow available at compatible showers, baths and taps.
In addition, the system does not need a cold water storage tank in the loft. This can save space and remove problems linked to an open loft tank.
However, the cylinder cannot improve a poor incoming mains supply. A qualified installer must test the available pressure and flow before confirming that the system will meet the property’s needs.
Electrical Requirements
Each 3kW immersion heater needs a suitable electrical supply, control and local isolation. A qualified electrician must design and complete the electrical work in line with current UK regulations.
If the system will use an off-peak electricity tariff, the electrician must check the meter arrangement and choose suitable controls. The upper immersion can then provide an on-peak boost where the system design allows it.
Installation Requirements
A suitably trained and qualified installer must fit and commission this unvented cylinder. In England and Wales, the installation must meet Part G3 of the Building Regulations. Different requirements apply in Scotland and Northern Ireland.
The installer must follow the latest Ideal instructions and check:
- The required cylinder capacity
- The incoming mains pressure and flow rate
- The position of the expansion vessel and safety valves
- The discharge pipe size and termination point
- The electrical supplies and immersion heater controls
- The secondary return arrangement, where used
- The strength and level of the supporting floor
- The space required for servicing and maintenance
Unvented cylinders also need regular safety checks and servicing. Therefore, keep the installation guide and completed Benchmark record with the cylinder.
Why Choose the Ideal Pro 300L Direct Cylinder?
The Ideal Pro combines a duplex stainless steel vessel with two electric immersion heaters and effective foam insulation. As a result, it offers a practical hot water solution for properties that rely on electricity rather than a boiler-fed coil.
Furthermore, this model includes a secondary return connection for compatible circulation systems. Its 25-year vessel warranty and two-year parts and labour warranty provide added reassurance, subject to the manufacturer’s conditions.
Why Buy from SNH Tradecentre?
- Competitive prices on Ideal cylinders and heating products
- Helpful product and technical advice
- Genuine products from established manufacturers
- Delivery available to eligible Mainland England addresses
- Trade and public customers welcome
- Collection available from our Birchington, Kent trade counter
- Independent UK plumbing and heating merchant
Ideal Heating may update product specifications, package contents and warranty terms without notice. Check the latest installation guide and confirm suitability with a qualified unvented hot water installer before ordering.
