Ideal System Ready Pro 300L Unvented Cylinder

The Ideal System Ready Pro 300L Indirect Unvented Cylinder combines a 287-litre stainless steel cylinder with factory-fitted pipework, controls and wiring for domestic hot water and one heating zone.

£871.67 £1,046.00 (inc vat)

In stock

Product Description

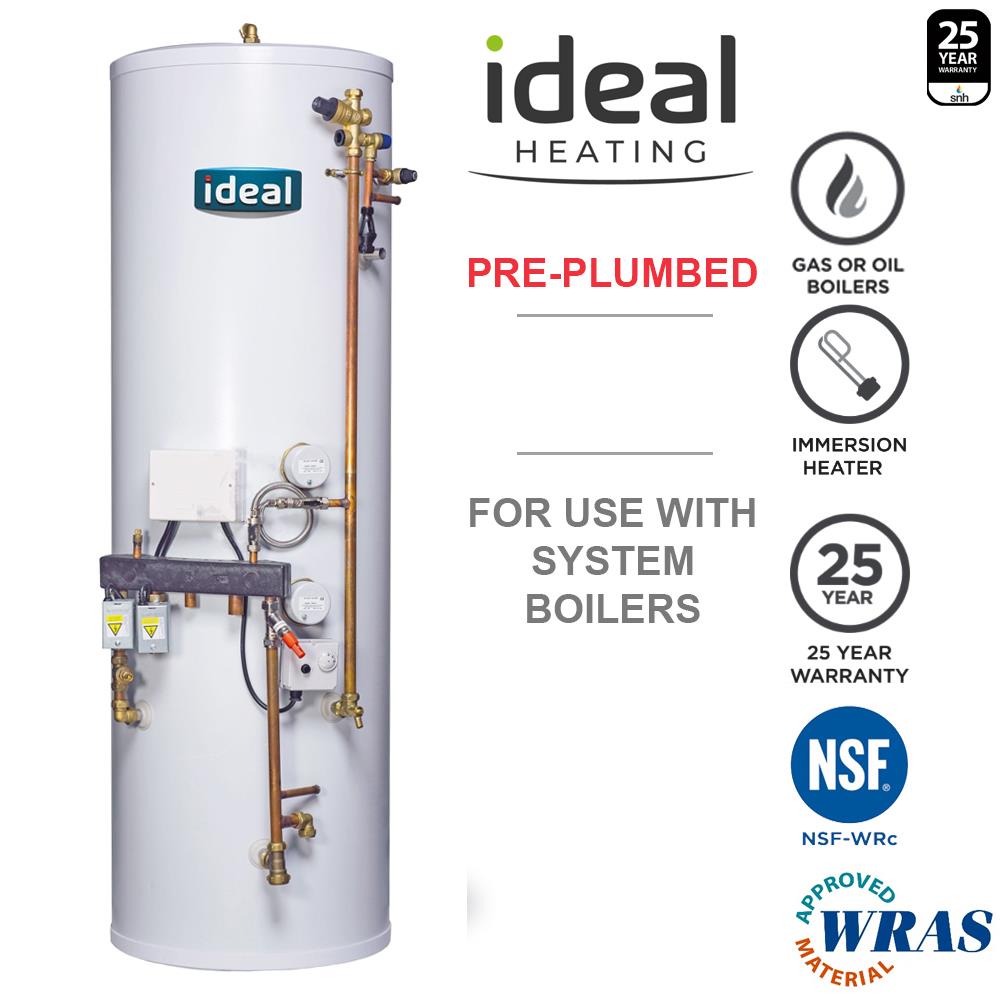

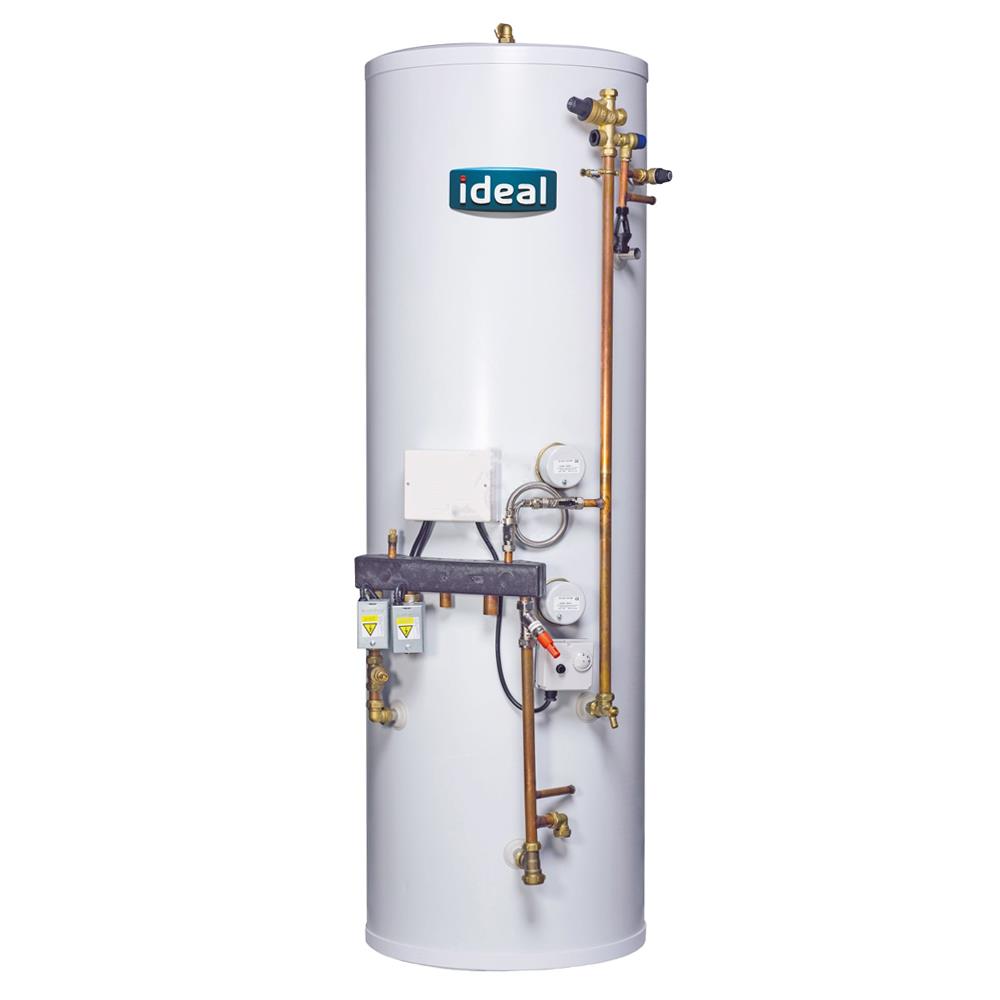

Ideal System Ready Pro 300L Indirect Unvented Cylinder

Model: IDEPROIN300PPSR

PLEASE NOTE: We can only deliver this cylinder to Mainland England addresses. Please read the installation instructions before placing your order.

The Ideal System Ready Pro 300L Indirect Unvented Cylinder combines a large stainless steel hot water cylinder with factory-fitted pipework, controls and wiring. Ideal designed this System Ready model to reduce installation time and provide a neat solution for larger domestic heating systems.

The cylinder comes pre-plumbed and pre-wired for domestic hot water and one central heating zone. It also includes a sealed primary filling loop and mains cold-water inlet controls. Furthermore, the installer can connect an optional second heating zone when required.

A high-efficiency internal primary coil connects to a suitable gas or oil boiler. The cylinder works with open-vented and sealed pumped primary systems. In addition, two fitted 3kW immersion heaters provide electric backup and boost options.

Ideal makes the inner vessel from high-quality duplex stainless steel. Meanwhile, high-density, HCFC-free insulation helps retain the stored heat and reduce energy loss.

Installation Guides and Product Information

Ideal System Ready Pro 300L Features

  • System Ready indirect unvented hot water cylinder
  • Model number IDEPROIN300PPSR
  • Nominal size of 300 litres
  • Actual stored water capacity of 287 litres
  • Pre-plumbed and pre-wired at the factory
  • Designed for domestic hot water and one heating zone
  • Optional second heating zone connection
  • Includes a sealed primary filling loop
  • Includes mains cold-water inlet controls
  • High-efficiency internal primary heating coil
  • 25kW primary coil rating
  • Approximately 38-minute primary heat-up time
  • Suitable for compatible gas or oil boilers
  • Works with open-vented and sealed pumped primary systems
  • Provides mains-pressure hot water
  • Includes a 22mm secondary return connection
  • High-quality duplex stainless steel inner vessel
  • High-density, HCFC-free insulation
  • Includes two 3kW immersion heaters
  • ErP energy efficiency class C
  • 25-year vessel warranty, subject to Ideal’s terms
  • Two-year warranty on other components, subject to the manufacturer’s terms

Key Features and Benefits

  • Factory Pre-Plumbed: Ideal fits the main pipework and valves before delivery, which can reduce installation time on site.
  • Factory Pre-Wired: The fitted controls and wiring centre simplify the electrical control layout.
  • One Heating Zone: The standard arrangement provides domestic hot water and one central heating zone.
  • Optional Second Zone: The system includes a connection for an additional heating zone when required.
  • 287-Litre Capacity: The cylinder can meet the higher hot water needs of many larger homes.
  • Mains-Pressure Performance: A suitable incoming supply can provide strong flow at compatible showers, baths and taps.
  • Powerful Primary Coil: The 25kW internal coil provides an approximate 38-minute heat-up time under Ideal’s test conditions.
  • Secondary Return: The 22mm connection supports a correctly designed pumped hot water circulation system.
  • Two Immersion Heaters: Two fitted 3kW immersion heaters provide electric backup and boost options.
  • Stainless Steel Vessel: Duplex stainless steel provides strength and good resistance to corrosion.

Technical Specification

  • Manufacturer: Ideal Heating
  • Range: Ideal Pro System Ready
  • Model: IDEPROIN300PPSR
  • GTIN/EAN: 5022142180711
  • Product Type: System Ready indirect unvented cylinder
  • Nominal Size: 300 litres
  • Actual Capacity: 287 litres
  • Primary Heat Source: Compatible gas or oil boiler
  • Primary Coil Rating: 25kW
  • Primary Coil Surface Area: 0.97m²
  • Primary Coil Pressure Loss: 0.241 bar
  • Primary Heat-Up Time: Approximately 38 minutes
  • Backup Heat Source: 2 x 3kW immersion heaters
  • Number of Immersion Heaters: 2
  • Heating Zones: One fitted zone with an optional second-zone connection
  • Secondary Return: Yes, 22mm
  • Energy Efficiency Class: C
  • Standing Heat Loss: 86W
  • Maximum Inlet Pressure: 12 bar
  • Operating Pressure: 3 bar
  • Pressure-Reducing Valve Setting: 3 bar
  • Expansion Vessel Charge Pressure: 3 bar
  • Expansion Relief Valve Setting: 4.5 bar
  • Temperature and Pressure Relief Valve: 6 bar / 95°C
  • Primary Coil Maximum Working Pressure: 3 bar
  • Inner Vessel: Duplex stainless steel
  • Insulation: High-density, HCFC-free polyurethane foam
  • Vessel Warranty: 25 years, subject to the manufacturer’s terms
  • Other Components: Two-year warranty, subject to the manufacturer’s terms

Ideal System Ready Pro 300L Dimensions

  • Height: 1990mm
  • Diameter: 550mm
  • Basic Cylinder Empty Weight: 43kg
  • Full Operating Weight: Approximately 330kg
  • Packaged System Ready Weight: Approximately 68kg

Installation Space

  • Recommended Minimum Cupboard Width: 700mm
  • Recommended Minimum Cupboard Depth: 700mm
  • Minimum Front Service Access: 600mm

The required cupboard height depends on the cylinder model and the position of the expansion vessels. Therefore, your installer must allow enough space above and around the cylinder for pipework, controls, electrical connections and future servicing.

The supporting floor must carry the cylinder’s full operating weight of approximately 330kg. Your installer should also account for the additional weight of the System Ready pipework and components.

What Comes with the Cylinder?

  • 1 x Ideal System Ready Pro 300L indirect unvented cylinder
  • 2 x 3kW immersion heaters with controls and safety cut-outs
  • Factory-fitted domestic hot water pipework
  • Factory-fitted pipework for one central heating zone
  • Connection for an optional second heating zone
  • 22mm secondary return connection
  • Factory-fitted hot water two-port zone valve
  • Factory-fitted heating two-port zone valve
  • Factory-fitted automatic bypass valve
  • Factory-fitted sealed primary filling loop
  • Factory-fitted wiring centre
  • Factory-fitted manifold and primary pipework
  • Factory-fitted manual air vent
  • Mains cold-water combination inlet group
  • Temperature and pressure relief valve
  • Control thermostat and energy cut-out thermostat
  • Potable expansion vessel with mounting bracket
  • Tundish
  • Drain valve
  • Technical and user literature

Ideal factory fits, wires and tests the main System Ready components. However, the immersion heaters still require separate electrical connections during installation.

A primary heating expansion kit may also be required, depending on the boiler and heating-system design. Therefore, your installer should check the complete package and system requirements before starting work.

What Does “System Ready” Mean?

A System Ready cylinder combines an indirect unvented cylinder with pre-fitted heating and hot water components. Ideal supplies this model with pipework and controls for domestic hot water and one heating zone.

The factory-fitted assembly includes the filling loop, zone valves, manifold, automatic bypass and wiring centre. As a result, the installer can spend less time building the system around a standard bare cylinder.

However, System Ready does not mean that the product arrives ready to use without installation. A qualified installer must connect the boiler, heating circuit, mains water supply, discharge pipework and electrical supplies.

How Does an Indirect Cylinder Work?

An indirect cylinder contains a heating coil inside its stainless steel vessel. A suitable boiler circulates heated primary water through this coil. The coil then transfers heat into the stored domestic hot water.

Meanwhile, the unvented design takes cold water directly from the mains. As hot water leaves the cylinder, incoming mains water replaces it. Therefore, the system does not need a traditional cold-water storage tank in the loft.

The two immersion heaters provide electric backup and boost options. However, the boiler and primary coil normally provide the main source of heat.

What Is a Secondary Return?

The Ideal System Ready Pro 300L includes a 22mm secondary return connection. This allows a qualified installer to create a pumped hot water circulation loop where required.

A secondary return can reduce the time it takes for hot water to reach distant taps. Therefore, it may suit larger homes with long pipe runs, several bathrooms or outlets located far from the cylinder.

However, the installer must design and insulate the circulation system correctly. An extra expansion vessel may also be required when the heated pipework contains more than 10 litres of water.

Where Can You Use the Ideal System Ready 300L?

The Ideal System Ready Pro 300L may suit new heating installations, boiler replacements and renovations where a pre-plumbed cylinder can reduce installation work.

Ideal’s general sizing guide suggests that a 300-litre indirect cylinder may suit some properties with three bathrooms and two separate shower rooms. It may also suit homes with up to six bedrooms or approximately nine bed spaces.

However, the correct cylinder size depends on several factors:

  • The number of people living in the property
  • The number of bathrooms and shower rooms
  • The size and type of baths
  • Whether several outlets run at the same time
  • The available boiler output
  • The incoming mains pressure and flow
  • The required cylinder recovery time
  • Whether the property needs secondary circulation

For this reason, always ask a qualified installer to calculate the required capacity before ordering.

Mains Water Requirements

For optimum performance, Ideal recommends an incoming dynamic pressure of approximately 3 bar and a flow rate of around 25 litres per minute.

The cylinder can work with lower pressure or flow. However, this will reduce the available hot water performance. In addition, the cylinder cannot improve a poor incoming mains supply.

Therefore, your installer should test both the available pressure and flow before recommending an unvented cylinder.

Installation Requirements

A suitably qualified installer must fit and commission this unvented cylinder. The installer must hold the correct qualification or recognised competence for unvented hot water systems.

In England and Wales, the installation must meet Part G3 of the Building Regulations. Different requirements apply in Scotland and Northern Ireland. Therefore, the installer must follow the regulations that apply at the installation address.

A competent electrician must complete the required electrical connections in line with current wiring regulations. Each immersion heater requires a suitable electrical supply and isolator.

The installer must also follow Ideal’s latest instructions for the inlet controls, expansion vessels, zone valves, safety valves, wiring and discharge pipework.

Why Choose the Ideal System Ready Pro 300L?

The Ideal System Ready Pro 300L combines substantial hot water storage with factory-fitted heating components. Therefore, it can reduce on-site plumbing and provide a tidier installation than a standard bare cylinder.

Its 287-litre capacity can suit larger homes with several bathrooms and high hot water demand. Meanwhile, the powerful 25kW primary coil provides efficient boiler heating. The secondary return can also support a suitable pumped hot water circulation system.

Finally, the stainless steel vessel, twin immersion heaters, filling loop, valves and controls provide a convenient package for a professionally designed heating installation.

Why Buy from SNH Tradecentre?

  • Competitive prices on Ideal Heating cylinders
  • Helpful product and technical advice
  • Genuine Ideal Heating products
  • Delivery to eligible Mainland England addresses
  • Trade and public customers welcome
  • Collection available from our Birchington, Kent trade counter
  • Independent UK plumbing and heating merchant

Ideal Heating may update product specifications, fitted components and warranty terms without notice. Check the latest installation guide and confirm system suitability with a qualified installer before ordering.

Additional Information

gtin

5022142180711

Manufacturer

Ideal

Brand

MPN

IDEPROIN300PPSR

SKU

IDEPROIN300PPSR

Unit Quantity

1

EAN

5022142180711

Warranty

25 Year Warranty

Shipping

Free Shipping

Range

Pre-Plumbed

condition

new

Woocategory1

Heating & Cooling

Woocategory3

Woocategory2

Hot Water Cylinders

Country/Region of Manufacture

United Kingdom

Energy Efficiency Rating

B

Style

Unvented Cylinder

Width

550

Height

ccp_Type

indirect

Material

Stainless Steel

Modified Item

No

Custom Bundle

No

Mounting

Floor

Mount Type

Floor Standing

Litres

251 – 300

Heating System

Storage Tank

Manufacturer Warranty

25 Year Warranty
