Product Description

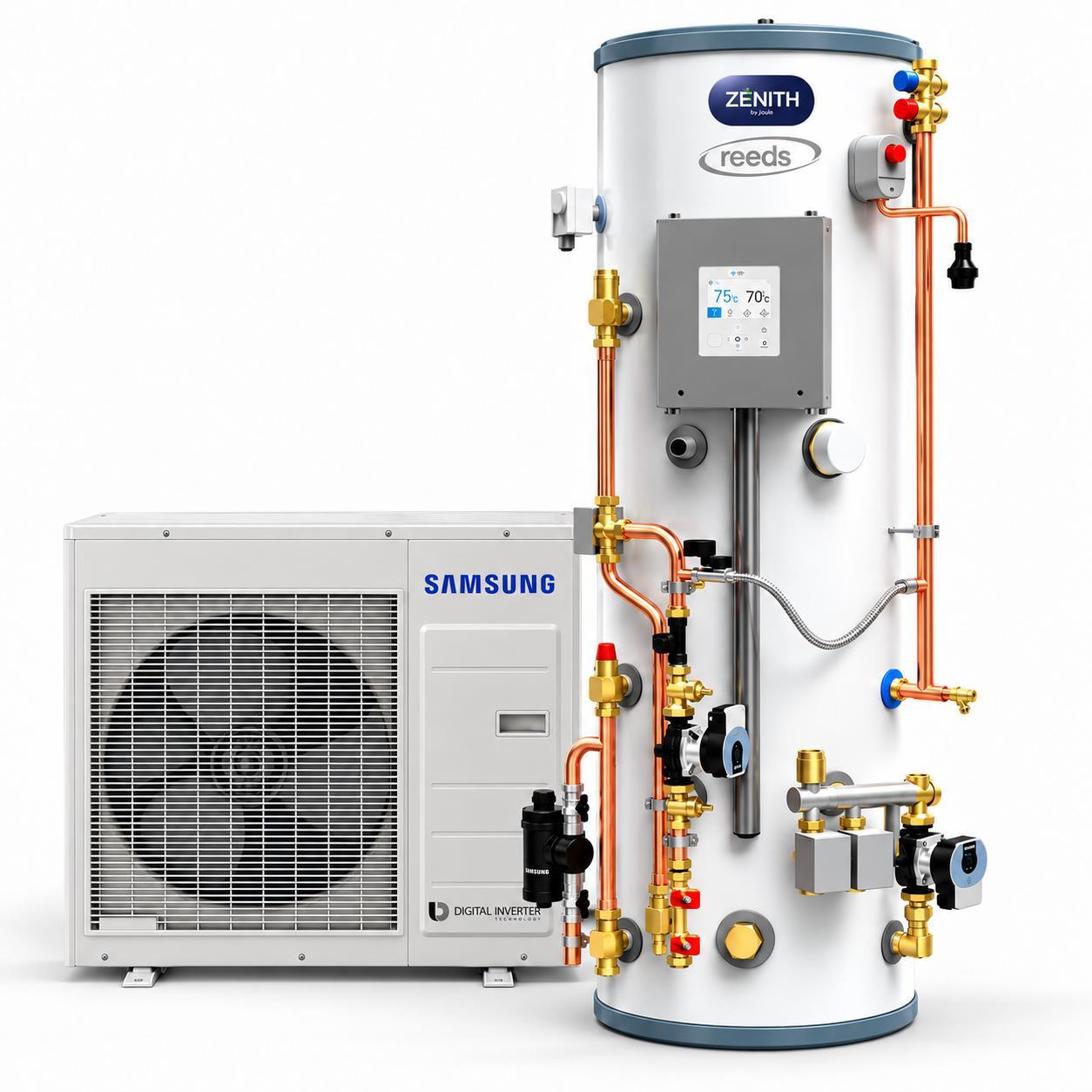

Joule Samsung Gen 6 8kW Heat Pump Pack with Zenith Cylinder

Models: HXZ-G608-150SM, HXZ-G608-180SD, HXZ-G608-180SM, HXZ-G608-200SD and HXZ-G608-250MX

Choose a complete Samsung Gen 6 8kW air source heat pump pack with a Joule Zenith pre-plumbed cylinder. Five options are available. Therefore, you can select the hot-water capacity, buffer size and cylinder format that best suit your property.

Each package combines a single-phase Samsung Gen 6 R32 monobloc heat pump with a Joule Zenith pre-plumbed cylinder. As a result, the installer receives a coordinated heating and hot-water solution in one convenient package.

The Samsung heat pump sits within the 8kW output class and has a listed nominal output of 6.37kW. Meanwhile, the Zenith range offers cylinder capacities from 150 to 250 litres.

You can also choose a built-in 30-litre, 50-litre or 70-litre buffer. Slimline, standard and Max cylinder formats are available.

Please select your required package from the product dropdown before adding the item to your basket.

Choose Your Samsung and Joule Zenith Package

Compare the cylinder capacity, buffer size and format below. Then, select the required product code from the dropdown above.

Key Features

• Download the Joule Zenith Specifications Brochure
• Download the Joule Renewable Packs Brochure
• Complete Samsung and Joule air source heat pump package
• Samsung Gen 6 R32 monobloc heat pump
• 8kW output class with 6.37kW nominal output
• Single-phase electrical supply
• Joule Zenith pre-plumbed unvented cylinder
• Choice of 150, 180, 200 or 250-litre capacity
• Choice of built-in 30, 50 or 70-litre buffer
• Slimline, standard and Max cylinder formats
• Listed as a three-zone heating and hot-water package
• Pre-plumbed design helps reduce work on site
• Coordinated heating and domestic hot-water solution
• Five package options available from one product page

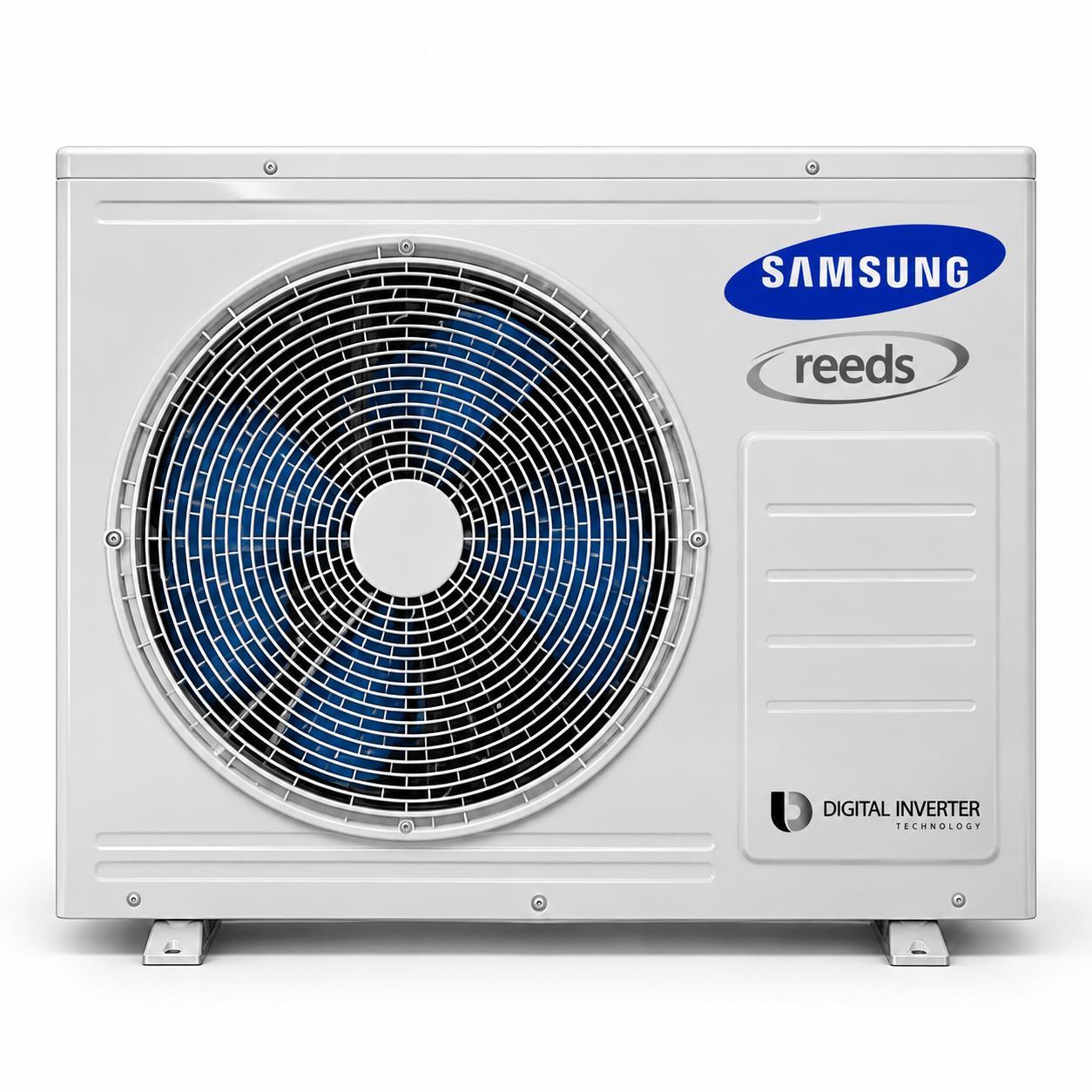

Samsung Gen 6 8kW Heat Pump Specification

• Samsung G600008-1 Specification sheet
• Manufacturer: Samsung
• Product range: Samsung EHS Gen 6
• Product type: air-to-water monobloc heat pump
• Refrigerant: R32
• Output class: 8kW
• Nominal output: 6.37kW
• Electrical supply: single phase
• Maximum water temperature: up to 65°C
• Operating outdoor temperature: down to -20°C
• Application: compatible domestic heating and hot-water systems

Joule Zenith Cylinder Options

• 150-litre slimline cylinder with built-in 30-litre buffer – HXZ-G608-150SM
• 180-litre standard cylinder with built-in 50-litre buffer – HXZ-G608-180SD
• 180-litre slimline cylinder with built-in 30-litre buffer – HXZ-G608-180SM
• 200-litre standard cylinder with built-in 50-litre buffer – HXZ-G608-200SD
• 250-litre Max cylinder with built-in 70-litre buffer – HXZ-G608-250MX

The Joule Zenith cylinder arrives pre-plumbed to reduce the amount of assembly required on site. Therefore, it can help create a neater installation while also saving valuable fitting time.

What Is Included?

The package combines the main heating and hot-water components required for a compatible Samsung and Joule installation. Pack contents typically include:

• 1 x Samsung Gen 6 R32 monobloc heat pump
• 1 x selected Joule Zenith pre-plumbed cylinder
• Integrated buffer sized according to the chosen package

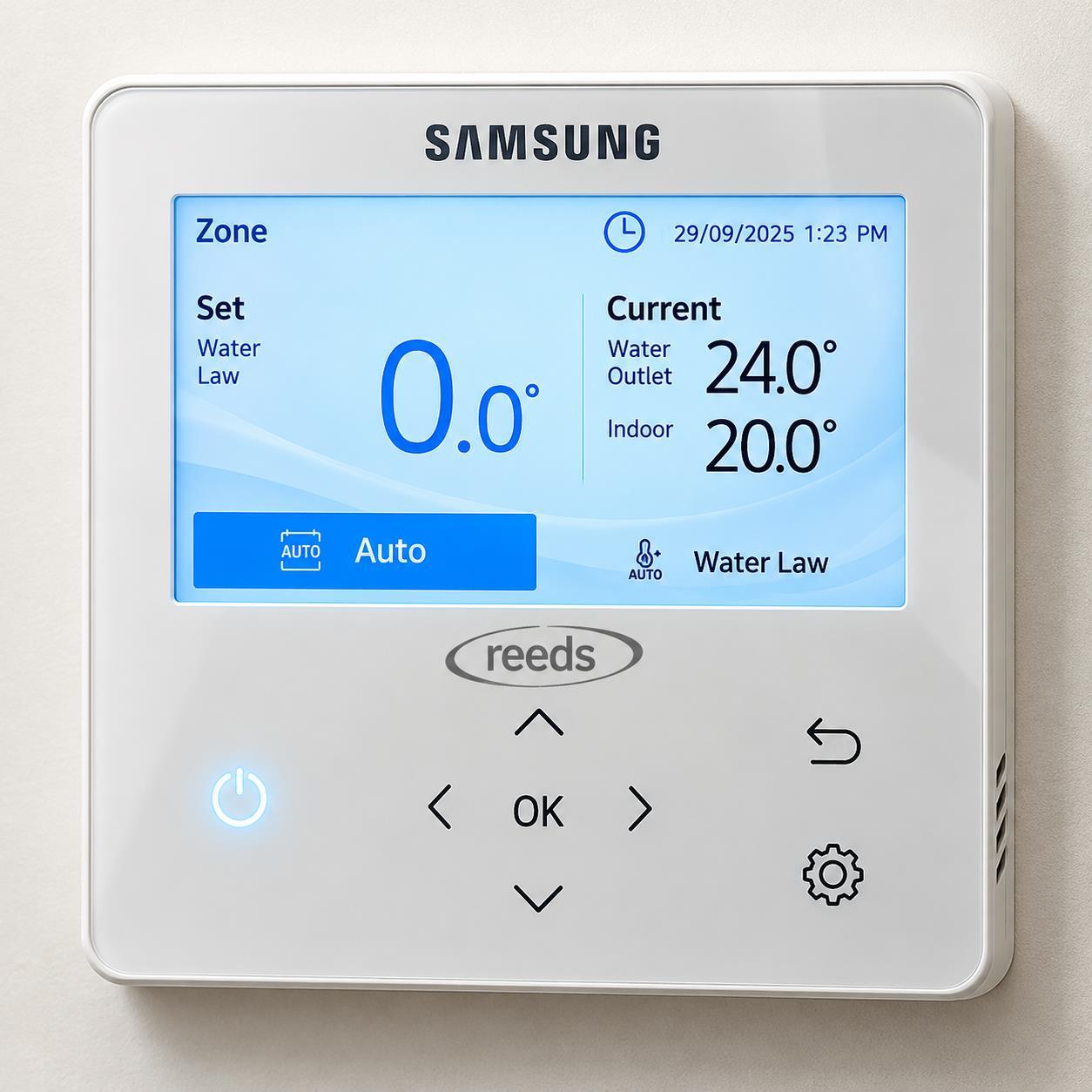

• Samsung control equipment
• System wiring and control centre
• Magnetic system filter
• 1-inch Y-strainer
• FREE: 2 x 750mm insulated flexible hoses
• FREE: 4 x connection washers
• FREE: 2 x 28mm isolation valves

Please note: Components can vary between pack codes or production revisions. Therefore, check the current order confirmation and technical schedule before installation.

How to Choose the Correct Package

HXZ-G608-150SM – 150-Litre Slimline Cylinder with 30-Litre Buffer

This option combines the Samsung heat pump with a 150-litre slimline Zenith cylinder and a built-in 30-litre buffer. It may suit households of approximately 1 to 2 people, subject to their hot-water use.

HXZ-G608-180SD – 180-Litre Standard Cylinder with 50-Litre Buffer

This standard-format option provides 180 litres of hot-water storage. In addition, its built-in 50-litre buffer supports systems that require greater buffered water volume. It may suit households of approximately 2 to 3 people, subject to their hot-water use.

HXZ-G608-180SM – 180-Litre Slimline Cylinder with 30-Litre Buffer

This option provides 180 litres of hot-water storage in a slimmer format. Therefore, it may suit installations where cupboard or plant-room width is limited. It may suit households of approximately 2 to 3 people, subject to their hot-water use.

HXZ-G608-200SD – 200-Litre Standard Cylinder with 50-Litre Buffer

This option combines a 200-litre standard Zenith cylinder with a built-in 50-litre buffer. Therefore, it may suit households of approximately 3 to 4 people, subject to their hot-water use.

HXZ-G608-250MX – 250-Litre Max Cylinder with 70-Litre Buffer

This is the largest hot-water and buffer option in the range. It combines a 250-litre Zenith Max cylinder with a built-in 70-litre buffer. Therefore, it may suit larger households or properties with greater hot-water demand.

Important: Household size alone should not determine the cylinder choice. Instead, consider the number of bathrooms, bath sizes, shower flow rates and expected peak demand.

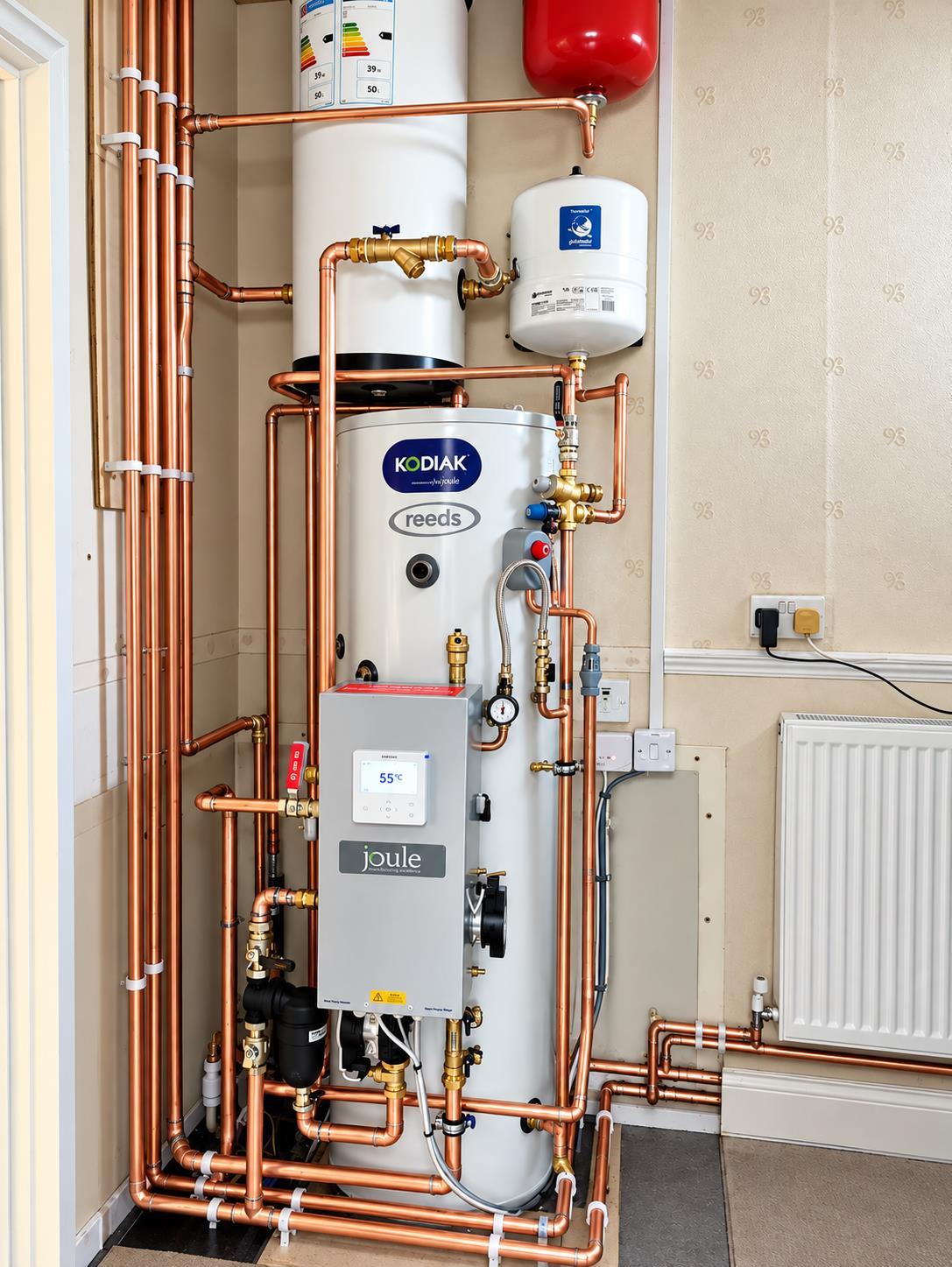

Why Choose a Pre-Plumbed Zenith Cylinder?

The Joule Zenith brings key heating and hot-water components together in one organised unit. As a result, it can reduce the amount of separate pipework and assembly required during installation.

Furthermore, the pre-plumbed layout provides a clean and professional finish. It can also make system planning easier because the installer works with a coordinated package.

The integrated buffer adds water volume to the heating circuit. This can support stable heat-pump operation when the system has been designed and commissioned correctly.

Three-Zone Heating and Hot-Water System

These packages are listed as three-zone systems. The hot-water cylinder forms one zone, while the other two zones serve separate heating circuits.

If the property only requires one heating zone, the installer can cap the unused second heating connection. However, the final arrangement depends on the property and system design.

Therefore, confirm the required controls, pumps, valves and thermostats before ordering.

Free Heat-Pump System Design

Choosing the correct heat pump and cylinder requires an accurate heat-loss calculation. Therefore, SNH Tradecentre can help you plan the complete system before you order.

Email your floor plans and project details to darren@snhuk.co.uk. We can then help size the heating system and identify the most suitable pack for your property.

Please include:

• Property floor plans
• Room dimensions
• Insulation details
• Window and door information
• Existing or proposed heat emitters
• Number of bathrooms
• Expected hot-water demand
• Available cylinder-space dimensions

Important Sizing Information

Do not select a heat pump from the property size alone. A qualified designer must calculate the building heat loss and required operating temperatures.

The designer should also check the radiators or underfloor heating. This ensures the emitters can heat the property at suitable heat-pump flow temperatures.

Likewise, choose the cylinder from the expected hot-water demand. A larger household or property with several bathrooms may need greater storage capacity.

Delivery Information

Delivery for this product range is available to Mainland England only.

These packages contain large and heavy components. Therefore, make sure suitable access is available for delivery. You should also check doorways, paths and storage space before ordering.

Installation Requirements

• Arrange a full room-by-room heat-loss calculation
• Confirm that the 8kW-class heat pump suits the calculated heat loss
• Check radiator or underfloor heating performance
• Confirm the required cylinder and buffer capacity
• Check the available cylinder installation space
• Confirm the single-phase electrical supply requirements
• Plan the condensate and pressure-relief discharge routes
• Follow all Samsung and Joule installation instructions
• Commission the complete system correctly
• Register the equipment and warranty where required

A qualified heat-pump installer must design, install and commission the complete system. In addition, a suitably qualified engineer must complete all work on the unvented hot-water cylinder.

Why Buy from SNH Tradecentre?

SNH Tradecentre works closely with heating manufacturers and installers. Therefore, we can help customers select the correct Samsung heat pump and Joule Zenith cylinder package.

• Free system-sizing help when you supply your floor plans
• Advice on cylinder and buffer selection
• Support for trade and domestic customers
• Coordinated Samsung and Joule package options
• Secure online ordering
• Direct delivery options to Mainland England
• Support before and after your purchase

If you need help choosing between the five options, contact SNH Tradecentre on 01843 842727 or email darren@snhuk.co.uk.

Frequently Asked Questions

Which product options are available?

You can choose HXZ-G608-150SM, HXZ-G608-180SD, HXZ-G608-180SM, HXZ-G608-200SD or HXZ-G608-250MX from the product dropdown.

What is the difference between the five packs?

The main differences are the hot-water cylinder capacity, buffer size and cylinder format. All five packs use the Samsung Gen 6 single-phase heat pump listed in the 8kW class.

What is the listed nominal output?

The Samsung unit sits within the 8kW output class and has a listed nominal output of 6.37kW.

Which options have a slimline cylinder?

The HXZ-G608-150SM and HXZ-G608-180SM packages use slimline Zenith cylinders with built-in 30-litre buffers.

Which packs include a 50-litre buffer?

The HXZ-G608-180SD and HXZ-G608-200SD packages include built-in 50-litre buffers.

Which option offers the greatest hot-water capacity?

The HXZ-G608-250MX includes the largest cylinder in this range. It provides 250 litres of hot-water storage and a built-in 70-litre buffer.

Is this a three-zone package?

Yes. The hot-water cylinder forms one zone, while the other two zones serve separate heating circuits. If the property only requires one heating zone, the installer can cap the unused second heating connection.

Does the cylinder arrive pre-plumbed?

Yes. The Joule Zenith cylinder uses a pre-plumbed design to reduce assembly work during installation.

Can SNH Tradecentre help size the system?

Yes. Email your floor plans and project details to darren@snhuk.co.uk for help with system sizing and product selection.

Where can this package be delivered?

Delivery is available to Mainland England only.
