Product Description

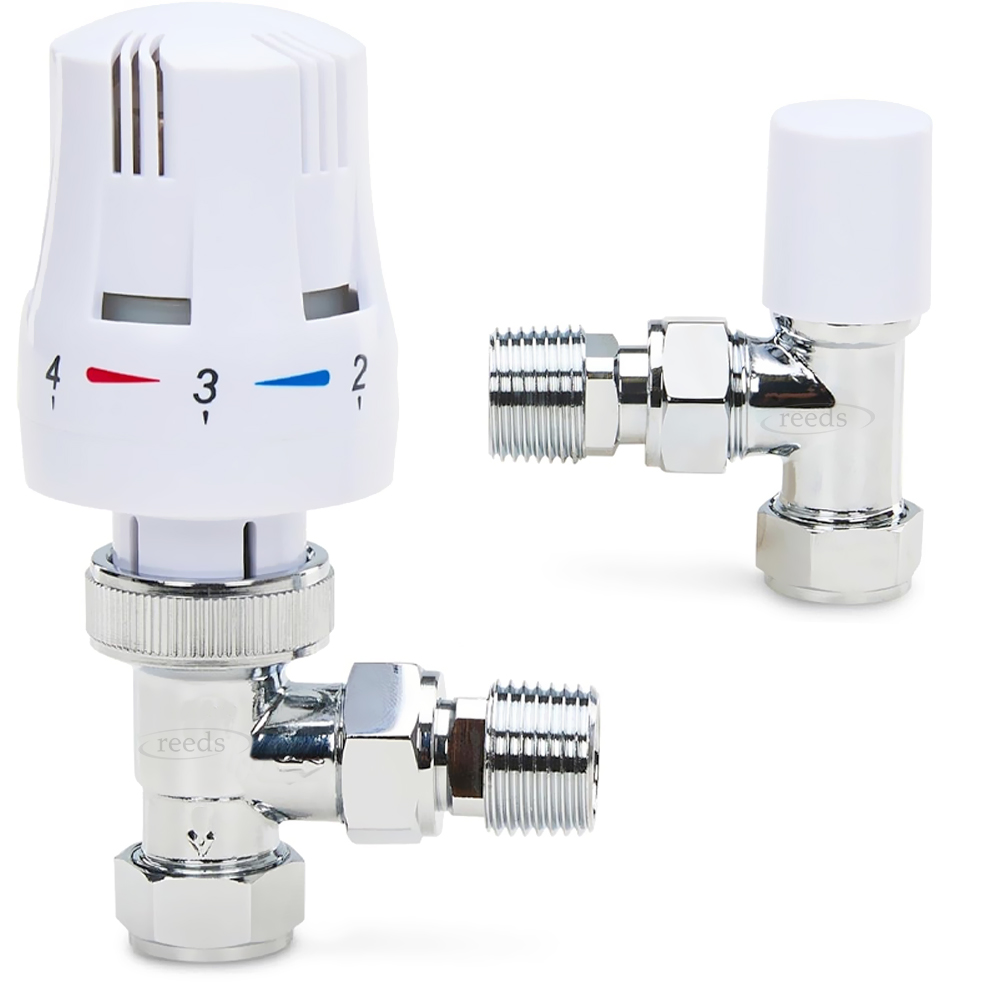

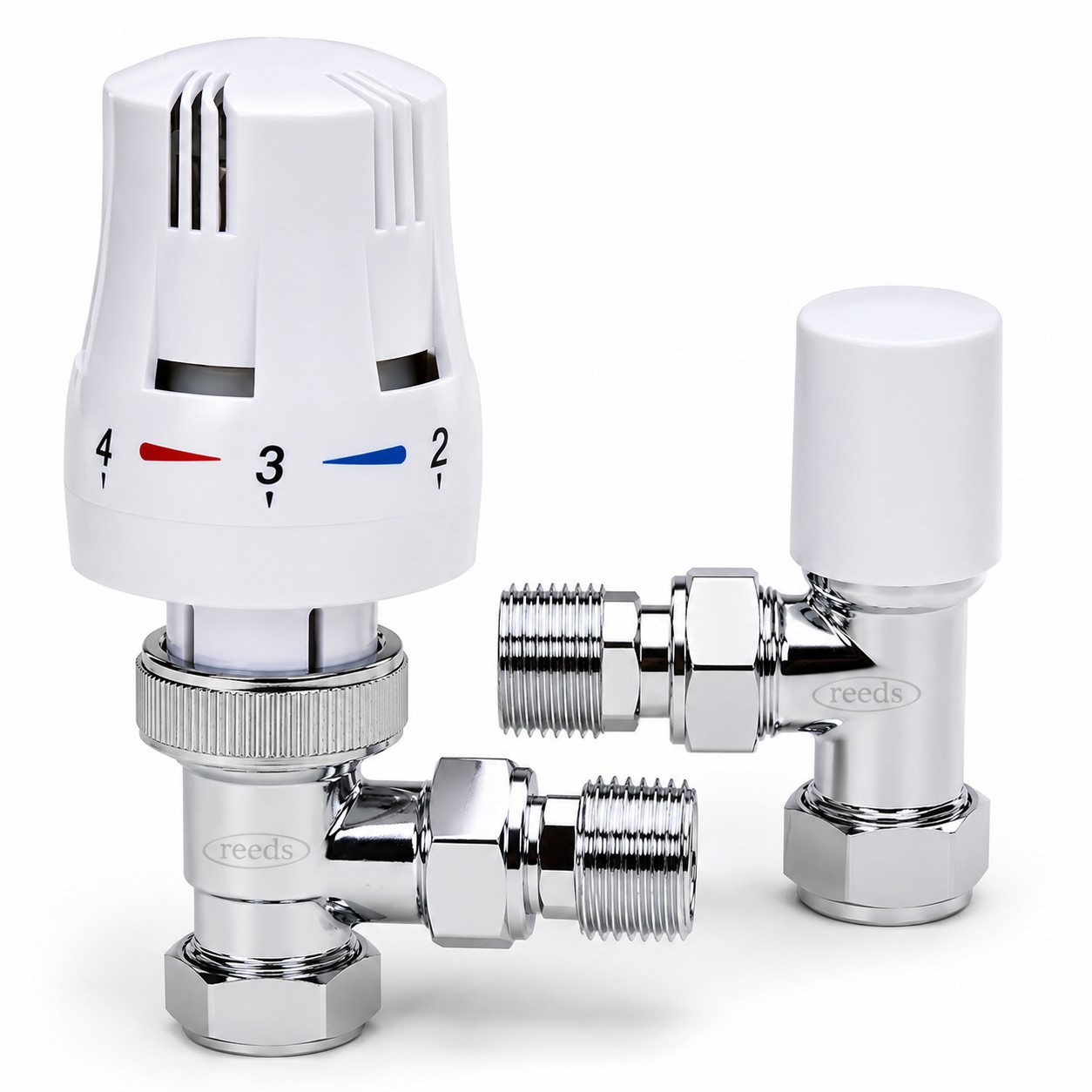

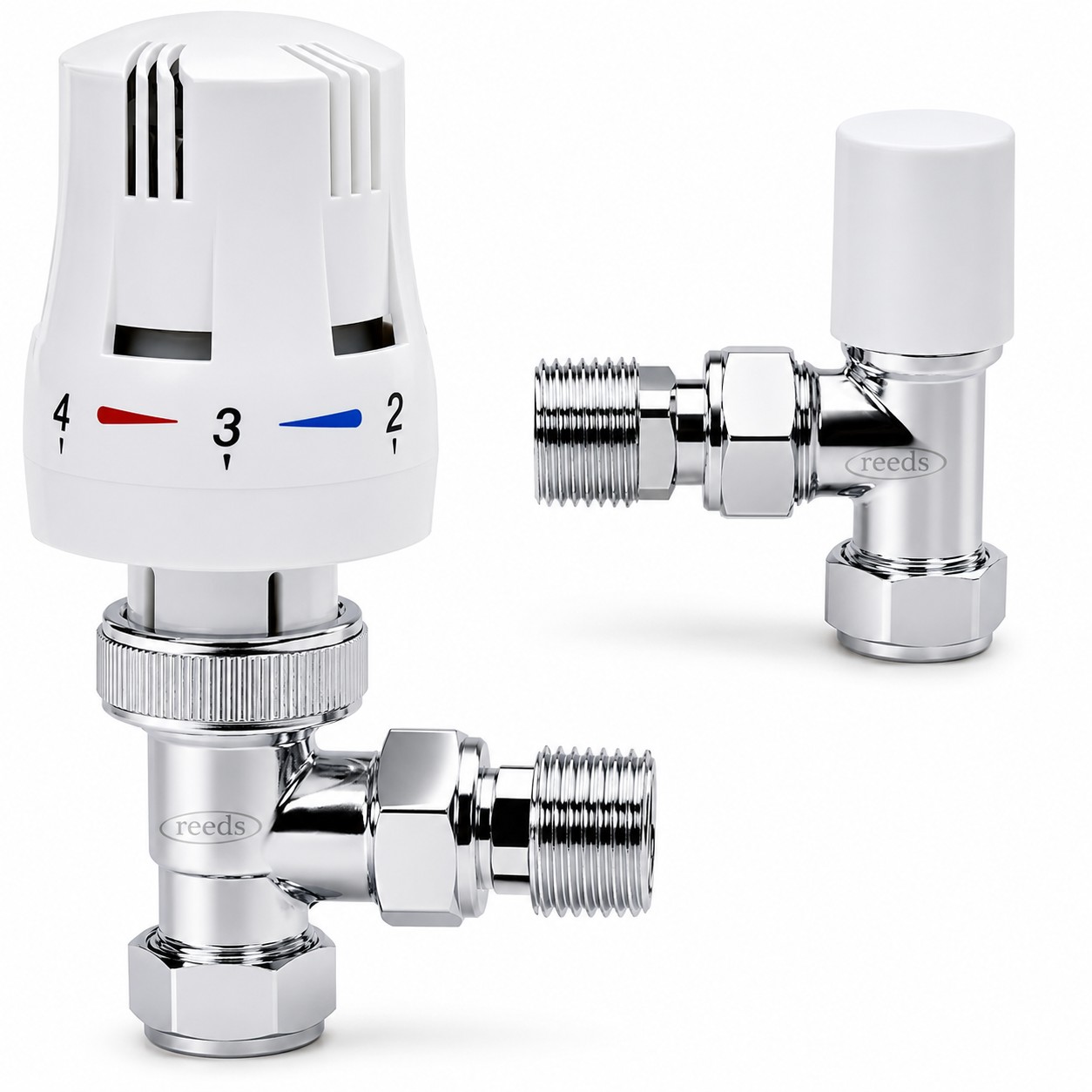

Kartell Thermostatic Radiator Valve and Lockshield Pack White and Chrome

Model: TPLSTRVSA

Control the heat output from a compatible radiator with the Kartell Thermostatic TRV Pack. This matching valve set includes a thermostatic radiator valve and a lockshield valve, so you have both valves required for one radiator.

The TRV uses the surrounding room temperature to control the flow of heating water through the radiator. As a result, it can help maintain a comfortable temperature and reduce unnecessary heat use when set up correctly.

Kartell manufactures these modern radiator valves from quality chrome-plated brass. In addition, the white TRV head and polished chrome valve bodies complement a wide range of traditional and modern radiators.

Kartell TRV Pack Features

• Complete valve pack for one radiator
• Includes a thermostatic radiator valve
• Includes a matching lockshield valve
• White and chrome finish
• Chrome-plated brass construction
• Reversible TRV design
• Maximum working pressure: 10 bar
• Maximum differential pressure: 0.8 bar
• Suitable for compatible UK heating systems
• Allows individual radiator temperature control
• Modern design for traditional and contemporary radiators
• One-year manufacturer’s warranty
• Model: TPLSTRVSA

Kartell Thermostatic Radiator Valve Specification

• Brand: Kartell
• Product type: thermostatic radiator valve pack
• Valve type: TRV and lockshield
• Material: chrome-plated brass
• Finish: white and chrome
• Maximum working pressure: 10 bar
• Maximum differential pressure: 0.8 bar
• TRV configuration: reversible
• Application: compatible domestic central heating systems
• Warranty: 1 year
• Model: TPLSTRVSA

What Is Included?

• 1 x Kartell thermostatic radiator valve
• 1 x Kartell lockshield valve

How Does a Thermostatic Radiator Valve Work?

A thermostatic radiator valve responds to the air temperature around its sensor. When the room reaches the selected temperature, the valve reduces the flow of heating water through the radiator. It then allows more flow when the room temperature drops.

Meanwhile, the lockshield valve helps balance the flow through the radiator. Correct balancing allows the heating system to distribute hot water more evenly between its radiators.

Reversible TRV Design

The reversible design provides more choice when planning the valve position. However, you should still follow Kartell’s fitting instructions and check the required water-flow direction before installation.

Do not place the thermostatic head behind curtains, furniture or radiator covers. Trapped heat can affect the temperature reading and prevent the TRV from controlling the room correctly.

Installation Guidance

• Turn off and drain the heating system before removing existing valves
• Check the radiator and pipe connections before installation
• Fit the TRV where air can move freely around the thermostatic head
• Keep the TRV away from curtains, furniture and direct heat sources
• Fit the lockshield valve to the opposite radiator connection
• Refill, vent and inspect the system for leaks
• Balance the radiators to support even heat distribution
• Follow the boiler, radiator and valve manufacturer’s instructions

A suitably competent heating installer should fit the valves. Always confirm the connection size and heating-system compatibility before ordering.
