Product Description

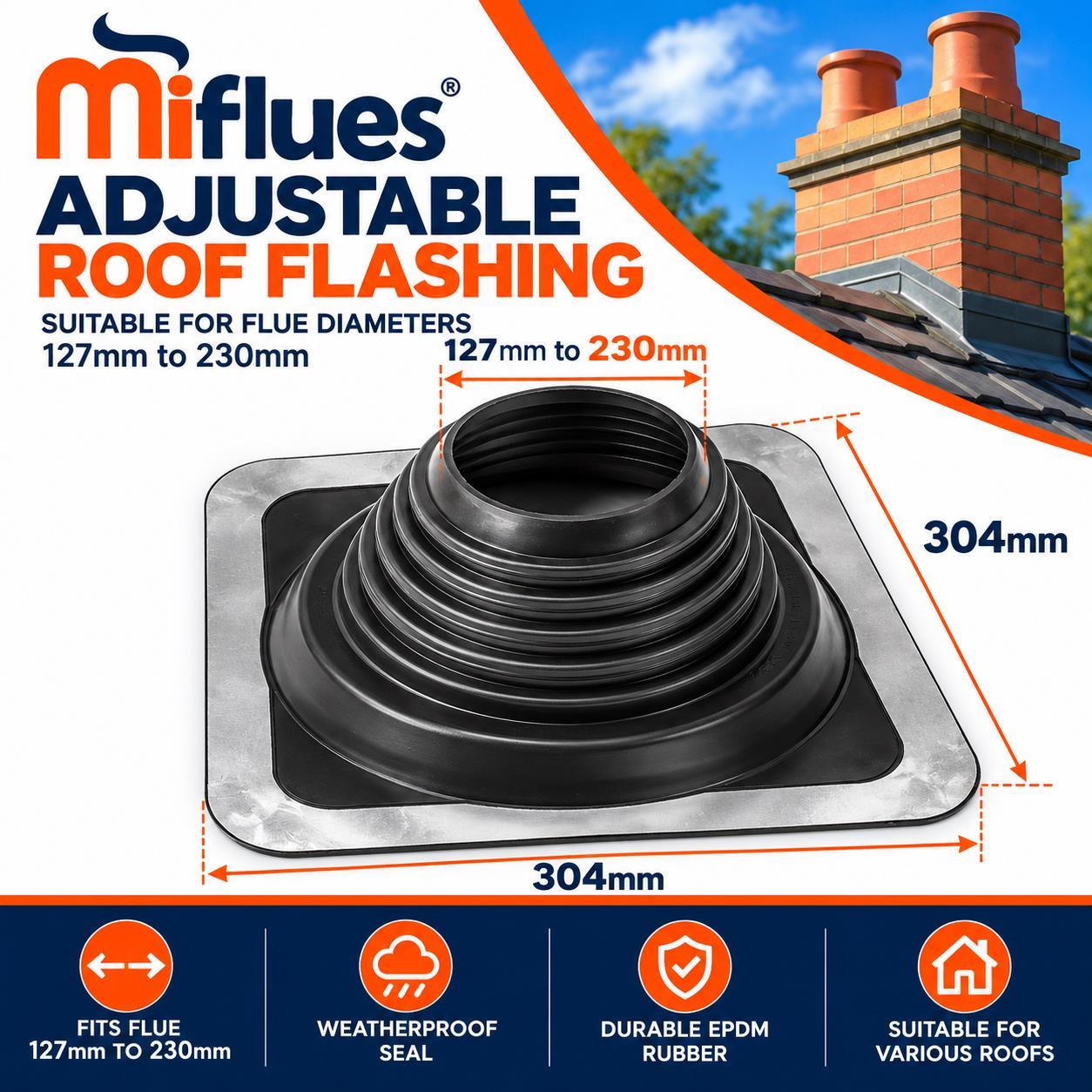

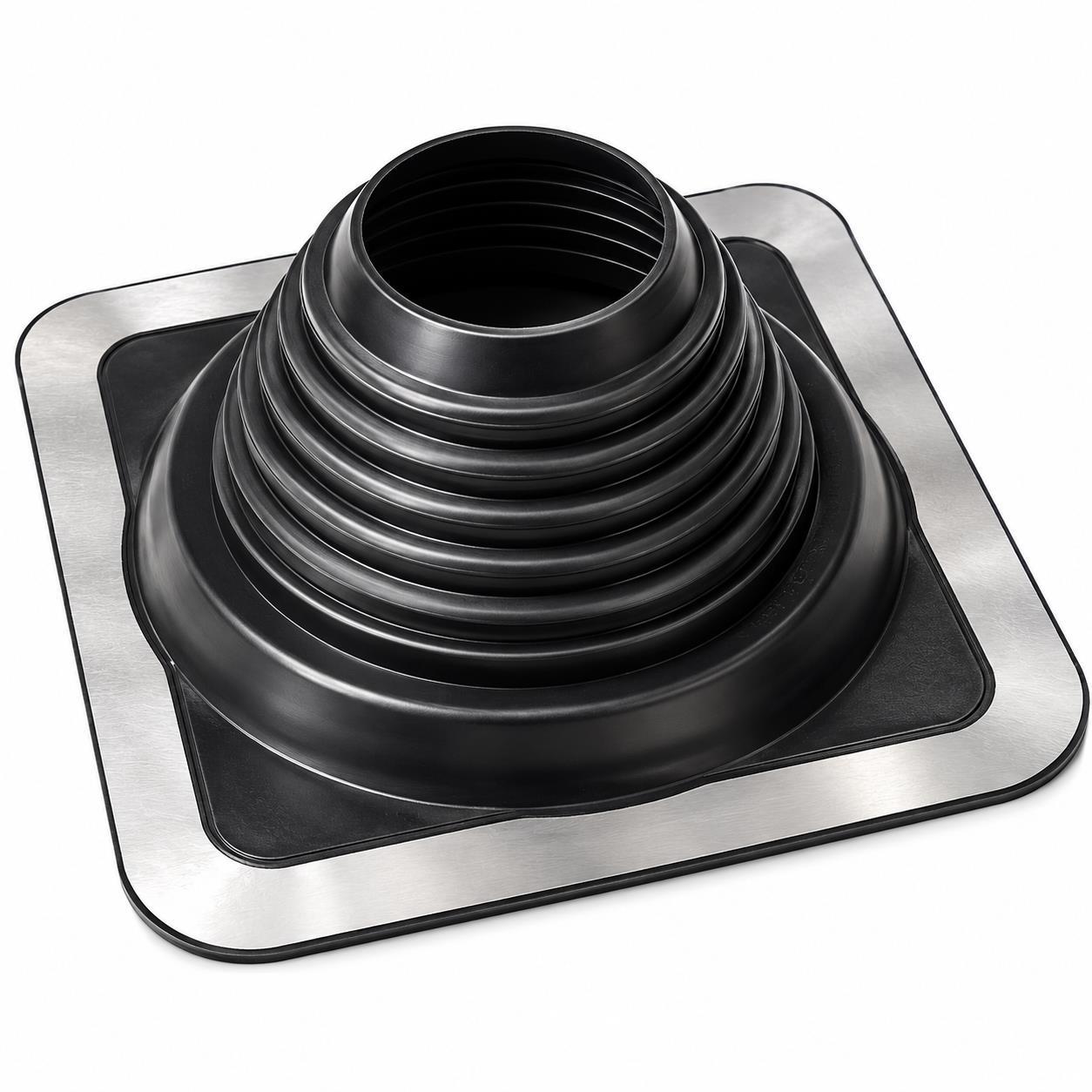

MI-FLUES MI-Flash No. 6 EPDM Roof Flashing 127mm to 230mm Black

Part Number: 12-6LT

Create a neat seal around a suitable roof penetration with the MI-FLUES MI-Flash No. 6 EPDM Roof Flashing. It fits pipes with an external diameter from 127mm to 230mm. Therefore, it suits a wide range of larger flue pipes, ventilation pipes and other compatible roof services.

The flexible black EPDM material provides strong resistance to outdoor weather, ozone and ultraviolet light. In addition, you can shape the flashing base to follow the profile of a suitable roof.

This No. 6 flashing has a 304mm x 304mm base and suits roof pitches from 0° to 18°. Its maximum service temperature is 100°C. As a result, you must check the expected external pipe temperature before installation.

MI-Flash No. 6 EPDM Flashing Features

• Fits pipes from 127mm to 230mm external diameter
• Equivalent pipe range: 5 to 9 inches
• Base size: 304mm x 304mm
• Suitable for roof pitches from 0° to 18°
• Maximum service temperature: 100°C
• Made from flexible black EPDM
• Resistant to weathering, ozone and ultraviolet light
• Can follow the shape of a suitable roof profile
• Suitable for compatible flue, ventilation and service pipes
• Part number: 12-6LT

MI-Flash No. 6 Specification

• Brand: MI-FLUES
• Product range: MI-Flash
• Product type: EPDM roof flashing
• Flashing size: No. 6
• Colour: black
• Material: EPDM
• Pipe diameter range: 127mm to 230mm
• Imperial pipe range: 5 to 9 inches
• Base dimensions: 304mm x 304mm
• Maximum temperature: 100°C
• Suitable roof pitch: 0° to 18°
• Part number: 12-6LT

What Is Included?

• 1 x MI-FLUES MI-Flash No. 6 black EPDM roof flashing

Please note: Sealant, screws and fixing caps are not included. This flashing requires one Master Flash Standard Fixing Kit, which you can order separately.

Buy the Master Flash Standard Fixing Kit

Suitable Applications

The MI-Flash No. 6 helps form a weather-resistant seal where a compatible pipe passes through a suitable roof. For example, you can use it as part of a correctly designed flue, chimney, ventilation or service-pipe installation.

However, this roof flashing does not replace any firestop, support or clearance required by the pipe or chimney manufacturer. Always follow the instructions for the complete system.

Check the Pipe Diameter Before Ordering

Measure the external diameter of the pipe before choosing the flashing. Do not use the internal flue diameter because insulated pipes can have a much larger outside measurement.

This No. 6 flashing fits external pipe diameters from 127mm to 230mm. The opening should form a close seal around the pipe without excessive stretching.

How to Install the MI-Flash No. 6

1. First, check that the external pipe diameter measures between 127mm and 230mm.
2. Select the marked opening that best matches the pipe size.
3. Carefully trim the EPDM cone with a suitable knife or scissors.
4. Slide the flashing over the pipe. If required, apply a suitable lubricant to help it move into place.
5. Press and shape the base so it follows the roof profile.
6. Apply the correct sealant beneath the base as directed by the fixing-kit instructions.
7. Secure the base with suitable screws and weatherproof fixing caps.
8. Finally, check the full edge to make sure the base forms a complete seal against the roof.

Take care when using cutting tools and working at height. A suitably competent installer should complete the work when the flashing forms part of a chimney or flue installation.

Important Installation Checks

• Confirm that the external pipe diameter falls between 127mm and 230mm
• Check that the roof pitch falls between 0° and 18°
• Make sure the temperature at the flashing will not exceed 100°C
• Confirm that EPDM suits the roof covering and pipe installation
• Maintain all required distances from combustible materials
• Follow the pipe, chimney and appliance manufacturer’s instructions
• Order one fixing kit if you do not already have suitable sealant and fixings
