Product Description

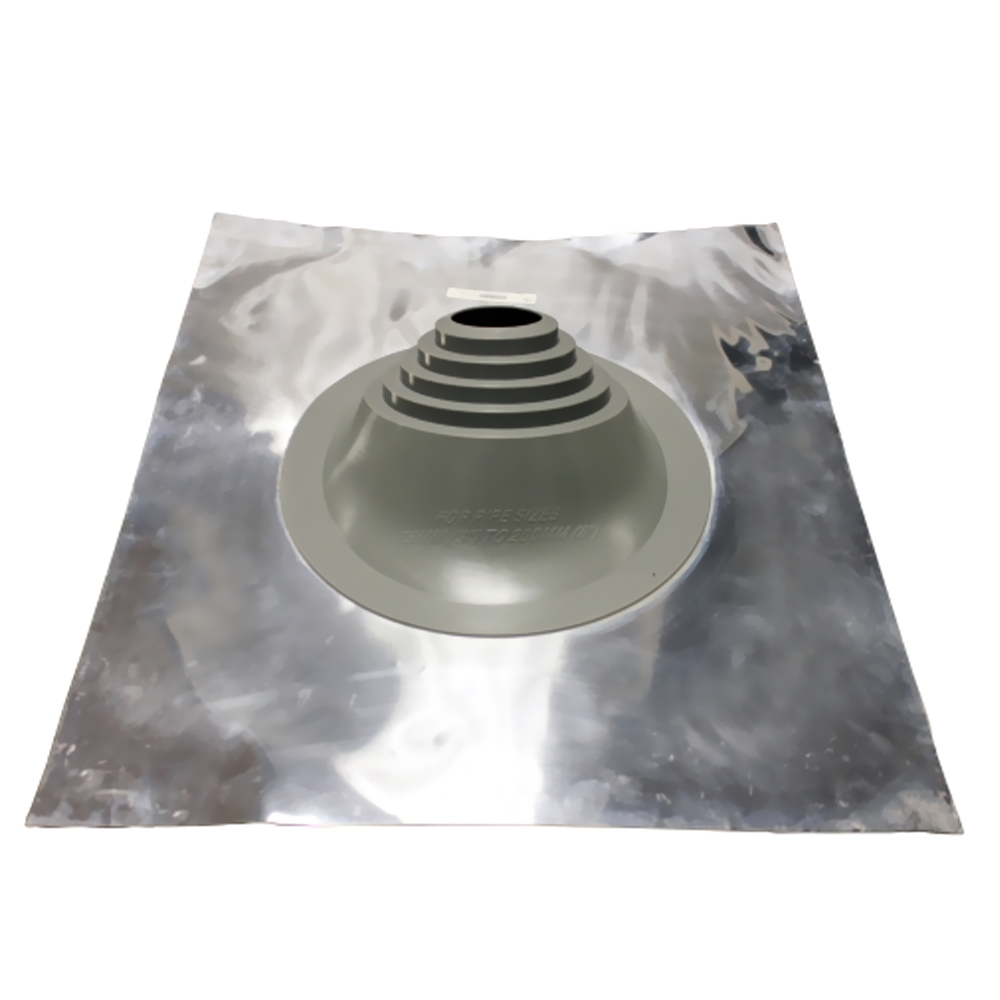

MI-Flash – No 1 Tile Grey SILICONE 80-200 mm Hi Temp

Model: 12-6HT

MI-Flash – No 1 Tile Grey SILICONE 80-200 mm Hi Temp is Suitable for Suitable for tiled roofs and is temperature resistance -74°C to 260°C

Application

Suitable for profiled sheeting and flat panel surfaces and is temperature resistance -74C to 260C

Rooof Pitch

Pitch – 0-45 degrees

Plate size 605mm x 505mm

Construction

Enviromentally safe lead free aluminium base. The SILICONE rubber upstand has a 20 year life. The built in 20° pitch allows adaptability to almost any roof pitch including 45°. The pull tab design and easy smooth tear grooving is intended to eliminate cutting by knife and allow for a circular hole.

Installation Check List

• Pull tab design to correct size using pliers, alternatively cut using a stanley knife.
• Apply silicone sealant to back of flashing
• Remove tiles around pipe and slide flashing over pipe
• Fasten Flashing to the roof
• Cut tile to fit to the top of the Flashing allowing the bottom of the flashing metal base to sit on top of the tiles.
