Product Description

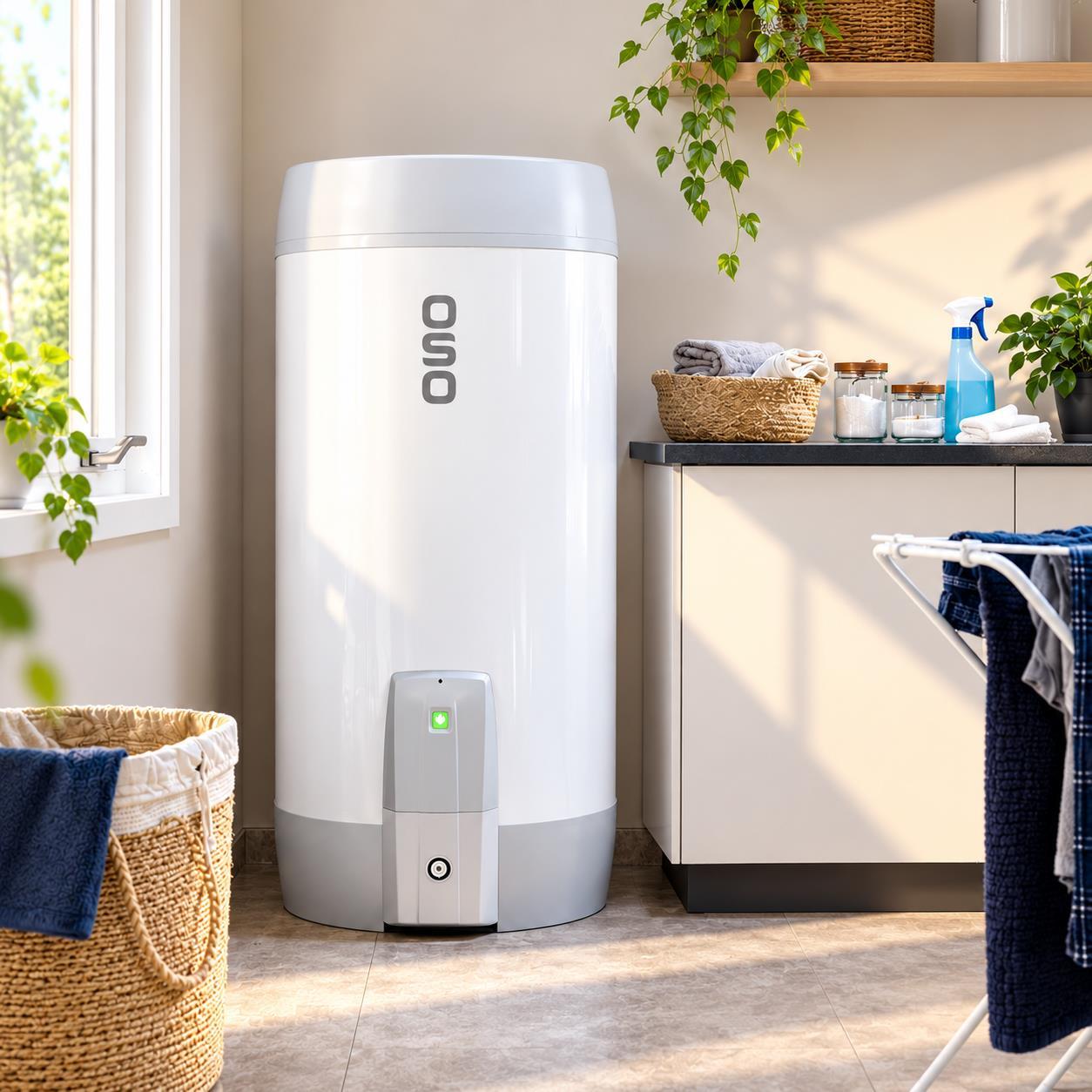

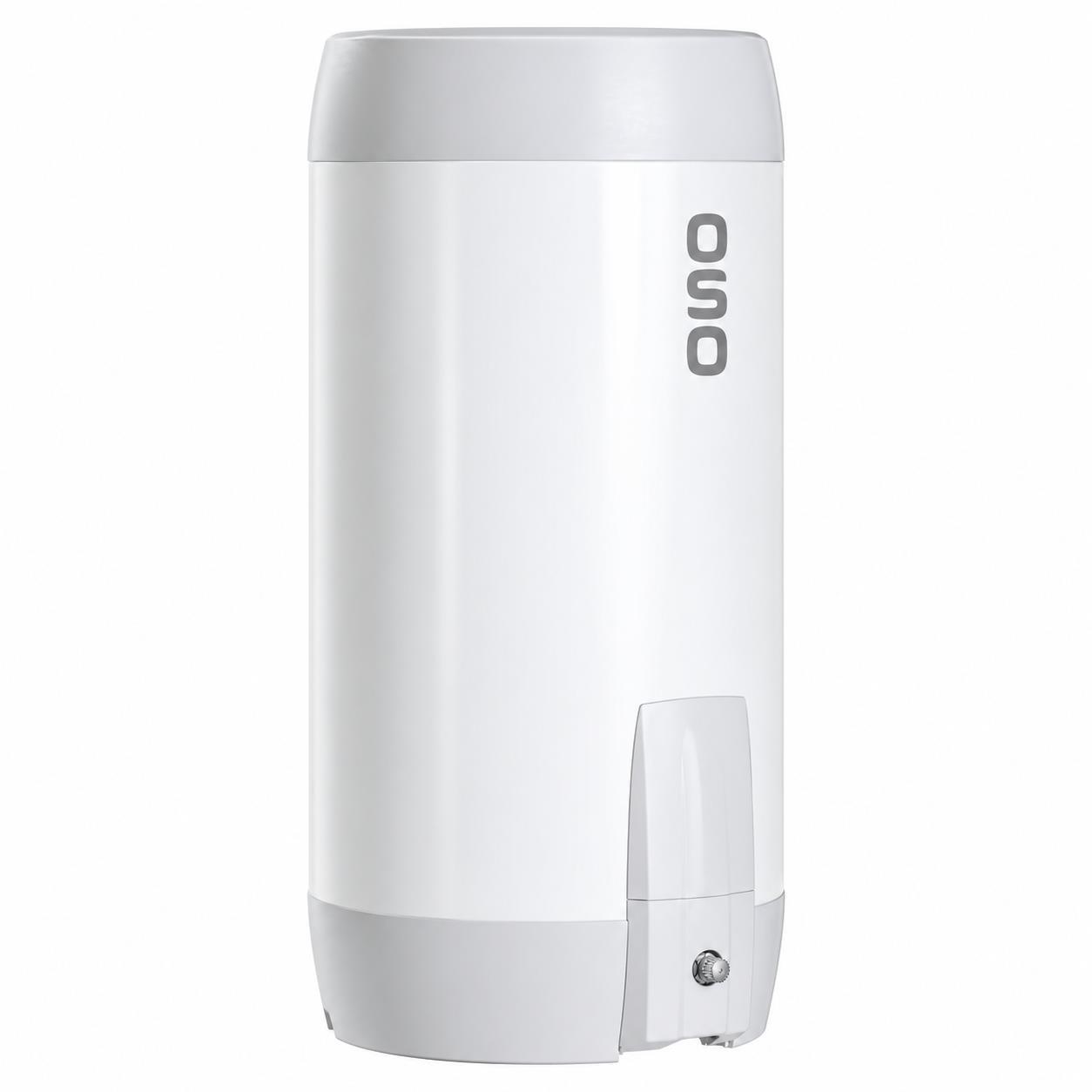

OSO Super Xpress S2X 210L Direct Unvented Cylinder

Model: S2X210 | Product Number: 11011688

Enjoy fast installation and powerful mains-pressure hot water with the OSO Super Xpress S2X 210L Direct Unvented Cylinder. OSO supplies this electric cylinder pre-plumbed and pre-wired. Therefore, it can save valuable time during installation.

The S2X210 uses two 3kW titanium immersion heaters to heat the stored water. As a direct cylinder, it does not need a boiler or primary heating coil. This makes it a practical choice for compatible homes, apartments and properties that use electricity to produce hot water.

OSO houses the expansion vessels, valves, pipework and electrical connections beneath a removable top cover. As a result, the installation has a clean finish while the main components remain accessible for servicing.

The model has a nominal size of 210 litres and a tested vessel capacity of 202 litres. Its body measures 595mm in diameter and 1375mm high.

OSO Super Xpress S2X 210L Features

• Direct electric unvented hot water cylinder
• Fully pre-plumbed and pre-wired design
• Two 3kW titanium immersion heaters
• Total connected heating capacity: 3kW + 3kW
• Nominal size: 210 litres
• Tested vessel capacity: 202 litres
• Mains-pressure hot water supply
• Integral expansion vessels
• Factory-fitted safety and control valves
• Factory-fitted hot water blending valve
• Concealed pipework and cable routing
• Top connections hidden beneath a removable lid
• High-grade PUR foam insulation
• Stainless-steel cylinder construction
• Compact 595mm diameter footprint
• Energy efficiency rating: D
• Standing heat loss: approximately 1.54kWh per 24 hours
• 25-year cylinder warranty, subject to OSO terms
• Model: S2X210
• Product number: 11011688

OSO S2X210 Specification

• View the OSO Super Xpress S2X Product Information
• Download the OSO S2X Technical Data Sheet
• Download the OSO Super Xpress S2X Installation Manual
• Range: Super Xpress S2X
• Model: S2X210
• Product type: direct unvented hot water cylinder
• Nominal capacity: 210 litres
• Actual vessel capacity: 202 litres
• Heating method: electric immersion heaters
• Immersion-heater output: 3kW + 3kW at 240V
• Electrical supply: 220-240V, 50Hz
• Immersion-heater material: Grade 1 titanium
• Number of immersion heaters: two
• Height: 1375mm
• Diameter: 595mm
• Empty weight: 44kg
• Filled weight: approximately 246kg
• Insulation: high-grade PUR foam
• Average insulation thickness: 95mm
• Energy efficiency rating: D
• Load profile: XL
• Standing heat loss: 64 watts
• Standing heat loss per 24 hours: approximately 1.54kWh
• Operating pressure: 3 bar
• Maximum design pressure: 10 bar
• Maximum operating temperature: 75°C
• Expansion-vessel capacity: 2 x 8 litres
• Ingress protection: IP21
• Product number: 11011688
• GTIN: 7070644010768

What Is Included?

• 1 x OSO Super Xpress S2X 210 direct unvented cylinder
• 2 x Factory-fitted 3kW titanium immersion heaters
• 2 x Integral 8-litre expansion vessels
• Factory-fitted pressure-reducing valve
• Factory-fitted expansion-relief valve
• Factory-fitted temperature and pressure relief valve
• Factory-fitted hot water blending valve
• Factory-fitted tundish
• Pre-fitted internal pipework and flexible connections
• Pre-wired electrical connections
• Removable top cover
• First-fix installation template

Always check the current OSO packing list and installation manual when the cylinder arrives.

Why Choose a Direct Unvented Cylinder?

A direct cylinder uses electric immersion heaters to heat the stored water. Therefore, it does not rely on a gas boiler, oil boiler or primary heating coil.

The unvented design connects to the incoming mains water supply. As a result, it can supply mains-pressure hot water to compatible taps and showers without a cold-water storage tank in the loft.

However, the available flow rate depends on the incoming mains water pressure, available flow and pipework design. Your installer should test the water supply before choosing the cylinder.

Two Titanium Immersion Heaters

The OSO S2X210 has two 3kW titanium immersion heaters. The lower heater can heat the main stored volume. Meanwhile, the upper heater can heat a smaller quantity of water when a faster boost is needed.

The twin-immersion arrangement can also support compatible off-peak or timed electricity systems. However, an electrician must confirm the required circuits, controls and electricity-tariff arrangement.

Titanium provides strong resistance to corrosion. Therefore, it suits demanding use and hard-water areas when the cylinder receives the correct installation and maintenance.

Pre-Plumbed and Pre-Wired Design

OSO installs the main valves, expansion equipment, electrical connections and internal pipework at the factory. Therefore, the installer has fewer separate components to position and connect on site.

OSO states that the S2X design can save several hours of labour during a typical installation. In addition, the included first-fix template allows work to begin before the cylinder arrives on site.

Once installed, the removable lid hides the main pipework and valve gear. This provides a clean finish while keeping the components accessible for servicing.

High Hot Water Output

OSO designed the Super Xpress range to provide more usable hot water than many conventional cylinders of a similar stored volume. The cylinder stores water at a high temperature and uses its blending valve to mix the outgoing water with cold water.

As a result, the S2X210 can provide a large volume of mixed hot water for compatible household demand. However, actual performance will vary with the incoming water temperature, thermostat setting, flow rate and blending-valve setup.

The installer must commission the blending valve and confirm safe outlet temperatures throughout the property.

OSO S2X210 Dimensions

• Overall height: 1375mm
• Overall diameter: 595mm
• Empty weight: 44kg
• Approximate filled weight: 246kg

Allow extra space above and around the cylinder for pipework, discharge connections, electrical wiring, servicing and removal of the top cover. Always use the current OSO technical drawing when planning the cupboard.

Installation Requirements

• Installation must comply with Building Regulations Approved Document G3
• A qualified and competent unvented-cylinder installer must complete the work
• A qualified electrician must complete the electrical connections
• The installer must test the incoming water pressure and flow rate
• The supporting floor must carry the full operating weight
• The safety-valve discharge pipework must follow current regulations
• The tundish must remain visible after installation
• The installer must provide suitable servicing access
• The cylinder must remain upright during installation and operation
• All electrical work must follow current IET Wiring Regulations
• The installer must commission the complete system before use
• Follow the current OSO installation manual in full

This is an unvented hot water cylinder. Therefore, it must not be installed as a general DIY product.

Check Before Ordering

• Confirm that a 210-litre cylinder suits the property and expected demand
• Check that a direct electric cylinder matches the heating design
• Confirm the electrical supply for two 3kW immersion heaters
• Measure the installation space and access route
• Allow room above the cylinder to remove the top cover
• Check the incoming mains pressure and flow rate
• Plan a compliant route for the safety discharge pipework
• Ask the installer to approve the product before ordering

OSO Super Xpress Warranty

OSO offers a 25-year warranty on the cylinder, subject to its current terms and conditions. Separate warranty periods may apply to immersion heaters, valves, controls and other components.

Correct installation, commissioning, servicing and product registration may affect warranty cover. Therefore, keep your invoice, commissioning records and service history. You should also follow OSO’s current warranty requirements.
