Product Description

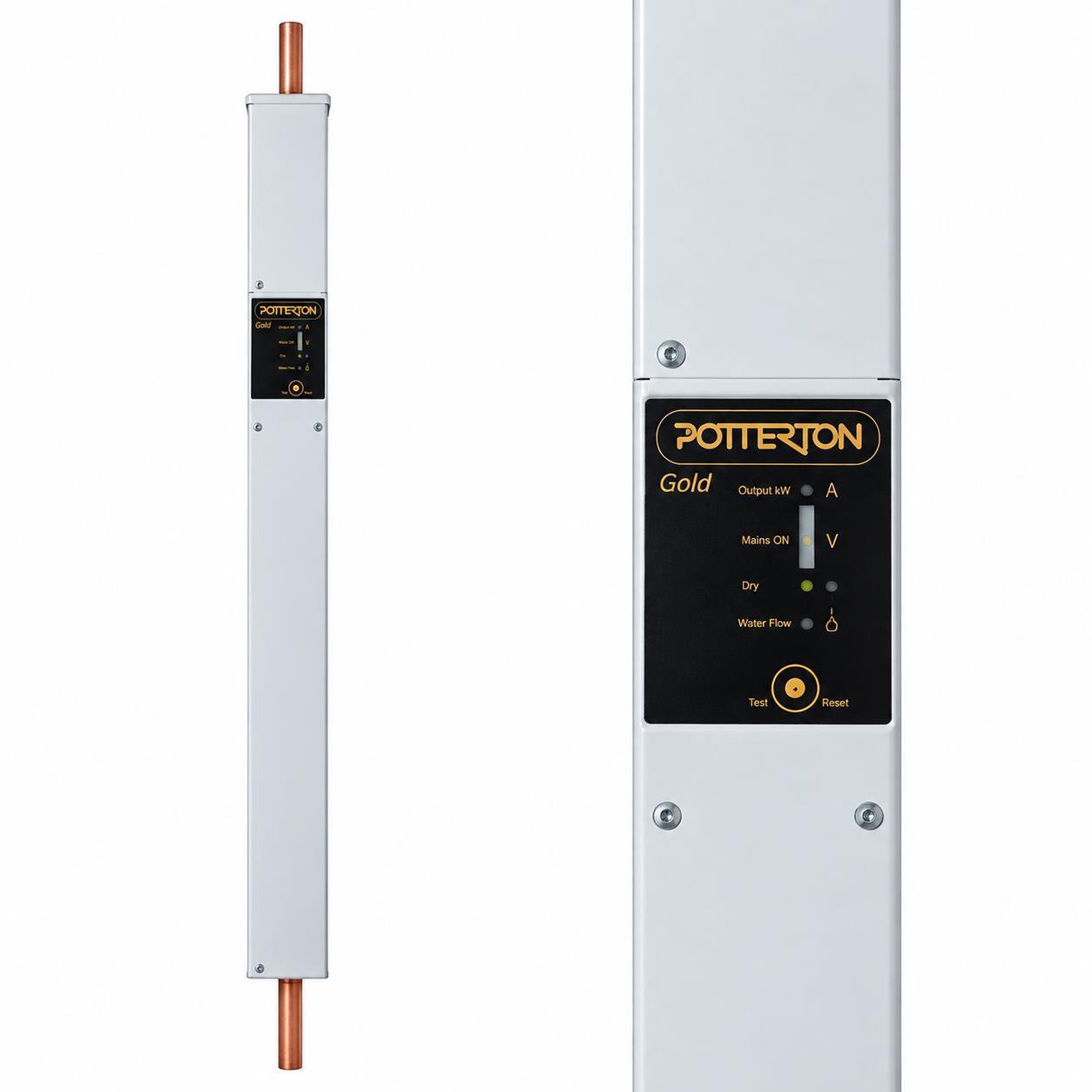

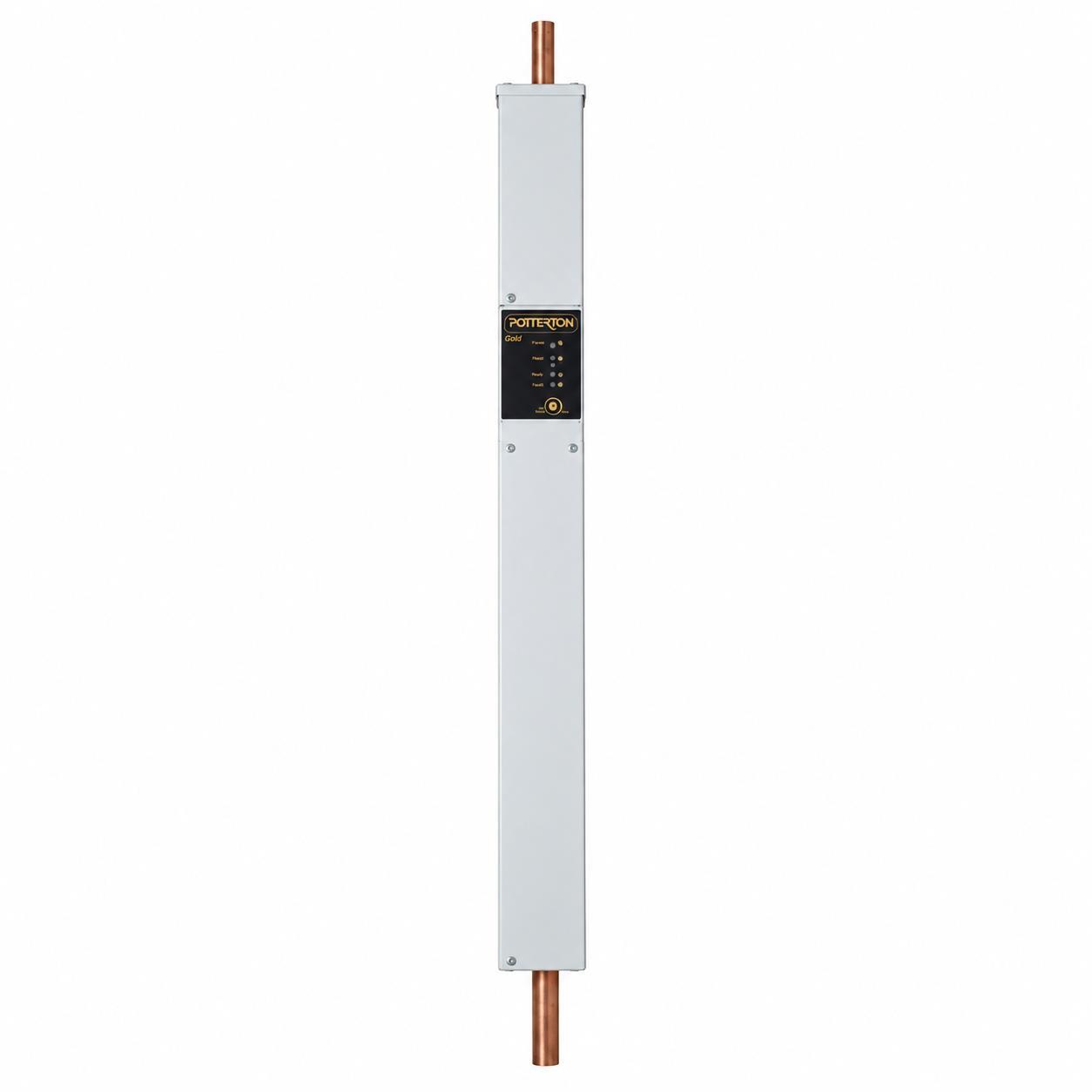

Potterton Gold GOLD12 12kW Electric Boiler

Product Code: 94022007

The Potterton Gold GOLD12 12kW Electric Boiler provides heat for a wet central heating system without gas, oil, a flue or a fuel-storage tank. Its tall and slim design makes it a practical option when installation space is limited.

This electric heat-only boiler works with standard radiators. In addition, it can operate in either a sealed or open-vented heating system with suitable external controls and safety components.

Please note: Product code 94022007 is the radiator version. It is not the dedicated underfloor-heating model. Potterton lists a separate 12kW underfloor boiler under product code 94022107.

Key Features

• 12kW electric heat-only boiler
• Designed for wet radiator heating systems
• Suitable for sealed or open-vented systems
• No gas, oil, flue or fuel tank required
• Slim design for limited installation spaces
• Quiet operation
• Solid-state switching technology
• Soft-start and soft-modulation control
• Zero-voltage switching
• Built-in pump run-on facility
• Front-panel temperature adjustment
• Front-panel operating indicators
• Self-check during operation
• Protection against no-water and no-flow conditions
• Compatible with standard heating controls
• 22mm flow and return connections
• One-year on-site parts and labour warranty
• Product code: 94022007

Powerful Electric Wet Central Heating

The GOLD12 produces a maximum rated heat output of 12kW at 240V. Therefore, it can provide an electric heating solution for properties with a suitable calculated heat demand.

However, property size alone cannot determine the correct boiler output. Insulation, glazing, construction, room sizes and local temperatures all affect heat loss.

Always ask a qualified heating engineer to complete a room-by-room heat-loss calculation before ordering.

Heat-Only Electric Boiler

The Potterton GOLD12 heats water as it circulates through the boiler. The heating system then sends this heated water through radiators to warm the property.

This model does not provide instant domestic hot water like a combi boiler. However, a correctly designed system can connect it to a suitable indirect hot-water cylinder. Alternatively, a direct cylinder can heat domestic water through its own immersion heaters.

No Flue or Fuel Storage Required

Because the GOLD12 uses electricity, it does not need a gas supply, oil tank or combustion flue. As a result, installers have more flexibility when selecting a suitable indoor location.

The boiler also produces no combustion gases at the point of use. Nevertheless, the installer must follow all electrical, plumbing, water and Building Regulation requirements.

Compatible Heating Systems and Controls

The Potterton Gold electric boiler can work with several common wet central heating arrangements, including heating-only, S-plan, Y-plan and zoned systems.

You can also use it with suitable external components such as:

• Standard radiators
• Heating programmers
• Room thermostats
• Circulating pumps
• Motorised zone valves
• Thermostatic radiator valves
• Automatic bypass valves where required
• Compatible hot-water cylinders

The boiler provides a pump run-on facility. Therefore, the installer must connect the circulating pump according to the Potterton wiring instructions.

Important Underfloor-Heating Information

This 94022007 boiler is the radiator version. Its temperature-control range suits radiator systems rather than direct connection to a low-temperature underfloor-heating circuit.

Potterton lists product code 94022107 as the dedicated 12kW underfloor version. Therefore, ask your heating engineer to specify the correct boiler and controls before ordering for an underfloor-heating project.

Potterton Gold GOLD12 Specification

• Download the Potterton Gold installation and servicing instructions
• Brand: Potterton
• Range: Potterton Gold
• Model: GOLD12
• Product code: 94022007
• Boiler type: electric heat-only flow boiler
• Application: wet radiator central heating
• Rated output at 240V: 12kW
• Output at 220V: approximately 10kW
• Output at 240V: approximately 40,900 BTU/h
• Operating voltage: 200–245V, 50Hz
• Radiator temperature-control range: 65–80°C
• Minimum required water flow: 12 litres per minute
• Maximum system operating pressure: 3 bar
• Boiler water content: 1.3 litres
• Flow connection: 22mm
• Return connection: 22mm
• Height: 1050mm
• Width: 90mm
• Depth: 90mm
• Weight: approximately 8.5kg
• Energy-efficiency class: D
• Warranty: one-year on-site parts and labour

Electrical Requirements

A 12kW electric boiler places a high demand on the property’s electrical supply. Therefore, a qualified electrician must confirm that the incoming supply has enough capacity before installation.

The boiler needs a dedicated electrical circuit with correctly rated cable, circuit protection and double-pole isolation. The electrician must select the correct MCB and RCD according to the installation conditions and current wiring regulations.

This appliance must be earthed. The boiler’s high-current power supply must not pass through a standard programmer or room thermostat.

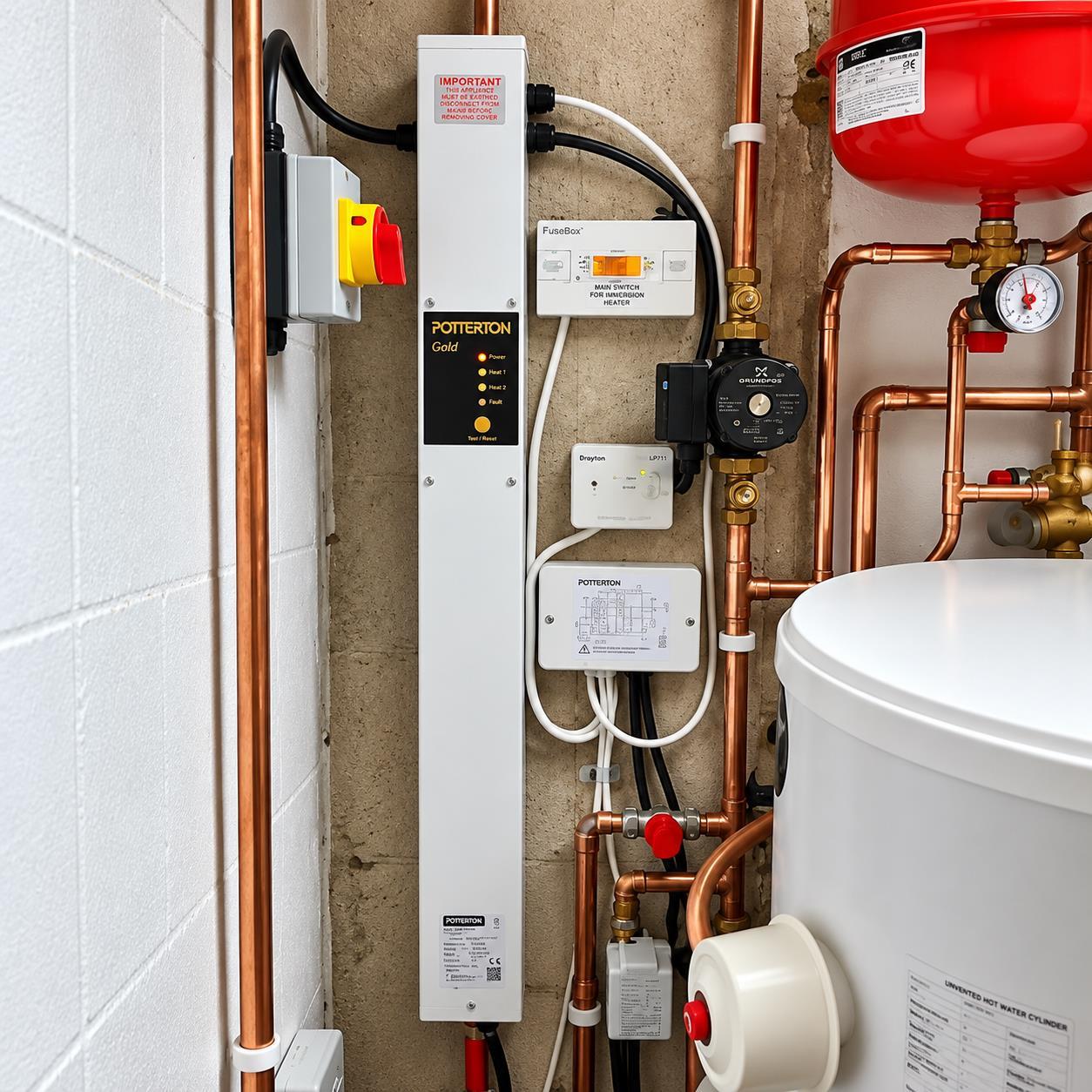

Plumbing and Installation Guidance

Install the boiler upright on a suitable wall in a dry, ventilated and frost-free location. In addition, leave enough space around the unit for installation, inspection and servicing.

The system must provide at least 12 litres per minute of water flow through the 12kW boiler. Low flow may cause repeated safety shutdowns and could damage the appliance.

The heating circuit must also provide a permanently open flow route. If the installer cannot guarantee this route, they must fit a suitable automatic bypass valve.

Before commissioning, flush the system thoroughly and add a suitable corrosion inhibitor. Sealed systems also require the correct expansion vessel and pressure-relief equipment.

Domestic Hot Water

The GOLD12 does not produce instant hot water for taps or showers. A property that needs stored hot water will require a suitable cylinder and controls.

Ask your installer to design the complete heating and hot-water arrangement before ordering. The required boiler and cylinder sizes will depend on the property’s calculated demand.

Potterton Gold Electric Boiler Warranty

The Potterton Gold GOLD12 comes with a one-year on-site parts and labour warranty, subject to the manufacturer’s terms and conditions.

Correct installation and commissioning help protect the warranty. In addition, the heating system must contain clean, correctly treated water and provide the required flow through the boiler.

Leaks, incorrect wiring, poor water flow or contaminated system water may damage the boiler and affect warranty cover.

What Is Included?

• 1 x Potterton Gold GOLD12 12kW electric boiler
• Fitting and user instructions
• Warranty registration information

Please note: The boiler does not include external pumps, programmers, thermostats, valves, hot-water cylinders or other system components unless the listing states otherwise.

Why Buy from SNH Tradecentre?

• Established plumbing and heating supplier
• Practical product and system advice
• Secure online ordering
• Nationwide UK delivery options
• Support before and after your purchase
• Trade counter in Birchington, Kent

Read reviews from SNH Tradecentre customers on Google.

Need help checking the required boiler output? Call SNH Tradecentre on 01843 842727 before ordering.

Frequently Asked Questions

Is the Potterton GOLD12 a combi boiler?

No. It is an electric heat-only flow boiler for wet central heating. It does not produce instant domestic hot water.

Can it provide domestic hot water?

A correctly designed system can connect it to a suitable indirect cylinder. Alternatively, a direct cylinder can heat water through its own immersion heaters.

Can I use the GOLD12 with radiators?

Yes. Product code 94022007 is the 12kW radiator version.

Can I use it with underfloor heating?

This model is not the dedicated underfloor version. Potterton lists product code 94022107 for 12kW underfloor-heating applications.

Does the boiler need a flue?

No. It uses electricity and does not burn fuel, so it does not need a combustion flue.

Can it work with sealed and open-vented systems?

Yes. It works with either system type when the installer fits the correct controls, safety equipment and expansion components.

What minimum water flow does it need?

The heating system must provide at least 12 litres per minute through the boiler.

How large is the GOLD12?

It measures 1050mm high, 90mm wide and 90mm deep.

Is 12kW enough for my property?

That depends on the property’s calculated heat loss. Ask a heating engineer to complete a room-by-room heat-loss calculation before choosing the output.

Is it a suitable alternative to an Amptec boiler?

It may provide an alternative in some electric wet-heating systems. However, your installer must compare the output, electrical supply, controls, dimensions and system requirements.

Does it need an annual Gas Safety certificate?

The boiler does not use gas, so it does not require a Gas Safety certificate solely for its operation. However, property owners and landlords must still meet all relevant electrical-safety and maintenance duties.

Who should install the boiler?

A qualified heating installer and electrician should install and commission it according to the Potterton instructions and current regulations.
