Product Description

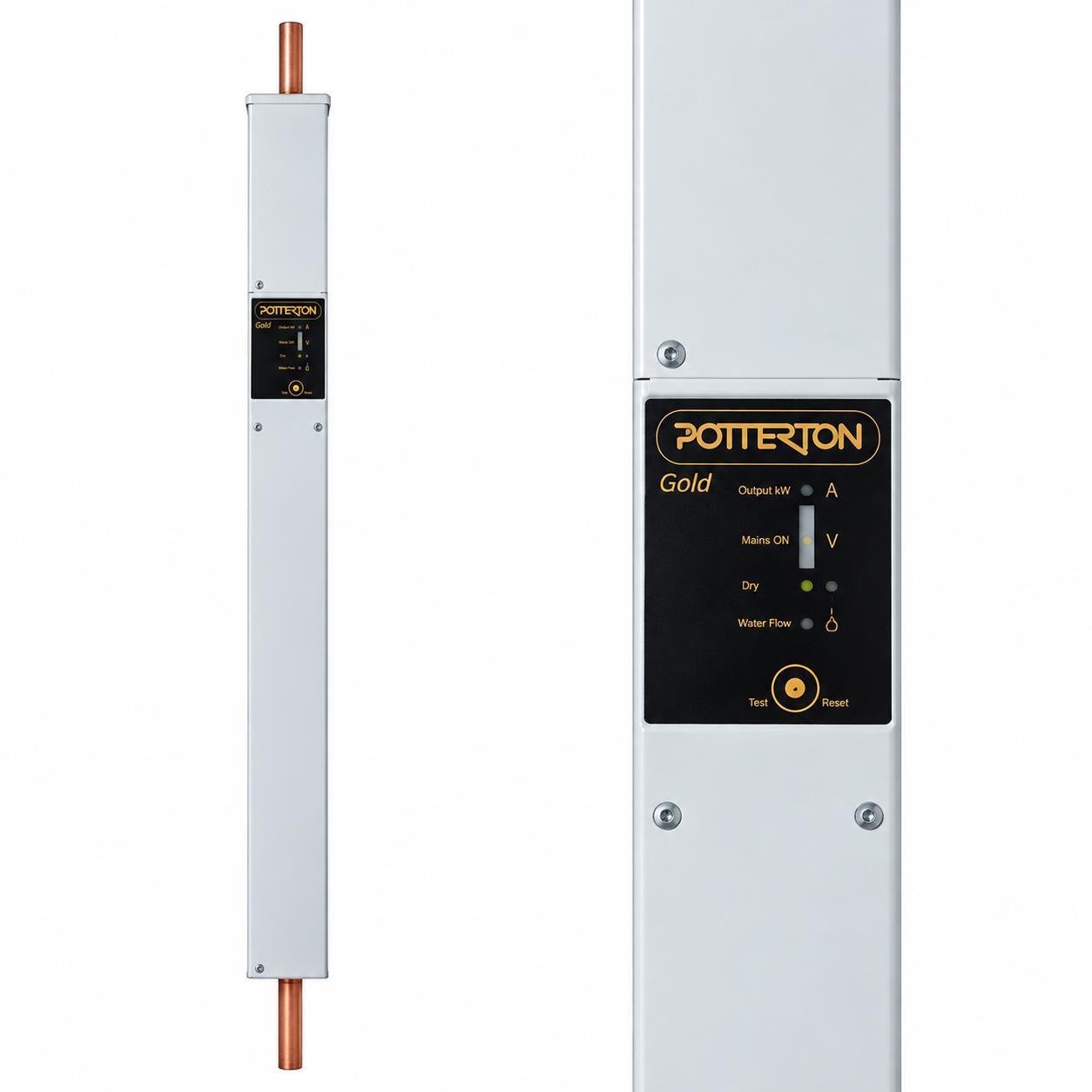

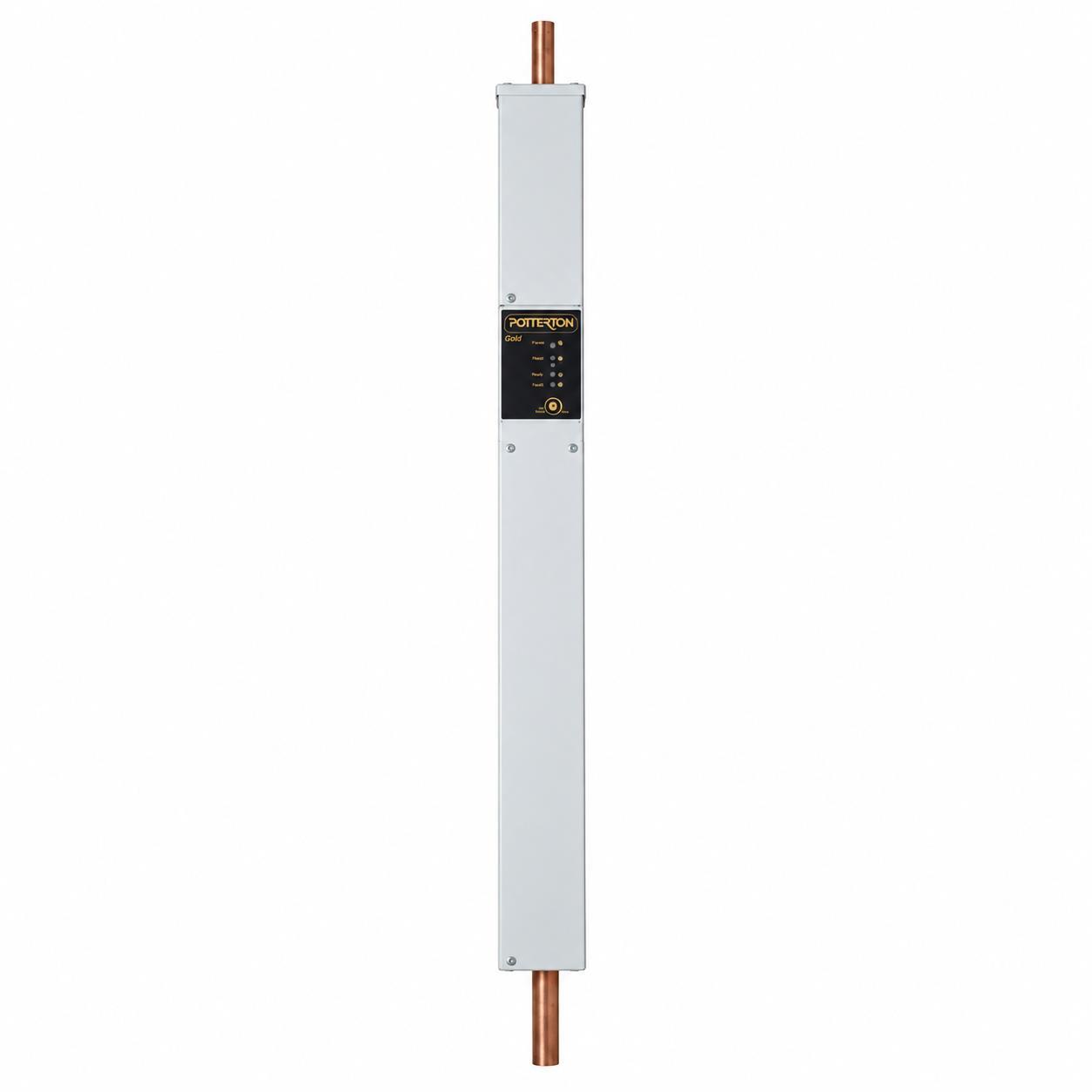

Potterton Gold GOLD6 6kW Electric Boiler

Product Code: 94022004

The Potterton Gold GOLD6 6kW Electric Boiler provides heat for a wet central heating system without gas, oil, a flue or a fuel-storage tank. Its slim and lightweight design makes it a practical choice when installation space is limited.

This electric heat-only boiler works with standard radiators. In addition, it can operate in either a sealed or open-vented heating system with suitable external controls and components.

Please note: Product code 94022004 is the radiator version. It is not the dedicated underfloor-heating model. Potterton lists a separate 6kW underfloor boiler under product code 94022104.

Key Features

• 6kW electric heat-only boiler
• Designed for wet radiator heating systems
• Suitable for sealed or open-vented systems
• No gas, oil, flue or fuel tank required
• Compact and lightweight design
• Quiet operation
• Solid-state switching technology
• Soft-start and soft-modulation control
• Zero-voltage switching
• Built-in pump run-on facility
• Front-panel temperature adjustment
• Front-panel operating indicators
• Protection against no-water and no-flow conditions
• Compatible with standard heating controls
• 22mm flow and return connections
• One-year on-site parts and labour warranty
• Product code: 94022004

Compact Electric Heating

The GOLD6 produces a maximum rated heat output of 6kW at 240V. Therefore, it can suit apartments, smaller properties, extensions and well-insulated buildings where a heating engineer has calculated a suitable heat loss.

However, you should not choose the boiler from the number of bedrooms or property size alone. Insulation, windows, construction, room sizes and local temperatures all affect the required output.

Always ask a qualified heating engineer to complete a heat-loss calculation before ordering.

Heat-Only Electric Boiler

The Potterton GOLD6 heats water as it circulates through the boiler. The system then sends the heated water through radiators to warm the property.

This model does not provide instant domestic hot water like a combi boiler. However, a correctly designed system can connect it to a suitable indirect hot-water cylinder. Alternatively, a direct cylinder can use its own immersion heaters.

No Flue or Fuel Storage Required

Because the GOLD6 uses electricity, it does not need a gas supply, oil tank or combustion flue. As a result, installers have more flexibility when choosing a suitable indoor location.

The boiler also produces no combustion gases at the point of use. Nevertheless, the installer must follow all relevant electrical, plumbing and Building Regulation requirements.

Compatible Heating Controls

You can use the Potterton Gold electric boiler with suitable external heating controls and system components, including:

• Standard radiators
• Heating programmers
• Room thermostats
• Circulating pumps
• Motorised zone valves
• Thermostatic radiator valves
• Automatic bypass valves where required
• Compatible hot-water cylinders

The boiler controls the circulating pump and provides a pump run-on function. Therefore, the installer must connect the pump according to the Potterton wiring instructions.

Important Underfloor-Heating Information

This 94022004 boiler is the radiator version. Its temperature-control range suits radiator systems rather than direct connection to a low-temperature underfloor-heating circuit.

Potterton lists product code 94022104 as the dedicated 6kW underfloor version. Therefore, ask your heating engineer to specify the correct boiler and controls before ordering for an underfloor-heating project.

Potterton Gold GOLD6 Specification

• Download the Potterton Gold installation and servicing instructions
• Brand: Potterton
• Range: Potterton Gold
• Model: GOLD6
• Product code: 94022004
• Boiler type: electric heat-only flow boiler
• Application: wet radiator central heating
• Rated output at 240V: 6kW
• Output at 220V: approximately 5kW
• Output at 240V: approximately 20,400 BTU/h
• Operating voltage: 200–245V, 50Hz
• Radiator temperature-control range: 65–80°C
• Minimum required water flow: 6 litres per minute
• Maximum system operating pressure: 3 bar
• Boiler water content: 1.3 litres
• Flow connection: 22mm
• Return connection: 22mm
• Height: 1050mm
• Width: 90mm
• Depth: 90mm
• Weight: approximately 7.5kg
• Energy-efficiency class: D
• Warranty: one-year on-site parts and labour

Electrical Requirements

The boiler needs a dedicated electrical circuit with correctly rated cable, protection and isolation. Before installation, an electrician must confirm that the property’s electrical supply can support the boiler and the building’s other electrical demand.

A qualified electrician or suitably competent installer must select and install the correct MCB, RCD, cable and double-pole isolation equipment. The installer must follow the Potterton instructions and current wiring regulations.

This appliance must be earthed. The boiler’s high-current power supply must not pass through a standard programmer or room thermostat.

Plumbing and Installation Guidance

Install the boiler upright on a suitable wall in a dry, ventilated and frost-free location. In addition, leave enough space around the unit for installation, inspection and servicing.

The heating system must provide a minimum flow of six litres per minute through the boiler. Low water flow may cause repeated safety shutdowns and could damage the appliance.

The system must also provide a permanently open flow route. If the installer cannot guarantee an open route, they must fit a suitable automatic bypass valve.

Before commissioning, flush the heating system thoroughly and add a suitable corrosion inhibitor. Sealed systems also require the correct expansion and pressure-relief equipment.

Domestic Hot Water

The GOLD6 does not produce instant hot water for taps or showers. A property that needs stored hot water will require a suitable cylinder and controls.

The installer should design the heating and hot-water arrangement before ordering. The correct boiler and cylinder size will depend on the property’s calculated demand.

Potterton Gold Electric Boiler Warranty

The Potterton Gold GOLD6 comes with a one-year on-site parts and labour warranty, subject to the manufacturer’s terms and conditions.

Correct installation and commissioning help protect the warranty. In addition, the system must contain clean, correctly treated water and provide the required flow through the boiler.

Leaks, incorrect wiring, poor water flow or contaminated system water may damage the boiler and affect warranty cover.

What Is Included?

• 1 x Potterton Gold GOLD6 6kW electric boiler
• Fitting and user instructions
• Warranty registration information

Please note: The boiler does not include external pumps, programmers, thermostats, valves, hot-water cylinders or other system components unless the listing states otherwise.

Why Buy from SNH Tradecentre?

• Established plumbing and heating supplier
• Practical product and system advice
• Secure online ordering
• Nationwide UK delivery options
• Support before and after your purchase
• Trade counter in Birchington, Kent

Read reviews from SNH Tradecentre customers on Google.

Need help checking the required boiler output? Call SNH Tradecentre on 01843 842727 before ordering.

Frequently Asked Questions

Is the Potterton GOLD6 a combi boiler?

No. It is an electric heat-only flow boiler for wet central heating. It does not produce instant domestic hot water.

Can it provide domestic hot water?

A correctly designed system can connect it to a suitable indirect cylinder. Alternatively, a direct cylinder can heat water through its own immersion heaters.

Can I use the GOLD6 with radiators?

Yes. Product code 94022004 is the 6kW radiator version.

Can I use it with underfloor heating?

This model is not the dedicated underfloor version. Potterton lists product code 94022104 for 6kW underfloor-heating applications.

Does the boiler need a flue?

No. It uses electricity and does not burn fuel, so it does not need a combustion flue.

Can it work with a sealed heating system?

Yes. It works with sealed systems when the installer fits the correct expansion, pressure-relief and control components.

Can it work with an open-vented system?

Yes. The boiler also supports correctly designed open-vented heating systems.

How large is the boiler?

It measures 1050mm high, 90mm wide and 90mm deep.

Is 6kW enough for my property?

That depends on the building’s calculated heat loss. Ask a heating engineer to complete a room-by-room heat-loss calculation before choosing the boiler output.

Is it a suitable alternative to an Amptec boiler?

It may provide an alternative in some electric wet-heating systems. However, your installer must compare the output, controls, electrical supply, dimensions and system requirements before replacing another boiler.

Does an electric boiler need an annual Gas Safety certificate?

The boiler does not use gas, so it does not require a Gas Safety certificate solely for its operation. However, property owners and landlords must still meet all relevant electrical-safety, heating-system and maintenance duties.

Who should install the boiler?

A qualified and competent heating installer and electrician should install and commission it according to the Potterton instructions and current regulations.
