Product Description

Joule Samsung Gen 6 16kW Heat Pump Pack with Zenith Cylinder

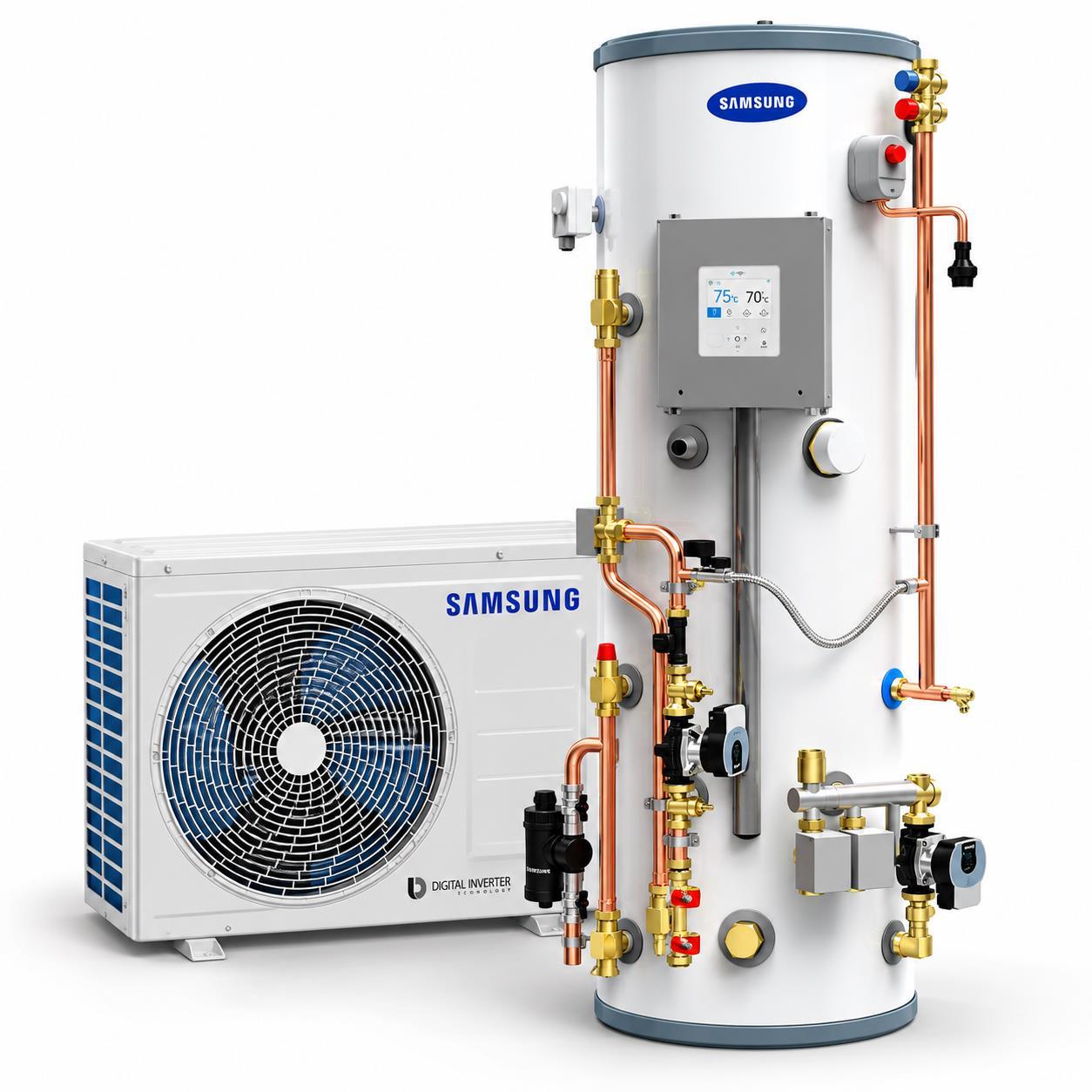

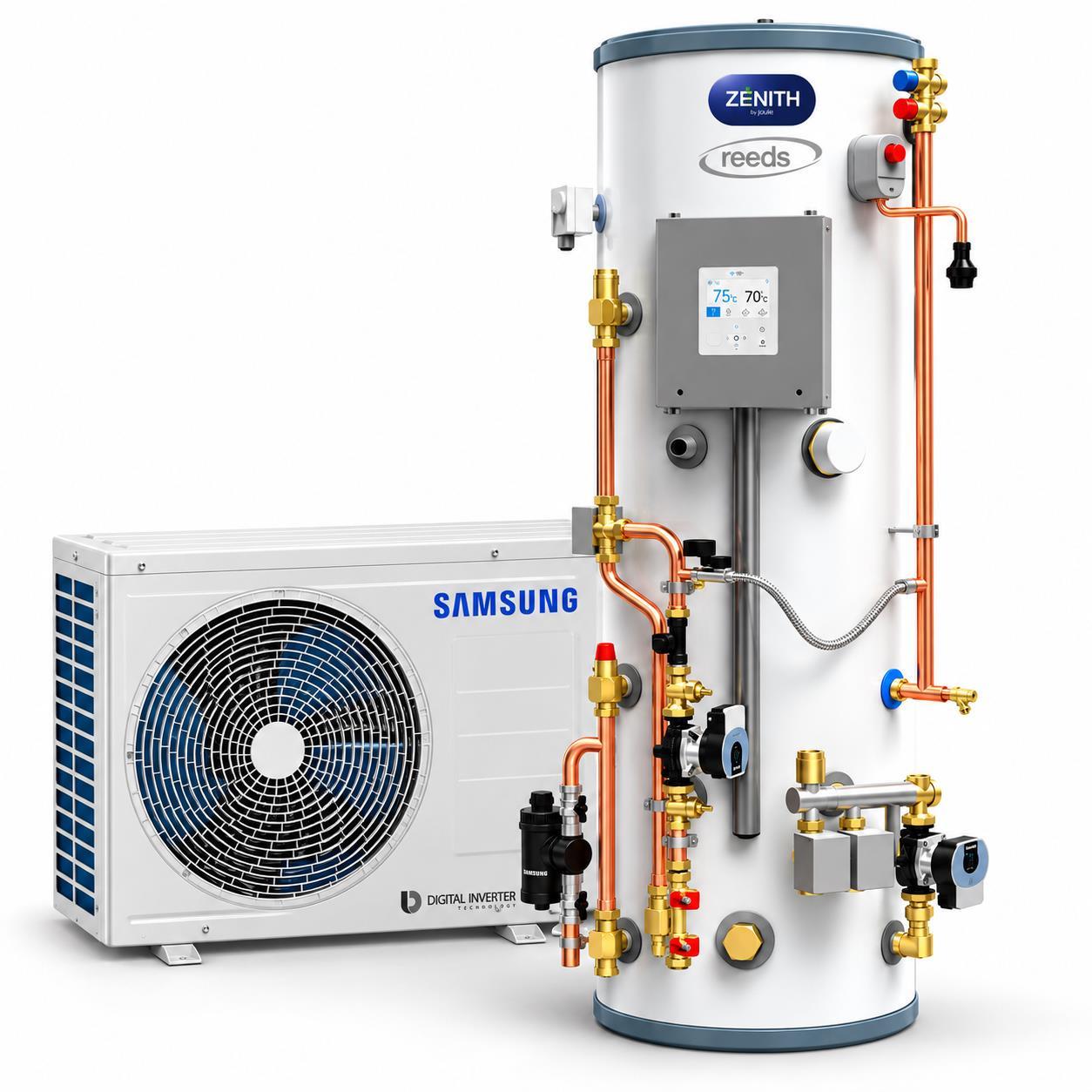

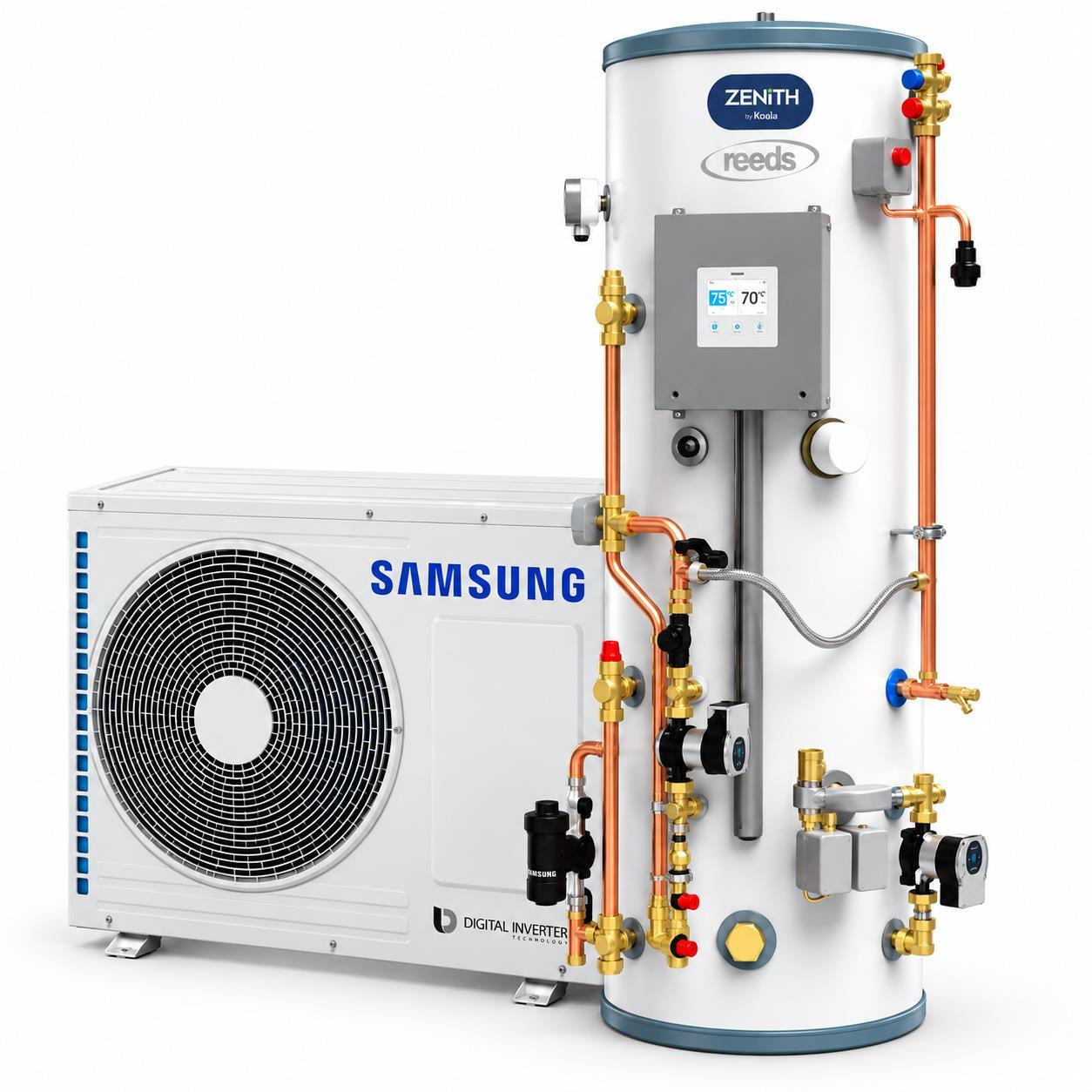

Upgrade your heating and hot-water system with the Joule Samsung Gen 6 16kW Heat Pump Pack with Zenith Cylinder. This complete package combines a Samsung Gen 6 R32 monobloc air source heat pump with a Joule Zenith pre-plumbed hot-water cylinder.

The Samsung heat pump has a 16kW output class and a nominal heating output of 12.28kW. Therefore, it provides a powerful heating solution for suitable larger homes and properties with higher heating demands.

You can choose from five cylinder and buffer combinations. Simply select the required package from the product options before adding it to your basket.

Choose Your Samsung 16kW Heat Pump Pack

Samsung Gen 6 16kW Heat Pump Pack Features

• Download the Joule Zenith Specifications Brochure
• Download the Joule Renewable Packs Brochure
• Download the Joule Zenith Gen 6 Fitting Instructions
• 16kW output class
• Nominal heating output of 12.28kW
• Single-phase electrical supply
• Uses R32 refrigerant
• Designed for suitable domestic heating and hot-water systems
• Can produce water temperatures up to 65°C
• Designed to operate in outdoor temperatures as low as -20°C
• Choice of 180L, 200L, 250L or 300L Zenith cylinder
• Integrated 30L, 50L or 70L buffer, depending on the selected model
• Pre-plumbed cylinder design helps simplify installation
• Can support up to three heating zones
• Suitable for compatible radiator and underfloor-heating systems
• Several cylinder formats help suit different properties and available spaces

Samsung Gen 6 16kW Heat Pump Specification

• Samsung HHSM-G600016-1 Specification
• Brand: Samsung
• Heat-pump generation: Gen 6

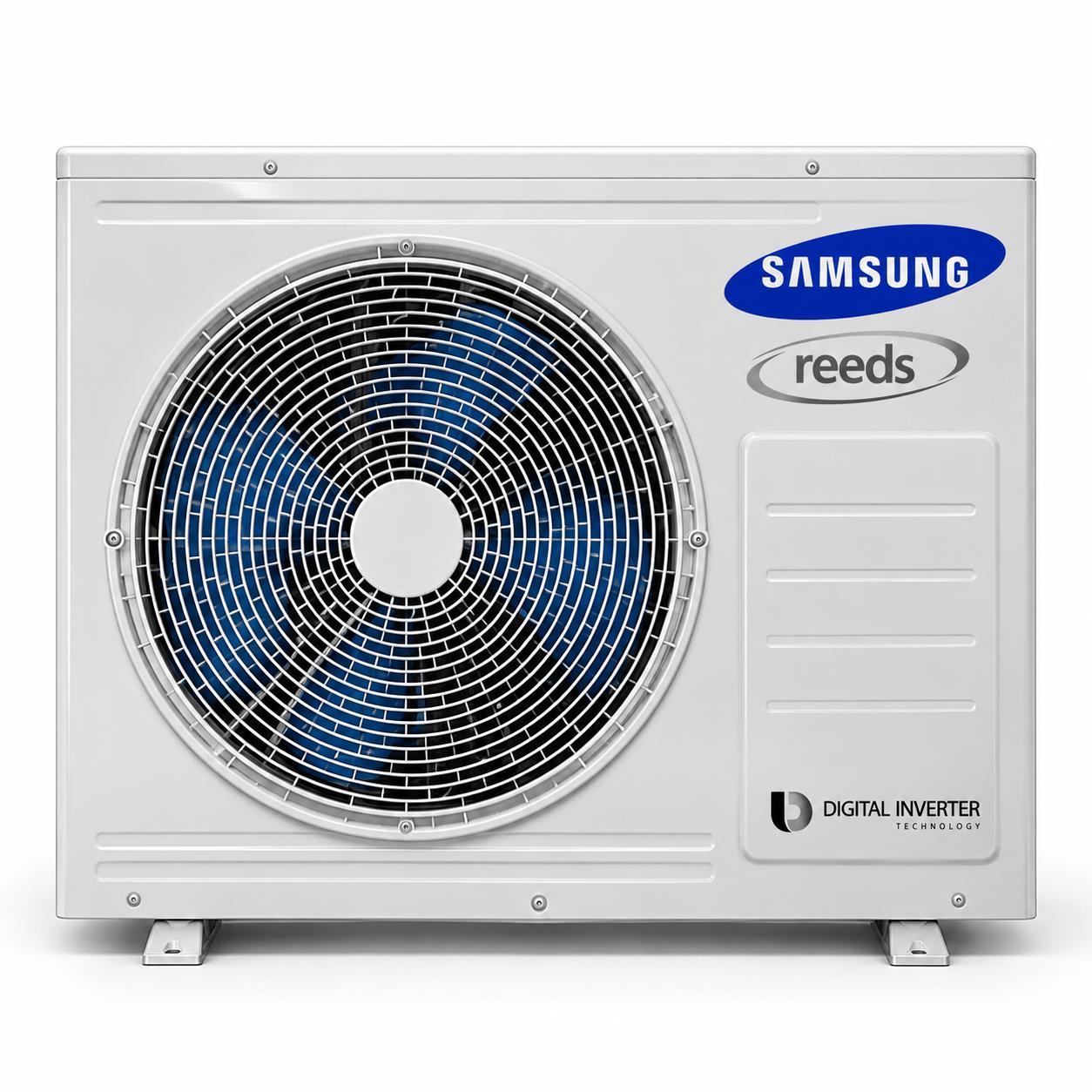

• Product type: monobloc air source heat pump
• Output class: 16kW
• Nominal heating output: 12.28kW
• Electrical supply: single phase
• Refrigerant: R32
• Maximum leaving-water temperature: up to 65°C
• Minimum stated outdoor operating temperature: down to -20°C
• Compatible cylinder range: Joule Zenith
• Available cylinder capacities: 180L, 200L, 250L and 300L
• Available buffer capacities: 30L, 50L and 70L
• Heating control: up to three compatible zones

What Is Included?

• 1 x Samsung Gen 6 16kW-class R32 monobloc heat pump
• 1 x Joule Zenith pre-plumbed hot-water cylinder
• 1 x integrated buffer vessel in the selected cylinder package
• Pre-fitted cylinder components supplied as part of the chosen Joule package

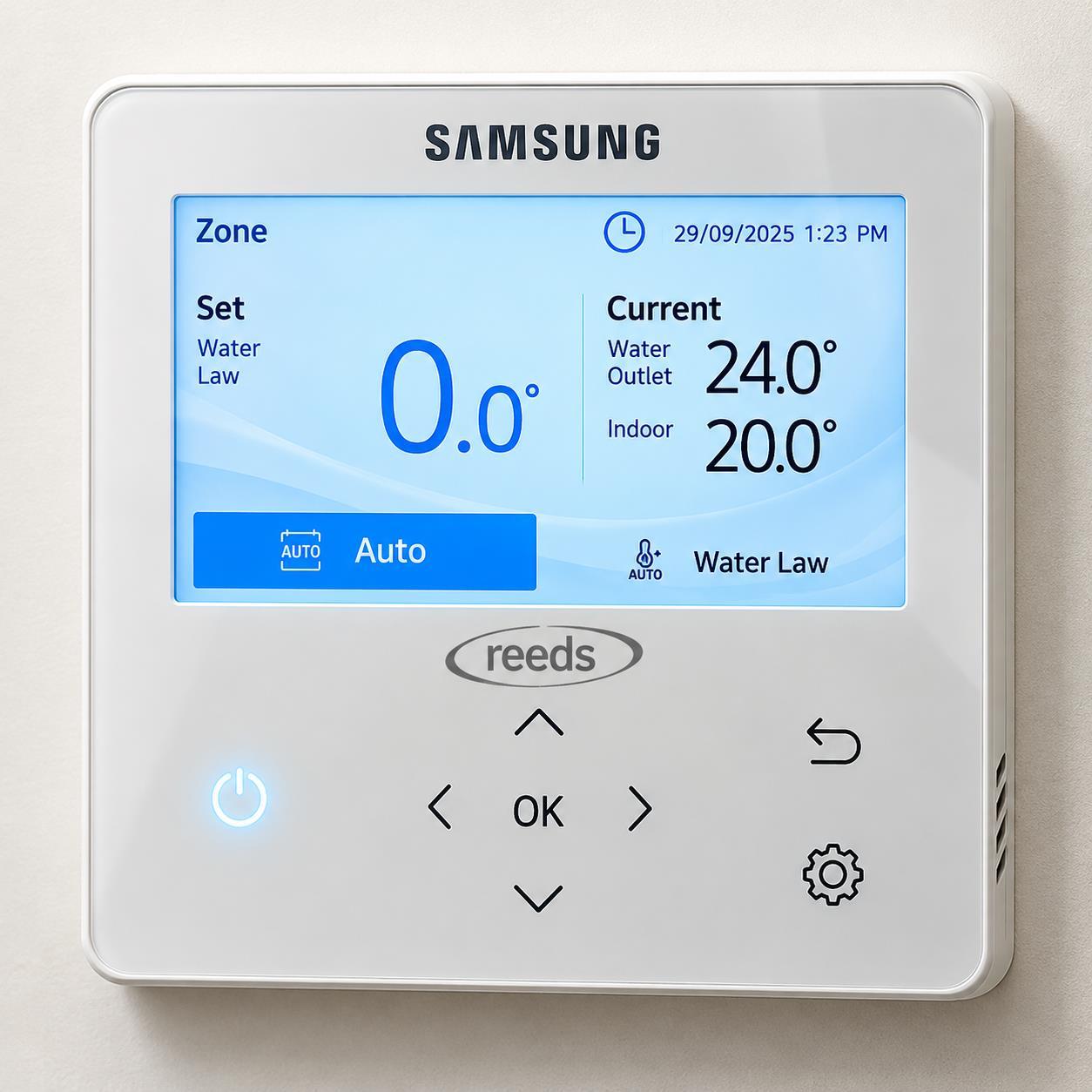

• Samsung and Joule controls and accessories supplied with the selected package

Package contents can vary between models. Therefore, check the selected product code and package schedule before ordering. Your installer may also need extra pipework, valves, fittings, electrical components or installation materials.

Joule Zenith Cylinder Options

HXZ-G616-180SD – 180L Standard Cylinder with 50L Buffer

This package combines the Samsung Gen 6 16kW heat pump with a 180-litre standard Zenith cylinder and a 50-litre buffer. It provides a practical choice for suitable properties that need a standard-format cylinder and moderate hot-water storage. Approximately 2 to 3 people, subject to their hot-water use.

HXZ-G616-180SM – 180L Slim Cylinder with 30L Buffer

This option includes a 180-litre slim Zenith cylinder with a 30-litre buffer. Its narrower design may suit installations where cupboard or plant-room width is limited. However, always check the complete cylinder dimensions before ordering. Approximately 2 to 3 people, subject to their hot-water use.

HXZ-G616-200SD – 200L Standard Cylinder with 50L Buffer

This package includes a 200-litre standard Zenith cylinder and a 50-litre buffer. The extra hot-water capacity can suit suitable households with a higher daily demand. approximately 3 to 4 people, subject to their hot-water use.

HXZ-G616-250MX – 250L Max Cylinder with 70L Buffer

This option pairs the Samsung heat pump with a 250-litre Zenith Max cylinder and a 70-litre buffer. As a result, it can suit larger properties with greater hot-water and heating requirements. Approximately 4 to 5 people, subject to their hot-water use.

HXZ-G616-300MX – 300L Max Cylinder with 70L Buffer

This package includes the largest cylinder in the range. It combines a 300-litre Zenith Max cylinder with a 70-litre buffer. Therefore, it may suit suitable larger households or properties with high hot-water demand. Approximately 5+ people, subject to their hot-water use.

Why Choose a Pre-Plumbed Joule Zenith Cylinder?

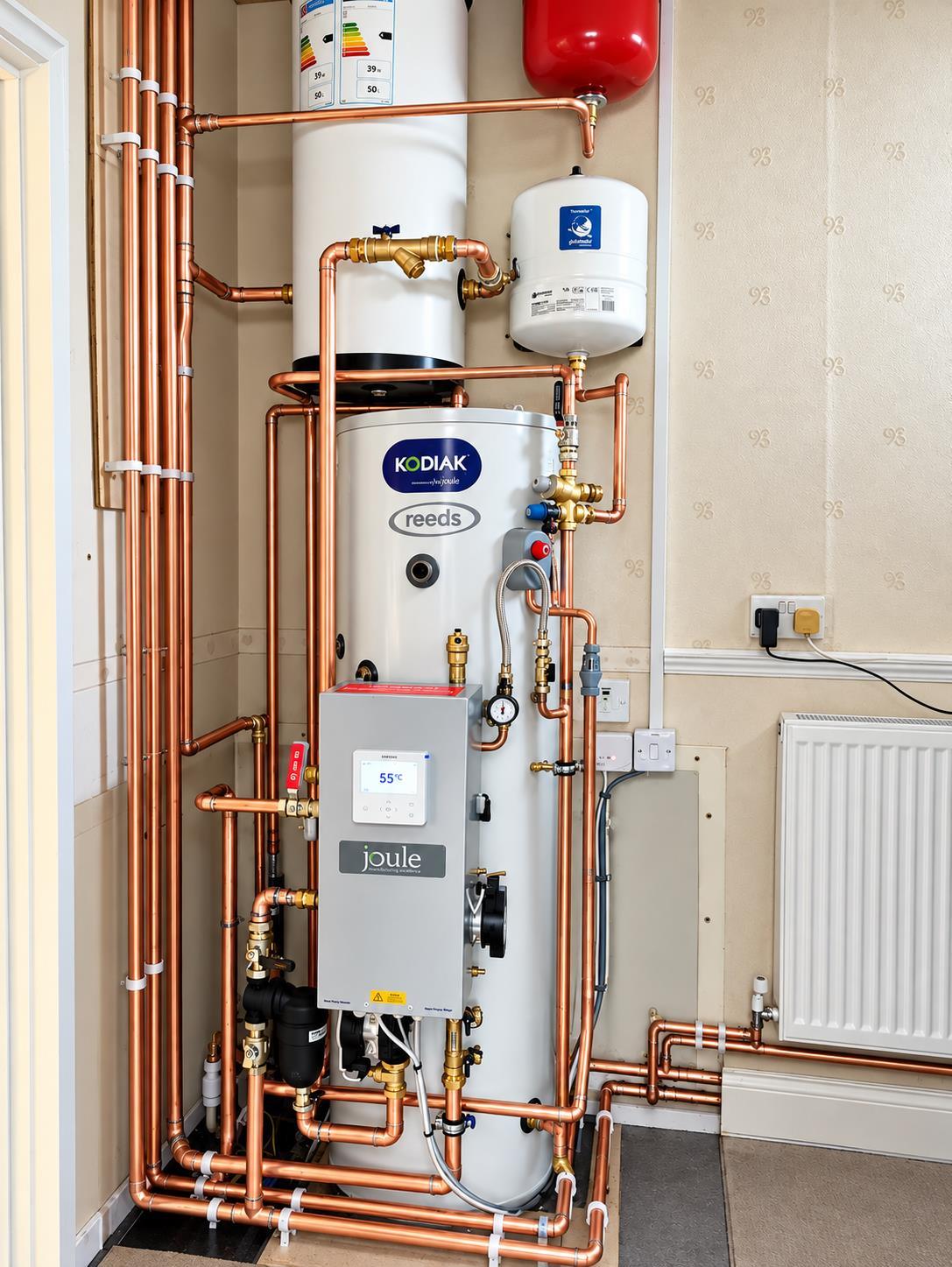

The Joule Zenith cylinder arrives with many key components already fitted. Consequently, this can reduce the amount of plumbing work needed on site. It can also produce a neater plant-room or airing-cupboard installation.

In addition, the integrated buffer helps maintain water volume and stable flow through the heating system. This may help reduce heat-pump cycling when the system has been designed and commissioned correctly.

However, every property has different heating and hot-water needs. A qualified designer or installer should select the correct cylinder capacity, buffer size and system layout.

Up to Three Heating Zones

The Joule Zenith package can support up to three compatible heating zones. For example, an installer may divide the property into separate radiator and underfloor-heating areas.

Zoning gives the system better control over different parts of the property. Therefore, each area can operate according to its own heating schedule and temperature requirements.

The final zone design will depend on the property, heat-loss calculation, heating emitters and chosen control arrangement.

Is a 16kW Heat Pump Suitable for My Home?

A 16kW-class heat pump may suit a larger property or a building with a higher calculated heat loss. However, you should not select a heat pump from the property size alone.

First, a heat-loss calculation should consider the insulation, windows, floor area, building construction and required indoor temperatures. The installer should also check the output of every radiator or underfloor-heating circuit.

The Samsung Gen 6 16kW model has a nominal heating output of 12.28kW. Therefore, your heating design should use the manufacturer’s technical performance data at the required outdoor and flow temperatures.

Free Heat-Pump Design Service

SNH Tradecentre can help you choose the correct Samsung and Joule package. Simply email your plans, room sizes or heat-loss information to darren@snhuk.co.uk.

We can then review your heating requirements and help identify the most suitable heat pump, cylinder and buffer combination. In addition, we can help check whether the standard, slim or max cylinder offers the best fit for your installation.

Delivery Information

Delivery for this product is available to Mainland England only.

Because this package includes a heat pump and a large cylinder, the items may arrive by specialist or pallet delivery. Some parts may also arrive in separate deliveries. Therefore, please provide a daytime telephone number and suitable delivery access when ordering.

If you have restricted access, narrow roads or special delivery requirements, please contact SNH Tradecentre before placing your order.

Installation Information

A suitably qualified heating engineer and electrician should install and commission this system. The installer must follow the current building regulations, electrical requirements and manufacturer instructions.

Before installation, the system designer should confirm:

• The property’s room-by-room heat loss
• The required heating flow temperature
• The output of existing or proposed radiators
• The underfloor-heating design, where applicable
• The required hot-water storage capacity
• The correct buffer volume
• The number and layout of heating zones
• The available electrical supply
• The outdoor heat-pump position
• Condensate drainage and pipe routes
• Required planning and noise considerations

Why Buy from SNH Tradecentre?

SNH Tradecentre is an experienced independent plumbing and heating merchant based in Birchington, Kent. We supply heating equipment to homeowners, installers and trade customers across Mainland England.

Our team works closely with leading heating manufacturers and suppliers. Therefore, we can help customers select the correct Samsung heat pump and Joule Zenith cylinder package before ordering.

• Independent family-run plumbing and heating merchant
• Experienced product support
• Free heat-pump sizing and design assistance
• Help choosing the correct Zenith cylinder option
• Support for homeowners and professional installers
• Secure online ordering
• Specialist delivery to Mainland England
• After-sales help from a knowledgeable UK team

If you need help before ordering, call SNH Tradecentre on 01843 842727 or email darren@snhuk.co.uk.

Frequently Asked Questions

Does this package include a 16kW heat pump?

It includes a Samsung Gen 6 heat pump in the 16kW output class. Its stated nominal heating output is 12.28kW. Always use the detailed performance data and a heat-loss calculation when selecting the correct model.

Which cylinder sizes are available?

You can choose a 180L, 200L, 250L or 300L Joule Zenith cylinder. The 180L option is available in standard and slim formats.

Does the cylinder include a buffer?

Yes. Depending on the chosen model, the package includes an integrated 30L, 50L or 70L buffer.

What is the difference between the standard, slim and max cylinders?

The standard models provide a conventional cylinder format. Meanwhile, the slim model has a narrower design for locations with limited width. The max models offer larger hot-water and buffer capacities for properties with greater demand.

Can this heat pump supply radiators?

Yes, it can supply a correctly designed radiator system. However, your installer must check that the radiators provide enough heat at the proposed heat-pump flow temperature.

Can it work with underfloor heating?

Yes. Heat pumps work well with many correctly designed underfloor-heating systems. The system may also combine underfloor heating and radiators across separate zones.

Can the system control more than one heating zone?

Yes. The package can support up to three compatible heating zones when it has been designed, installed and configured correctly.

Does the Samsung Gen 6 heat pump require a three-phase supply?

No. These Samsung Gen 6 16kW pack options use a single-phase heat pump. Nevertheless, a qualified electrician must confirm that the property’s electrical supply can support the proposed installation.

Can SNH Tradecentre help me select the correct pack?

Yes. Email your plans or heating details to darren@snhuk.co.uk. The SNH Tradecentre team can help you select the most suitable heat pump and Zenith cylinder combination.
