Triton T30i Handwash SPT303i 3kW Instaflow

The Triton Instaflow T30I SPT303I is a compact 3kW instantaneous handwash for use with a cold mains water supply. It includes a single temperature and flow control, 200mm swivel arm and IPX4-rated white casing.

£45.83 £54.99 (inc vat)

In stock

Product Description

Triton Instaflow T30I SPT303I 3kW Handwash

Model: SPT303I

The Triton Instaflow T30I SPT303I 3kW Handwash provides instant hot water where only a cold mains supply is available. Its compact size makes it ideal for cloakrooms, utility rooms, workshops, garages and other suitable locations with limited space.

The unit heats water on demand. Therefore, it does not need a separate hot water cylinder or stored hot water supply. A single rotary control starts and stops the water while also adjusting its temperature.

This model directly replaces earlier Triton T30I handwash units. However, always compare the existing electrical supply, pipe position, dimensions and fixing points before ordering.

Triton Instaflow T30I Features

  • Download the Triton Instaflow T30I installation instructions
  • View the Triton Instaflow T30I manufacturer information
  • Direct replacement for earlier Triton T30I models
  • Compact instantaneous handwash unit
  • Heats water only when required
  • Suitable for a cold mains water supply
  • Single control for starting, stopping and temperature adjustment
  • Nozzle designed to provide controlled handwashing with less splashback
  • 200mm swivel arm supplied as standard
  • Optional 100mm swivel arm available separately
  • 3kW power rating at 240V
  • White finish
  • A-rated energy efficiency
  • IPX4 splashproof rating
  • BEAB and CE approved
  • KIWA UK Regulation 4 approved
  • One-year parts and labour guarantee in the UK
  • Model: SPT303I

Key Features and Benefits

  • Instant hot water: The unit heats incoming cold water as you use it, so it does not need stored hot water.
  • Compact design: Its small casing suits cloakrooms, utility rooms and other restricted spaces.
  • Simple control: One rotary control operates the water and adjusts the outlet temperature.
  • Efficient operation: The heater only uses energy when water flows through the unit.
  • Cold-mains connection: The handwash works where a separate hot water supply is unavailable.
  • Replacement option: Triton designed this model as a direct replacement for earlier T30I units.
  • Swivel outlet: The supplied 200mm arm helps position the spray over a suitable basin.

Technical Specification

  • Manufacturer: Triton
  • Range: Instaflow T30I
  • Model: SPT303I
  • Product Type: Instantaneous electric handwash
  • Finish: White
  • Nominal Power at 240V: 3kW
  • Nominal Power at 230V: 2.8kW
  • Rated Current: 13A
  • Water Supply: Cold mains only
  • Inlet Connection: ½-inch BSP
  • Outlet Connection: ½-inch BSP
  • Minimum Running Pressure: 1 bar
  • Maximum Static Pressure: 10 bar

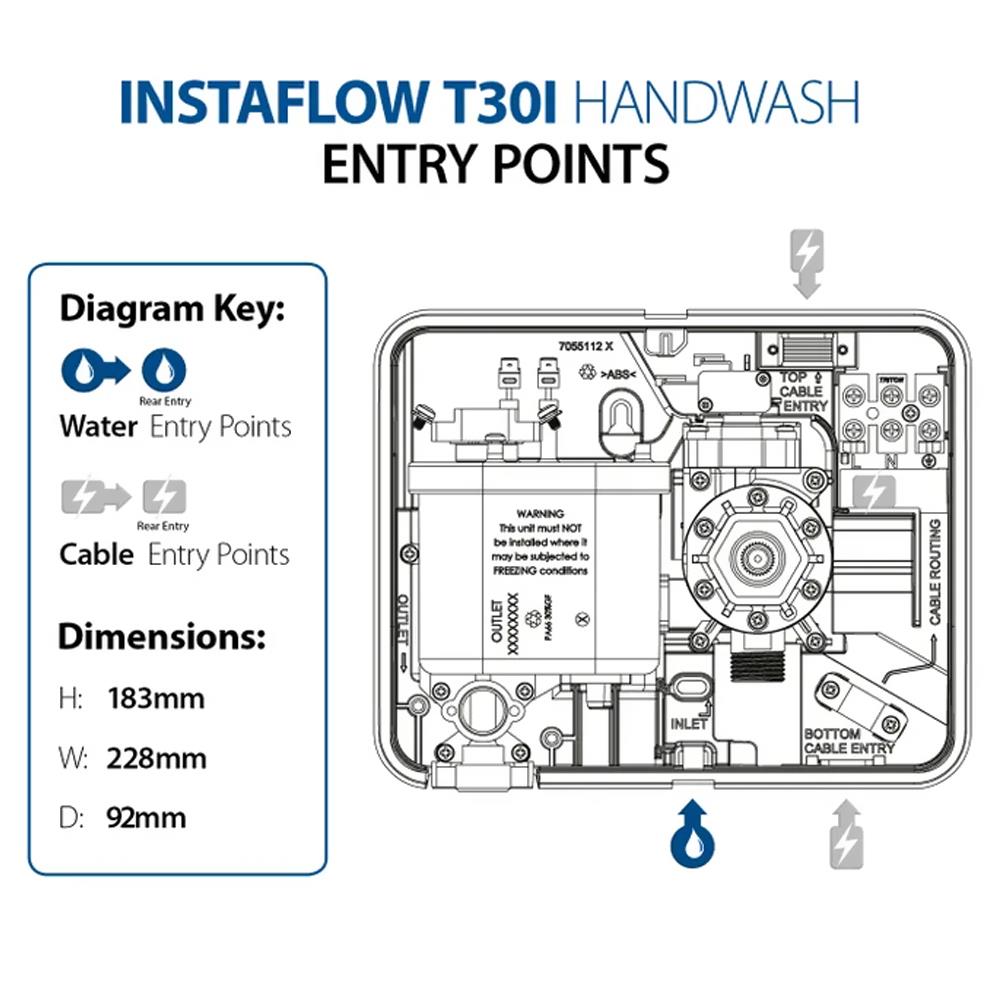

  • Water Entry: Right-hand side, bottom
  • Cable Entry: Right-hand top, right-hand bottom or middle rear
  • Maximum Terminal Cable Capacity: 10mm²
  • IP Rating: IPX4
  • Energy Rating: A
  • Approvals: BEAB, CE and KIWA UK Regulation 4
  • Guarantee: One year, subject to Triton’s terms

Triton T30I Handwash Dimensions

  • Height: 183mm
  • Width: 228mm
  • Depth: 92mm
  • Supplied Swivel Arm: 200mm

Check the available wall space, basin position, water connection and cable route before ordering. In addition, leave enough access for future cleaning and maintenance.

How Does the Triton T30I Work?

The Triton T30I heats cold mains water as it passes through the unit. As a result, it provides warm water without a storage cylinder or separate hot water pipe.

The electric element operates at a constant rate. Meanwhile, the flow of water controls the outlet temperature. A slower flow produces warmer water, while a faster flow produces cooler water.

The incoming mains temperature also affects performance. Therefore, the control may need adjustment between summer and winter.

Suitable Applications

  • Cloakrooms without a hot water supply
  • Utility rooms
  • Small washrooms
  • Workshops
  • Garages
  • Suitable commercial environments
  • Replacement of an earlier Triton T30I

Contact Triton before using the unit for multiple or demanding commercial installations. The available water pressure, electrical supply and expected usage must suit the product.

What Is Included?

  • 1 x Triton Instaflow T30I 3kW handwash unit
  • 1 x 200mm swivel arm and spray nozzle
  • Installation and operating information
  • Model: SPT303I

Installation Requirements

A suitably qualified person must install and commission this handwash unit. The electrical installation must comply with the current edition of BS 7671 and all applicable local requirements.

The appliance must be earthed and connected to a suitable electrical circuit with the correct protective device and local means of isolation. The installer must select the cable size and protection after checking the installation method, cable length and site conditions.

The plumber must connect the unit to a suitable cold mains supply and fit the required isolating valve. Always follow the latest Triton instructions before switching on or commissioning the heater.

Why Choose the Triton Instaflow T30I?

The Triton T30I offers a simple way to add hot water to a small washbasin without installing stored hot water equipment. Its compact casing and combined control make it easy to use in locations where space is limited.

Furthermore, the unit only heats water when required. This makes it a practical option for suitable cloakrooms, utility rooms and low-demand handwashing areas.

Why Buy from SNH Tradecentre?

  • Competitive prices on Triton water-heating products
  • Helpful product and replacement advice
  • Genuine products from established manufacturers
  • Nationwide delivery options
  • Trade and public customers welcome
  • Collection available from our Birchington, Kent trade counter
  • Independent UK plumbing and heating merchant

Triton may update product specifications, package contents and guarantee terms without notice. Check the latest installation guide and confirm suitability with a qualified installer before ordering.
