Product Description

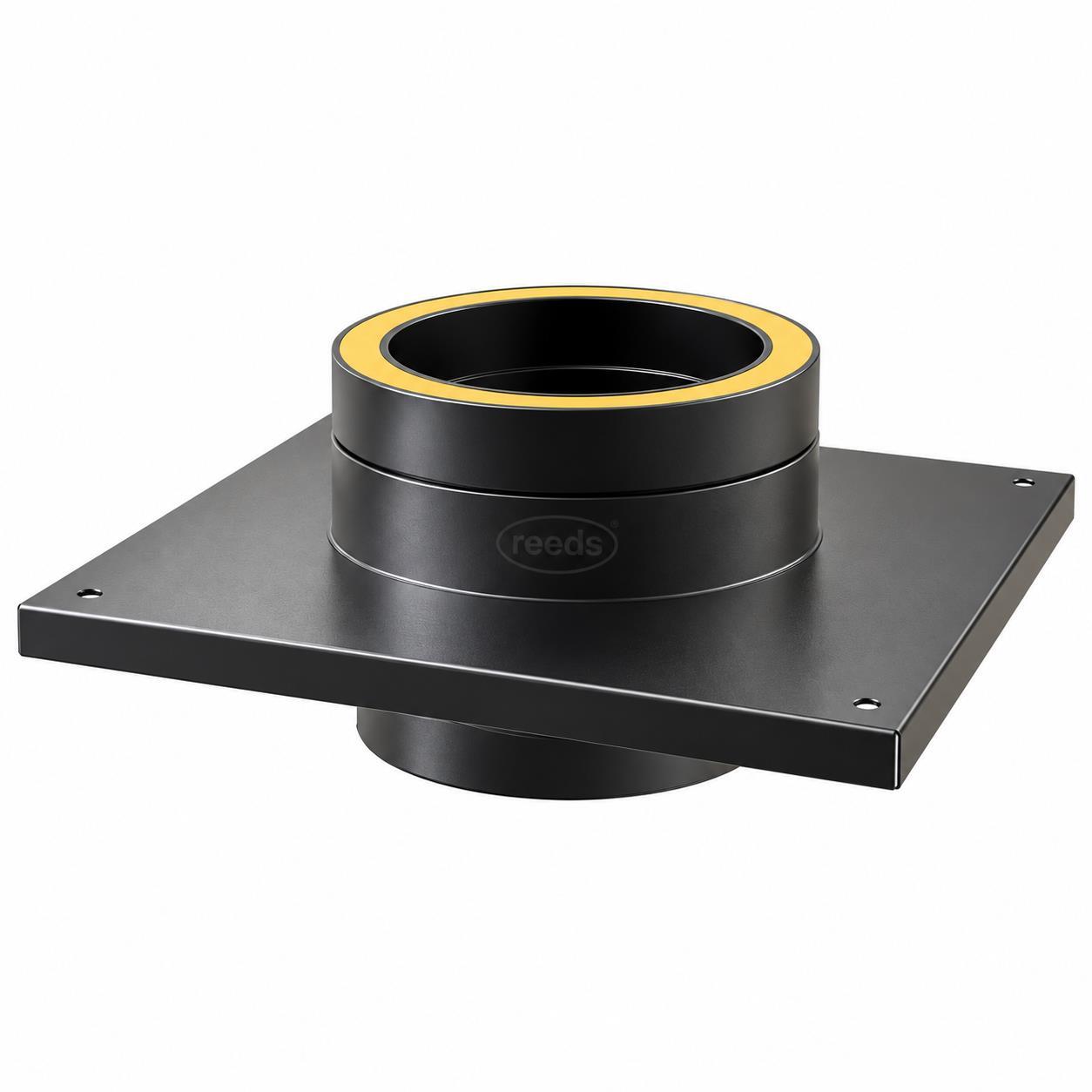

TWPro 125mm Twin Wall Console Plate Matt Black

Model: 37-125-061

Provide strong load-bearing support for a 125mm TWPro chimney with the TWPro Twin Wall Console Plate. This matt-black support plate fixes to a suitable wall or structure with correctly selected third-party fixings.

Unlike a standard wall band, the console plate can support vertical chimney weight. Therefore, it provides an important support point within a correctly designed internal or external TWPro chimney system.

Important: Wall fixings do not come with the plate. The installer must choose fixings that suit the building material, chimney load and installation conditions.

Key Features

• Designed for 125mm TWPro twin-wall chimney
• Load-bearing console support plate
• Supports vertical chimney weight when correctly installed
• Suitable for internal or external chimney systems
• Fixes to a suitable wall or supporting structure
• Requires correctly selected third-party fixings
• Matt-black finish
• Compatible with TWPro and matching KW Flue components
• Suitable for compatible solid-fuel, gas and oil appliances
• Product model: 37-125-061

TWPro Console Plate Specification

• Download the TWPro Information Sheet
• Download the TWPro Installation Sheet
• Brand: TWPro
• Product type: load-bearing console plate
• Compatible flue diameter: 125mm internal
• Support type: vertical load support
• Installation method: third-party wall fixings
• Finish: matt black
• System joint method: push fit with locking band
• Maximum temperature class: T600
• Product model: 37-125-061

What Is Included?

• 1 x TWPro 125mm Console Plate
• Finish: matt black
• Model: 37-125-061
• Please note: wall fixings are not included

Application

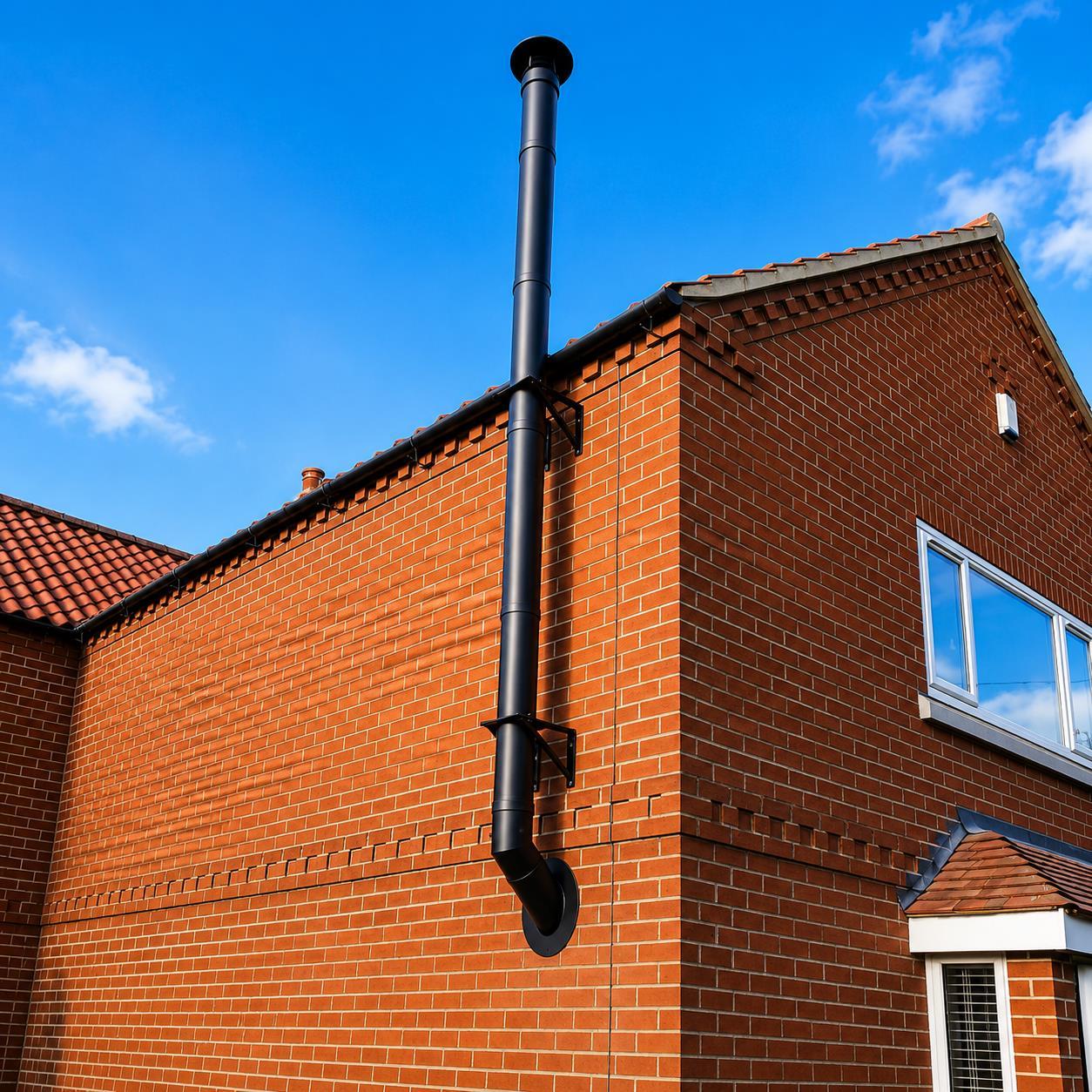

The console plate creates a load-bearing support point within a correctly designed 125mm TWPro chimney system. For example, installers can use it where the chimney needs support from a strong wall or another suitable building surface.

It can form part of a chimney system serving:

• Wood-burning stoves
• Multifuel stoves
• Other suitable solid-fuel appliances
• Compatible gas appliances
• Compatible oil-fired appliances

However, always check the appliance and chimney instructions first. These instructions will confirm the required flue diameter, chimney class and support layout.

Load-Bearing Chimney Support

The TWPro Console Plate can support vertical chimney weight when the installer fits it correctly to a suitable structure. Therefore, it differs from standard wall bands, which provide lateral support only.

The amount of chimney that the plate can support depends on the full installation design, fixing method and supporting wall. As a result, the installer must check the TWPro loading data before fitting the plate.

Do not exceed the maximum permitted load. Also, do not rely on this plate if the wall or chosen fixings cannot safely carry the chimney weight.

Choosing the Correct Wall Fixings

The manufacturer does not supply wall fixings with this product. This is because the correct fixing type depends on the building surface and expected chimney load.

For example, fixing requirements can vary between:

• Solid brick walls
• Concrete walls
• Suitable blockwork
• Timber structures
• Other approved structural surfaces

Therefore, the installer must inspect the supporting surface and choose suitable corrosion-resistant fixings. If the structure cannot carry the load, use another approved support method.

TWPro System Construction

• Inner casing: 0.4mm 316L-grade stainless steel
• Outer casing: 0.4mm 304-grade stainless steel
• Outer finish: matt-black powder coating
• Insulation: 25mm injected mineral wool
• Insulation density: 190kg/m³
• Joint system: push fit with locking band
• Maximum temperature class: T600

These construction details apply to the connected TWPro insulated chimney. Meanwhile, the console plate carries vertical chimney weight and transfers it to the supporting structure.

Approvals and System Classification

• HETAS-approved chimney system
• EN 1856-1 T600 N1 W V2 L50040 G50
• EN 1856-1 T200 P1 W V2 L50040 O20
• Suitable for compatible negative-pressure systems up to T600
• Suitable for compatible positive-pressure systems up to T200

The correct system class depends on the appliance, fuel and complete chimney design. Therefore, check every component before installation.

Distance to Combustible Materials

Under its T600 G50 classification, the TWPro insulated chimney must remain at least 50mm away from combustible materials.

However, the console plate does not reduce the required clearance. Another part of the appliance or chimney system may also need a larger gap. Therefore, always follow the largest distance stated in the full installation instructions.

Installation Guidance

• First, plan the full chimney route and support positions
• Check the TWPro loading data before installation
• Confirm that the supporting wall can carry the chimney load
• Choose suitable third-party fixings for the wall material
• Make sure the mounting surface is strong, level and secure
• Fit the plate squarely so the chimney remains vertical
• Tighten every fixing to the correct level
• Connect the TWPro component in line with the system instructions
• Fit all required locking bands and lateral supports
• Maintain the required distance from combustible materials
• Finally, follow the appliance and TWPro installation instructions

This console plate forms a key load-bearing point within the chimney system. Therefore, a suitably competent installer should design and fit the complete installation. For solid-fuel systems, use a HETAS-registered installer where appropriate.

Console Plate or Wall Support?

A console plate supports vertical chimney weight. In contrast, a wall support or wall band mainly controls sideways movement.

Many chimney systems need both types of support. Therefore, do not replace required lateral wall bands with a console plate, and do not expect a standard wall band to carry vertical weight.

Compatibility

This console plate fits the 125mm TWPro and matching KW Flue systems only. Other twin-wall chimney brands use different outside diameters, joints and support designs. Therefore, do not use this plate with another system unless the manufacturer confirms compatibility.

The 125mm size refers to the internal flue diameter. TWPro pipe also contains 25mm of insulation around the inner casing. As a result, the connected twin-wall pipe has an outside diameter of approximately 175mm.

TWPro Warranty

• 25-year system warranty, subject to the manufacturer’s conditions
• 2-year warranty on the painted finish

To protect the warranty, choose the correct components and follow the installation, fuel and maintenance instructions. Also, keep your proof of purchase.

Why Choose the TWPro Twin-Wall System?

TWPro combines a strong 316L stainless-steel inner casing with dense mineral-wool insulation. In addition, its matt-black outer casing gives the chimney a neat finish.

The push-fit joints and locking bands also make assembly simple and secure. Therefore, installers can create a clean chimney route with fewer visible projections between sections.

In the UK, you may also find this system under the KW Flue name. Even so, always check the product codes and joint design before joining different components.
