Product Description

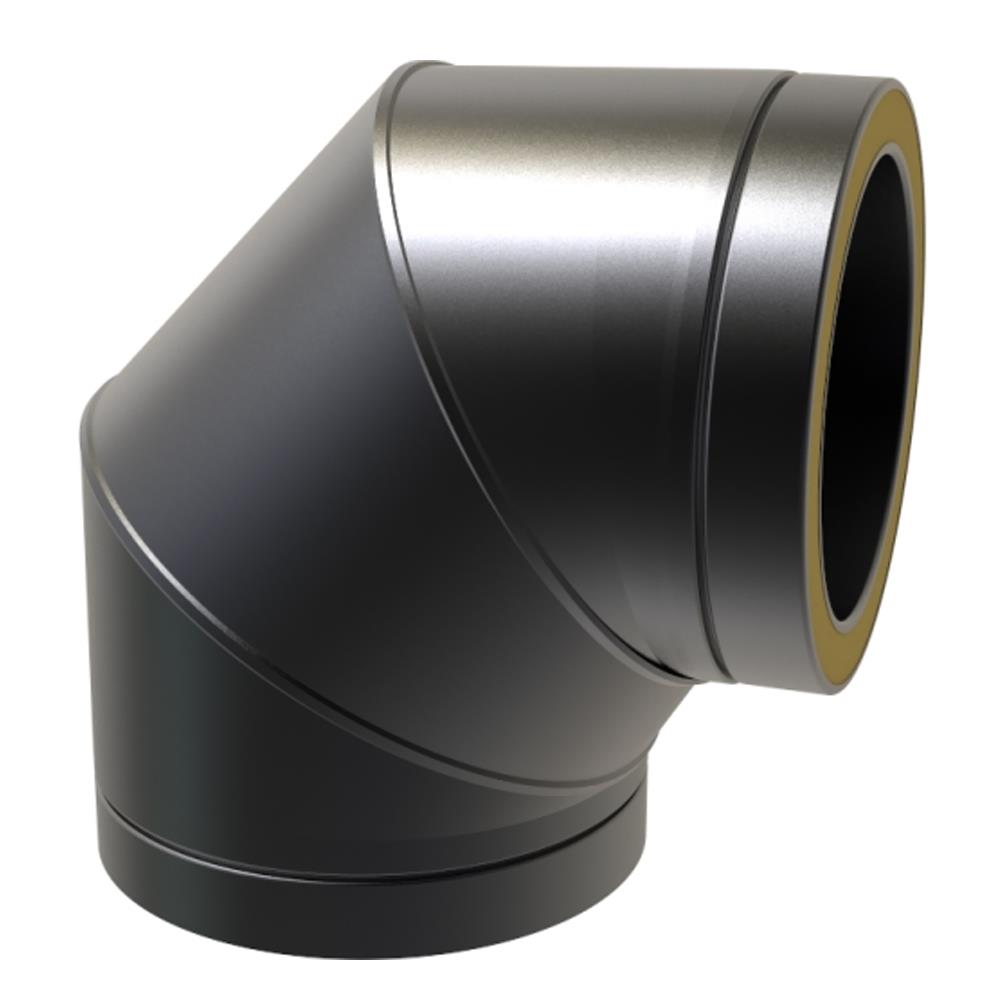

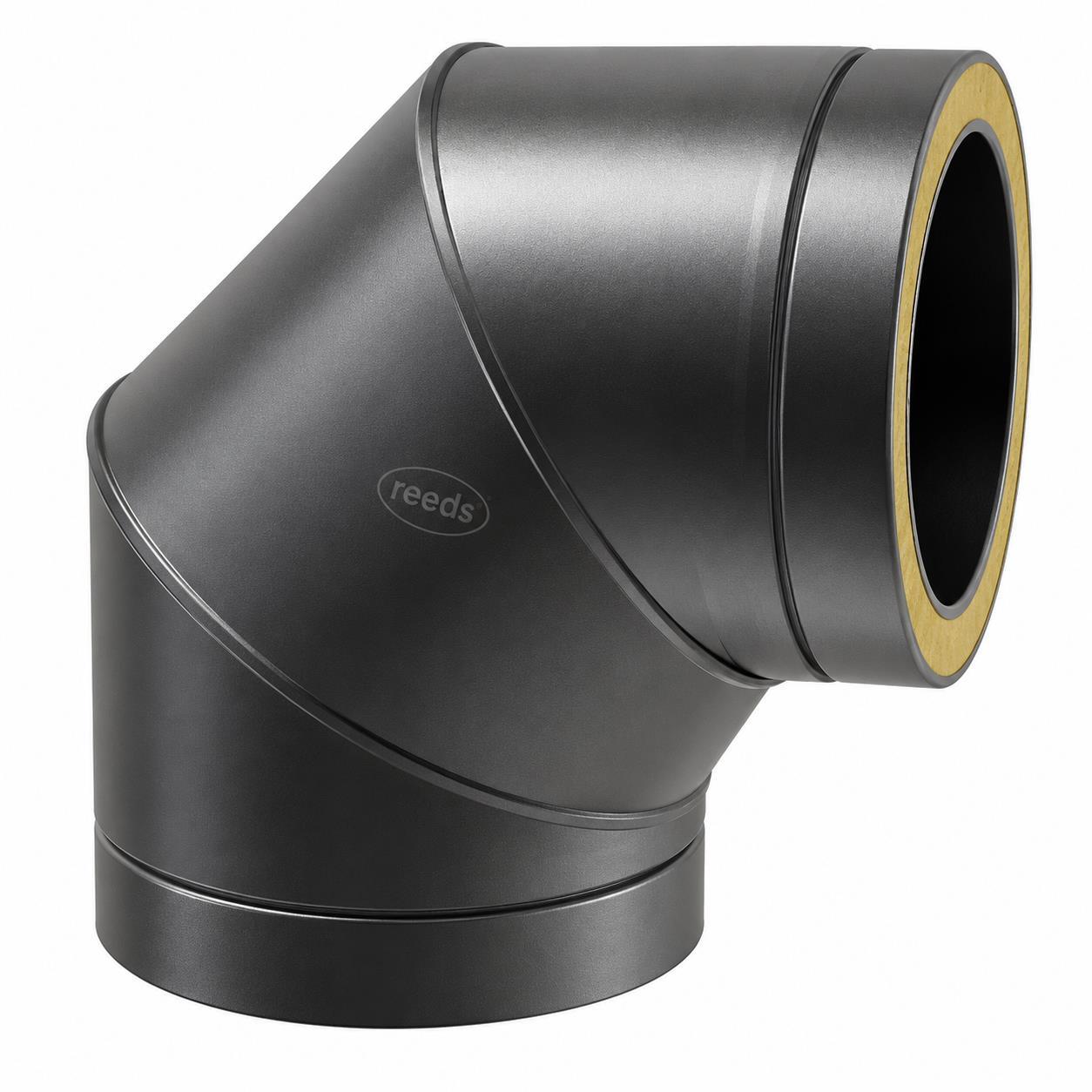

TWPro 125mm Twin Wall Insulated 90° Bend Matt Black

Model: 37-125-030

Change the direction of a 125mm twin-wall chimney with the TWPro 90° Insulated Bend. Its three-segment design creates a full 90° change while maintaining the insulated construction of the TWPro chimney system.

The matt-black finish matches other TWPro components. In addition, the push-fit joint and supplied locking band create a neat and secure connection.

Important: A 90° bend creates a major change in the chimney route. Therefore, a suitably competent installer must confirm that its proposed position meets the appliance instructions, TWPro guidance and Building Regulations.

Key Features

• 125mm internal flue diameter
• Three-segment 90° bend
• Creates a full 90° change in direction
• Twin-wall insulated construction
• Matt-black powder-coated finish
• 316L-grade stainless-steel inner casing
• 304-grade stainless-steel outer casing
• Push-fit connection with locking band
• Suitable for compatible solid-fuel, gas and oil appliances
• Forms part of a T600-rated chimney system
• Product model: 37-125-030

TWPro 90° Bend Specification

• Download the TWPro Information Sheet
• Download the TWPro Installation Sheet
• Brand: TWPro
• Product type: insulated twin-wall chimney bend
• Internal flue diameter: 125mm
• Outside diameter: approximately 175mm
• Bend angle: 90°
• Construction: three segments
• Finish: matt black
• Connection method: push fit with locking band
• Maximum temperature class: T600
• Product model: 37-125-030

What Is Included?

• 1 x TWPro 125mm Twin Wall Insulated 90° Bend
• 1 x matching locking band
• Finish: matt black
• Model: 37-125-030

Application

This 90° bend changes the direction of a compatible 125mm TWPro insulated chimney. For example, it may suit a correctly designed connection or chimney route where the system needs a sharp change in direction.

It can form part of a suitable flue system serving:

• Wood-burning stoves
• Multifuel stoves
• Other suitable solid-fuel appliances
• Compatible gas appliances
• Compatible oil-fired appliances

However, product compatibility does not mean that a 90° bend will suit every installation. Always check the appliance instructions, chimney design and current Building Regulations before use.

Planning a 90° Change in Direction

A 90° bend creates more resistance to flue gases than a straight pipe or a shallower bend. Therefore, the installer must make sure the full chimney still provides the correct draught.

Approved Document J treats one factory-made 90° bend as two 45° changes of direction when assessing the chimney route and sweeping access. As a result, this component can use two of the permitted changes within a flue design.

Where possible, keep the chimney route simple and vertical. If the design requires this bend, make sure the position allows safe inspection and cleaning.

Inspection and Sweeping Access

A sharp change in direction can collect soot and debris. Therefore, the complete chimney system must provide suitable access for regular inspection and sweeping.

Depending on the installation, you may need an access component near the bend. A suitably qualified installer or chimney sweep should be able to reach and clean every part of the flue route.

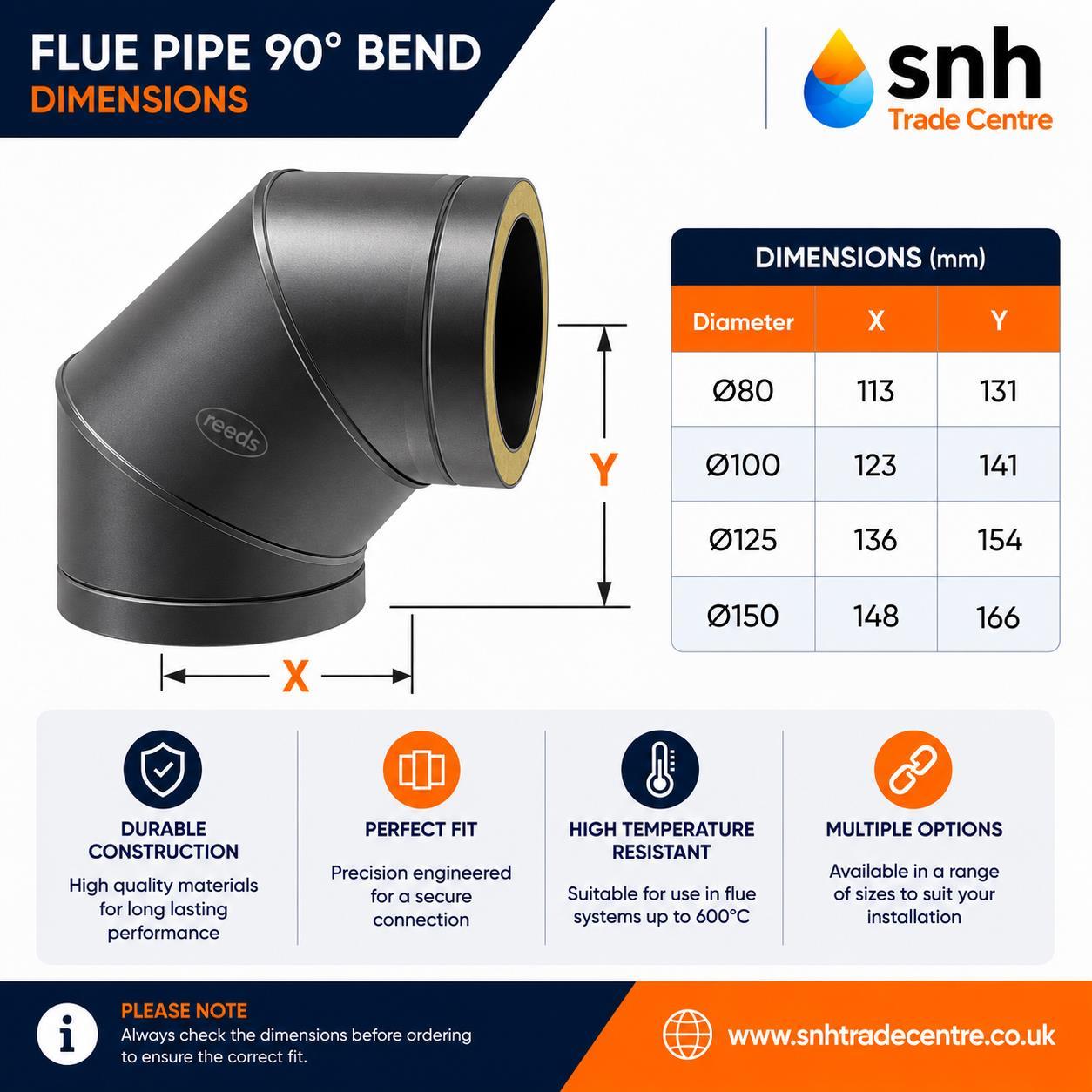

Offset and Dimensions

Check the product dimensions before ordering. The exact space required depends on the bend dimensions, connecting pipe lengths and position of the other chimney components.

Also, allow room for locking bands, supports, required clearances and sweeping access. Refer to the product dimensions or TWPro technical information when planning the installation.

TWPro System Construction

• Inner casing: 0.4mm 316L-grade stainless steel
• Outer casing: 0.4mm 304-grade stainless steel
• Outer finish: matt-black powder coating
• Insulation: 25mm injected mineral wool
• Insulation density: 190kg/m³
• Construction: fully welded
• Joint system: push fit with locking band
• Maximum temperature class: T600

The insulated construction helps maintain the temperature of the flue gases. In addition, the stainless-steel casings provide a strong and durable chimney component.

Approvals and System Classification

• HETAS-approved chimney system
• EN 1856-1 T600 N1 W V2 L50040 G50
• EN 1856-1 T200 P1 W V2 L50040 O20
• Suitable for compatible negative-pressure systems up to T600
• Suitable for compatible positive-pressure systems up to T200

The correct system class depends on the appliance, fuel and complete chimney design. Therefore, check every component before installation.

Distance to Combustible Materials

Under its T600 G50 classification, the TWPro insulated chimney must remain at least 50mm away from combustible materials.

Measure this distance from the outside surface of the bend. Also, remember that the curved section may sit closer to nearby timber, walls or roof parts than the straight pipe sections.

Another part of the appliance or chimney system may require a larger gap. Therefore, always follow the largest distance stated in the complete installation instructions.

Installation Guidance

• First, check that a 90° bend suits the appliance and chimney design
• Confirm that the bend position meets current Building Regulations
• Keep the chimney route as short and simple as possible
• Plan suitable access for inspection and sweeping
• Push each connecting component fully into the joint
• Fit the supplied locking band correctly
• Support the chimney on both sides of the change where required
• Do not allow the bend to carry unsupported chimney weight
• Maintain at least 50mm from combustible materials
• Check the completed system for correct alignment and support
• Finally, follow the appliance and TWPro installation instructions

A suitably competent installer should design and fit the complete system. For solid-fuel installations, use a HETAS-registered installer where appropriate.

Compatibility

This bend fits the 125mm TWPro and matching KW Flue systems only. Other twin-wall chimney brands use different joints, outside diameters and locking methods. Therefore, do not mix this bend with another system unless the manufacturer confirms compatibility.

The 125mm size refers to the internal flue diameter. TWPro uses 25mm of insulation around the inner casing. As a result, the bend has an outside diameter of approximately 175mm.

TWPro Warranty

• 25-year system warranty, subject to the manufacturer’s conditions
• 2-year warranty on the painted finish

To protect the warranty, choose the correct components and follow the installation, fuel and maintenance instructions. Also, keep your proof of purchase.

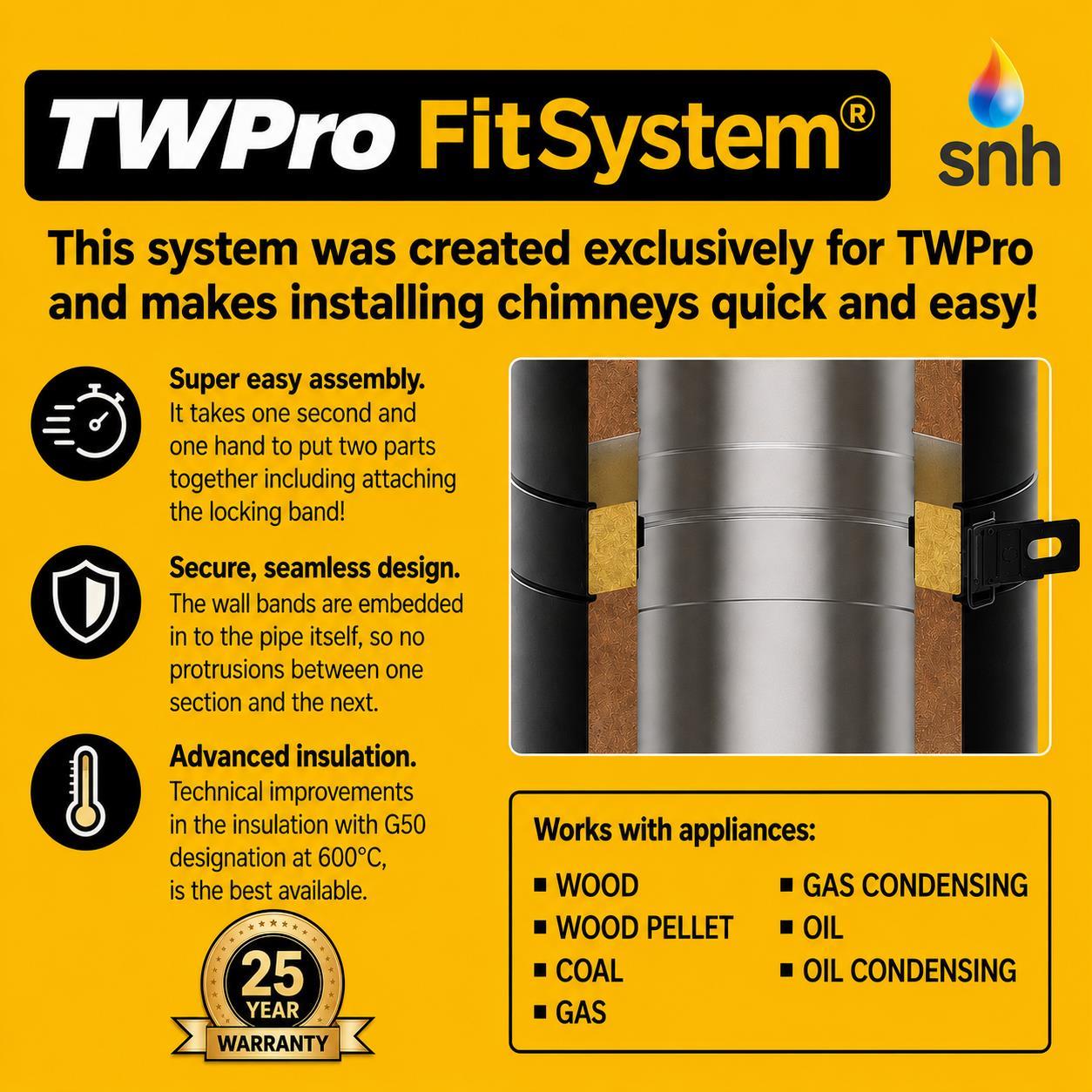

Why Choose the TWPro Twin-Wall System?

TWPro combines a strong 316L stainless-steel inner casing with dense mineral-wool insulation. In addition, its matt-black outer casing gives the chimney a neat finish.

The push-fit joints and locking bands also make assembly simple and secure. Therefore, installers can create a clean chimney route with fewer visible projections between sections.

In the UK, you may also find this system under the KW Flue name. Even so, always check the product codes and joint design before joining different components.
