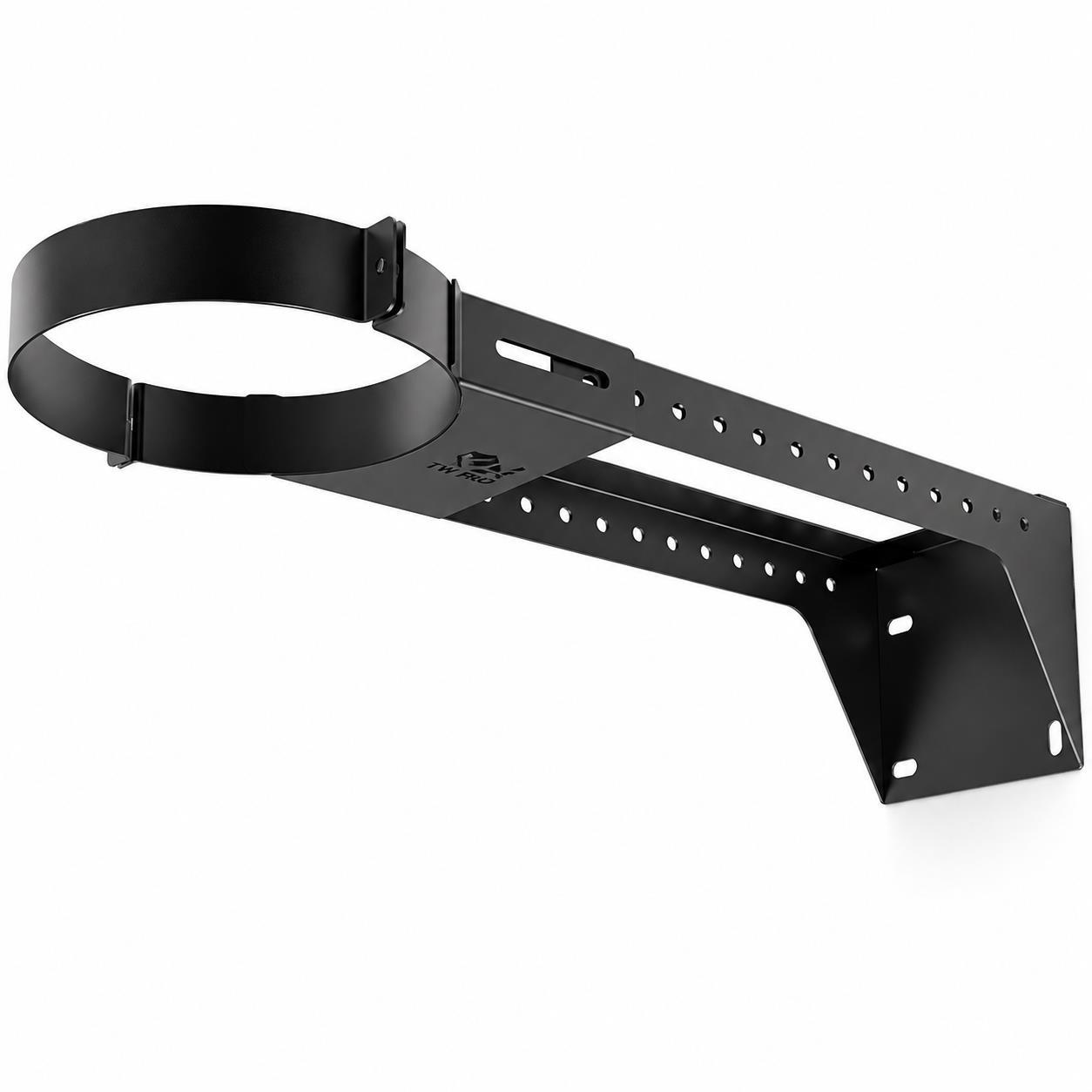

TWPro 125mm Adjustable Wall Support 210–420mm – Matt Black

Model: 58-125-055

Secure a vertical TWPro chimney away from an external wall with this 125mm extended twin-wall support bracket. The support provides a wall projection of approximately 210mm to 420mm, making it ideal when the chimney must clear gutters, roof overhangs, deep eaves or other obstacles.

Installers can cut the support arms to achieve the required effective length. Therefore, this bracket offers a practical solution for chimney routes that need more wall clearance than a standard adjustable support can provide.

Please note: this wall bracket provides lateral support only. It does not carry the vertical weight of the chimney.

Key Features

• Designed for 125mm TWPro and compatible KW Flue systems
• Wall projection from approximately 210mm to 420mm
• Support arms can be cut to the required length
• Provides lateral support for a vertical chimney
• Helps the chimney clear gutters, eaves and wall obstacles
• Suitable for internal or external installation
• Durable matt-black finish
• Use at intervals of no more than 3 metres, subject to the chimney design
• Product model: 58-125-055

Extended Wall Clearance

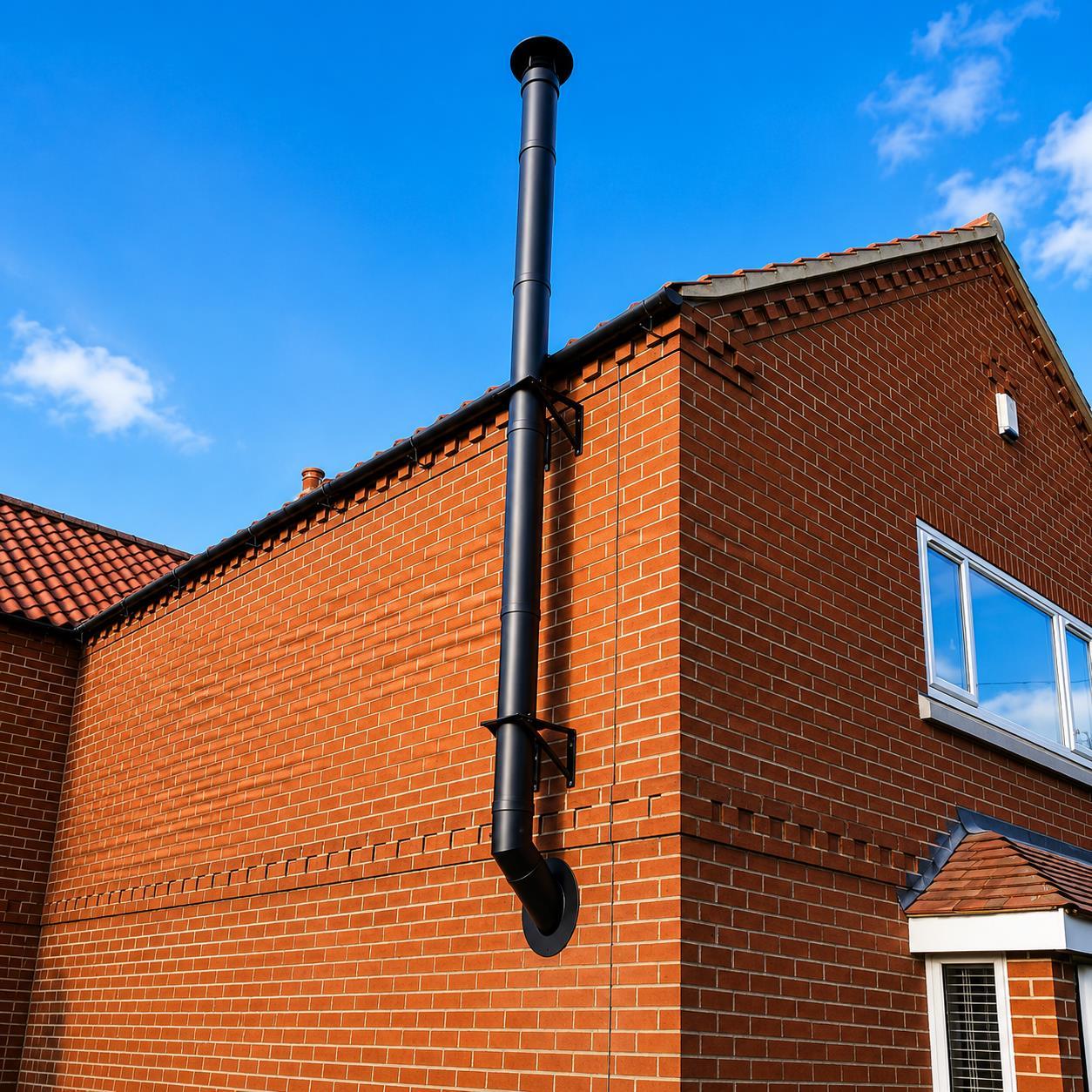

This support positions the chimney further away from the building than a standard wall bracket. As a result, it can help create a straight vertical flue route around deep eaves, gutters, projecting brickwork and similar obstacles.

Before ordering, measure from the finished wall surface to the required chimney position. In addition, allow for the approximate 175mm outside diameter of the twin-wall pipe and its required distance from combustible materials.

Cut-to-Length Support Arms

The bracket comes with extended support arms. The installer must cut these arms to create the required projection between approximately 210mm and 420mm.

First, measure and mark both arms carefully. Next, cut each arm to an equal length so the chimney remains parallel with the wall. Finally, protect any exposed metal edges with a suitable corrosion-resistant coating before assembly.

Measure carefully before cutting because you cannot restore the removed sections.

Lateral Support Only

This bracket controls sideways movement and helps keep the chimney vertical. However, it does not support the chimney’s vertical weight. Consequently, the installation may also require a suitable base support, wall support plate, ceiling support or another approved load-bearing component.

Fit lateral supports at intervals of no more than 3 metres unless the TWPro instructions or site conditions require closer spacing. Additional support may also be necessary near bends, offsets or highly exposed sections.

Compatibility

This bracket fits the 125mm internal-diameter TWPro twin-wall system. Because the pipe includes 25mm of insulation around the inner flue, the main pipe has an approximate outside diameter of 175mm.

This support only fits compatible TWPro and KW Flue pipe and fittings. It is not interchangeable with other twin-wall chimney systems. Never mix different brands unless the manufacturer confirms compatibility in writing.

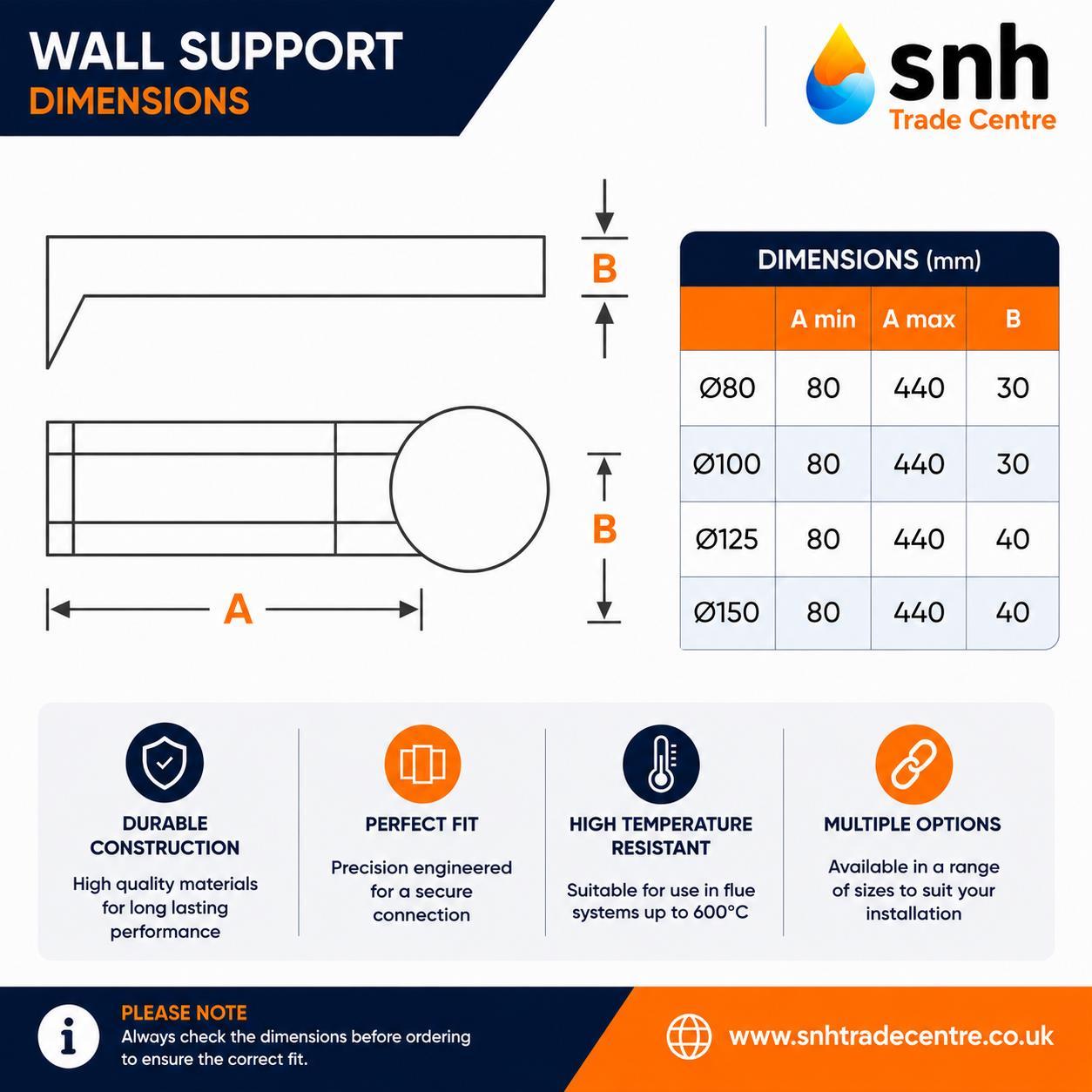

TWPro 125mm Extended Wall Support Specification

• Download the TWPro Matt Black information sheet
• View the TWPro installation guide
• Read why we recommend TWPro twin-wall flue
• Product type: extended lateral wall support
• Nominal flue diameter: 125mm internal
• Approximate system outside diameter: 175mm
• Wall projection: approximately 210mm to 420mm
• Adjustment method: manually cut support arms to length
• Function: lateral support only
• Maximum standard spacing: 3 metres, subject to the installation design
• Finish: matt black
• Compatibility: TWPro and compatible KW Flue systems only
• System warranty: 25 years, subject to terms and conditions
• Paint-finish warranty: 2 years, subject to terms and conditions

Installation Guidance

Fix the support to a strong structural surface. Moreover, select fixings that suit the wall material, bracket projection, chimney height and expected wind load.

Do not rely on render, insulation or lightweight cladding to hold the bracket. Instead, secure it into suitable brickwork, concrete, structural timber or another approved surface.

A longer wall projection can place greater force on the bracket and its fixings. Therefore, a competent installer must check the support arrangement and select suitable structural anchors.

After cutting the arms, set both sides to the same length. Then align the chimney vertically and tighten every connection securely. Finally, check that the bracket holds the pipe firmly without damaging its outer casing.

Clearance from Combustible Materials

The TWPro chimney system carries a G50 designation at T600. This classification declares a minimum distance of 50mm between the system and combustible materials under the stated test conditions.

However, the bracket’s wall projection does not automatically make an installation compliant. The installer must consider the wall construction, roof details and every nearby material. If another part of the installation requires a greater clearance, always use the greater distance.

TWPro System Approvals

• HETAS-approved chimney system
• CE marked: EN 1856-1 T600 N1 W V2 L50040 G50
• CE marked: EN 1856-1 T200 P1 W V2 L50040 O20

These classifications apply to the complete TWPro chimney system when installers use approved components and follow the manufacturer’s instructions.

About the TWPro Twin-Wall Flue System

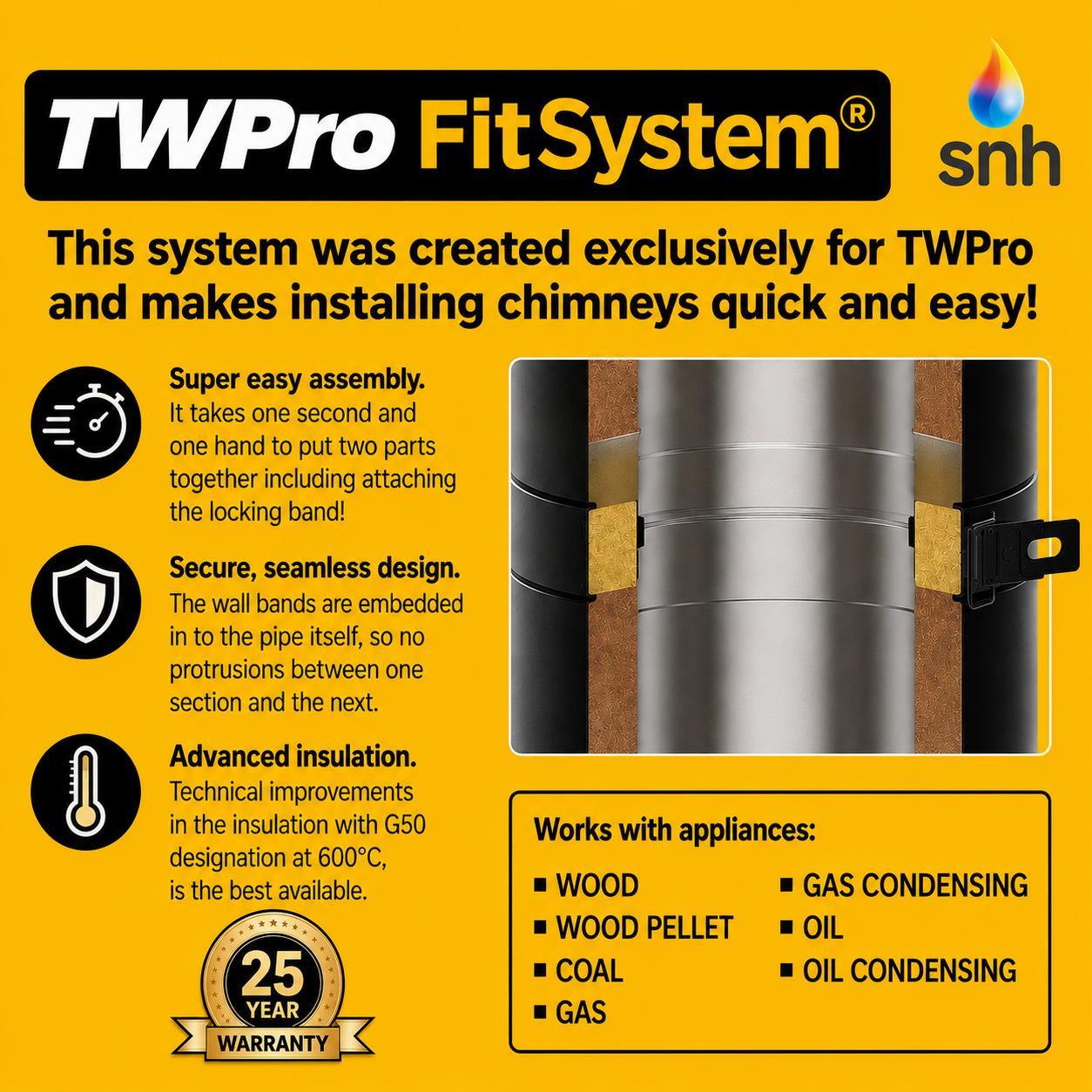

TWPro offers a complete insulated stainless-steel chimney system for compatible wood-burning, multifuel, gas and oil appliances. Its push-fit FitSystem joints and locking bands help make assembly quick and secure.

Furthermore, the smooth matt-black finish creates a neat appearance on external chimney routes. Matching pipe lengths, bends, supports, flashings and terminals are available to complete the installation.

Why Buy from SNH Tradecentre?

• Specialist stove, chimney and flue-system supplier
• Extensive range of matching TWPro components
• Practical technical advice from an experienced team
• Nationwide UK delivery options
• Secure online ordering
• Trade counter in Birchington, Kent
• Support before and after your purchase

Need help choosing the correct chimney support? Call SNH Tradecentre on 01843 842727 before ordering.

Frequently Asked Questions

What wall projection does this support provide?

The support provides a wall projection of approximately 210mm to 420mm. The installer cuts the extended arms to achieve the required length.

Why would I need an extended wall support?

An extended support helps position the chimney beyond gutters, deep eaves, roof overhangs or projecting wall features. It can therefore help create a straight vertical chimney route.

Does this bracket adjust without cutting?

No. The installer must measure and cut the support arms to the required effective length. Always confirm the measurement before making any cuts.

Does it carry the chimney’s weight?

No. This bracket provides lateral support only. The chimney requires suitable load-bearing supports elsewhere in the installation.

How often should installers fit a wall support?

Fit lateral supports no more than 3 metres apart unless the system instructions, chimney height or site conditions require closer spacing.

What size chimney does it fit?

It fits compatible TWPro and KW Flue systems with a 125mm internal diameter. The matching twin-wall pipe has an approximate outside diameter of 175mm.

Can I use it with another twin-wall flue brand?

No, unless the manufacturer confirms compatibility in writing. Different systems use different pipe dimensions and support arrangements.

Are the wall fixings included?

Always check the supplied contents before installation. The installer must select suitable structural fixings for the wall construction and expected load.

Can I install it myself?

A suitably competent installer should design and install the chimney supports. For solid-fuel systems, consider using a HETAS-registered installer.
