Product Description

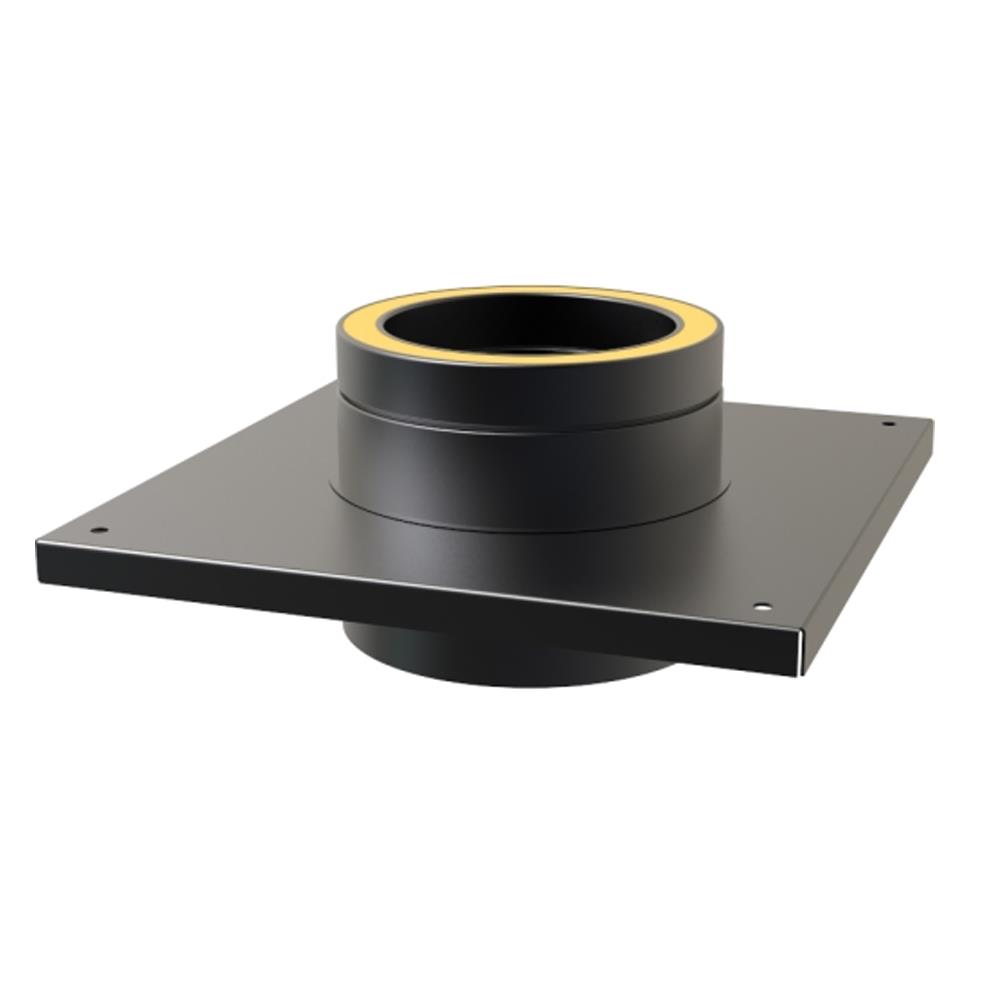

TWPro 150mm Twin Wall Console Plate 150mm Matt Black

Name: TWPro 150mm Twin Wall Console Plate 150mm Matt Black KW
Brand: TWPro Twin Wall Flue
SKU: 37-150-061
Price: 116.40 GBP
Availability: InStock

Model: 37-150-061

Console Plates can be used as a load bearing support in conjunction with third party fixings.

Application

For use on solid fuel and gas/oil appliances. eg: woodstoves, gas coal effect fires, oil boiler and any solid fuel appliances.

Approvals

HETAS Approved
CE marked EN1856-1 T600 N1 W V2 L50040 G50
CE marked EN1856-1 T200 P1 W V2 L50040 O20

Information

TWPro Information Sheet
TWPro Installation Sheet
This will ONLY Fit TWPro and KW pipe and fittings, it is not interchangeable with any other make or system.

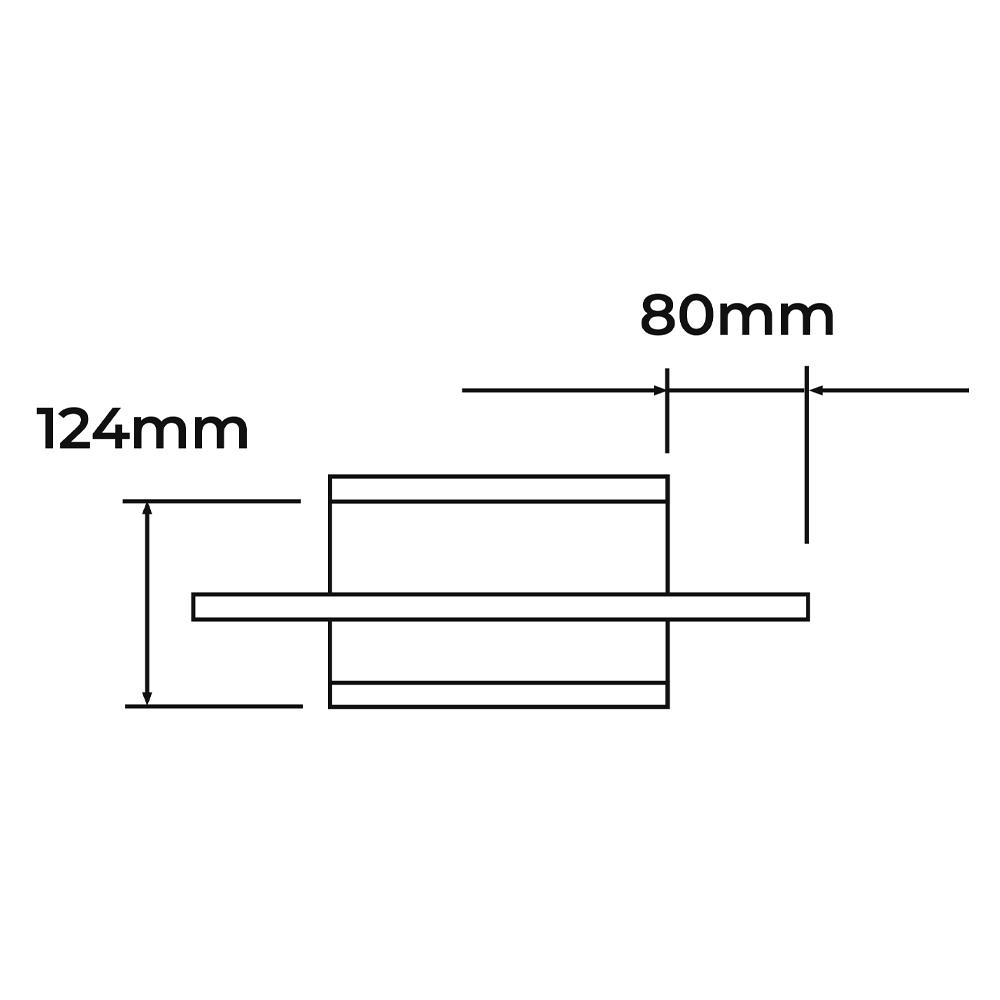

Diameter is internal please add 50mm for the external measurement
25 Year Warranty (Conditions apply)
2 Year Warranty on paint finish
Inner casing material – 0.4mm 316L Grade Stainless Steel
Outer casing material – 0.4mm 304 Grade Stainless Steel – Powder Coated
Insulation type – 25mm injected mineral wool, 190Kg/m³
Joint method – Push fit and locking band – FitSystem
Max operating temp – 600c

Distance to combustibles is 50mm.

TWPro Stainless Steel Flue System

This system was created exclusively for TWPro, in the UK it is also branded as KW Flue and makes installing chimneys quick and easy!Super easy assembly, it takes one second and one hand to put two parts together including attaching the locking band! The wall bands are embedded in to the pipe itself, so no protrusions between one section and the next. Technical improvements in the insulation with G50 designation at 600°C, is the best available.

Additional Information

Weight	5001 g
Manufacturer	Mi Flue
Brand	TWPro
MPN	37-150-061
SKU	37-150-061
Unit Quantity	1
Warranty	25 Year Warranty
Shipping	Medium Item
Range	TWPro 6 Inch Black
condition	new
Woocategory1	Flues & Fittings
Woocategory3	TWPro 6 Inch Twin Wall Black
Woocategory2	Black Twin Wall Flue
Country/Region of Manufacture	United Kingdom
Finish	Matt Black
Colour	Matt Black
Style	Twin Wall Stove Pipe
Width	6 inch inner/8 inch outer skin
Hetas Approved	Yes
ccp_Type	Twin Wall Stove Pipe
Material	Stainless Steel
Standards	CE Marked
Inner Material	316L SS 0.40mm thick
Outer Material	304L SS 0.40mm thick
Distance From Combustibles	50mm
Manufacturer Warranty	25 Year
