Product Description

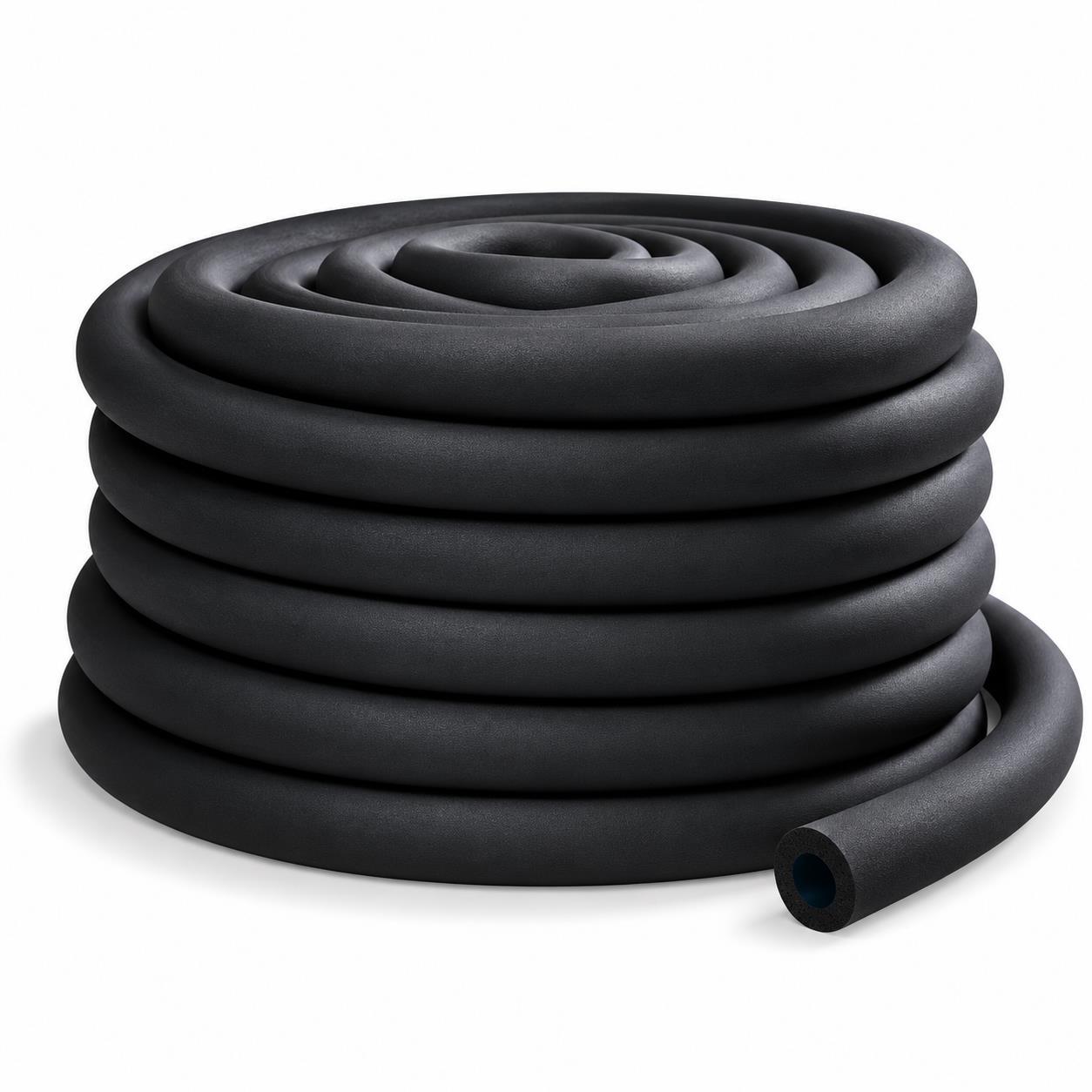

AF/ArmaFlex Class O Insulation Coil 1/4″ OD x 3/8″ Wall x 15m Black

Part No: AF-CO-09X006/E-15 – AFLXACCOIL6X9

Protect compatible refrigeration and air-conditioning pipework with this AF/ArmaFlex Class O insulation coil. It fits pipe with a 1/4-inch outside diameter and provides a 3/8-inch insulation wall thickness.

The flexible, closed-cell insulation helps control condensation and reduce unwanted heat transfer when correctly selected, sealed and installed. Furthermore, the continuous 15-metre coil helps reduce the number of joints required on longer pipe runs.

Key Features

• AF/ArmaFlex flexible pipe insulation
• Class O insulation product
• Suitable for 1/4-inch outside-diameter pipe
• 3/8-inch insulation wall thickness
• Supplied as a 15-metre continuous coil
• Flexible closed-cell construction
• Helps control surface condensation
• Helps reduce unwanted heat transfer
• Ideal for compatible air-conditioning and refrigeration pipework
• Black finish
• Part number: AF-CO-09X006/E-15

AF/ArmaFlex Insulation Coil Specification

• Brand: ArmaFlex
• Product range: AF/ArmaFlex
• Product type: flexible pipe insulation coil
• Pipe outside diameter: 1/4 inch
• Insulation wall thickness: 3/8 inch
• Coil length: 15 metres
• Colour: black
• Format: continuous coil
• Manufacturer part number: AF-CO-09X006/E-15

Suitable Applications

This ArmaFlex insulation coil suits compatible small-bore pipework used in air-conditioning, refrigeration and cooling systems. For example, it can insulate refrigerant pipework used with suitable split air-conditioning systems.

However, always check the pipe’s outside diameter before ordering. The stated 1/4-inch measurement refers to the outside diameter of the pipe, while the 3/8-inch measurement refers to the insulation wall thickness.

Why Choose a Continuous Insulation Coil?

A continuous 15-metre coil allows you to cover longer pipe runs with fewer joints. As a result, the finished installation can look neater and provide fewer areas that require sealing.

The flexible material also follows bends and changes in direction more easily than rigid insulation. Therefore, it provides a practical solution for many air-conditioning and refrigeration installations.

Installation Guidance

1. First, confirm that the pipe has a 1/4-inch outside diameter.
2. Make sure the pipe surface is clean, dry and free from grease.
3. Measure the required insulation length before cutting.
4. Fit the insulation without stretching or compressing it.
5. Next, bring all joints together neatly without leaving gaps.
6. Seal joints and cut edges with a compatible ArmaFlex adhesive or approved sealing system.
7. Finally, protect the insulation where the installation instructions require additional mechanical or weather protection.

For the best result, follow the ArmaFlex installation instructions and the requirements of the complete air-conditioning or refrigeration system.

What Is Included?

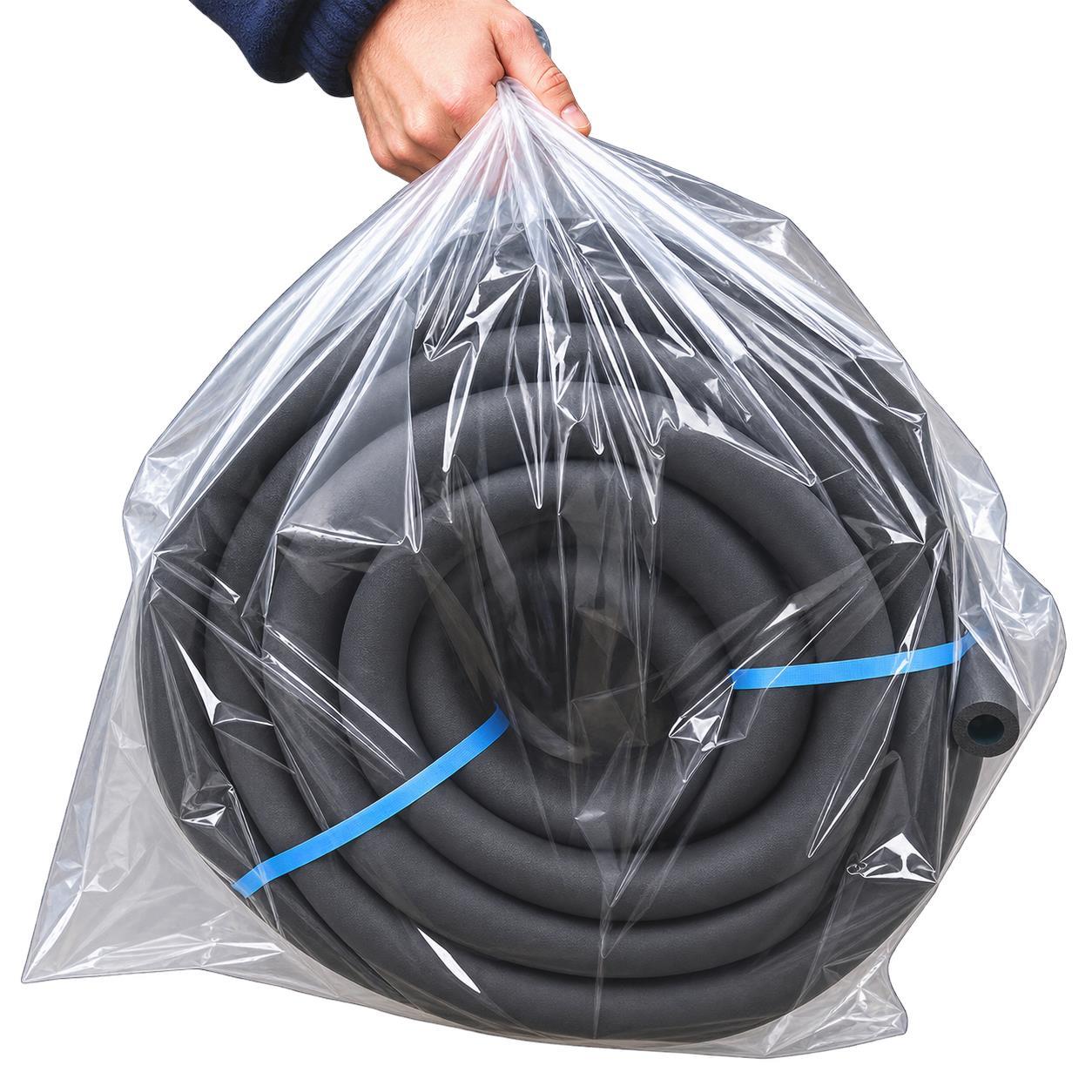

• 1 x 15-metre coil of black AF/ArmaFlex Class O insulation
• Size: 1/4-inch pipe OD x 3/8-inch wall thickness
• Part number: AF-CO-09X006/E-15

Please note: Pipework, adhesive, jointing tape and installation accessories are not included unless the product options state otherwise.
