Product Description

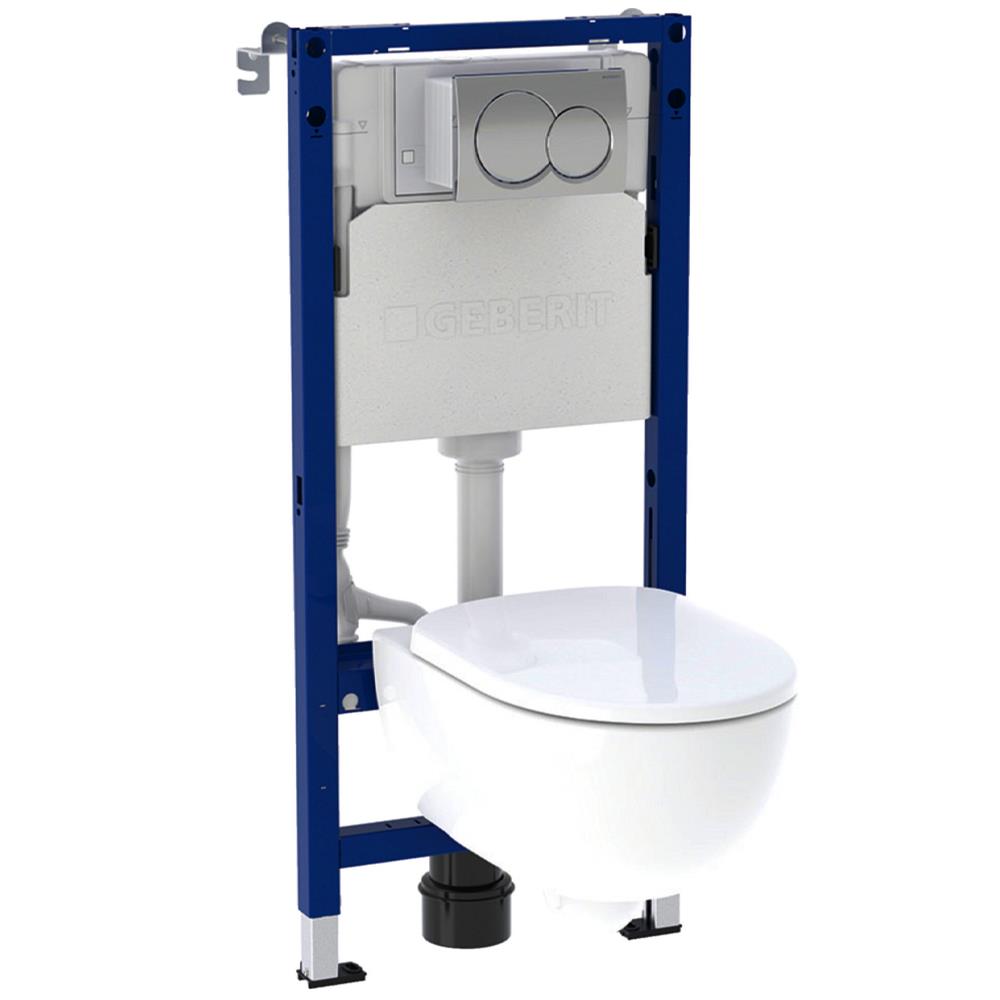

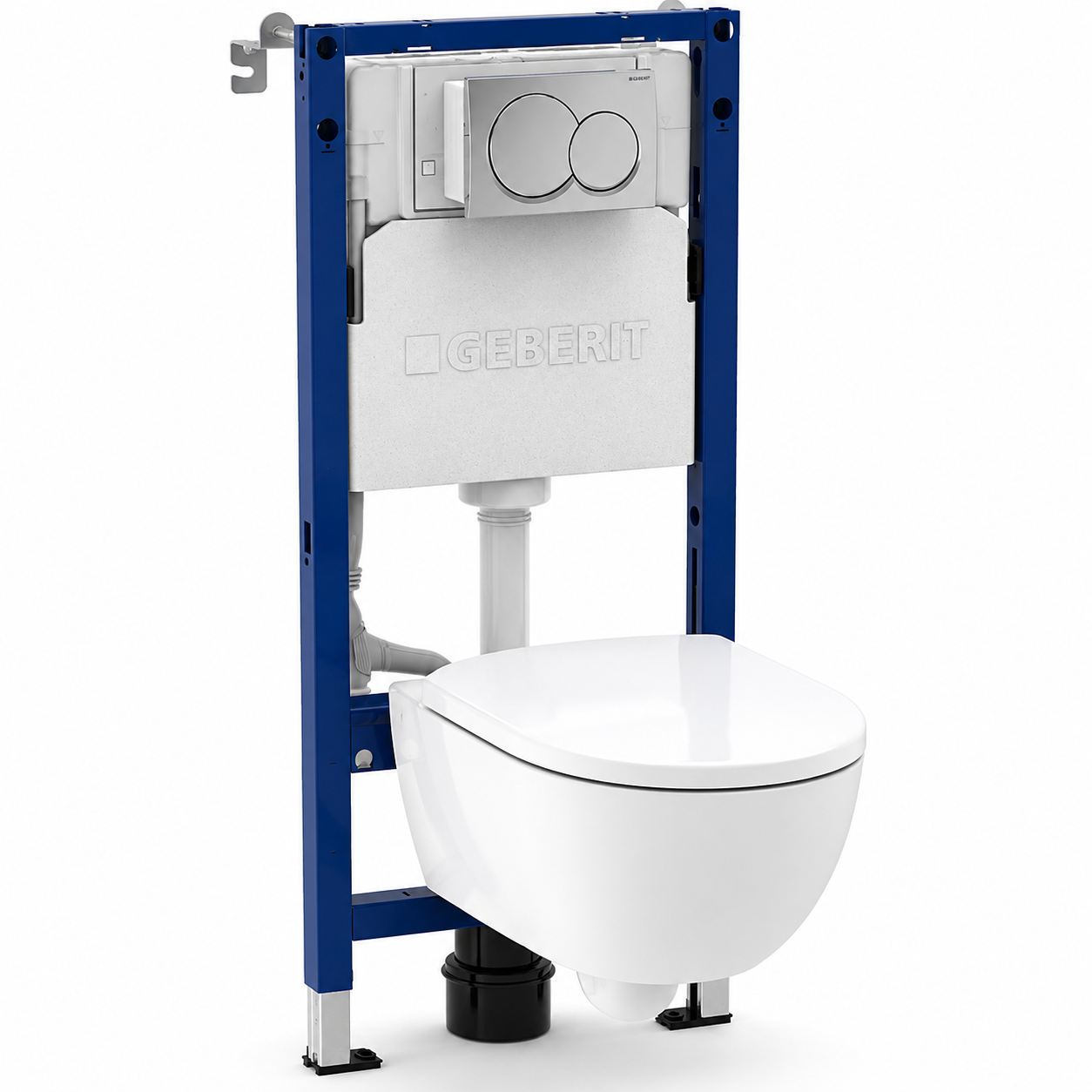

Geberit Duofix 1120mm Wall Hung WC Frame with Selnova Rimfree Pan – 118.362.21.2

The Geberit Duofix 1120mm Wall Hung WC Frame with Selnova Pan provides a complete concealed toilet package for modern bathrooms. It includes a Duofix support frame, Alpha concealed cistern, Selnova Rimfree wall-hung pan, Duroplast toilet seat and round chrome Alpha01 flush plate.

The frame supports the wall-hung toilet pan while the cistern sits behind the finished wall. As a result, the bathroom gains a neat look with less visible pipework. In addition, the raised pan leaves the floor clear and makes cleaning easier.

The Geberit Selnova wall-hung pan features a Rimfree design. Therefore, it has fewer hidden areas where dirt and limescale can collect. This simple design can make the toilet easier to clean and keep fresh.

The Alpha concealed cistern uses a dual-flush system with a factory setting of 6 or 3 litres. Therefore, users can select the flush volume that suits each use. The round chrome Alpha01 flush plate also provides access to the cistern for future servicing.

Geberit Duofix Frame and Selnova Pan Features

• Complete Geberit wall-hung toilet package
• Manufacturer part number: 118.362.21.2
• Geberit Duofix 1120mm WC support frame
• Includes an Alpha concealed cistern
• Includes a Selnova Rimfree wall-hung toilet pan
• Includes a Duroplast toilet seat
• Includes an Alpha01 round chrome flush plate
• Dual-flush operation
• Factory flush setting: 6 and 3 litres
• Rimfree pan design helps make cleaning easier
• Suitable for installation in metal and timber stud walls
• Conceals the cistern and frame behind the finished wall
• Wall-hung design keeps the bathroom floor clear
• Creates a clean and modern bathroom finish

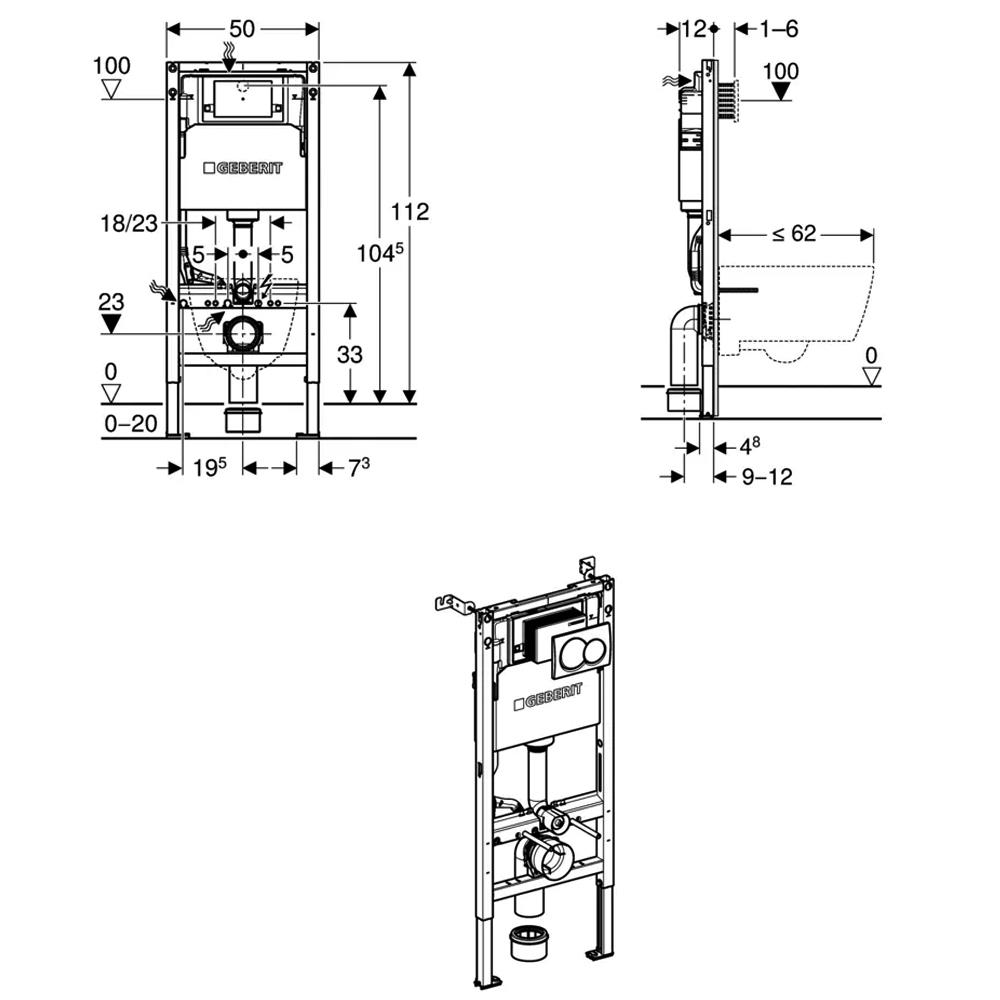

WC Frame Dimensions

• Frame height: 1120mm
• Frame width: 500mm
• Frame depth: 120mm

Before you order, check the wall space, floor construction and required finished height. Also, allow enough room for the soil connection, water supply and wall covering. Your installer should confirm all dimensions against the latest Geberit data sheet.

What Comes in the Box?

• 1 x Geberit Duofix 1120mm WC frame
• 1 x Alpha concealed cistern
• 1 x fixing kit
• 1 x Geberit Selnova Rimfree wall-hung toilet pan
• 1 x Duroplast toilet seat
• 1 x Alpha01 round chrome flush plate

This package includes the main parts needed to create a wall-hung toilet installation. However, your installer may need extra fittings, brackets, pipework or wall materials to suit the bathroom.

Where Can You Use This Geberit Toilet Package?

The Geberit Duofix frame and Selnova pan package suits modern bathrooms, en suites, cloakrooms and new-build projects. It can also work well during a full bathroom renovation.

Geberit designed the frame for suitable metal and timber stud walls. Therefore, it provides a useful choice when you want to hide the cistern and main plumbing behind the finished wall.

However, the wall and floor must support the complete installation. For this reason, ask a skilled installer to check the site before you order.

Benefits of the Geberit Selnova Rimfree Pan

The Selnova wall-hung pan combines a simple shape with Geberit’s Rimfree design. Unlike a traditional toilet, it does not have a full enclosed flushing rim.

As a result, the pan has fewer hidden areas where dirt and limescale can build up. Therefore, you can reach more of the inner bowl during cleaning.

The wall-hung design also raises the pan above the floor. Consequently, you can clean the bathroom floor without working around a toilet base.

Why Choose a Complete Wall-Hung WC Package?

A complete toilet package makes it easier to choose matching main parts. This set includes the support frame, concealed cistern, toilet pan, seat, fixings and flush plate.

First, the Duofix frame supports the wall-hung pan. Next, the concealed cistern keeps the main working parts behind the wall. Finally, the round chrome flush plate gives the installation a smart finishing touch.

Although this package includes the main products, your installer should check all connections and installation needs before starting work.

Why Choose Geberit Duofix?

Geberit is a well-known maker of sanitary and bathroom systems. The Duofix range provides a practical support system for wall-hung toilets and concealed cisterns.

The Alpha cistern provides dual-flush operation, while the flush plate gives access to the working parts. Therefore, an installer can service the cistern without removing the finished wall.

Why Buy from SNH Tradecentre?

• Competitive prices: We aim to offer excellent value across our Geberit bathroom range.
• Complete package: This set includes the frame, cistern, pan, seat and flush plate.
• Helpful advice: Our team can help you check the product details and included parts.
• Genuine Geberit products: Buy with confidence from an established plumbing and heating merchant.
• Clear product information: We provide key dimensions and links to technical documents.
• Delivery across the UK: We can send eligible bathroom products directly to your address.
• Local collection: Customers can collect eligible orders from SNH Tradecentre in Birchington, Kent.
• Trusted independent merchant: We supply homeowners, landlords, bathroom fitters and trade professionals.

Not sure if this Geberit Duofix frame with Selnova pan will suit your bathroom? Contact SNH Tradecentre before ordering. Our team can help you check the dimensions, part number and included items.

Installation Advice

A skilled installer should fit the frame, cistern and wall-hung toilet pan. The installer must secure the frame to a suitable floor and supporting structure. They must also follow Geberit’s latest fitting instructions.

Before closing the wall, the installer should test the water supply, flush system, waste connection and all joints. In addition, they should make sure the service opening remains easy to reach through the flush plate.

Technical Documents and Product Information

• Download the Geberit Duofix 118.362.21.2 data sheet

Frequently Asked Questions

Does this package include the wall-hung toilet pan?

Yes. The package includes a Geberit Selnova Rimfree wall-hung toilet pan.

Does it include a toilet seat?

Yes. Geberit includes a Duroplast toilet seat with this package.

What does Rimfree mean?

A Rimfree toilet pan does not have a full enclosed flushing rim. Therefore, it has fewer hidden areas where dirt and limescale can collect.

Does the package include a flush plate?

Yes. The package includes an Alpha01 round dual-flush plate with a chrome finish.

What are the frame dimensions?

The frame measures 1120mm high, 500mm wide and 120mm deep. However, the full wall depth may increase once the installer adds pipework and wall finishes.

What is the flush volume?

The Alpha concealed cistern has a factory dual-flush setting of 6 and 3 litres.

What type of wall can hold this WC frame?

Geberit designed this frame for suitable metal and timber stud wall systems. However, your installer must check the wall and floor before fitting it.

Can I service the concealed cistern after installation?

Yes. The flush plate opening provides access to the working parts inside the concealed cistern. Therefore, the installer should keep this access point clear.

Who should install this wall-hung toilet?

A skilled bathroom installer or plumber should complete the work. They must secure the frame correctly and follow Geberit’s latest installation instructions.

Geberit may change the product details from time to time. Therefore, check the latest technical data before you buy or install this toilet package.
