Secure E7+ Electronic Immersion Programmer

The Secure E7+ SCE100-000 is a seven-day immersion heater controller for single and twin-element systems. It includes Bluetooth app control, three daily on/off periods and 30-minute, one-hour or two-hour boost settings. Add the optional Wi-Fi adaptor for remote control.

£58.32 £69.99 (inc vat)

In stock

Product Description

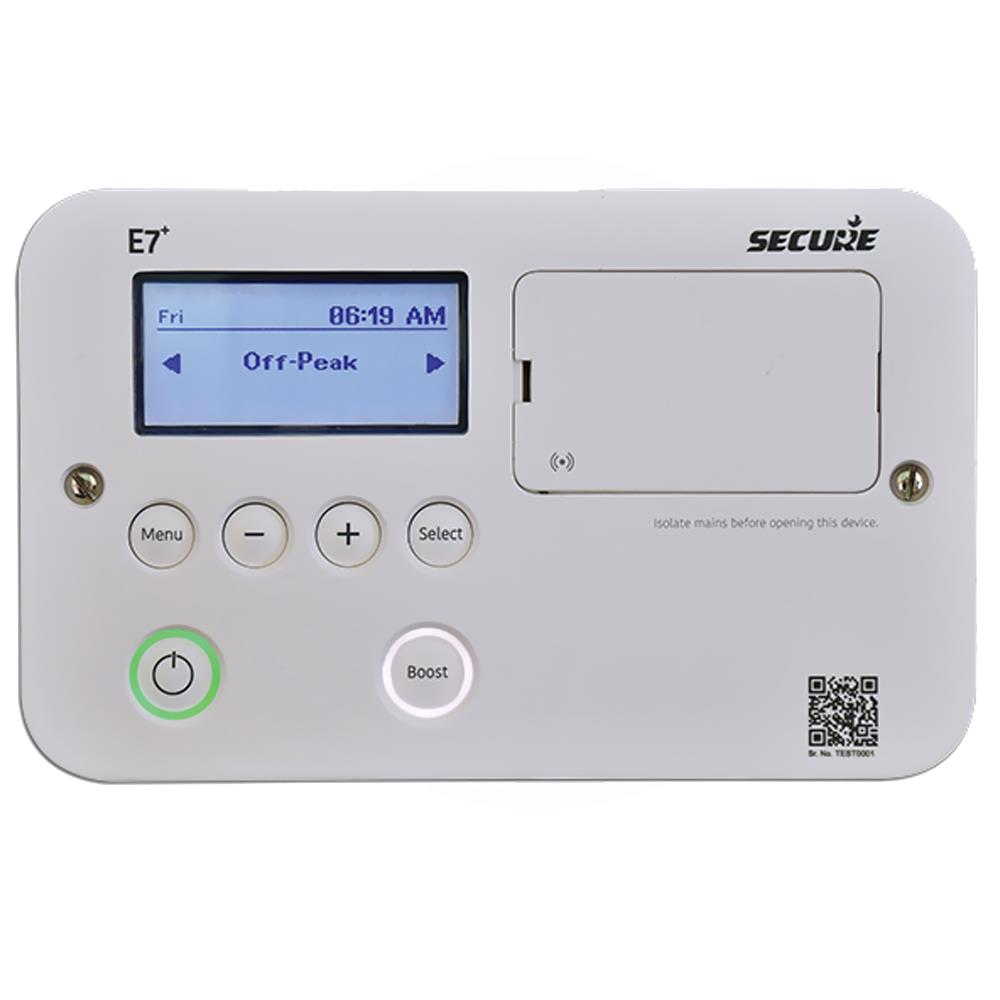

Secure E7+ Smart Immersion Heater Timer

Model: E7+ | Part Number: SCE100-000

The Secure E7+ Smart Immersion Heater Timer provides flexible control over electric hot water systems. It replaces the previous Secure Electronic 7 and Economy 7 Quartz controllers. Therefore, it offers a practical upgrade for many existing installations.

The built-in seven-day programmer controls one or two 3kW immersion heaters. As a result, you can schedule hot water around off-peak electricity periods and daily household demand.

Bluetooth connects the E7+ to the Secure Controls app for local control from a compatible phone or tablet. No Wi-Fi connection is needed for local app use. However, remote control from outside the property requires the optional Secure Wi-Fi adaptor.

Secure E7+ Key Features

  • Smart-capable immersion heater controller
  • Model: E7+
  • Part number: SCE100-000
  • Replaces the Secure Electronic 7 and Economy 7 Quartz
  • Controls one or two 3kW immersion heaters
  • Suitable for single, dual and twin-element immersion systems
  • Full seven-day programming
  • Up to three on and off periods for off-peak heating
  • Programmable boost schedule
  • 30-minute, one-hour and two-hour manual boost options
  • Bluetooth app control within the property
  • Compatible with Android and iOS devices
  • No Wi-Fi needed for local app control
  • Optional Wi-Fi adaptor enables remote control
  • No separate smart-home hub or gateway required
  • Displays estimated boost and off-peak energy use through the app
  • Electronic on and off control
  • Automatic GMT and BST clock-change option
  • Tamper-proof programme security
  • Battery reserve protects settings during a power cut
  • Retrofit adaptor plate included
  • Seven-year no-quibble manufacturer warranty

Manuals and Product Information

Secure E7+ Technical Specification

  • Brand: Secure
  • Product: E7+ immersion heater controller
  • Part number: SCE100-000
  • Supply: 230V, 50Hz
  • Contact rating: 13A at 230V AC
  • Maximum immersion load: 3kW
  • Enclosure protection: IP30
  • Shock protection: Class I
  • Operating temperature: 0°C to 35°C
  • Bluetooth frequency: 2.4GHz
  • Bluetooth range: Up to approximately 60 metres in clear line of sight
  • Battery reserve: Approximately two years of total power disconnection
  • Dimensions: 170mm x 115mm x 60mm
  • Warranty: Seven years

What Is Included?

  • 1 x Secure E7+ immersion heater controller
  • 1 x Retrofit adaptor plate
  • Installation and operating information

Please note: The optional Wi-Fi adaptor is not included. Bluetooth local control works without it, but remote internet control requires the compatible Secure Wi-Fi adaptor.

Seven-Day Hot Water Programming

The Secure E7+ includes a complete seven-day programmer. Therefore, you can set different hot water times for weekdays and weekends.

The controller supports up to three on and off periods for off-peak heating. You can set these periods directly on the device. In addition, you can copy a completed schedule to other days to reduce programming time.

The off-peak schedule can heat a full cylinder during a lower-cost electricity period. However, actual energy costs depend on your electricity tariff and the times set by your energy supplier.

Manual and Programmable Boost

The boost function provides extra hot water without changing the main off-peak programme. Press the boost button once for 30 minutes, twice for one hour or three times for two hours.

You can also programme a timed boost period. This may help households that need a smaller amount of additional hot water at the same time each day.

The E7+ has a maximum output of 3kW. Therefore, the boost and off-peak outputs cannot operate together at the same time.

Bluetooth App Control

The Secure Controls app connects directly to the E7+ through Bluetooth. As a result, you can check or adjust the controller from a compatible Android or iOS device while you remain within Bluetooth range.

Local Bluetooth control does not require Wi-Fi. However, walls, cupboards and electrical interference may reduce the available Bluetooth range.

The app can also display estimated energy use for off-peak and boost heating. This helps you understand when the immersion heater operates. However, the figures provide an estimate rather than a replacement for your electricity meter.

Optional Wi-Fi Remote Control

Add the compatible Secure Wi-Fi adaptor to control the E7+ through the internet. You can then check and adjust the hot water settings while away from home.

The Wi-Fi adaptor plugs into the controller and does not require a separate hub or gateway. However, it connects to a compatible 2.4GHz Wi-Fi network.

The Wi-Fi adaptor is an optional extra and must be purchased separately.

Suitable Immersion Heater Systems

The Secure E7+ can control single, dual or twin-element immersion heater systems with a load of up to 3kW. It can also control the two immersion heaters separately in a compatible twin-immersion installation.

For example, the off-peak output may heat the main volume of water overnight. Meanwhile, the boost output can heat the upper section when extra hot water is needed.

Always ask a qualified electrician to confirm compatibility with the cylinder, wiring and electrical supply before installation.

Easy Retrofit for Older Secure Controllers

Secure designed the E7+ as the successor to the Electronic 7 and Economy 7 Quartz controllers. The supplied adaptor plate helps it fit many existing Horstmann and Secure Economy 7 installations.

Therefore, installers can often replace an older controller without major changes to the mounting arrangement. However, they must still inspect the wiring and confirm that it meets current requirements.

Tamper-Proof Programme Security

The programme-locking function helps prevent unwanted setting changes. Therefore, it may benefit landlords, holiday properties and shared homes.

Users can lock or unlock the controls by following the instructions in the operating guide.

Installation Information

  • A suitably qualified person must install the controller
  • Installation must comply with current IET Wiring Regulations
  • The controller requires a 230V, 50Hz supply
  • The controlled immersion heater must not exceed 3kW
  • Secure recommends a separate protected circuit
  • The fixed wiring must include suitable double-pole isolation
  • Install the controller away from heat and electrical interference
  • Use the supplied adaptor plate only when required for a retrofit installation
  • Confirm the correct terminal link when controlling a single immersion heater

The manufacturer recommends mounting the controller approximately 1.5 metres above floor level in a clear area. Always follow the current installation guide and local electrical requirements.

Why Choose the Secure E7+?

The Secure E7+ combines familiar immersion heater control with modern app features. First, the seven-day programmer lets you schedule hot water around your routine. Next, the manual boost provides extra hot water without changing the main programme.

In addition, Bluetooth provides local app control without requiring Wi-Fi. If your needs change, you can add the optional Wi-Fi adaptor for remote control.

The retrofit adaptor also makes the E7+ a practical replacement for many older Electronic 7 and Economy 7 Quartz controllers.

Why Buy from SNH Tradecentre?

  • Competitive prices on Secure heating controls
  • Genuine Secure products
  • Nationwide delivery available
  • Collection available from our Birchington, Kent trade counter
  • Helpful plumbing and heating product advice
  • Trade and public customers welcome
  • Established independent UK merchant

Frequently Asked Questions

Does the Secure E7+ need Wi-Fi?

No. You can use the controller itself and connect locally through Bluetooth without Wi-Fi. However, remote control from outside the property requires the optional Wi-Fi adaptor.

Is the Wi-Fi adaptor included?

No. The compatible Secure Wi-Fi adaptor is an optional extra and must be ordered separately.

Can the E7+ control two immersion heaters?

Yes. It can control suitable single, dual or twin-element immersion heater systems. However, each immersion load must meet the controller’s requirements.

What manual boost times are available?

You can select a 30-minute, one-hour or two-hour manual boost without changing the normal programme.

Can I set different programmes for each day?

Yes. The E7+ provides seven-day programming with up to three on and off periods for off-peak operation.

Will it replace an Electronic 7 or Economy 7 Quartz?

Secure designed the E7+ as the successor to both controllers. The included adaptor plate helps with many retrofit installations. However, an electrician must check the wiring and compatibility.

Can I control the E7+ while away from home?

Yes, but you must install the optional Secure Wi-Fi adaptor and connect it to a compatible internet connection.

Does it monitor energy use?

The Secure Controls app displays estimated energy use for boost and off-peak heating. These figures provide guidance rather than certified billing data.

Who should install the E7+?

A suitably qualified electrician should install the controller in line with the current IET Wiring Regulations and Secure’s instructions.
