Product Description

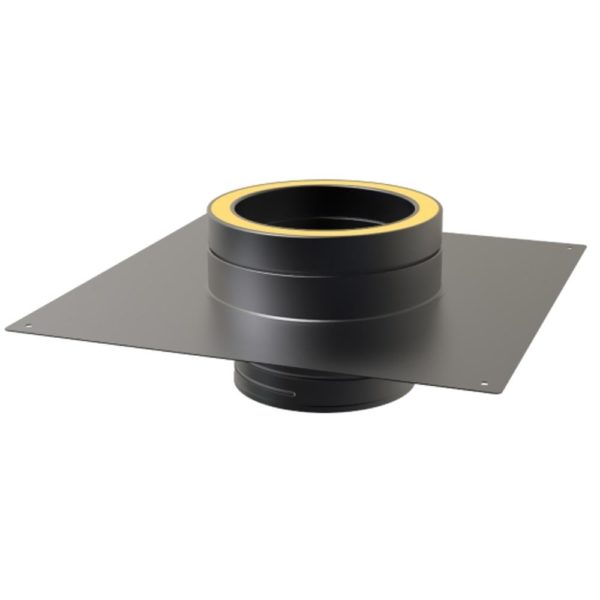

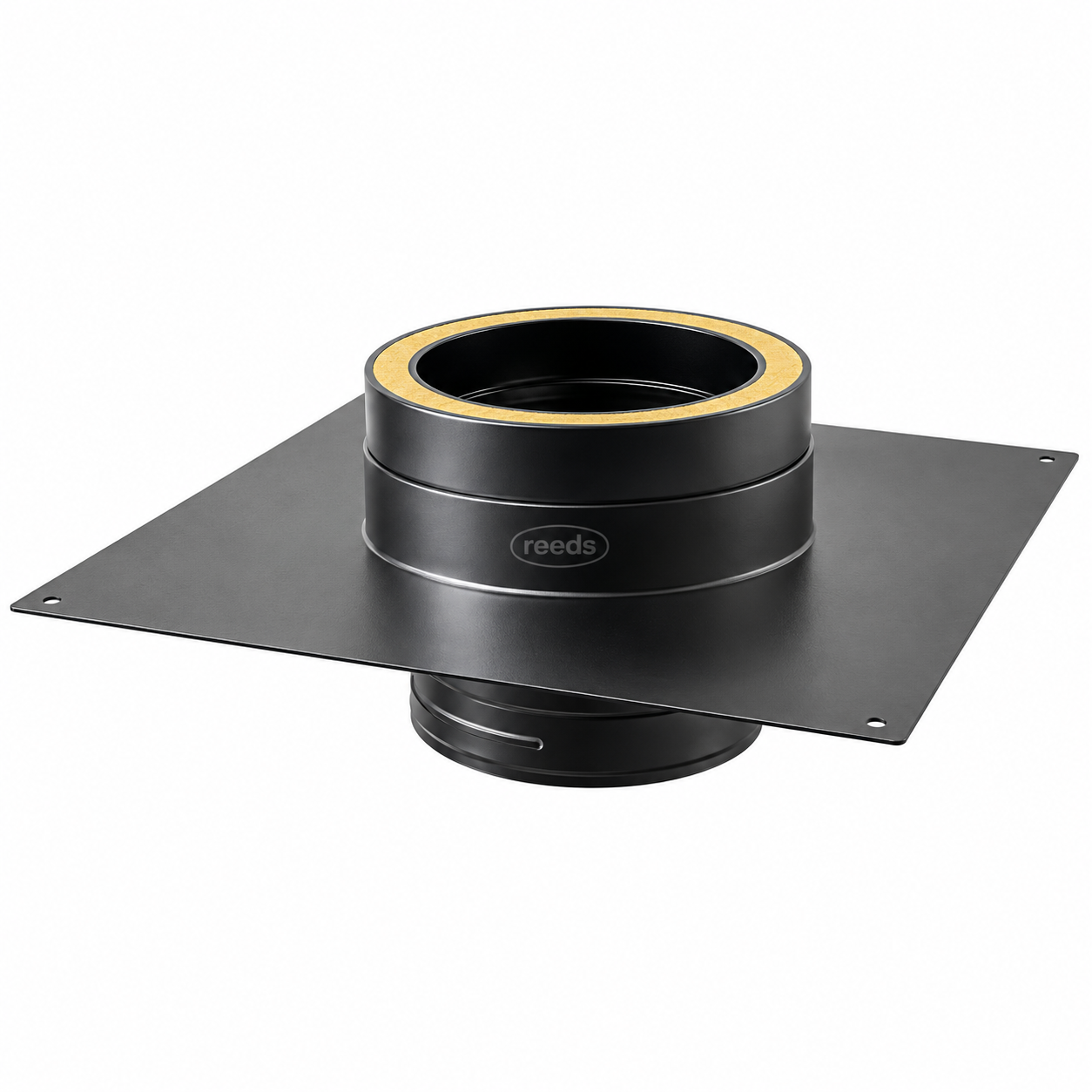

TWPro 125mm Twin Wall Chest Mounting Plate Matt Black

Model: 37-125-062

Connect a compatible MI-FLEX flexible flue liner to a TWPro twin-wall chimney with the TWPro 125mm Chest Mounting Plate. The plate fits on top of a suitably lowered masonry chimney stack. It then creates a neat and secure change from flexible liner to insulated twin-wall flue.

Once fitted, the TWPro chimney can continue vertically above the existing stack. Therefore, this plate provides a practical solution when upgrading an existing masonry chimney with a flexible liner and a TWPro chimney above it.

Important: You must make the change from MI-FLEX liner to TWPro inside the existing Class 1 chimney stack. Before ordering, ask a suitably qualified installer to check the complete chimney design.

Key Features

• 125mm internal flue diameter
• Standard TWPro chest mounting plate
• Connects compatible MI-FLEX liner to TWPro
• Fits on top of a suitably lowered chimney stack
• Creates a neat change to insulated twin-wall chimney
• Matt-black finish
• Compatible with TWPro and matching KW Flue components
• Suitable for compatible solid-fuel, gas and oil appliances
• Forms part of a T600-rated chimney system
• Product model: 37-125-062

TWPro Chest Mounting Plate Specification

• Download the TWPro Information Sheet
• Download the TWPro Installation Sheet
• Brand: TWPro
• Product type: chest mounting plate

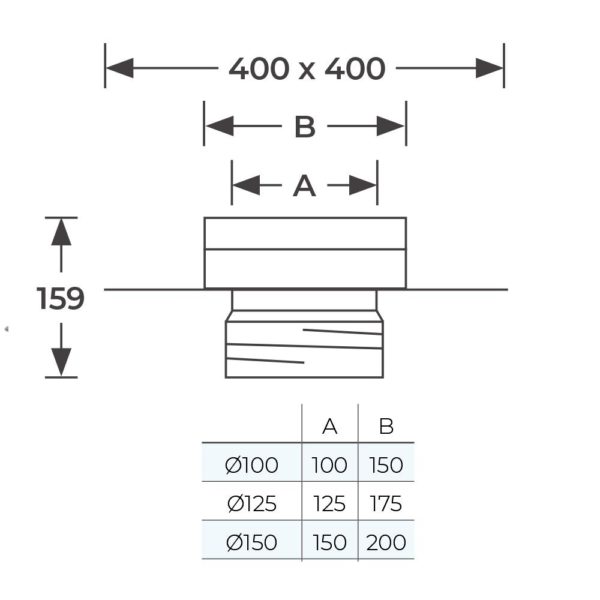

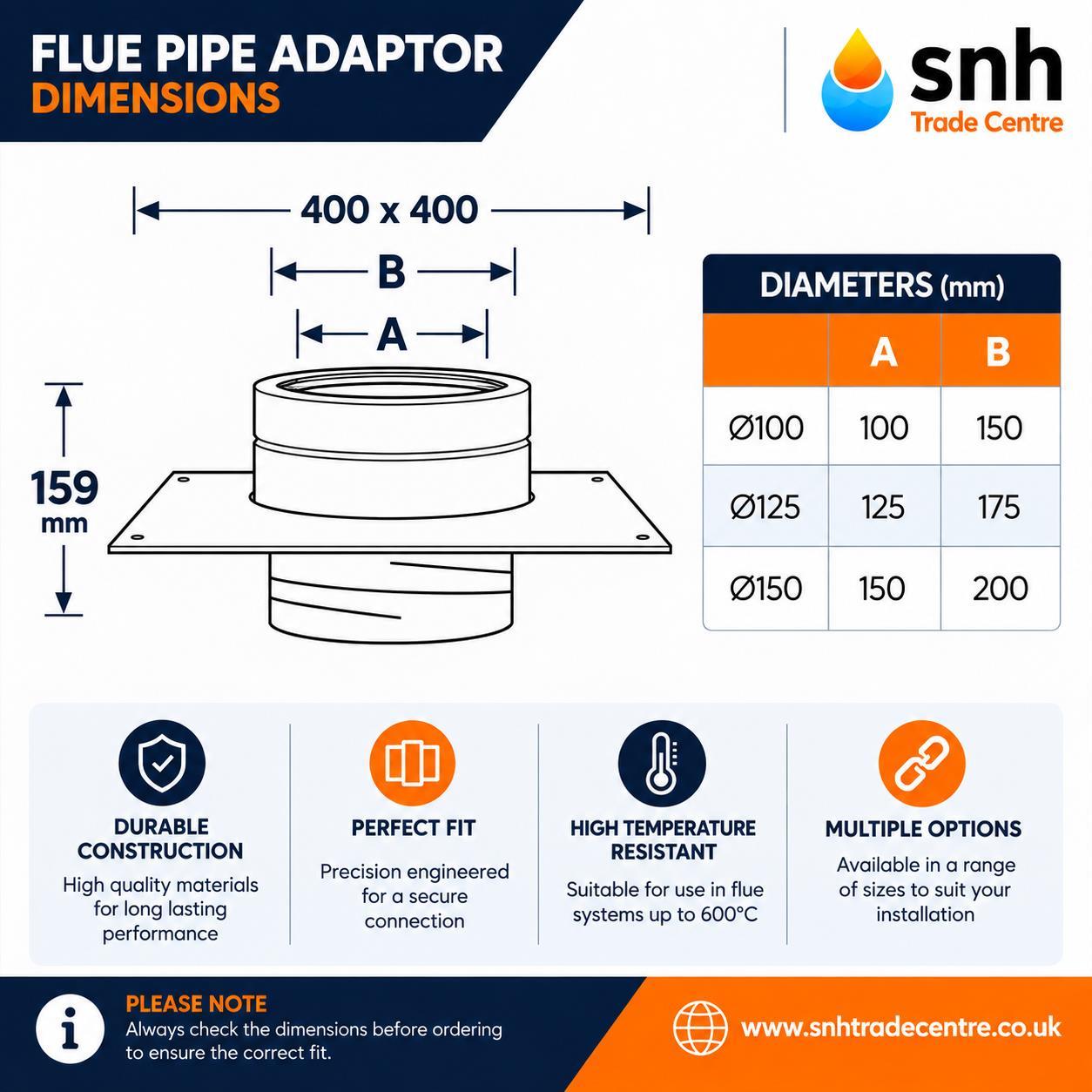

• Internal flue diameter: 125mm
• Finish: matt black
• Application: MI-FLEX liner to TWPro connection
• Installation position: top of a suitably lowered chimney stack
• System joint method: push fit with locking band
• Maximum temperature class: T600
• Product model: 37-125-062

What Is Included?

• 1 x TWPro 125mm Chest Mounting Plate
• Finish: matt black
• Model: 37-125-062

Application

This chest mounting plate connects a compatible MI-FLEX flexible liner inside an existing masonry chimney to a 125mm TWPro insulated chimney above the stack.

For example, it can form part of a correctly designed flue system for:

• Wood-burning stoves
• Multifuel stoves
• Other suitable solid-fuel appliances
• Compatible gas appliances
• Compatible oil-fired appliances

However, always check the appliance instructions first. These instructions will confirm the correct flue size, chimney class and installation method.

Where Does the Chest Mounting Plate Fit?

The plate fits on top of a suitably lowered masonry chimney stack. First, the MI-FLEX liner rises through the existing chimney and connects beneath the plate. Next, the TWPro twin-wall chimney continues vertically above the plate.

The change from flexible liner to TWPro must stay inside the existing Class 1 chimney stack. Do not place the liner connection outside the chimney, as it may not have the protection it needs.

Standard or Push-Fit Chest Mounting Plate?

This product is the standard TWPro Chest Mounting Plate, model 37-125-062. TWPro also offers a separate push-fit version under model 37-125-064.

Therefore, check the planned connection and installation design before ordering. If you are unsure which version you need, contact SNH Tradecentre for help.

TWPro System Construction

• Inner casing: 0.4mm 316L-grade stainless steel
• Outer casing: 0.4mm 304-grade stainless steel
• Outer finish: matt-black powder coating
• Insulation: 25mm injected mineral wool
• Insulation density: 190kg/m³
• Joint system: push fit with locking band
• Maximum temperature class: T600

These construction details apply to the connected TWPro insulated chimney system. Meanwhile, the chest mounting plate supports the change from flexible liner to twin-wall flue.

Approvals and System Classification

• HETAS-approved chimney system
• EN 1856-1 T600 N1 W V2 L50040 G50
• EN 1856-1 T200 P1 W V2 L50040 O20
• Suitable for compatible negative-pressure systems up to T600
• Suitable for compatible positive-pressure systems up to T200

The correct system class depends on the appliance, fuel and chimney design. Therefore, check every part of the system before installation.

Distance to Combustible Materials

Under its T600 G50 classification, the TWPro insulated chimney system must remain at least 50mm away from combustible materials.

However, another part of the installation may need a larger gap. For example, the appliance, flexible liner or chimney design may have different clearance rules. Therefore, always follow the largest distance stated in the full installation instructions.

Installation Guidance

• First, confirm that the existing chimney is a suitable Class 1 chimney
• Inspect and prepare the masonry chimney before starting
• Lower the chimney stack to the correct level for the installation
• Keep the MI-FLEX-to-TWPro connection inside the chimney stack
• Secure the plate with suitable fixings for the supporting masonry
• Use a compatible flexible liner in the correct size and class
• Connect the matching TWPro component correctly above the plate
• Fit all required locking bands and chimney supports
• Keep the chimney straight, secure and correctly supported
• Maintain the required distance from combustible materials
• Finally, follow the appliance, liner and TWPro installation instructions

This plate forms a key supporting point within the chimney system. Therefore, a suitably competent installer should design and fit the complete system. For solid-fuel installations, use a HETAS-registered installer where appropriate.

Compatibility

This component fits the 125mm TWPro and matching KW Flue systems only. Other twin-wall chimney brands use different joints, sizes and locking methods. Therefore, do not mix this plate with another system unless the manufacturer confirms compatibility in writing.

The 125mm size refers to the internal flue diameter. TWPro pipe also contains 25mm of insulation around the inner casing. As a result, the outside diameter of the connected twin-wall pipe is about 50mm larger than the stated internal size.

TWPro Warranty

• 25-year system warranty, subject to the manufacturer’s conditions
• 2-year warranty on the painted finish

To protect the warranty, choose the correct components and follow the installation, fuel and maintenance instructions. Also, keep your proof of purchase.

Why Choose the TWPro Twin-Wall System?

TWPro combines a strong 316L stainless-steel inner casing with dense mineral-wool insulation. In addition, its matt-black outer casing gives the chimney a neat finish.

The push-fit joints and locking bands also make assembly simple and secure. Therefore, installers can create a clean chimney route with fewer visible projections between sections.

In the UK, you may also find this system under the KW Flue name. Even so, always check the product codes and joint design before joining different components.
