Product Description

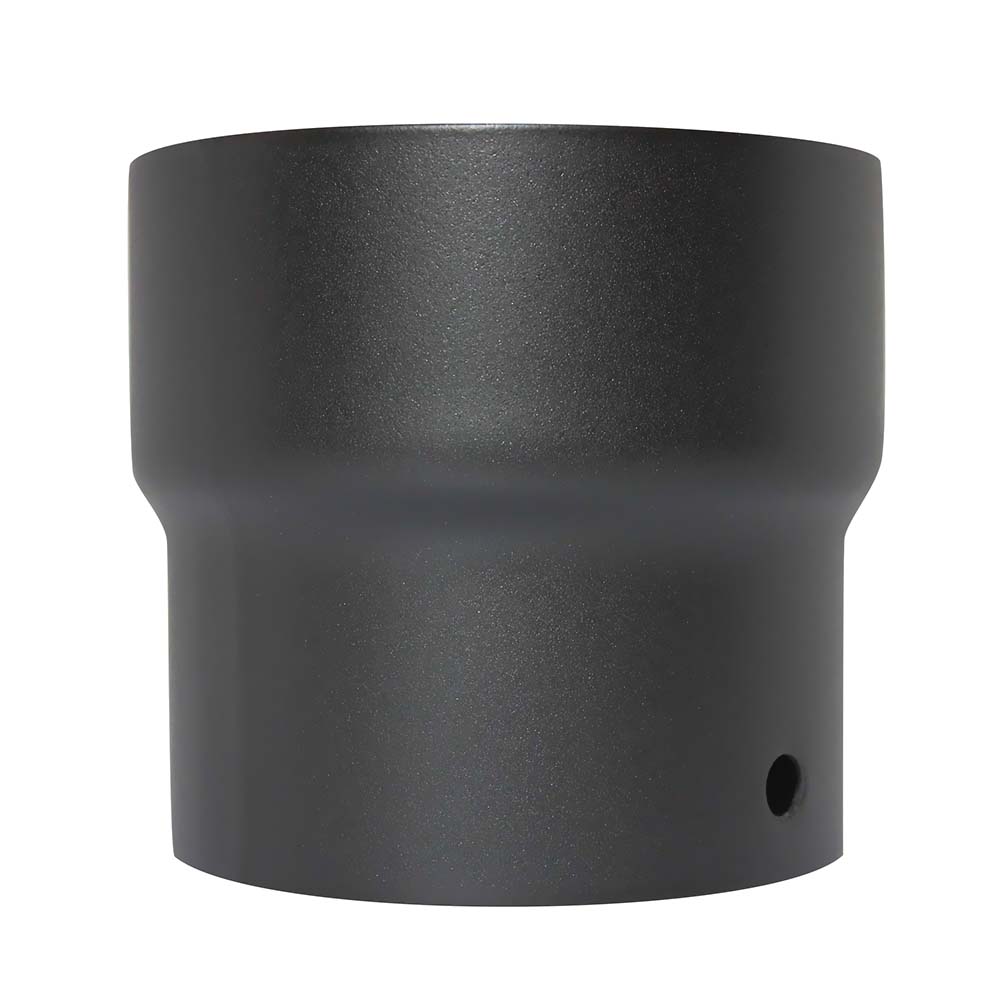

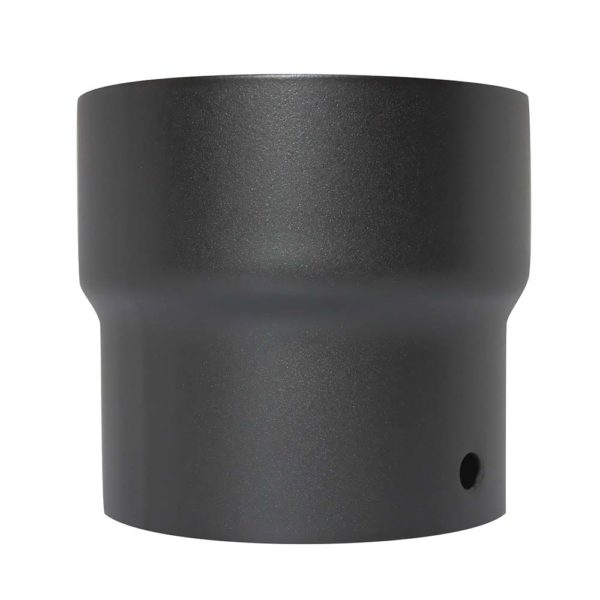

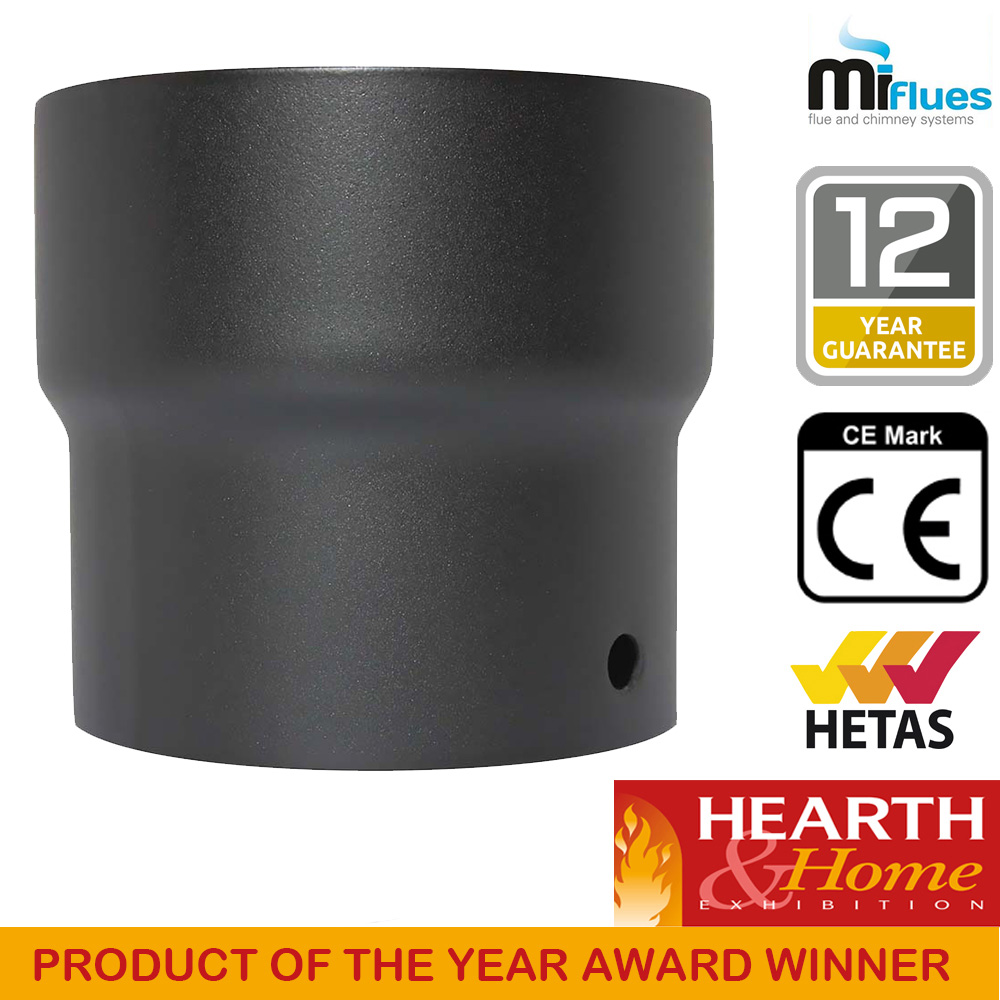

125mm VIT-Smooth Vitreous Enamel Continental Stove Adaptor

Model: 67-125-001

The 125mm VIT-Smooth vitreous enamel stove adaptor connects a compatible continental-style stove spigot to a 125mm VIT-Smooth connecting flue. Its lower connection has an internal diameter of 114mm, while its upper connection continues into a 125mm flue system.

Made from 1.2mm zero-carbon steel, the adaptor has vitreous enamel on its internal and external surfaces. Therefore, it provides a strong, heat-resistant connection with a smart matt black finish.

In addition, the adaptor carries a 12-year warranty, subject to the manufacturer’s terms. However, stove outlets vary, so always check the spigot measurements and required joint type before ordering.

125mm Continental Stove Adaptor Features

• Connects a continental-style stove spigot to VIT-Smooth pipe
• Manufacturer model number: 67-125-001
• 114mm internal diameter at the lower connection
• 125mm internal diameter at the upper connection
• Designed for compatible 125mm VIT-Smooth systems
• Made from 1.2mm zero-carbon steel
• Approximately 1.4mm total thickness, including enamel
• Internal and external vitreous enamel coating
• Heat-resistant matt black finish
• Friction-fit upper connection
• Suitable for compatible gas, oil and solid-fuel appliances
• Maximum continuous operating temperature: 600°C
• Product designation: EN 1856-2 T600 N1 Vm L80120 G375
• Minimum declared distance from combustible materials: 375mm
• Manufactured in the UK
• 12-year warranty, subject to the manufacturer’s terms

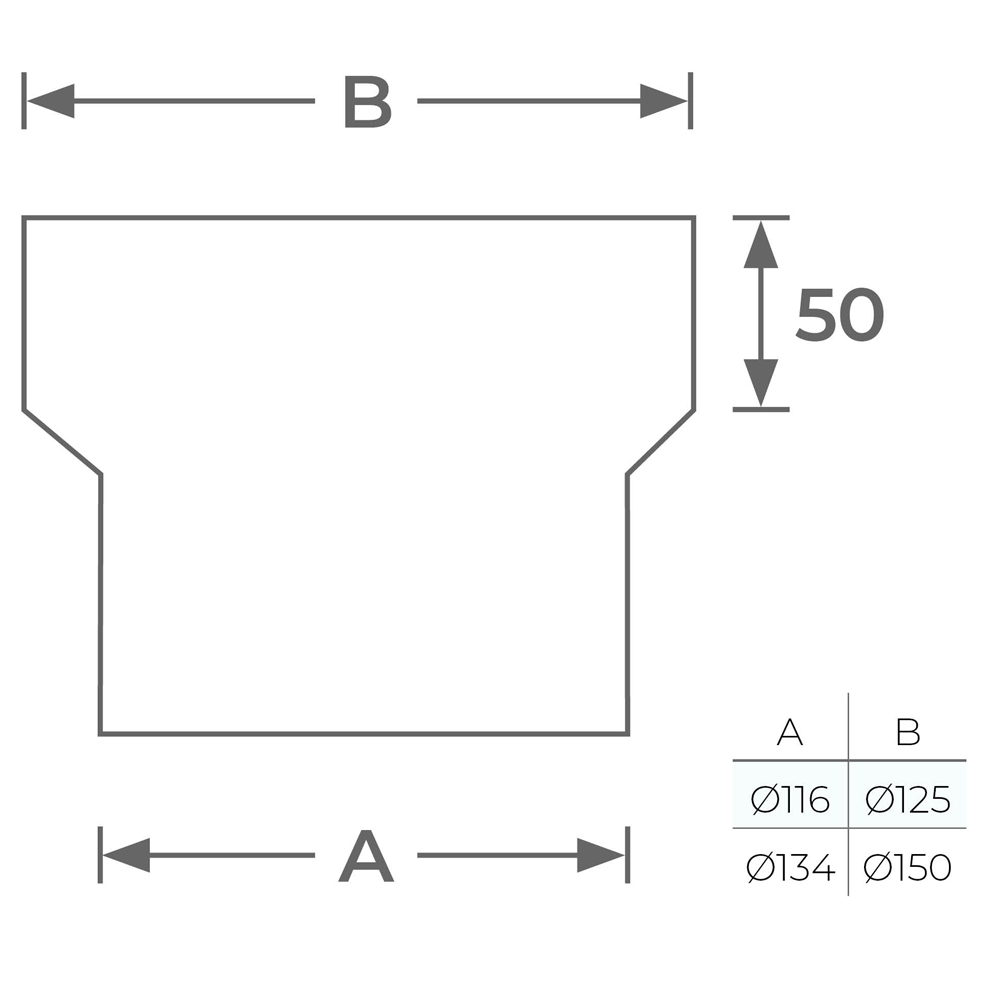

Technical Specification

• Product type: Continental stove adaptor
• Lower internal diameter: 114mm
• Upper internal diameter: 125mm
• Nominal flue size: 125mm (5 inches)
• Material: Zero-carbon steel
• Steel thickness: 1.2mm
• Enamel coating: Approximately 0.2mm
• Total thickness: Approximately 1.4mm
• Finish: Matt black
• Temperature classification: T600
• Product standard: EN 1856-2
• Distance from combustibles: 375mm
• Product weight: Approximately 1kg
• EAN: 5060795860338

What Is a Continental Stove Adaptor?

Some European and continental-style stoves have an outlet spigot that differs from a standard UK stove-pipe connection. This adaptor fits over a compatible spigot with an external diameter of approximately 114mm. It then allows the installer to continue with a 125mm VIT-Smooth flue pipe.

However, a nominal 125mm stove outlet does not always have the same measured diameter. Therefore, measure the outside of the appliance spigot and check its connection type before choosing an adaptor.

Why Choose VIT-Smooth?

VIT-Smooth combines strong steel with a smooth vitreous enamel finish. As a result, it provides a durable and attractive connection for visible stove-pipe installations. Its matt black colour also coordinates with many modern and traditional appliances.

Furthermore, the internal and external enamel coating helps protect the steel against heat, combustion gases and corrosive deposits. The carefully finished joints also give the installed flue a clean and professional appearance.

Suitable Applications

• Compatible continental-style wood-burning stoves
• Compatible European multifuel stoves
• Appliances with a suitable 114mm external outlet spigot
• 125mm VIT-Smooth connecting flue systems
• Visible single-wall stove-pipe installations
• Connections to suitable chimneys and flue systems

Choosing the Correct Stove Adaptor

This model has a 114mm internal lower connection. Therefore, it should fit over a compatible stove spigot with a suitable external diameter. Nevertheless, manufacturing tolerances and appliance designs can affect the fit.

Before ordering, ask your installer to measure the spigot accurately. If the outlet is oversized or uses a traditional socket-and-spigot connection, a different VIT-Smooth adaptor may be required.

Installation and Safety Information

Use VIT-Smooth only as a single-wall connecting flue between a compatible appliance and a chimney, flexible liner or insulated twin-wall system. Never use this product to pass through a wall, ceiling, roof or concealed void.

In addition, maintain at least the declared 375mm distance from combustible materials. The installer must also seal and secure the appliance connection by following the stove and flue manufacturers’ latest instructions.

A competent installer should check the adaptor, flue diameter and complete chimney design. For solid-fuel work, use a suitably qualified installer, such as a HETAS-registered installer, or notify Building Control where required.

Finally, follow the appliance instructions, the latest VIT-Smooth guide and current Building Regulations. The appliance manufacturer’s requirements take priority when selecting the flue diameter and connection method.

Product Guide

• Download the VIT-Smooth brochure

Why Buy from SNH Tradecentre?

• Competitive prices: We aim to offer excellent value across our flue and chimney range.
• Helpful advice: Our team can help you compare stove adaptors and flue sizes.
• Genuine products: Order with confidence from an established plumbing and heating merchant.
• Collection available: Collect eligible in-stock products from our Birchington trade counter.
• UK delivery: Choose from the available delivery services at checkout.
• Trade and public welcome: We supply installers, homeowners, landlords and property professionals.

Not sure whether this adaptor fits your stove? Call SNH Tradecentre on 01843 842727 before ordering. If possible, have your stove make, model and outlet measurements ready.

Read reviews from SNH Tradecentre customers on Google

Frequently Asked Questions

What does this stove adaptor connect?

It connects a compatible continental-style stove outlet to a 125mm VIT-Smooth connecting pipe. The lower opening measures 114mm internally, while the upper opening continues into the 125mm flue system.

Will this adaptor fit every 125mm stove outlet?

No. Stove outlets can have different internal and external measurements. Therefore, measure the outside diameter of the spigot and check the appliance instructions before ordering.

What is a continental-style stove spigot?

It is an appliance outlet commonly found on some European stove designs. Its connection dimensions or joint arrangement may differ from a standard UK socket-and-spigot system.

Can I use this adaptor with a wood-burning stove?

It may suit a compatible wood-burning or multifuel stove. However, the appliance manufacturer must permit the adaptor type and 125mm flue diameter.

What is the maximum operating temperature?

The VIT-Smooth system carries a T600 classification. Therefore, its maximum continuous operating temperature is 600°C. Always follow any lower temperature limit stated by the appliance manufacturer.

Can this adaptor pass through a wall or ceiling?

No. It forms part of a single-wall connecting flue system. Therefore, it must not pass through walls, ceilings, roofs or concealed spaces.

How far must it be from combustible materials?

The product designation states a minimum distance of 375mm from combustible materials. However, the installer must assess the complete installation and follow the latest regulations.

Who should install this stove adaptor?

A competent installer should fit it as part of a correctly designed flue system. For solid-fuel installations, consider using a HETAS-registered installer or arranging Building Control notification where required.

Manufacturers may update specifications and warranty terms. Therefore, check the latest VIT-Smooth literature and confirm the appliance connection before ordering or installation.
