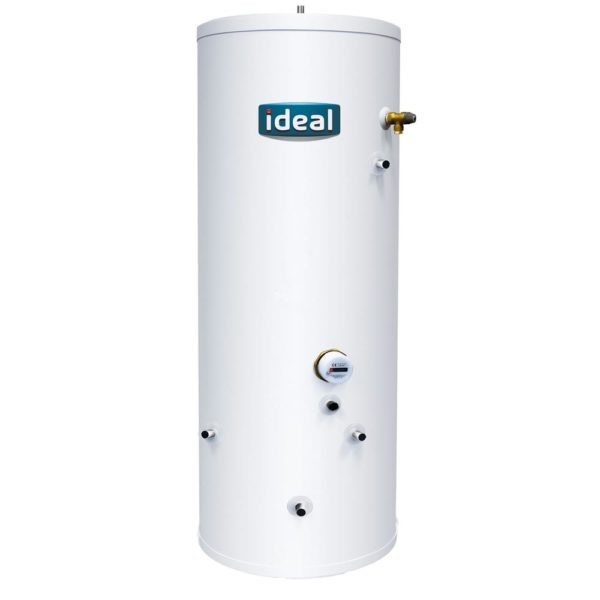

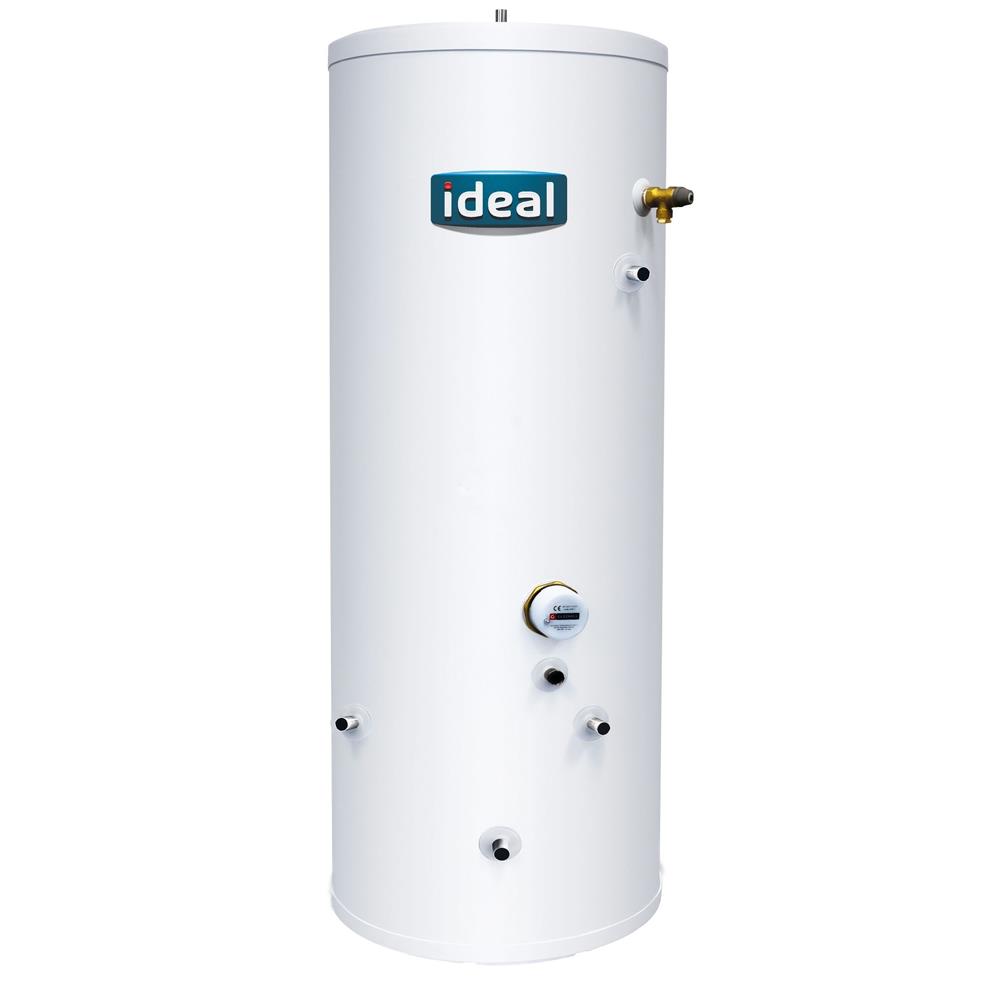

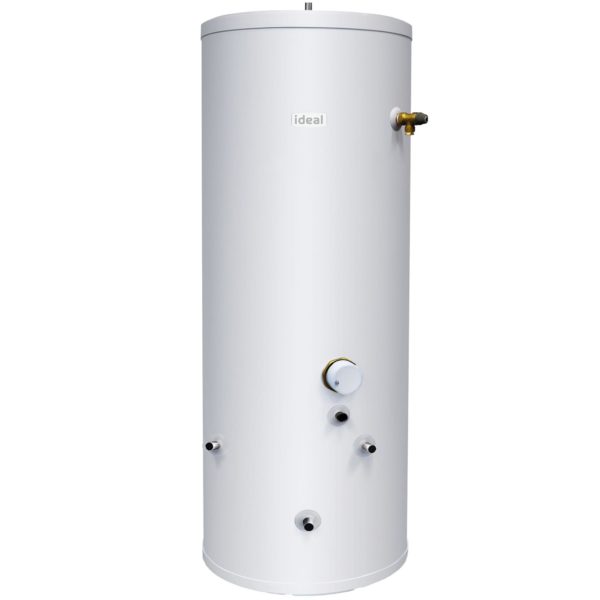

Ideal Pro 120L Indirect Unvented Cylinder

The Ideal Pro 120L Indirect Unvented Cylinder provides mains-pressure hot water from a compatible gas or oil boiler system. It has a 119-litre capacity, duplex stainless steel vessel, 18kW heating coil and factory-fitted 3kW immersion heater. The package also includes the main unvented safety and control components.

£438.33 £525.99 (inc vat)

In stock

Product Description

Ideal Pro 120L Indirect Unvented Cylinder Stainless Steel

Model: IDEPROIN120

PLEASE NOTE: We can only deliver this product to Mainland England addresses.

The Ideal Pro 120L Indirect Unvented Cylinder stores and supplies mains-pressure hot water for compatible domestic heating systems. Its high-efficiency internal coil connects to a suitable gas or oil boiler, while the fitted 3kW immersion heater provides an electric backup heat source.

Ideal manufactures the inner vessel from strong duplex stainless steel. In addition, high-density HCFC-free polyurethane foam insulation helps keep the stored water hot and reduces standing heat loss.

The cylinder has a nominal size of 120 litres and an actual capacity of 119 litres. Therefore, it may suit smaller homes with one bathroom and moderate hot water needs. However, a qualified installer must calculate the correct cylinder size before ordering.

As an unvented cylinder, the Ideal Pro connects directly to the mains water supply. As a result, it can provide strong hot water flow to compatible taps, baths and showers without using a traditional cold water storage tank in the loft.

Ideal Pro 120L Indirect Cylinder Features

  • Download the Ideal Pro unvented cylinder installation instructions
  • Ideal Pro user instructions
  • Ideal web site
  • Full range of ideal unvented cylinders
  • Ideal Pro Cylinder buyng guide
  • Indirect unvented hot water cylinder
  • Model: IDEPROIN120
  • Nominal size of 120 litres
  • Actual capacity of 119 litres
  • Provides mains-pressure hot water
  • High-efficiency internal heating coil
  • Suitable for compatible gas and oil boiler systems
  • Suitable for open-vented and sealed pumped primary systems
  • Duplex stainless steel inner vessel
  • High-density HCFC-free polyurethane foam insulation
  • 18kW primary heating coil rating
  • Approximately 21-minute heat-up time under stated test conditions
  • Factory-fitted 3kW immersion heater
  • B-rated for energy efficiency
  • Heat loss of approximately 0.94kWh per 24 hours
  • No secondary return connection
  • 25-year vessel warranty, subject to Ideal’s terms
  • Two-year parts and labour warranty, subject to Ideal’s terms

Key Features and Benefits

  • Mains-pressure hot water: The cylinder can provide strong flow to compatible showers, baths and taps when the property has a suitable mains supply.
  • Indirect boiler heating: The internal coil transfers heat from a compatible gas or oil boiler to the stored water.
  • Electric backup heating: The fitted 3kW immersion heater can heat the stored water when required.
  • Stainless steel construction: The duplex stainless steel vessel provides strength and good resistance to corrosion.
  • Reduced heat loss: High-density foam insulation helps keep the water hot between heating cycles.
  • Supplied installation controls: The package includes the main safety and control components required for an unvented installation.
  • No loft tank required: The unvented design takes its cold water supply directly from the mains.

Technical Specification

  • Manufacturer: Ideal Heating
  • Range: Ideal Pro
  • Model: IDEPROIN120
  • Cylinder Type: Indirect unvented
  • Nominal Size: 120 litres
  • Actual Capacity: 119 litres
  • Inner Vessel: Duplex stainless steel
  • Insulation: High-density HCFC-free polyurethane foam
  • Energy Efficiency Class: B
  • Standing Heat Loss: 39W
  • Heat Loss: 0.94kWh per 24 hours
  • Primary Coil Rating: 18kW
  • Primary Coil Surface Area: 0.59m²
  • Primary Coil Pressure Loss: 0.165 bar
  • Heat-Up Time: Approximately 21 minutes
  • Immersion Heater: 1 x 3kW, 240V
  • Secondary Return: No
  • Operating Pressure: 3 bar
  • Maximum Primary Coil Working Pressure: 3 bar
  • Maximum Inlet Pressure to Pressure-Reducing Valve: 12 bar
  • Expansion Relief Valve Setting: 4.5 bar
  • Temperature and Pressure Relief Valve: 6 bar at 95°C
  • Empty Weight: 23kg
  • Full Weight: Approximately 142kg
  • Vessel Warranty: 25 years, subject to Ideal’s terms
  • Parts and Labour Warranty: Two years, subject to Ideal’s terms

Ideal Pro 120L Cylinder Dimensions

  • Height: 931mm
  • Diameter: 550mm
  • Recommended Minimum Cupboard Footprint: 650mm x 650mm

Before ordering, check the available space for the cylinder, expansion vessel, valves and connected pipework. In addition, allow enough room for installation, servicing and future maintenance.

The supporting floor must remain level and safely carry the cylinder’s full operating weight of approximately 142kg.

What Is Included?

  • 1 x Ideal Pro 120L indirect unvented cylinder
  • 1 x factory-fitted 3kW immersion heater
  • 1 x cold water combination inlet control group
  • 1 x expansion vessel with mounting bracket
  • 1 x temperature and pressure relief valve
  • 1 x control thermostat
  • 1 x energy cut-out thermostat
  • 1 x 22mm two-port motorised zone valve
  • 1 x tundish
  • 1 x drain elbow
  • Technical and user literature

The supplied components provide the main controls for an unvented installation. However, the system may need additional pipework, valves, wiring controls and fittings to suit the property.

How Does an Indirect Unvented Cylinder Work?

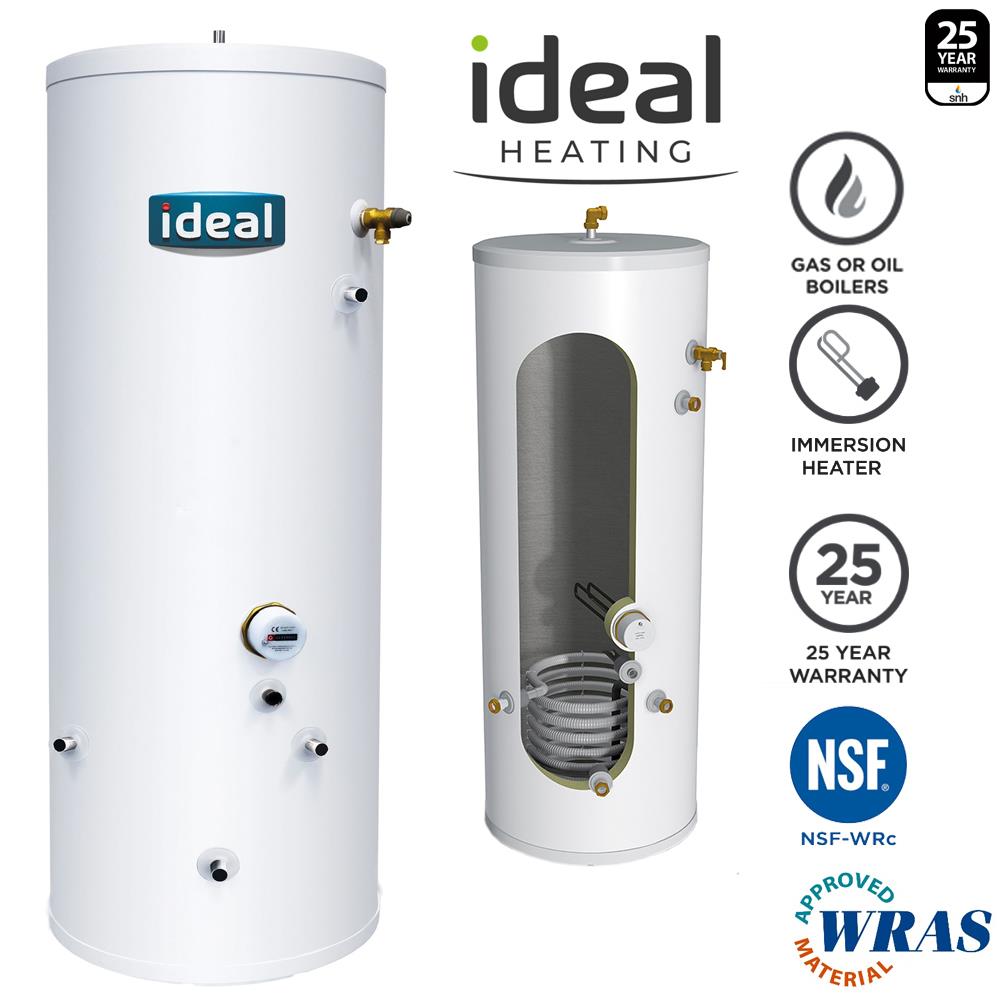

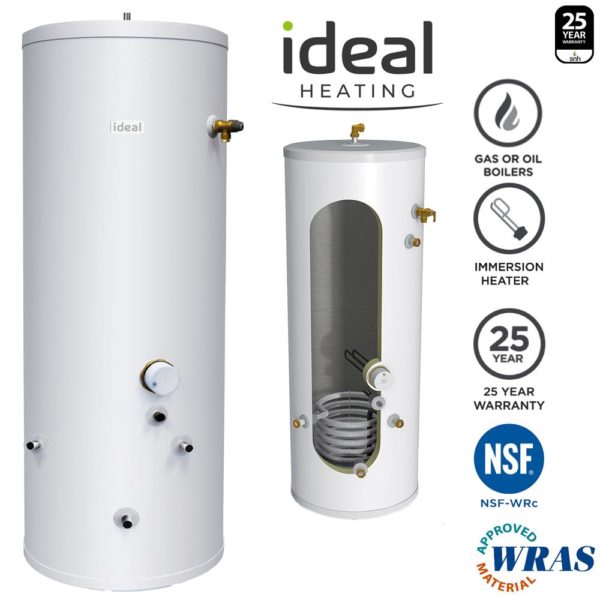

An indirect cylinder contains an internal heating coil. Hot primary water from a compatible boiler passes through this coil and transfers heat to the stored domestic water.

Meanwhile, the cylinder takes cold water directly from the mains. As hot water leaves through a tap or shower, fresh mains water enters the cylinder. Therefore, the system does not need a traditional cold water tank in the loft.

The fitted immersion heater provides a backup method of heating the water. However, the boiler and internal coil normally provide the main heat source.

Where Can You Use the Ideal Pro 120L Cylinder?

The Ideal Pro 120L indirect cylinder may suit smaller homes, flats and properties with one bathroom and moderate hot water demand.

However, the correct cylinder size depends on several factors:

  • The number of people living in the property
  • The number of showers, baths and taps
  • The size and type of bath
  • How often occupants use hot water
  • The available mains water pressure and flow
  • The boiler output and recovery requirements

Therefore, always ask a qualified installer to calculate the required capacity before placing your order.

Is This Cylinder Direct or Indirect?

This is an indirect cylinder. Its internal coil connects to a suitable gas or oil boiler, which heats the stored domestic water.

In comparison, a direct cylinder relies mainly on electric immersion heaters and does not contain a boiler-fed primary coil. Therefore, check the property’s heating arrangement carefully before ordering.

Benefits of Mains-Pressure Hot Water

An unvented cylinder can provide stronger hot water performance than a traditional gravity-fed system. For example, it may improve the flow available at compatible showers, baths and taps.

In addition, the system does not need a cold water storage tank in the loft. This can save space and remove problems linked to an open loft tank.

However, the cylinder cannot improve a poor incoming mains supply. Ideal recommends an incoming flow of around 25 litres per minute for optimum performance, although the cylinder can work at lower flow rates with reduced performance.

Installation Requirements

A suitably trained and qualified installer must fit and commission this unvented cylinder. In England and Wales, the installation must meet Part G3 of the Building Regulations. Different requirements apply in Scotland and Northern Ireland.

The installer must follow the latest Ideal instructions and check:

  • The required cylinder capacity
  • The incoming mains pressure and flow rate
  • The boiler output and primary flow rate
  • The position of the expansion vessel and safety controls
  • The discharge pipe size and termination point
  • The electrical supply for the immersion heater and controls
  • The strength and level of the supporting floor

Unvented cylinders also need regular safety checks and servicing. Therefore, keep the installation guide and completed Benchmark record with the cylinder.

Why Choose the Ideal Pro 120L Cylinder?

The Ideal Pro combines a duplex stainless steel vessel with a high-efficiency heating coil and effective foam insulation. As a result, it provides a practical hot water solution for compatible boiler systems.

Furthermore, Ideal supplies the main unvented safety and control components with the cylinder. Its 25-year vessel warranty and two-year parts and labour warranty provide additional reassurance, subject to the manufacturer’s conditions.

Why Buy from SNH Tradecentre?

  • Competitive prices on Ideal cylinders and heating products
  • Helpful product and technical advice
  • Genuine products from established manufacturers
  • Delivery available to eligible Mainland England addresses
  • Trade and public customers welcome
  • Collection available from our Birchington, Kent trade counter
  • Independent UK plumbing and heating merchant

Ideal Heating may update product specifications, package contents and warranty terms without notice. Check the latest installation guide and confirm suitability with a qualified unvented hot water installer before ordering.

Additional Information

EAN

5022142180544

Manufacturer

Ideal

Brand

MPN

IDEPROIN120

SKU

IDEPROIN120

Unit Quantity

1

Warranty

25 Year Warranty

Shipping

Free Shipping

Range

Indirect

condition

new

Woocategory1

Heating & Cooling

Woocategory3

Woocategory2

Hot Water Cylinders

Country/Region of Manufacture

United Kingdom

Energy Efficiency Rating

B

Style

Unvented Cylinder

Width

550

Height

ccp_Type

indirect

Material

Stainless Steel

Modified Item

No

Custom Bundle

No

Mounting

Floor

Mount Type

Floor Standing

Litres

101 – 150

Heating System

Storage Tank

Manufacturer Warranty

25 Year Warranty
