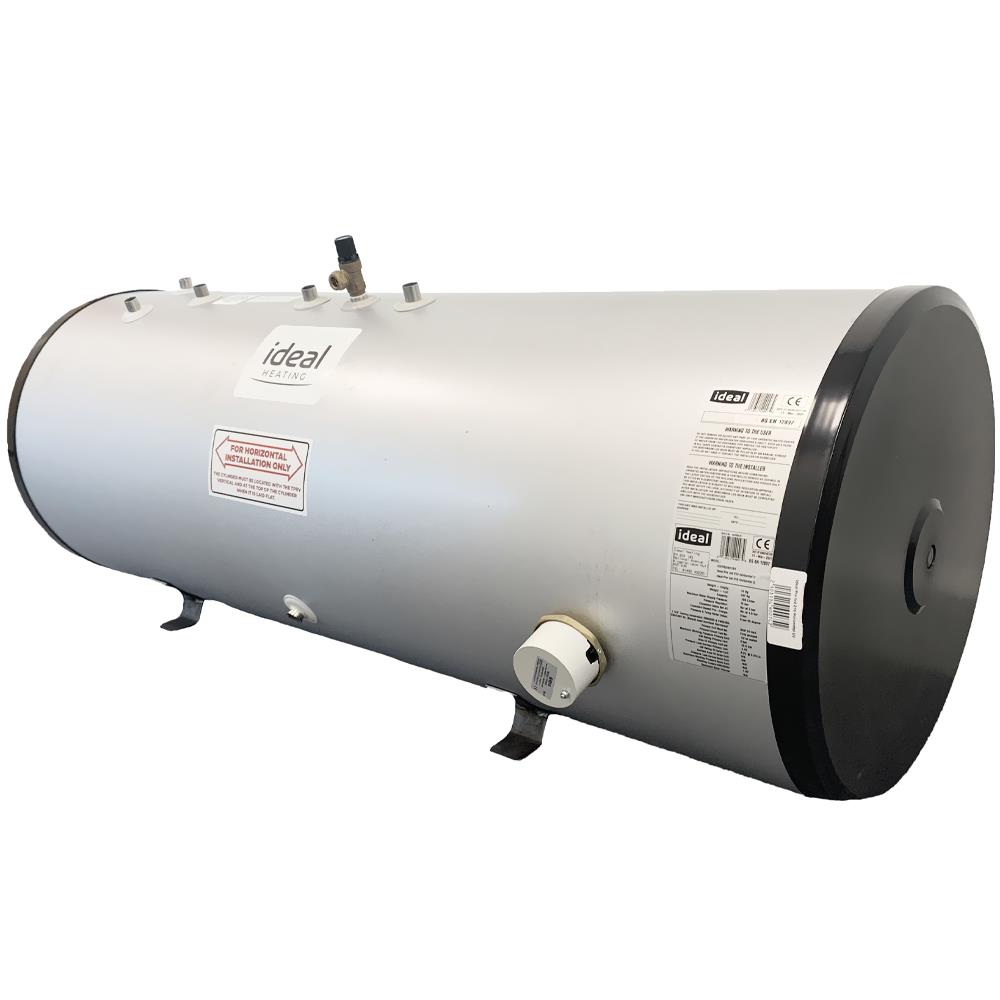

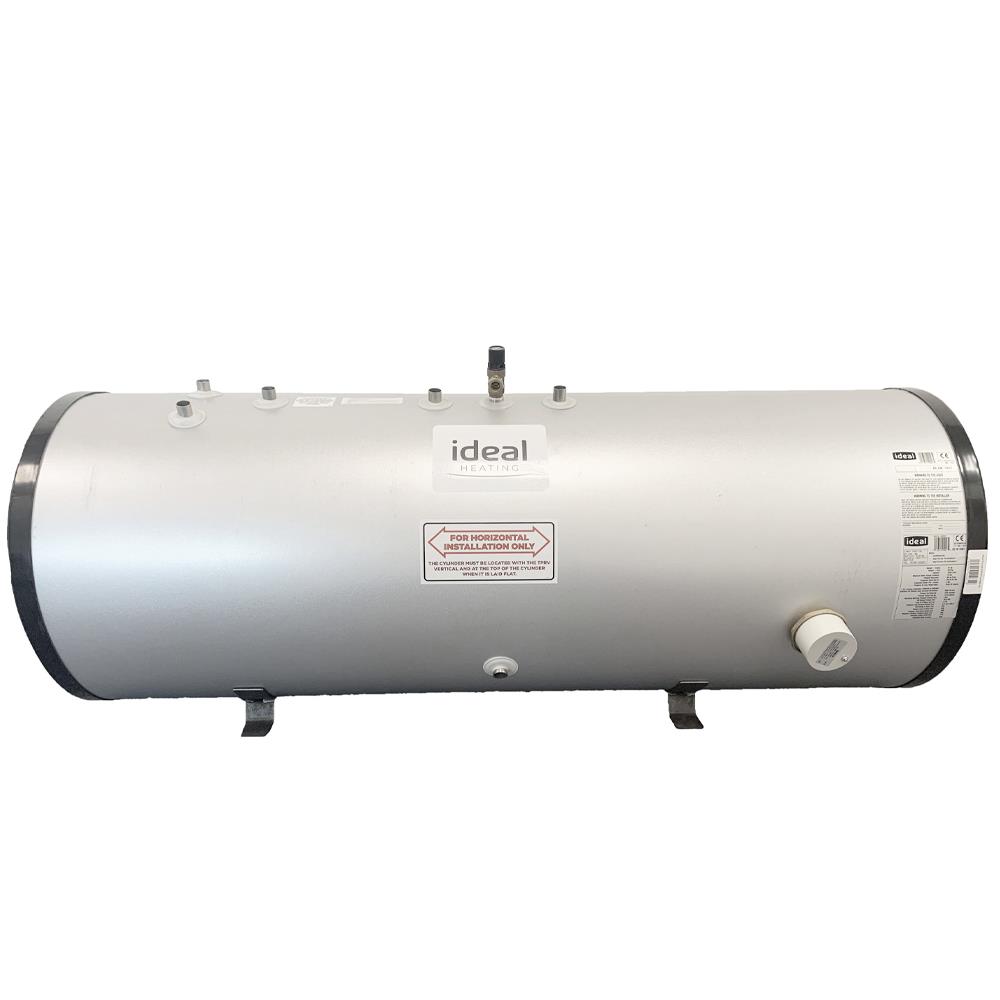

Ideal Pro Horizontal 210L Indirect Unvented Cylinder
The Ideal Pro Horizontal 210L Indirect Unvented Cylinder provides mains-pressure hot water in properties with limited installation height. It offers an actual capacity of 206 litres, a powerful 20.9kW boiler-fed coil and a useful 22mm secondary return connection.
£633.33 £759.99 (inc vat)
Product Description
Ideal Pro Horizontal 210L Indirect Unvented Cylinder
Model: IDEPROIN210H
PLEASE NOTE: We can only deliver this cylinder to Mainland England addresses.
The Ideal Pro Horizontal 210L Indirect Unvented Cylinder provides mains-pressure hot water while fitting into areas with limited height. Its horizontal design makes it a practical choice for lofts, eaves, low cupboards and plant rooms where a standard upright cylinder may not fit.
This indirect cylinder contains a high-efficiency primary coil for connection to a suitable gas or oil boiler. The cylinder works with both open-vented and sealed pumped primary heating systems. In addition, the supplied 3kW immersion heater provides a backup electric heat source.
Ideal makes the inner vessel from high-quality duplex stainless steel. Furthermore, high-density, HCFC-free insulation helps retain heat and reduce energy loss.
The unvented design connects directly to the incoming mains water supply. Therefore, it can provide strong hot water flow to compatible showers, baths and taps when the property has suitable mains pressure and flow.
Installation Guides and Product Information
- Ideal web site
- Full range of ideal unvented cylinders
- Ideal Pro Cylinder buyng guide
- Download the Ideal Pro Horizontal installation guide
- Ideal Pro Horizontal brochure
Ideal Pro Horizontal 210L Cylinder Features
- Horizontal indirect unvented hot water cylinder
- Model number IDEPROIN210H
- Nominal size of 210 litres
- Actual stored water capacity of 206 litres
- Designed for areas with limited installation height
- Suitable for use with a compatible gas or oil boiler
- Works with open-vented and sealed pumped primary systems
- High-efficiency internal primary heating coil
- 20.9kW primary coil rating
- Approximately 27-minute primary heat-up time
- Provides mains-pressure hot water
- 22mm secondary return connection
- High-quality duplex stainless steel inner vessel
- High-density, HCFC-free insulation
- Supplied with a 3kW Incoloy immersion heater
- One immersion heater fitted
- ErP energy efficiency class C
- 25-year cylinder warranty, subject to Ideal’s terms
Key Features and Benefits
- Low Horizontal Design: The cylinder can fit into lofts, eaves and other areas where a standard upright cylinder may be too tall.
- 206-Litre Actual Capacity: The stored water capacity can meet the needs of many larger homes with more than one bathroom.
- Mains-Pressure Hot Water: A suitable incoming mains supply can provide strong flow at compatible showers, baths and taps.
- Fast Boiler Reheat: The 20.9kW primary coil provides an approximate heat-up time of 27 minutes under Ideal’s test conditions.
- Secondary Return: The 22mm secondary return allows a suitable installer to add a pumped hot water circulation system.
- Electric Backup: The fitted 3kW immersion heater can heat the stored water if the boiler is unavailable.
- Stainless Steel Vessel: Duplex stainless steel provides strength and good resistance to corrosion.
- Reduced Heat Loss: High-density insulation helps keep the stored water hot.
- Installation Components Included: The package contains the main safety and control components for a suitable unvented installation.
Technical Specification
- Manufacturer: Ideal Heating
- Range: Ideal Pro Horizontal
- Model: IDEPROIN210H
- Product Type: Horizontal indirect unvented cylinder
- Nominal Size: 210 litres
- Actual Capacity: 206 litres
- Primary Heat Source: Compatible gas or oil boiler
- Primary Coil Rating: 20.9kW
- Primary Coil Surface Area: 0.97m²
- Primary Coil Pressure Loss: 0.19 bar
- Primary Heat-Up Time: Approximately 27 minutes
- Recovery Time After 70% Draw-Off: Approximately 26 minutes
- Primary Coil Draw-Off Volume: 285 litres
- Backup Heat Source: 3kW immersion heater
- Immersion Heat-Up Time: Approximately 140 minutes
- Immersion Draw-Off Volume: 120 litres
- Number of Immersion Heaters: 1
- Secondary Return: Yes, 22mm
- Energy Efficiency Class: C
- Standing Heat Loss: 82W
- Maximum Inlet Pressure: 12 bar
- Operating Pressure: 3 bar
- Pressure-Reducing Valve Setting: 3 bar
- Expansion Vessel Charge Pressure: 3 bar
- Expansion Relief Valve Setting: 4.5 bar
- Temperature and Pressure Relief Valve: 6 bar / 95°C
- Primary Coil Maximum Working Pressure: 3 bar
- Inner Vessel: Duplex stainless steel
- Insulation: High-density, HCFC-free foam
- Warranty: 25 years on the cylinder, subject to the manufacturer’s terms
Ideal Pro Horizontal 210L Dimensions
- Overall Width: 1494mm
- Overall Height: 585mm
- Cylinder Diameter: 550mm
- Empty Weight: 31kg
- Full Weight: Approximately 237kg
Recommended Installation Space
- Minimum Cupboard Width: 1795mm
- Minimum Cupboard Depth: 1100mm
- Minimum Cupboard Height: 885mm
- Support Spacing: 815mm
- Support Width: 80mm
- Recommended Rear Clearance: 150mm
- Recommended End Clearance: 150mm
- Recommended Top Clearance: 300mm
- Recommended Front Access: 450mm
Before ordering, check the full installation area rather than the cylinder dimensions alone. Your installer must allow enough space for the expansion vessel, valves, pipework, electrical connections and future servicing.
The supporting floor or structure must also carry the cylinder’s full operating weight of approximately 237kg. In addition, the installer must position the supplied supports correctly, following Ideal’s latest instructions.
What Comes with the Cylinder?
- 1 x Ideal Pro Horizontal 210L indirect unvented cylinder
- 1 x 3kW Incoloy immersion heater
- 1 x cold-water inlet combination valve and expansion relief valve
- 1 x temperature and pressure relief valve
- 1 x control thermostat and energy cut-out thermostat
- 1 x energy cut-out motorised valve
- 1 x expansion vessel with wall-mounting bracket
- 1 x tundish
- Horizontal cylinder support brackets
- Technical and user literature
The installation may need extra valves, fittings, controls and discharge pipework. Therefore, your installer should check the complete system design before starting work.
How Does an Indirect Cylinder Work?
An indirect cylinder contains a heating coil inside its stainless steel vessel. A compatible boiler circulates heated primary water through this coil. The coil then transfers heat into the stored domestic hot water.
Meanwhile, the unvented design takes cold water directly from the mains supply. As hot water leaves the cylinder, incoming mains water replaces it. Therefore, the system does not need a traditional cold-water storage tank in the loft.
The supplied immersion heater provides an electric backup. However, the boiler and primary coil normally provide the main source of heat.
What Is a Secondary Return?
The Ideal Pro Horizontal 210L cylinder includes a 22mm secondary return connection. This allows a qualified installer to create a pumped hot water circulation loop where required.
A secondary return can help reduce the time it takes for hot water to reach distant taps. As a result, it may suit larger homes with long pipe runs or several bathrooms.
However, a secondary circulation system requires careful design. It may also increase heat loss if the installer does not insulate the pipework correctly. Therefore, ask your heating engineer to confirm whether your property needs one.
Where Can You Install a Horizontal Cylinder?
The Ideal Pro Horizontal cylinder may suit properties where limited floor-to-ceiling height prevents the use of a standard upright cylinder. Possible locations include:
- Loft and roof spaces
- Areas beneath sloping roofs
- Eaves storage areas
- Low plant rooms
- Wide airing cupboards with limited height
- Renovation projects where an upright cylinder will not fit
However, the location must provide safe access, suitable structural support and enough space for maintenance. The cylinder must also remain protected from freezing.
Is a 210L Cylinder Suitable for My Home?
Ideal’s model selection guide suggests that this size may suit some homes with two bathrooms and a separate shower room. It may also suit properties with up to five bedrooms or approximately seven bed spaces.
However, every household uses hot water differently. Therefore, the correct cylinder size depends on several factors:
- The number of people living in the property
- The number of bathrooms and shower rooms
- The size and type of baths
- How often occupants use hot water
- Whether outlets run at the same time
- The boiler output
- The incoming mains water pressure and flow
- The required cylinder recovery time
For this reason, always ask a qualified installer to calculate the required capacity before ordering.
Direct or Indirect Cylinder?
Choose an indirect cylinder when a suitable boiler will provide the main source of hot water heating. The boiler transfers heat through the cylinder’s internal primary coil, while the immersion heater provides backup.
In comparison, a direct cylinder uses electric immersion heaters as its main heat source. It does not contain a primary coil for connection to a boiler.
Therefore, check the property’s heating system carefully before ordering. Direct and indirect cylinders cannot always replace each other without changes to the installation.
Mains Water Requirements
For optimum performance, Ideal recommends an incoming dynamic water pressure of approximately 3 bar and a flow rate of around 30 litres per minute.
The cylinder can operate with a lower flow rate or pressure. However, this will reduce the available hot water performance. In addition, the cylinder cannot improve a poor incoming mains supply.
Therefore, your installer should test both the pressure and flow before recommending an unvented cylinder.
Installation Requirements
A suitably qualified installer must fit and commission this unvented cylinder. The installer must hold the correct qualification or recognised competence for unvented hot water systems.
In England and Wales, the installation must meet Part G3 of the Building Regulations. Different requirements apply in Scotland and Northern Ireland. Therefore, the installer must follow the regulations that apply at the installation address.
The installer must also follow Ideal’s latest instructions. These cover the cylinder supports, inlet controls, expansion vessel, motorised valve, safety valves and discharge pipework.
Furthermore, the cylinder needs regular maintenance. A qualified engineer should normally check it each year alongside the boiler service.
Why Choose the Ideal Pro Horizontal 210L Cylinder?
The Ideal Pro Horizontal 210L cylinder provides a practical solution for properties that need a larger hot water capacity but have limited installation height.
Its 206-litre actual capacity can serve homes with several hot water outlets. Meanwhile, the 20.9kW primary coil provides fast boiler heating. The secondary return also supports a suitable pumped hot water circulation system.
Finally, the duplex stainless steel vessel, insulated construction and supplied unvented controls provide a complete package for a professionally designed hot water installation.
Why Buy from SNH Tradecentre?
- Competitive prices on Ideal Heating products
- Helpful product and technical advice
- Genuine products from established manufacturers
- Delivery to eligible Mainland England addresses
- Trade and public customers welcome
- Collection available from our Birchington, Kent trade counter
- Independent UK plumbing and heating merchant
Ideal Heating may update product specifications, package contents and warranty terms without notice. Check the latest installation guide and confirm suitability with a qualified installer before ordering.
Additional Information
| gtin | 5056188304558 |
|---|---|
| Manufacturer | Ideal |
| Brand | |
| MPN | IDEPROIN210H |
| SKU | IDEPROIN210H |
| Unit Quantity | 1 |
| EAN | 5056188304558 |
| Warranty | 25 Year (Subject to Manufacturers T&C's) |
| Range | Horizontal |
| condition | new |
| Woocategory1 | Heating & Cooling |
| Woocategory3 | |
| Woocategory2 | Hot Water Cylinders |
| Country/Region of Manufacture | United Kingdom |
| Energy Efficiency Rating | C |
| Style | Unvented Cylinder |
| Width | 1494 |
| Height | |
| Mount Type | Floor Standing |
| Litres | 201 – 250 |
| Heating System | Storage Tank |
| Manufacturer Warranty | 25 Year (Subject to Manufacturers T&C's) |
