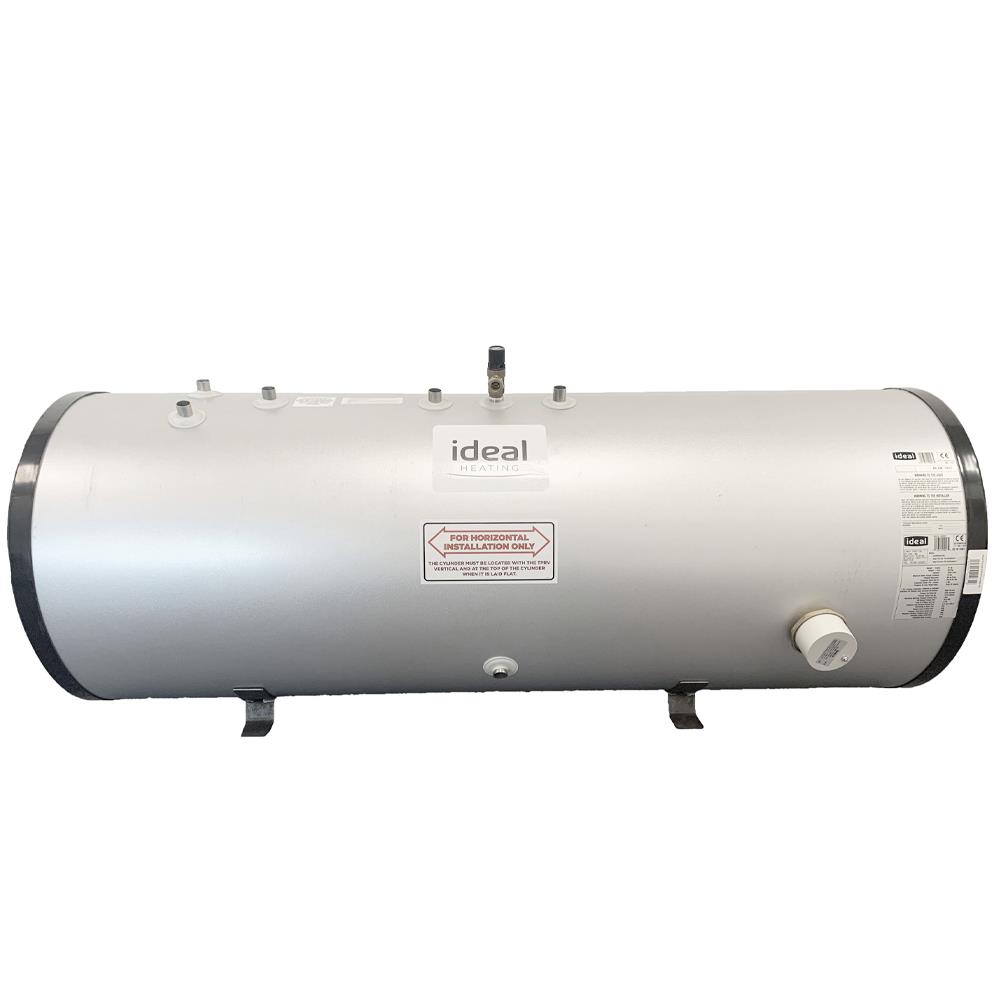

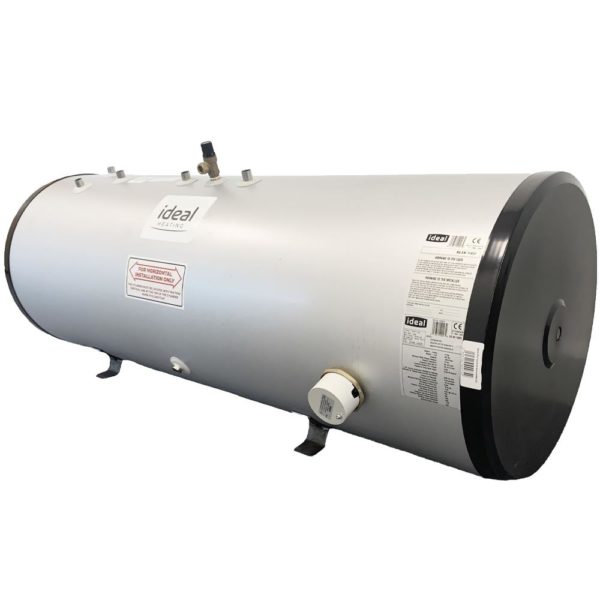

Ideal Pro Horizontal 300L Indirect Unvented Cylinder

The Ideal Pro Horizontal 300L Indirect Unvented Cylinder provides a large supply of mains-pressure hot water for properties with limited installation height. It offers an actual capacity of 288 litres, a powerful 21.6kW boiler-fed coil and a useful 22mm secondary return.

£726.67 £872.00 (inc vat)

In stock

Product Description

Ideal Pro Horizontal 300L Indirect Unvented Cylinder

Model: IDEPROIN300H

PLEASE NOTE: We can only deliver this cylinder to Mainland England addresses.

The Ideal Pro Horizontal 300L Indirect Unvented Cylinder provides a large supply of mains-pressure hot water while fitting into areas with limited height. Its horizontal design makes it a practical choice for lofts, eaves, low plant rooms and other spaces where a standard upright cylinder may not fit.

This indirect cylinder contains a high-efficiency primary coil for connection to a suitable gas or oil boiler. It works with both open-vented and sealed pumped primary heating systems. In addition, two fitted 3kW immersion heaters provide electric backup and boost options.

Ideal makes the inner vessel from strong duplex stainless steel. Furthermore, high-density, HCFC-free insulation helps retain the stored heat and reduce energy loss.

The unvented design connects directly to the incoming mains water supply. Therefore, it can provide strong hot water flow to compatible showers, baths and taps when the property has suitable mains pressure and flow.

Installation Guides and Product Information

Ideal Pro Horizontal 300L Cylinder Features

  • Horizontal indirect unvented hot water cylinder
  • Model number IDEPROIN300H
  • Nominal size of 300 litres
  • Actual stored water capacity of 288 litres
  • Designed for areas with limited installation height
  • Suitable for use with a compatible gas or oil boiler
  • Works with open-vented and sealed pumped primary systems
  • High-efficiency internal primary heating coil
  • 21.6kW primary coil rating
  • Approximately 32-minute primary heat-up time
  • Provides mains-pressure hot water
  • 22mm secondary return connection
  • High-quality duplex stainless steel inner vessel
  • High-density, HCFC-free insulation
  • Includes two 3kW immersion heaters
  • ErP energy efficiency class C
  • 25-year cylinder warranty, subject to Ideal’s terms

Key Features and Benefits

  • Large Hot Water Capacity: The 288-litre actual capacity can meet the higher hot water needs of many larger homes.
  • Horizontal Design: The low-profile cylinder can fit into lofts, eaves and other spaces where an upright model may be too tall.
  • Mains-Pressure Hot Water: A suitable incoming mains supply can provide strong flow at compatible showers, baths and taps.
  • Fast Boiler Heating: The 21.6kW primary coil provides an approximate heat-up time of 32 minutes under Ideal’s test conditions.
  • Secondary Return: The 22mm connection supports a correctly designed pumped hot water circulation system.
  • Two Immersion Heaters: Two fitted 3kW immersion heaters provide electric backup and boost options.
  • Stainless Steel Vessel: Duplex stainless steel provides strength and good resistance to corrosion.
  • Reduced Heat Loss: High-density insulation helps keep the stored water hot.
  • Installation Components Included: The package contains the main safety and control components required for a suitable unvented installation.

Technical Specification

  • Manufacturer: Ideal Heating
  • Range: Ideal Pro Horizontal
  • Model: IDEPROIN300H
  • Product Type: Horizontal indirect unvented cylinder
  • Nominal Size: 300 litres
  • Actual Capacity: 288 litres
  • Primary Heat Source: Compatible gas or oil boiler
  • Primary Coil Rating: 21.6kW
  • Primary Coil Surface Area: 1.27m²
  • Primary Coil Pressure Loss: 0.31 bar
  • Primary Heat-Up Time: Approximately 32 minutes
  • Recovery Time After 70% Draw-Off: Approximately 28 minutes
  • Primary Coil Draw-Off Volume: 225 litres
  • Backup Heat Source: 2 x 3kW immersion heaters
  • Immersion-Only Heat-Up Time: Approximately 184 minutes
  • Immersion Draw-Off Volume: 140 litres
  • Number of Immersion Heaters: 2
  • Secondary Return: Yes, 22mm
  • Energy Efficiency Class: C
  • Standing Heat Loss: 91W
  • Maximum Inlet Pressure: 12 bar
  • Operating Pressure: 3 bar
  • Pressure-Reducing Valve Setting: 3 bar
  • Expansion Vessel Charge Pressure: 3 bar
  • Expansion Relief Valve Setting: 4.5 bar
  • Temperature and Pressure Relief Valve: 6 bar / 95°C
  • Primary Coil Maximum Working Pressure: 3 bar
  • Inner Vessel: Duplex stainless steel
  • Insulation: High-density, HCFC-free foam
  • Warranty: 25 years on the cylinder, subject to the manufacturer’s terms

Ideal Pro Horizontal 300L Dimensions

  • Overall Width: 1990mm
  • Overall Height: 585mm
  • Cylinder Diameter: 550mm
  • Empty Weight: 46kg
  • Full Weight: Approximately 334kg

Recommended Installation Space

  • Minimum Cupboard Width: 2292mm
  • Minimum Cupboard Depth: 1100mm
  • Minimum Cupboard Height: 885mm
  • Support Spacing: 1120mm
  • Support Width: 80mm
  • Recommended Rear Clearance: 150mm
  • Recommended End Clearance: 150mm
  • Recommended Top Clearance: 300mm
  • Recommended Front Access: 450mm

Before ordering, check the full installation area rather than the cylinder dimensions alone. Your installer must allow enough space for the expansion vessel, valves, pipework, electrical connections and future servicing.

The supporting floor or structure must carry the cylinder’s full operating weight of approximately 334kg. In addition, the installer must position the supplied supports correctly and follow Ideal’s latest installation instructions.

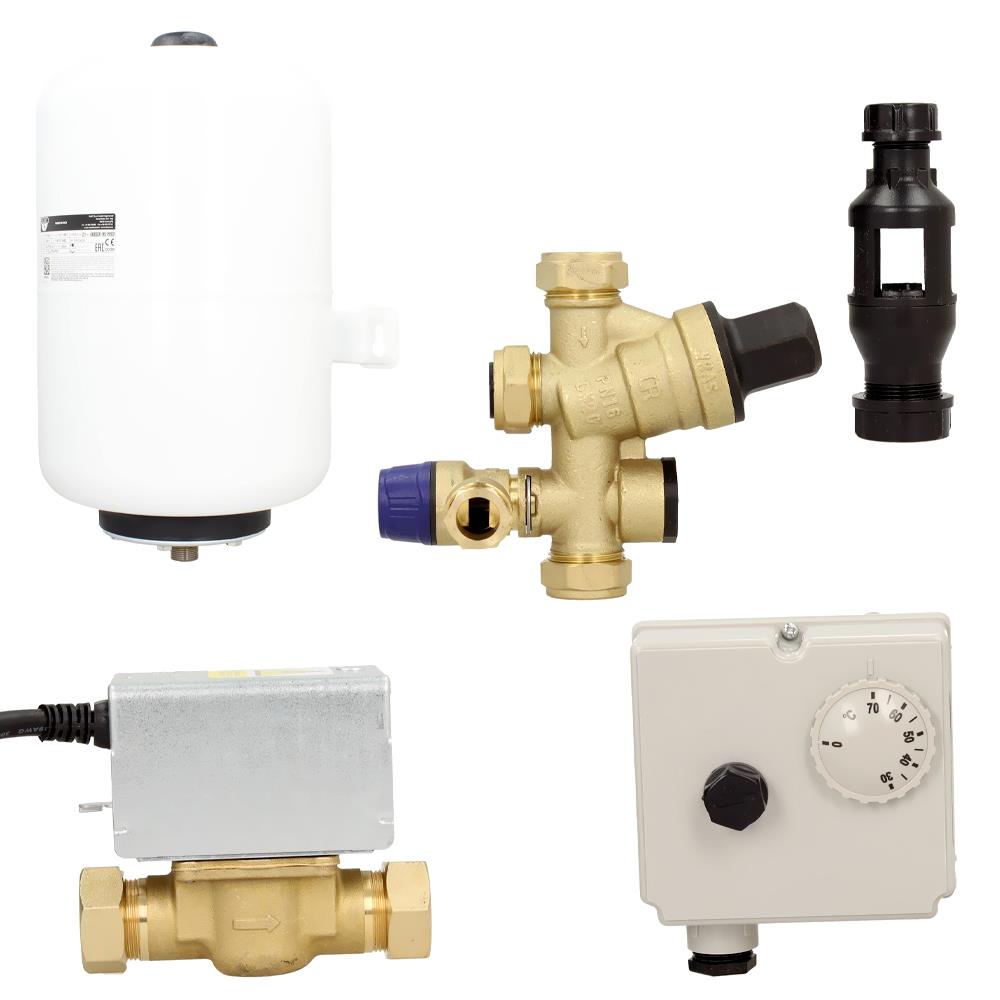

What Comes with the Cylinder?

  • 1 x Ideal Pro Horizontal 300L indirect unvented cylinder
  • 2 x 3kW Incoloy immersion heaters
  • 1 x cold-water inlet combination valve and expansion relief valve
  • 1 x temperature and pressure relief valve
  • 1 x control thermostat and energy cut-out thermostat
  • 1 x energy cut-out motorised valve
  • 1 x expansion vessel with wall-mounting bracket
  • 1 x tundish
  • Horizontal cylinder support brackets
  • Technical and user literature

The installation may need extra valves, controls, fittings and discharge pipework. Therefore, your installer should check the complete system design before starting work.

How Does an Indirect Cylinder Work?

An indirect cylinder contains a heating coil inside its stainless steel vessel. A compatible boiler circulates heated primary water through this coil. The coil then transfers heat into the stored domestic hot water.

Meanwhile, the unvented design takes cold water directly from the mains supply. As hot water leaves the cylinder, incoming mains water replaces it. Therefore, the system does not need a traditional cold-water storage tank in the loft.

The two immersion heaters provide electric backup and boost options. However, the boiler and primary coil normally provide the main source of heat.

What Is a Secondary Return?

The Ideal Pro Horizontal 300L cylinder includes a 22mm secondary return connection. This allows a qualified installer to create a pumped hot water circulation loop where required.

A secondary return can help reduce the time it takes for hot water to reach distant taps. Therefore, it may suit larger properties with long pipe runs, several bathrooms or outlets located far from the cylinder.

However, the installer must design and insulate the circulation system correctly. Otherwise, the additional pipework may increase heat loss and running costs.

Where Can You Install a Horizontal Cylinder?

The Ideal Pro Horizontal cylinder may suit properties where limited floor-to-ceiling height prevents the use of a standard upright cylinder. Possible locations include:

  • Loft and roof spaces
  • Areas beneath sloping roofs
  • Eaves storage areas
  • Low plant rooms
  • Wide airing cupboards with limited height
  • Large renovation and conversion projects

However, the location must provide safe access, suitable structural support and enough space for maintenance. The cylinder must also remain protected from freezing.

Is a 300L Cylinder Suitable for My Home?

Ideal’s model selection guide suggests that this size may suit some homes with three bathrooms. It may also suit properties with up to six bedrooms or approximately nine bed spaces.

However, this provides guidance only. The correct cylinder size depends on several factors:

  • The number of people living in the property
  • The number of bathrooms and shower rooms
  • The size and type of baths
  • Whether several outlets run at the same time
  • The boiler output
  • The incoming mains water pressure and flow
  • The required cylinder recovery time
  • Whether the property uses secondary circulation

For this reason, always ask a qualified installer to calculate the required capacity before ordering.

Direct or Indirect Cylinder?

Choose an indirect cylinder when a suitable boiler will provide the main source of hot water heating. The boiler transfers heat through the cylinder’s internal primary coil, while the immersion heaters provide electric backup.

In comparison, a direct cylinder uses electric immersion heaters as its main heat source. It does not contain a primary coil for connection to a boiler.

Therefore, check the property’s heating system carefully before ordering. Direct and indirect cylinders cannot always replace each other without changes to the installation.

Mains Water Requirements

For optimum performance, Ideal recommends an incoming dynamic water pressure of approximately 3 bar and a flow rate of around 30 litres per minute.

The cylinder can operate with a lower flow rate or pressure. However, this will reduce its hot water performance. In addition, the cylinder cannot improve a poor incoming mains supply.

Therefore, your installer should test both the available pressure and flow before recommending an unvented cylinder.

Installation Requirements

A suitably qualified installer must fit and commission this unvented cylinder. The installer must hold the correct qualification or recognised competence for unvented hot water systems.

In England and Wales, the installation must meet Part G3 of the Building Regulations. Different requirements apply in Scotland and Northern Ireland. Therefore, the installer must follow the regulations that apply at the installation address.

The installer must also follow Ideal’s latest instructions. These cover the cylinder supports, inlet controls, expansion vessel, motorised valve, safety valves and discharge pipework.

Furthermore, the cylinder requires regular maintenance. A qualified engineer should normally inspect it each year alongside the boiler service.

Why Choose the Ideal Pro Horizontal 300L Cylinder?

The Ideal Pro Horizontal 300L cylinder provides a practical solution for larger properties that need substantial hot water storage but have limited installation height.

Its 288-litre actual capacity can support homes with several bathrooms. Meanwhile, the 21.6kW primary coil provides fast boiler heating. Two immersion heaters offer electric backup, while the secondary return supports a suitable pumped circulation system.

Finally, the duplex stainless steel vessel, insulated construction and supplied unvented controls provide a complete package for a professionally designed hot water installation.

Why Buy from SNH Tradecentre?

  • Competitive prices on Ideal Heating products
  • Helpful product and technical advice
  • Genuine products from established manufacturers
  • Delivery to eligible Mainland England addresses
  • Trade and public customers welcome
  • Collection available from our Birchington, Kent trade counter
  • Independent UK plumbing and heating merchant

Ideal Heating may update product specifications, package contents and warranty terms without notice. Check the latest installation guide and confirm suitability with a qualified installer before ordering.

Additional Information

gtin

5056188304572

Manufacturer

Ideal

Brand

MPN

IDEPROIN300H

SKU

IDEPROIN300H

Unit Quantity

1

EAN

5056188304572

Warranty

25 Year (Subject to Manufacturers T&C's)

Range

Horizontal

condition

new

Woocategory1

Heating & Cooling

Woocategory3

Woocategory2

Hot Water Cylinders

Country/Region of Manufacture

United Kingdom

Energy Efficiency Rating

C

Style

Unvented Cylinder

Width

1990

Height

WRAS Approved

Yes

ccp_Type

Unvented Cylinder

Mount Type

Floor Standing

Litres

251 – 300

Country//Region of Manufacture

United Kingdom

Heating System

Storage Tank

Manufacturer Warranty

25 Year (Subject to Manufacturers T&C's)
