Product Description

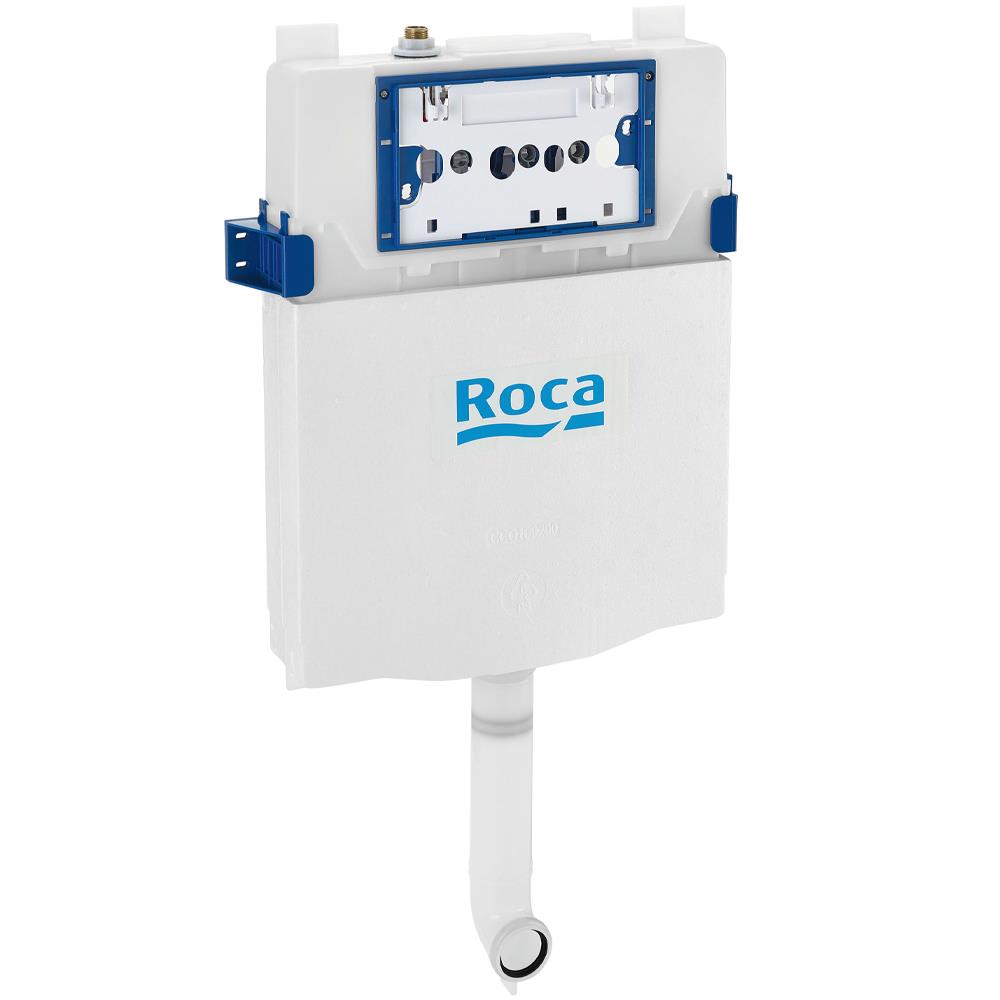

Roca Duplo One Compact Depth Concealed Cistern – A8900702A0

The Roca Duplo One Compact Depth Concealed Cistern offers a slim solution for back-to-wall toilet installations. With a depth of only 80mm, it can help save space inside a service wall, bathroom unit or suitable concealed void.

Roca designed this cistern for compatible floor-standing back-to-wall toilets. Once installed, the cistern sits out of sight behind the finished wall or furniture. As a result, the bathroom gains a clean and modern appearance.

The cistern supports several flush settings, including 4/2, 4.5/3 and 6/3 litres. Therefore, the installer can select a suitable setting during installation. It also has a front-operated flush plate position for easy use and future servicing.

Please note: This product does not include a toilet pan or operating flush plate. You will need to choose a compatible Roca Duplo One flush plate separately.

Roca Duplo One Compact Cistern Features

• Roca Duplo One compact concealed cistern
• Manufacturer model number: A8900702A0
• SNH reference: 120.BTCDO
• Only 80mm deep
• Suitable for compatible floor-standing back-to-wall toilets
• Front-operated flush plate position
• Dual-flush operation
• Choice of 4/2, 4.5/3 or 6/3 litre settings
• Preset flush setting: 6/3 litres
• Dynamic pressure range: 0.1 to 10 bar
• Top water inlet position
• Fits behind a suitable wall or bathroom unit
• Helps create a neat bathroom finish
• Compatible Duplo One flush plate required
• Toilet pan and flush plate not included

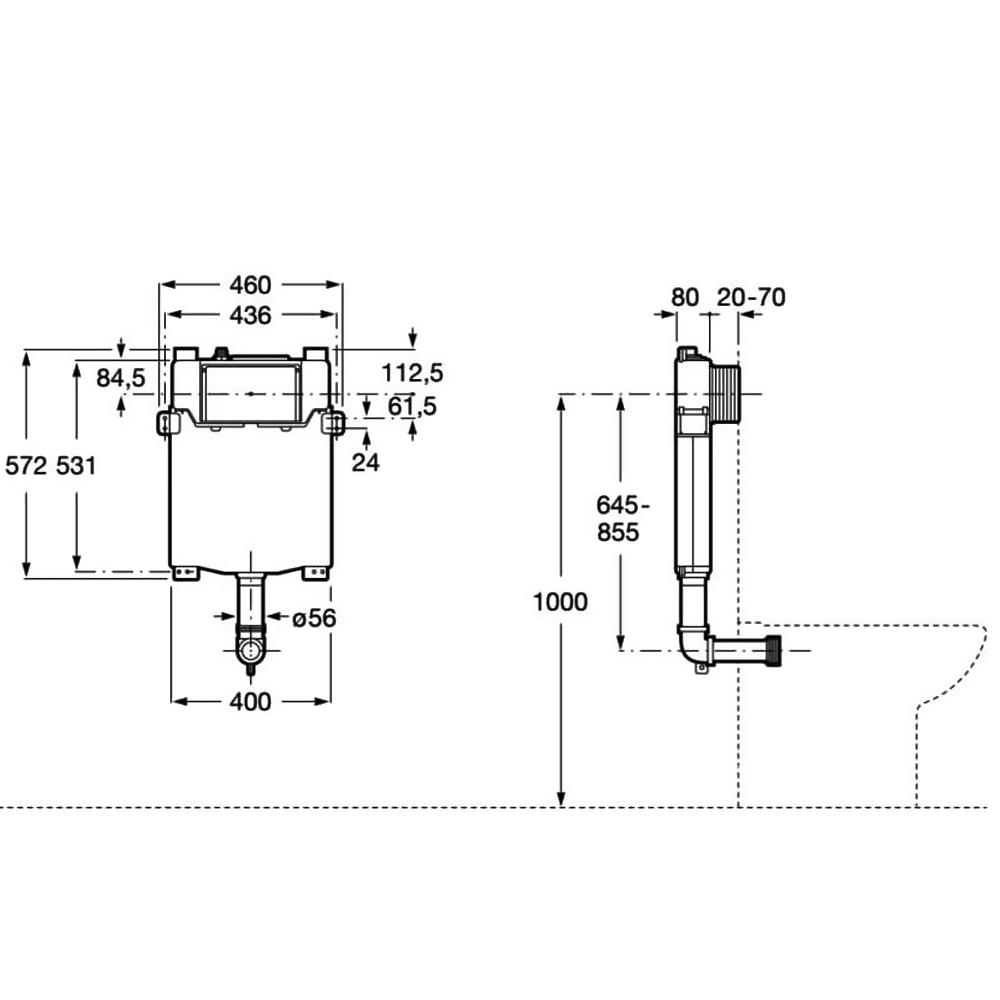

Concealed Cistern Dimensions

• Height: 645mm
• Width: 460mm
• Depth: 80mm
• Minimum fixing depth: 80mm

Before you order, check the available height, width and depth. Also, allow enough space for the water supply, flush pipe, waste connection and wall finish. Your installer should confirm all measurements against the latest Roca technical information.

What Comes in the Box?

• 1 x Roca Duplo One concealed cistern
• 1 x concealed installation structure
• 1 x fixing kit

The package includes the cistern and its main installation parts. However, it does not include a toilet pan or operating flush plate. Your installer may also need extra pipework, fittings and wall materials to suit the bathroom.

Where Can You Use This Compact Concealed Cistern?

The Roca Duplo One compact cistern may suit bathrooms, en suites, cloakrooms and other areas where space is limited. Its slim 80mm depth can also help when installing a back-to-wall toilet within a bathroom unit or shallow service wall.

This model suits compatible floor-standing back-to-wall toilets. Therefore, it does not act as a support frame for a wall-hung pan.

However, each bathroom layout differs. For this reason, ask your installer to check the toilet, flush plate and installation space before you order.

Why Choose a Compact Concealed Cistern?

A compact concealed cistern hides the main flushing system behind a wall or bathroom unit. As a result, the bathroom gains a simple and tidy appearance.

First, the 80mm depth helps save valuable installation space. Next, the dual-flush system offers a choice of water volumes. Finally, the front flush plate opening gives access to the cistern for future servicing.

A concealed cistern can also work well with fitted bathroom furniture. However, the installer must leave enough access for maintenance and follow Roca’s latest fitting instructions.

Why Choose the Roca Duplo One Cistern?

Roca is a well-known maker of bathroom products and installation systems. The Duplo One range offers a choice of compatible cisterns and operating plates for modern bathroom projects.

This compact model measures only 80mm deep. Therefore, it can provide a useful option where a standard concealed cistern may take up too much space.

In addition, the installer can choose from several flush settings. This choice helps match the cistern to a suitable toilet pan and installation.

Why Buy from SNH Tradecentre?

• Competitive prices: We aim to offer excellent value across our Roca bathroom range.
• Helpful advice: Our team can help you check the cistern, toilet and flush plate details.
• Genuine Roca products: Buy with confidence from an established plumbing and heating merchant.
• Clear product information: We provide key measurements and links to technical documents.
• Delivery across the UK: We can send eligible bathroom products directly to your address.
• Local collection: Customers can collect eligible orders from SNH Tradecentre in Birchington, Kent.
• Trusted independent merchant: We supply homeowners, landlords, bathroom fitters and trade professionals.

Not sure if this Roca Duplo One compact concealed cistern will suit your toilet? Contact SNH Tradecentre before ordering. Our team can help you check the model number, measurements and compatible parts.

Installation Advice

A skilled bathroom installer or plumber should fit the concealed cistern. They must secure it correctly, connect the water supply and test the complete flush system.

Before closing the wall or bathroom unit, the installer should test all connections and check for leaks. In addition, they must keep the service opening clear so the cistern remains accessible through the flush plate.

Technical Documents and Product Information

• Download the Roca Duplo One installation manual
• View the Roca Duplo One compact cistern

Frequently Asked Questions

Is this cistern suitable for a wall-hung toilet?

No. Roca lists this model for compatible floor-standing back-to-wall toilets. It does not include the structural frame needed to support a wall-hung toilet pan.

How deep is the Roca Duplo One cistern?

The cistern measures only 80mm deep. Therefore, it can suit shallow service walls and some fitted bathroom furniture installations.

Does this package include a toilet pan?

No. You will need to buy a compatible floor-standing back-to-wall toilet separately.

Does it include a flush plate?

No. The operating flush plate comes separately. Therefore, choose a compatible Roca Duplo One flush plate before installation.

What flush settings can the installer choose?

The cistern supports 4/2, 4.5/3 and 6/3 litre dual-flush settings. The preset setting is 6/3 litres.

Where does the flush plate fit?

The operating plate fits at the front of the cistern. It also provides access to the internal parts for future checks and servicing.

Where does the water supply connect?

The water inlet sits at the top of the cistern. Your installer should check the available pipe route before fitting it.

Can I install the cistern inside bathroom furniture?

It may suit compatible bathroom furniture or a suitable service void. However, the installer must check the available space, fixing points and access needs.

Who should install this concealed cistern?

A skilled bathroom installer or plumber should complete the work. They must follow Roca’s latest instructions and test all connections before closing the wall.

Roca may change the product details from time to time. Therefore, check the latest technical data before you buy or install this concealed cistern.
