Product Description

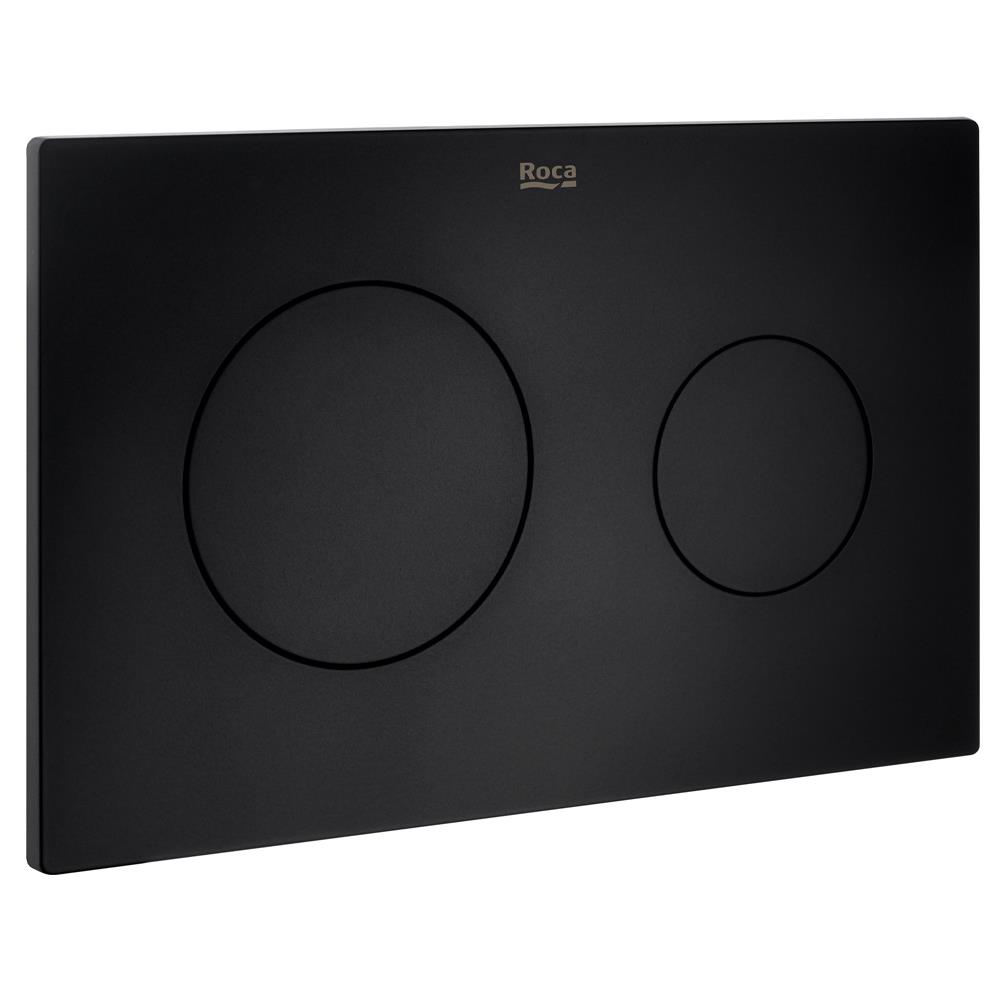

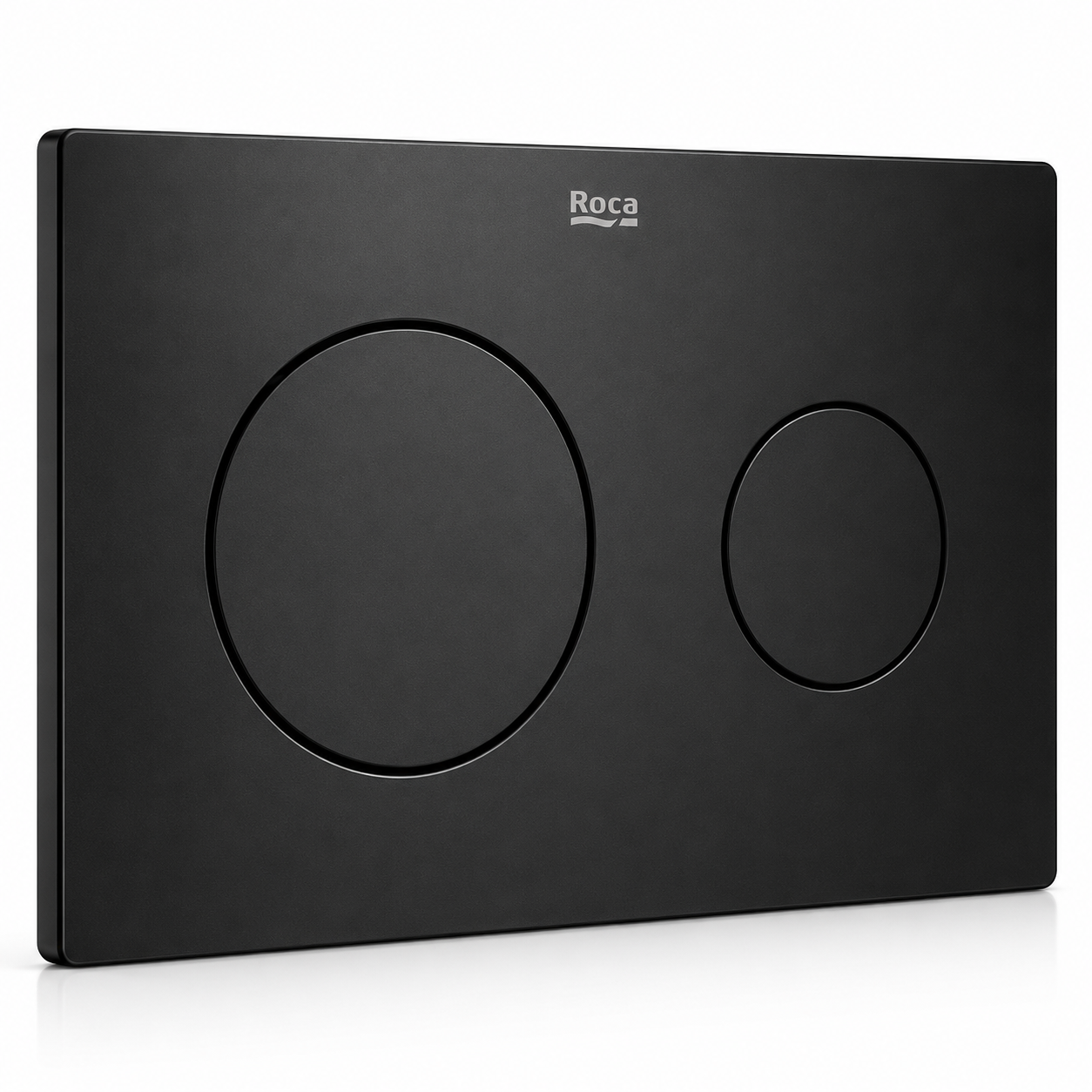

Roca Duplo One PL10 Dual Flush Plate – Matt Black

Part Numbers: A890189206 / 120.DOPL10MB

Give your concealed toilet installation a bold, modern finish with the Roca Duplo One PL10 Dual Flush Plate in Matt Black. Its slim rectangular design creates a clean appearance, while the deep black finish adds contrast to light tiles and bathroom furniture.

The two-button control lets the user select a reduced or full flush. Therefore, it provides simple flush control while helping to reduce unnecessary water use when connected to a compatible Roca Duplo One concealed cistern.

Important: this flush plate only fits compatible cisterns and frames from the Roca Duplo One range. It does not fit every Roca concealed cistern.

Key Features

• Genuine Roca PL10 dual flush operating plate
• Designed for compatible Roca Duplo One concealed cisterns
• Two-button control for reduced and full flushing
• Stylish matt-black finish
• Clean and modern rectangular design

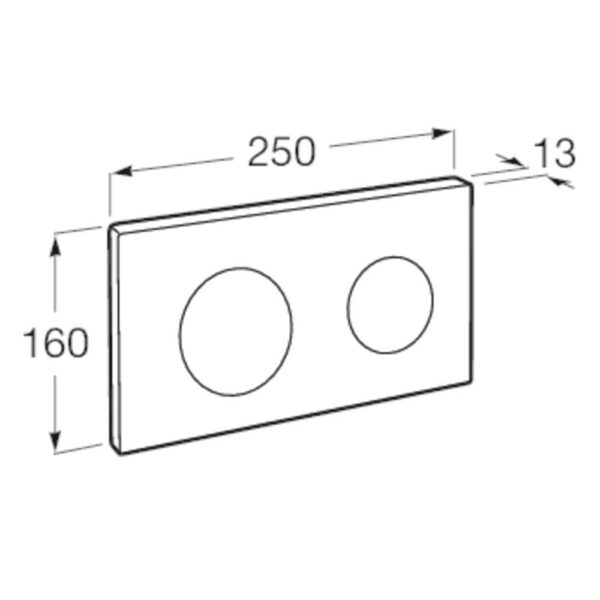

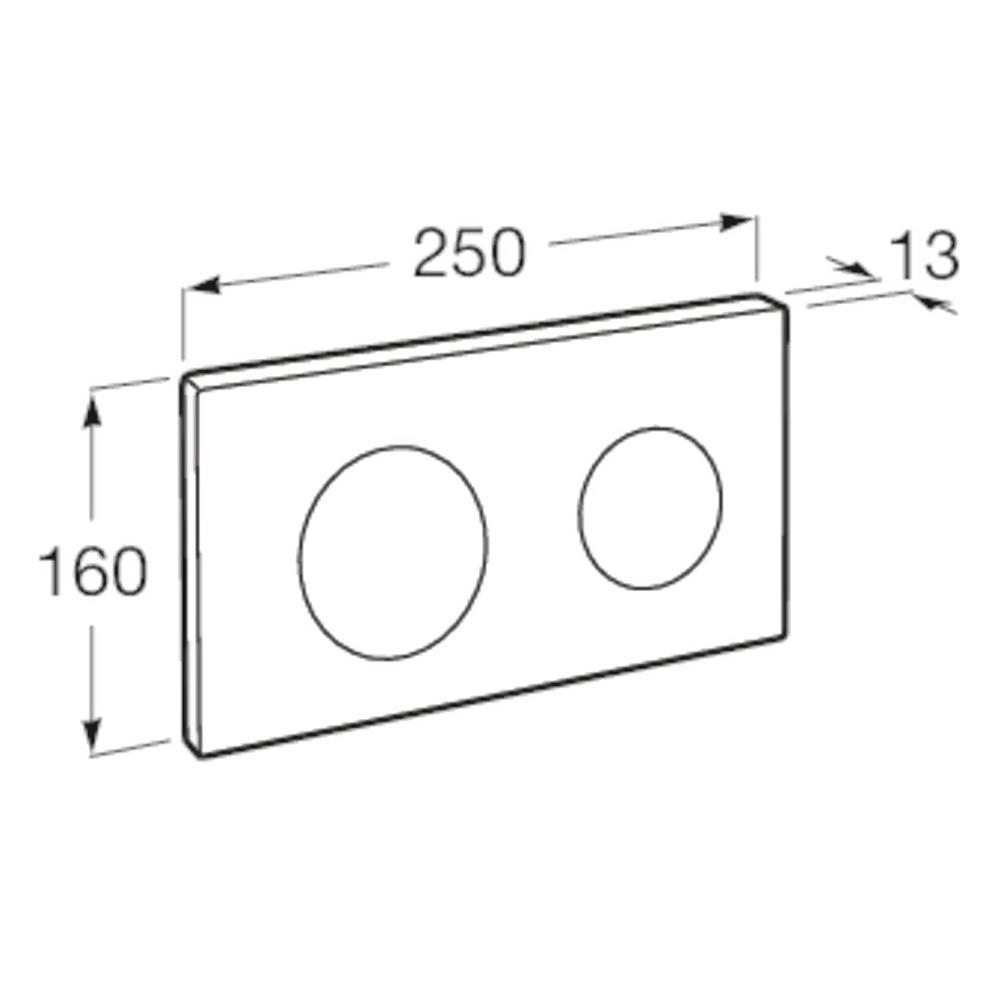

• Width: 250mm
• Height: 160mm
• Depth: 14mm
• Roca part number: A890189206
• SNH product code: 120.DOPL10MB

Modern Matt-Black Finish

The matt-black surface creates a bold contrast against white sanitaryware, pale tiles and neutral bathroom furniture. Furthermore, it coordinates well with black taps, shower controls, handles and other bathroom accessories.

The low-sheen finish offers a softer appearance than polished chrome. As a result, this PL10 plate works especially well in contemporary, industrial and monochrome bathroom designs.

At just 14mm deep, the plate also provides a neat, low-profile finish against the completed wall.

Dual Flush Control

The PL10 plate provides separate controls for the reduced and full flush settings available from the compatible cistern. Therefore, users can choose the smaller flush when the full water volume is not required.

The flush plate operates the cistern mechanism, but it does not determine the water volume itself. Consequently, the actual reduced and full flush volumes depend on the cistern model and its installation settings.

Compatibility

This PL10 operating plate works with compatible Roca Duplo One concealed cisterns and installation frames. Always check the cistern model or existing operating plate before ordering.

This product does not have universal compatibility. Flush plates from other Roca ranges may use different mounting points or operating mechanisms, even when they have similar dimensions.

If you cannot identify your concealed cistern, contact SNH Tradecentre with its model number or clear photographs before placing your order.

Roca Duplo One PL10 Matt-Black Flush Plate Specification

• View the Roca product information
• Product type: dual flush operating plate
• Range: Roca Duplo One PL10
• Finish: matt black
• Control type: two-button dual flush
• Width: 250mm
• Height: 160mm
• Depth: 14mm
• Roca part number: A890189206
• Alternative product code: 120.DOPL10MB
• Compatibility: selected Roca Duplo One concealed cisterns only

What Is Included?

• 1 x Roca Duplo One PL10 dual flush operating plate in matt black

Please note: the concealed cistern, toilet frame, WC pan and other installation components are not included.

Installation Guidance

Before installation, confirm that the concealed cistern belongs to the compatible Roca Duplo One range. Next, follow the fitting instructions supplied with the cistern and operating plate.

Fit the plate level and avoid using excessive force on its decorative surface. In addition, check that both buttons move freely and operate the correct flush functions before completing the installation.

Keep the opening behind the plate accessible because it may provide access to the concealed cistern for servicing. Therefore, do not seal the operating plate permanently to the wall.

Cleaning and Care

Clean the matt-black surface with a soft cloth and mild soapy water. Then dry it with a clean cloth to reduce water marks.

Do not use abrasive pads, scouring powders, bleach or strong chemical cleaners. In addition, avoid polish and wax because they may create shiny patches or alter the matt appearance.

Why Buy from SNH Tradecentre?

• Specialist plumbing and bathroom supplier
• Genuine branded bathroom components
• Practical compatibility advice from an experienced team
• Nationwide UK delivery options
• Secure online ordering
• Trade counter in Birchington, Kent
• Support before and after your purchase

Read reviews from SNH Tradecentre customers on Google.

Need help confirming compatibility with your concealed cistern? Call SNH Tradecentre on 01843 842727 before ordering.

Frequently Asked Questions

Which concealed cistern does this flush plate fit?

It fits compatible concealed cisterns and frames from the Roca Duplo One range. It does not fit every Roca concealed cistern.

What finish does this flush plate have?

This model has a matt-black finish. It coordinates well with black taps, showers, handles and bathroom accessories.

What are the flush plate dimensions?

The plate measures 250mm wide, 160mm high and 14mm deep.

Does it provide dual flushing?

Yes. Its two controls operate the reduced and full flush options provided by the compatible concealed cistern.

What flush volumes does it provide?

The flush plate controls the cistern, but it does not set the water volume. The actual flush volumes depend on the concealed cistern and its settings.

Does the package include a concealed cistern?

No. The package contains the PL10 dual flush operating plate only. The concealed cistern, frame and toilet pan are not included.

Is this flush plate universal?

No. Only use it with a compatible Roca Duplo One concealed cistern. Check the cistern model before ordering.

What is the Roca part number?

The Roca manufacturer part number is A890189206. The alternative SNH product code is 120.DOPL10MB.

How should I clean the matt-black finish?

Use a soft cloth with mild soapy water, and then dry the plate. Avoid abrasive products, bleach, polish and strong chemicals because they may damage the finish.

Will fingerprints show on the matt-black surface?

Handling may leave light marks on any dark surface. However, you can normally remove them with a soft, damp cloth before drying the plate.
