Product Description

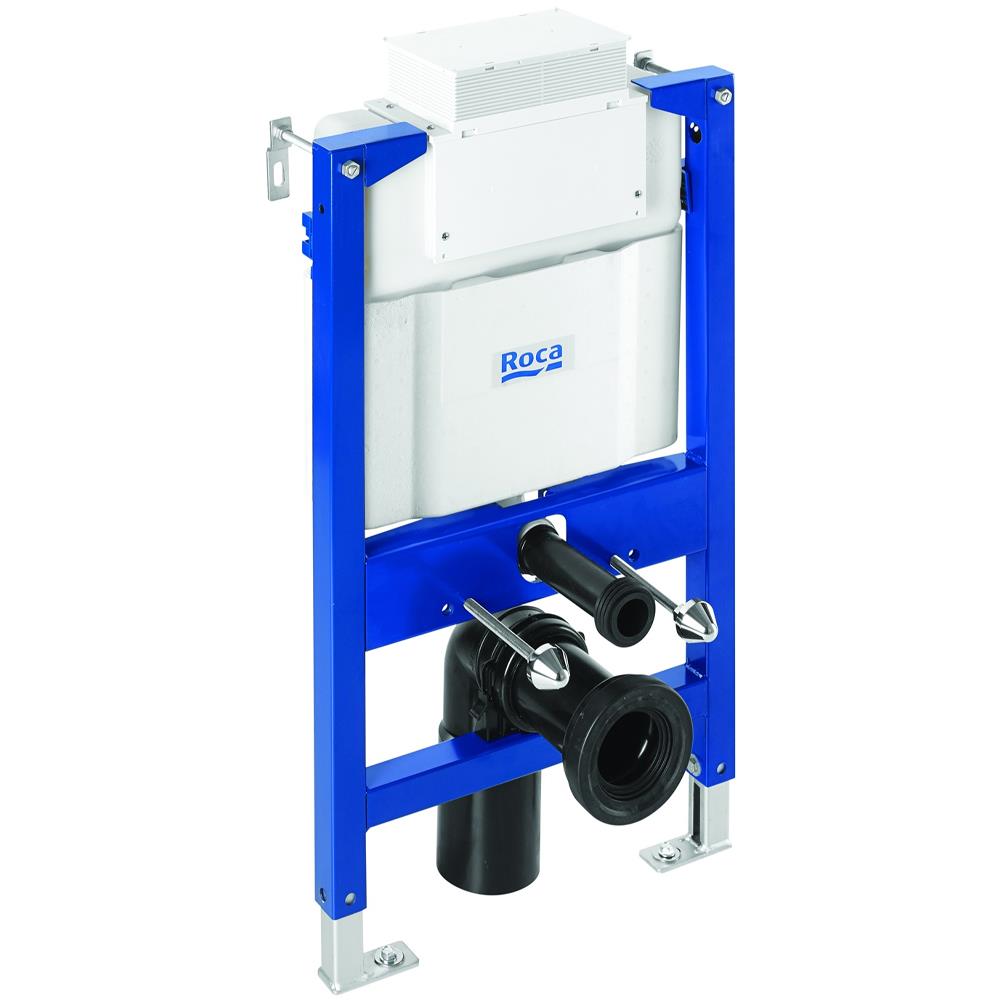

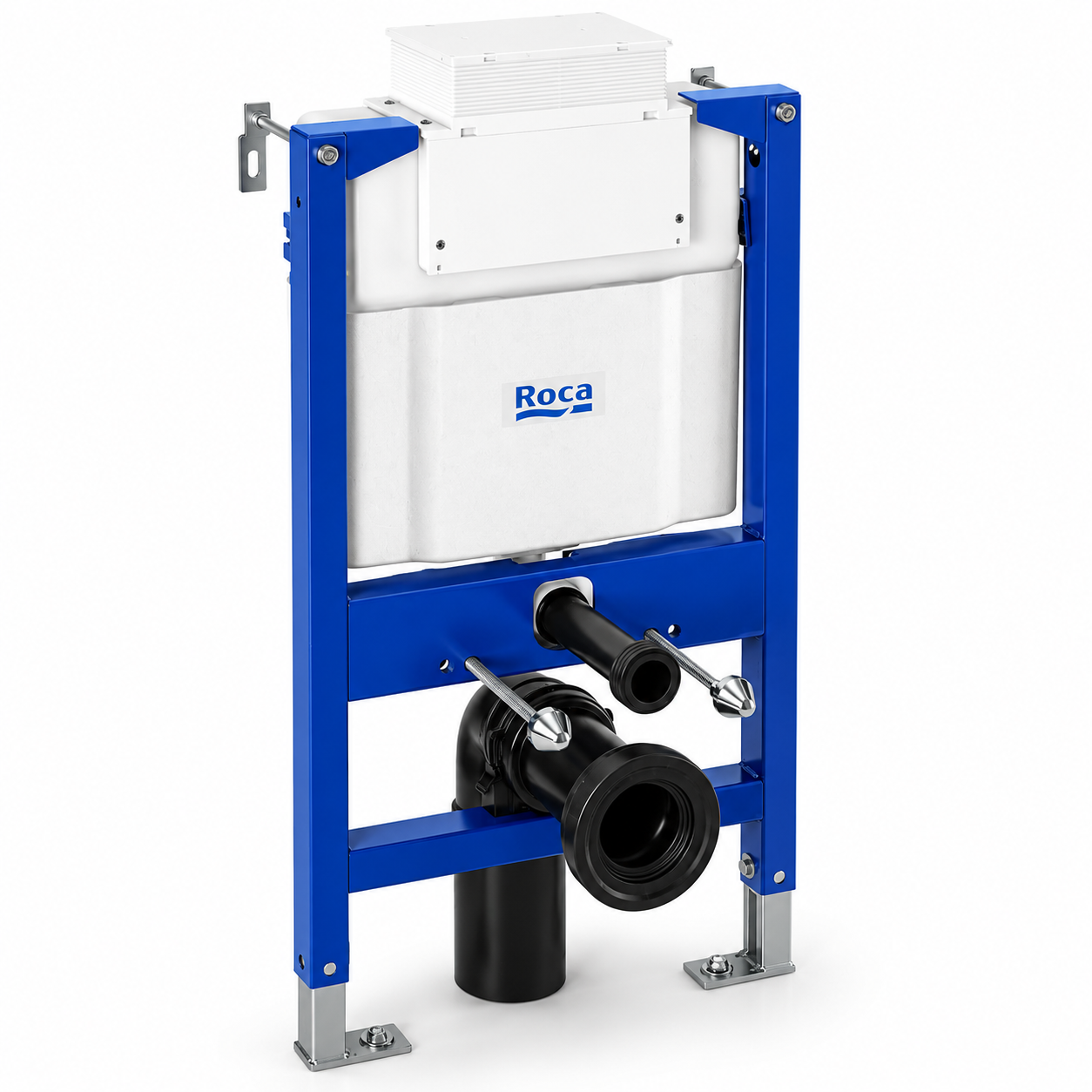

Roca Duplo One Under-Window WC Frame with Cistern – A8900720A0

The Roca Duplo One Under-Window WC Frame with Cistern provides a low-height support system for a compatible wall-hung toilet. Its wide, low design makes it a useful choice for bathrooms where a standard 1120mm frame would be too tall.

The complete frame measures only 530mm high. Therefore, it may fit beneath a suitable window, shelf or low bathroom ledge. Once installed, the steel frame and cistern sit behind the finished wall, helping to create a neat and modern appearance.

The strong frame supports a compatible wall-hung WC pan. Meanwhile, the concealed cistern provides a 6/3 litre dual flush. As a result, users can choose between a full and reduced flush.

The system uses a front-operated flush plate, which also provides access for future servicing. However, this package does not include the wall-hung toilet pan, seat or flush plate. You will need to choose compatible products separately.

Roca Duplo One Under-Window WC Frame Features

• Roca Duplo One under-window installation system
• Manufacturer model number: A8900720A0
• Low-height design for restricted installation areas
• Only 530mm high
• Strong steel support frame
• Includes a concealed dual-flush cistern
• Suitable for compatible wall-hung WC pans
• WC fixing centres: 180mm or 230mm
• 6/3 litre dual-flush operation
• Front-operated flush plate position
• Dynamic pressure range: 0.1 to 10 bar
• Side water inlet position
• DN90 waste connection
• Compatible with selected Roca Duplo One flush plates
• Toilet pan, seat and flush plate not included

WC Frame Dimensions

• Height: 530mm
• Width: 790mm
• Overall depth: 160mm
• Minimum fixing depth: 155mm
• Concealed cistern depth: 130mm

Before you order, check the space beneath the window or ledge. Also, allow enough room for the side water supply, waste connection and wall covering. Your installer should confirm every measurement against the latest Roca technical information.

What Comes in the Box?

• 1 x Roca Duplo One under-window steel WC frame
• 1 x concealed dual-flush cistern
• 1 x fixing kit

The package includes the main frame, cistern and installation fixings. However, it does not include the wall-hung toilet pan, toilet seat or operating flush plate. Your installer may also need extra fittings, pipework and wall materials.

Where Can You Use This Under-Window WC Frame?

The Roca Duplo One under-window frame may suit bathrooms with low windows, sloped ceilings or limited wall height. It can also work well beneath shelves and suitable bathroom ledges.

Its 530mm height offers more flexibility than a standard full-height frame. However, its 790mm width means that you must also check the available horizontal space.

The frame must connect to a suitable floor and supporting structure. Therefore, always ask a skilled installer to inspect the site before you buy.

Why Choose an Under-Window Toilet Frame?

A standard WC frame often measures around 1120mm high. In contrast, this Roca under-window frame measures only 530mm high. Therefore, it can provide a practical solution where vertical space is limited.

First, the steel frame supports the wall-hung toilet pan. Next, the concealed cistern hides behind the finished wall. Finally, the raised pan leaves the bathroom floor clear and makes cleaning easier.

The wide frame design also spreads the installation across a lower area. As a result, it can sit beneath a suitable window while still supporting the toilet pan.

Roca Duplo One Flush Plate Compatibility

This WC frame requires a compatible Roca Duplo One operating plate. Depending on the exact model and finish, suitable ranges may include:

• Roca PL1 flush plates
• Roca PL2 flush plates
• Roca PL3 and PL3 Pro flush plates
• Roca PL7 flush plates
• Roca PL10 flush plates

Roca also offers selected electronic Duplo One operating plates. However, always check the exact plate reference and compatibility before ordering.

Why Choose Roca Duplo One?

Roca is a well-known maker of bathroom products and installation systems. The Duplo One range includes full-height, compact and under-window frames for different bathroom layouts.

This model combines a low 530mm height with a concealed dual-flush cistern. Therefore, it offers a useful way to fit a wall-hung toilet beneath a window or in another height-restricted area.

In addition, the front-operated flush system provides access to the working parts. This opening helps make future checks and maintenance easier.

Why Buy from SNH Tradecentre?

• Competitive prices: We aim to offer excellent value across our Roca bathroom range.
• Helpful advice: Our team can help you check the frame, toilet pan and flush plate details.
• Genuine Roca products: Buy with confidence from an established plumbing and heating merchant.
• Clear product information: We provide key dimensions and links to technical information.
• Delivery across the UK: We can send eligible bathroom products directly to your address.
• Local collection: Customers can collect eligible orders from SNH Tradecentre in Birchington, Kent.
• Trade and public sales: We supply homeowners, landlords, plumbers and bathroom fitters.
• Trusted independent merchant: Our team offers support before and after your purchase.

Not sure if this Roca Duplo One under-window WC frame will fit your bathroom? Contact SNH Tradecentre before ordering. Our team can help you check the dimensions, product reference and compatible parts.

Installation Advice

A skilled bathroom installer or plumber should fit the frame and concealed cistern. The installer must secure the steel frame to a suitable floor and supporting structure. They must also follow Roca’s latest installation instructions.

Before closing the wall, the installer should test the water supply, cistern, flush system, waste connection and all joints. In addition, they must keep the front service opening clear for future access.

The installer should also check the window sill, finished pan height and flush plate position. This check is important because the low frame may affect the final position of the operating plate and ledge.

Manufacturer Warranty

• Up to 10-year manufacturer warranty on the Duplo One steel frame
• Up to 5-year manufacturer warranty on the concealed cistern
• Up to 2-year manufacturer warranty on compatible Duplo One flush plates

All warranty periods remain subject to Roca’s current terms, correct installation and registration requirements where applicable. Please note that this package does not include a flush plate.

Technical Documents and Product Information

• View the Roca Duplo One under-window WC frame

Frequently Asked Questions

Is this frame designed for installation beneath a window?

Yes. The low 530mm frame can suit installation beneath a suitable window or ledge. However, your installer must check the full 790mm width and available wall depth.

Is this frame suitable for a wall-hung toilet?

Yes. The steel frame supports a compatible wall-hung WC pan. However, the toilet pan and seat come separately.

What are the frame dimensions?

The frame measures 530mm high, 790mm wide and 160mm deep. It requires a minimum fixing depth of around 155mm.

Does the frame include a concealed cistern?

Yes. The package includes a concealed cistern with a 6/3 litre dual flush.

Does the package include a flush plate?

No. You must choose a compatible Roca Duplo One flush plate separately.

Which flush plates can I use?

Suitable options may include selected PL1, PL2, PL3, PL7 and PL10 flush plates. However, check the exact plate reference before ordering.

Where does the water supply connect?

The water inlet sits at the side of the concealed cistern. Therefore, the installer should check the available pipe route before fitting the frame.

What size waste connection does the frame use?

Roca lists a DN90, or 90mm, waste elbow connection for this frame.

Can I service the cistern after installation?

Yes. The flush plate opening provides access to the working parts inside the concealed cistern. Therefore, the installer must keep this access point clear.

Who should install this WC frame?

A skilled bathroom installer or plumber should complete the work. They must secure the frame correctly and follow Roca’s latest installation instructions.

Roca may change product details, compatibility and warranty terms. Therefore, check the latest technical information before you buy or install this WC frame.
